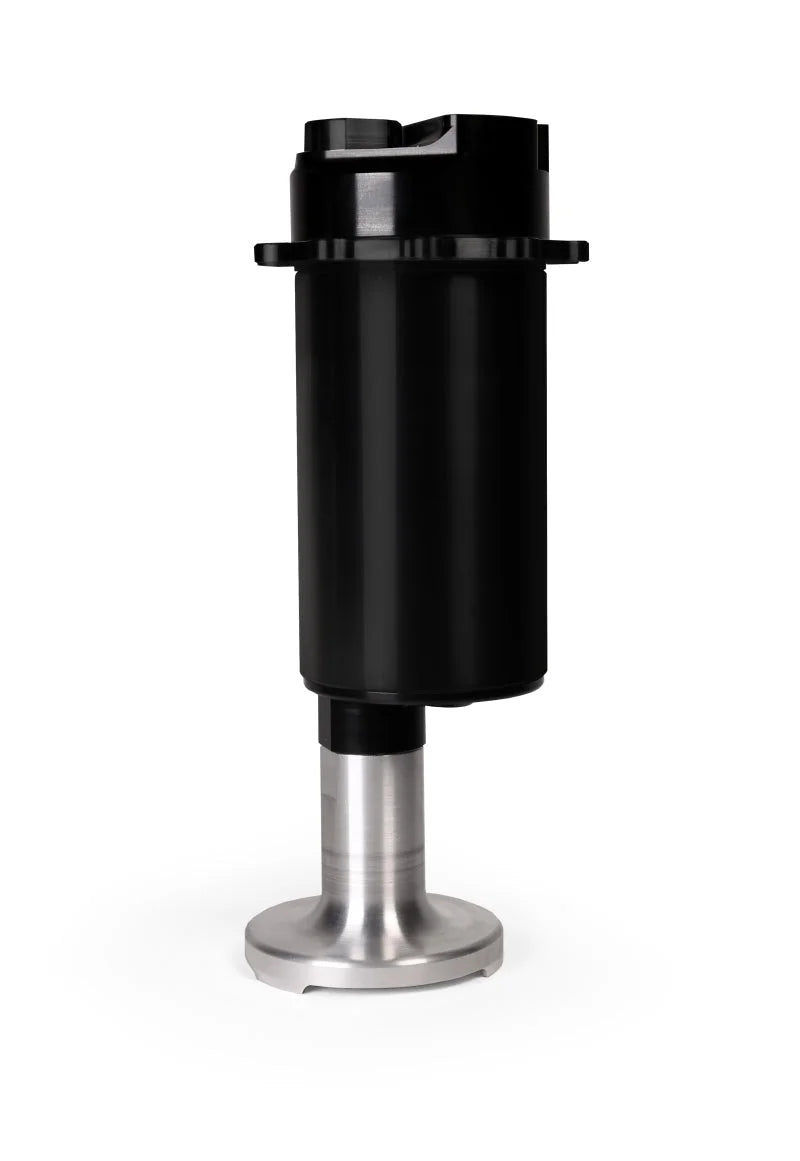

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Main Product View
Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Side View

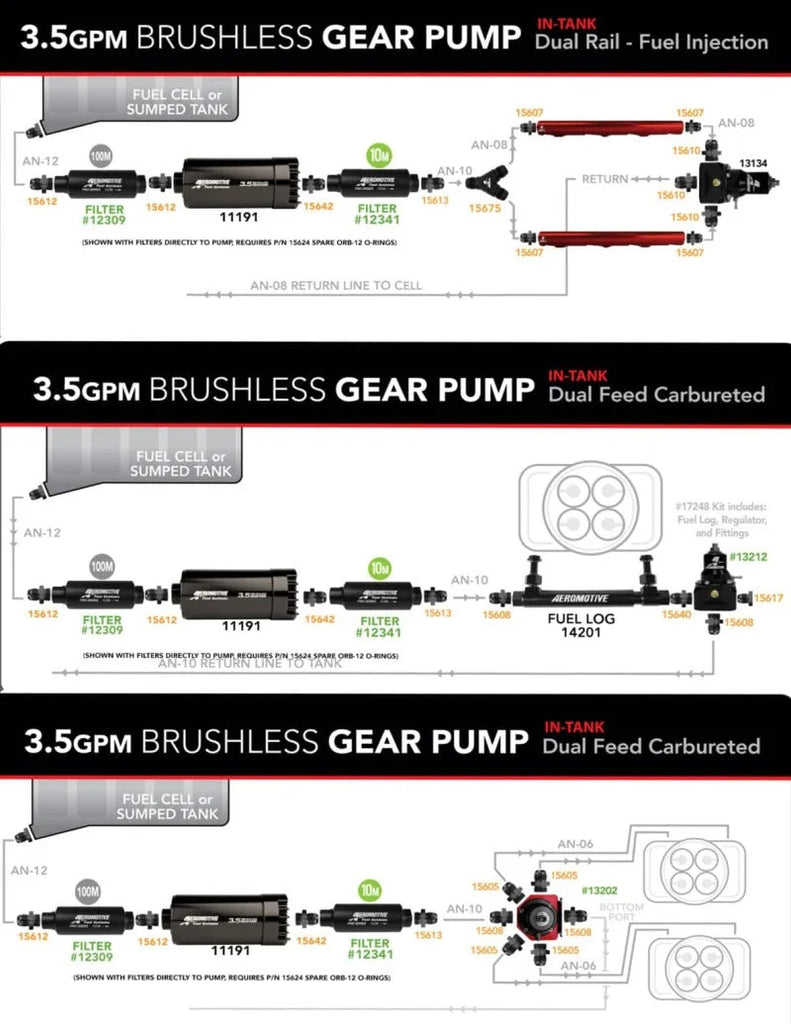

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Back View

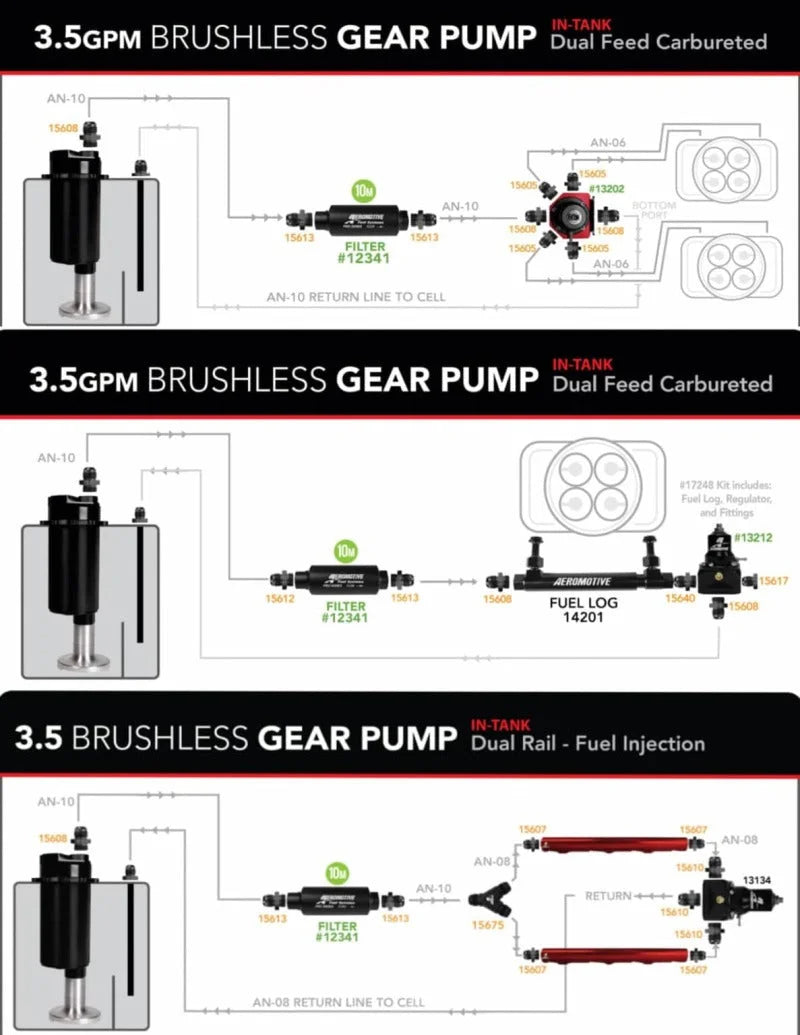

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Installation View

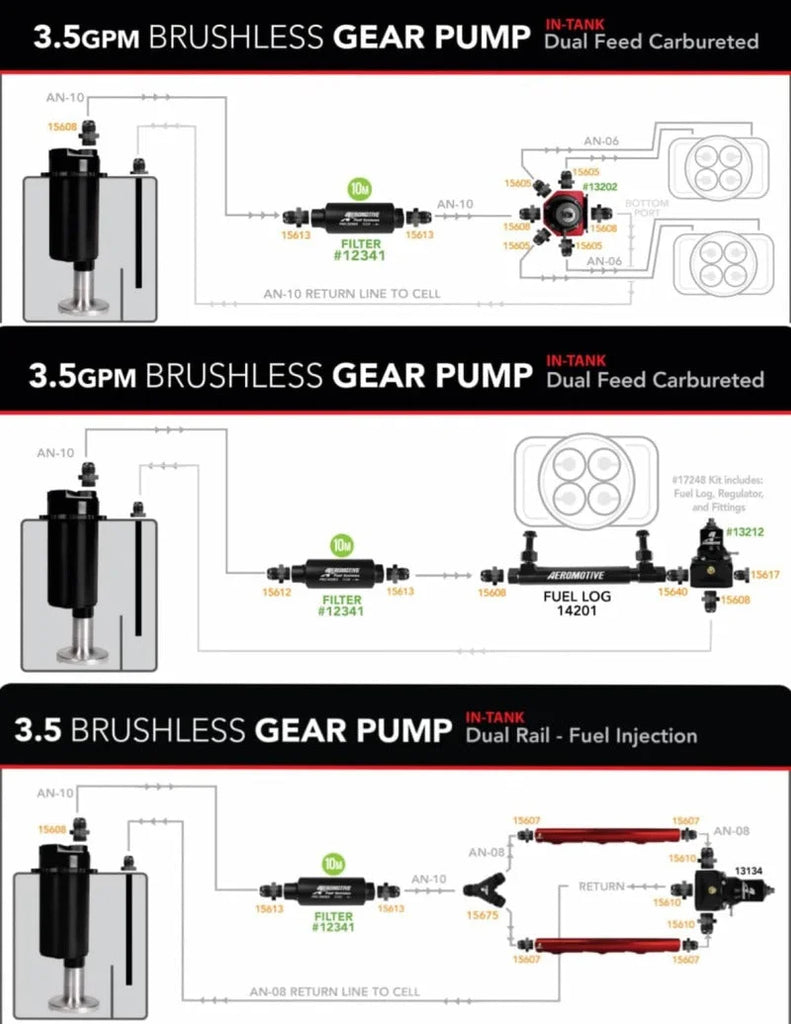

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Additional View 5
Click to zoom in
Load image into Gallery viewer, Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Main Product View
Load image into Gallery viewer, Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Side View
Load image into Gallery viewer, Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Back View
Load image into Gallery viewer, Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Installation View
Load image into Gallery viewer, Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5 - Additional View 5

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5

Aeromotive
18045
Special Order: Contact us to check stock and shipping lead times! Use LIVE HELP or call (724) 479-5480
$2,009.99 USD

NOT CARB LEGAL

$2,009.99 USD
Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5
Description
Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10? deep custom fuel cell. Aeromotive?s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. The Pro-Series performance you expect and more: Fuel injected engines: up to 2400 FWHP ? naturally aspirated, up to 1800 FWHP ? forced air induction. Carbureted engines: up to 2600 FWHP ? naturally aspirated, up to 2000 FWHP ? forced air induction. E85 Compatible, reduce max FWHP by 30%. Lighter than the traditional Pro-Series pump. Reduced current draw at higher, EFI pressures. Extended service life in methanol and ethanol. New integral spur-gear pumping mechanism. 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost. Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability. ORB-10 outlet port. Requires straight 12-VDC to 16-VDC power supply. Not compatible with pulse modulated systems or fuel pump speed controllers. EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts. Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts.
