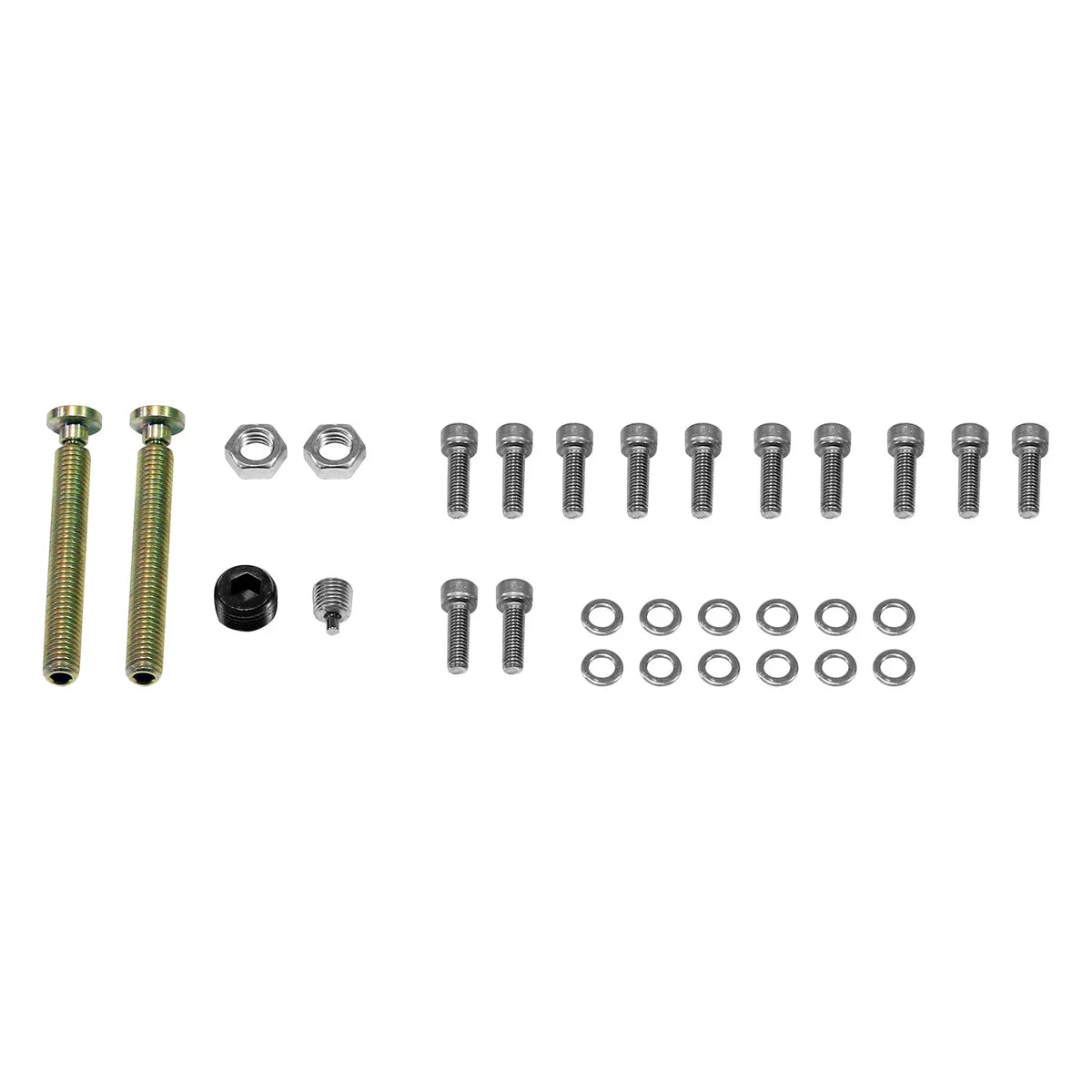

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the bearings, the ring and pinion gears. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home.
| Additional Fluid Capacity (qts) |
Yes |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
12 |
| 672 |
12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
3.55 |
| 673 |
Yes |
| Category |
Driveline and Axles |
| Color/Finish |
Black Anodized |
| Differential Cover Bolt Pattern |
AAM 9.5/9.76 |
| Differential Thickness (in) |
4 |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| Finish |
Black |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
12 |
| 9204 |
Yes |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Sub Category |
Differential |
| Warning |
California Proposition 65 |
| Additional Fluid Capacity (qts) |
Yes |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
12 |
| 672 |
12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
3.55 |
| 673 |
Yes |
| Category |
Driveline and Axles |
| Color/Finish |
Black Anodized |
| Differential Cover Bolt Pattern |
AAM 9.5/9.76 |
| Differential Thickness (in) |
4 |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| Finish |
Black |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
12 |
| 9204 |
Yes |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Sub Category |
Differential |
| Warning |
California Proposition 65 |
| Description_INV |
DIFF COVER AAM 9.5, 9.76-BLACK |
| Description_ASC |

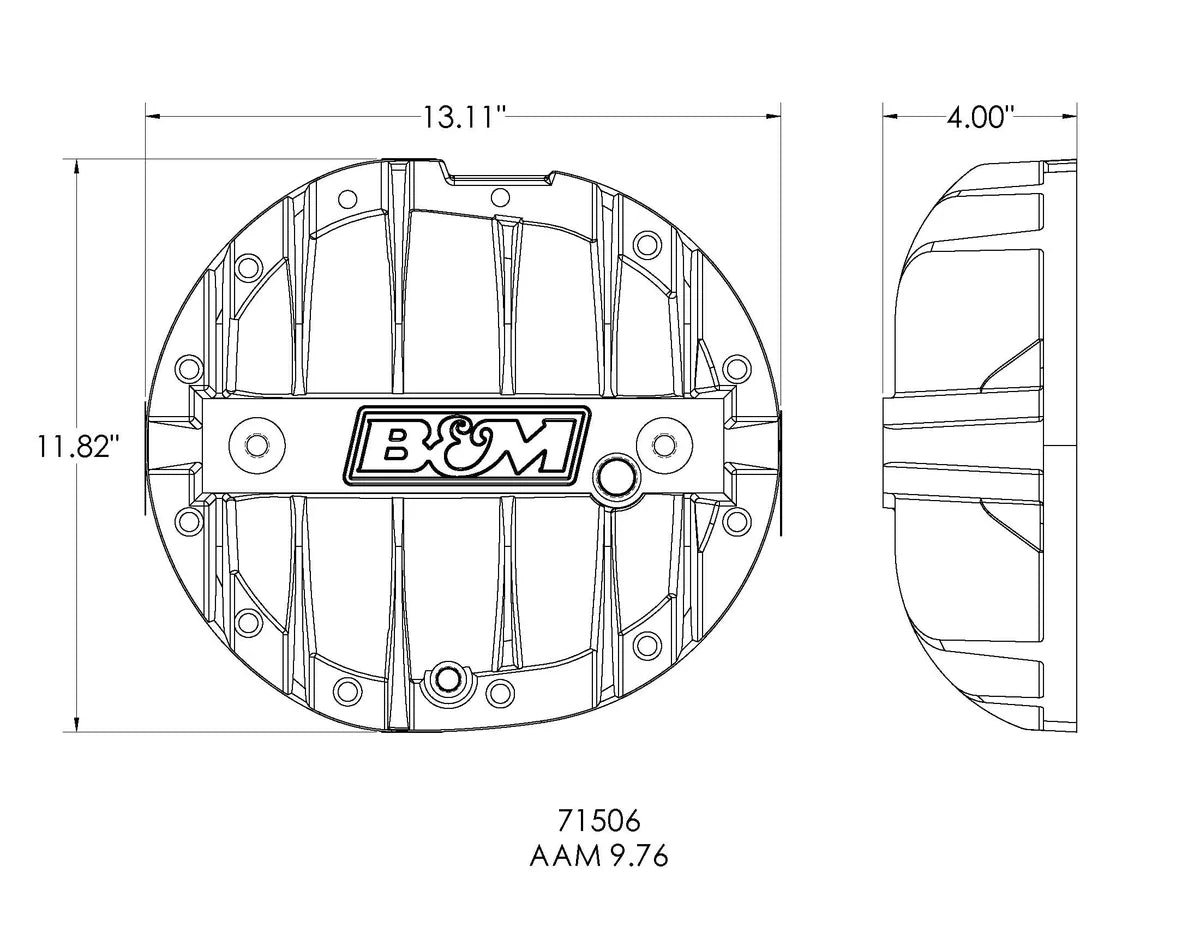

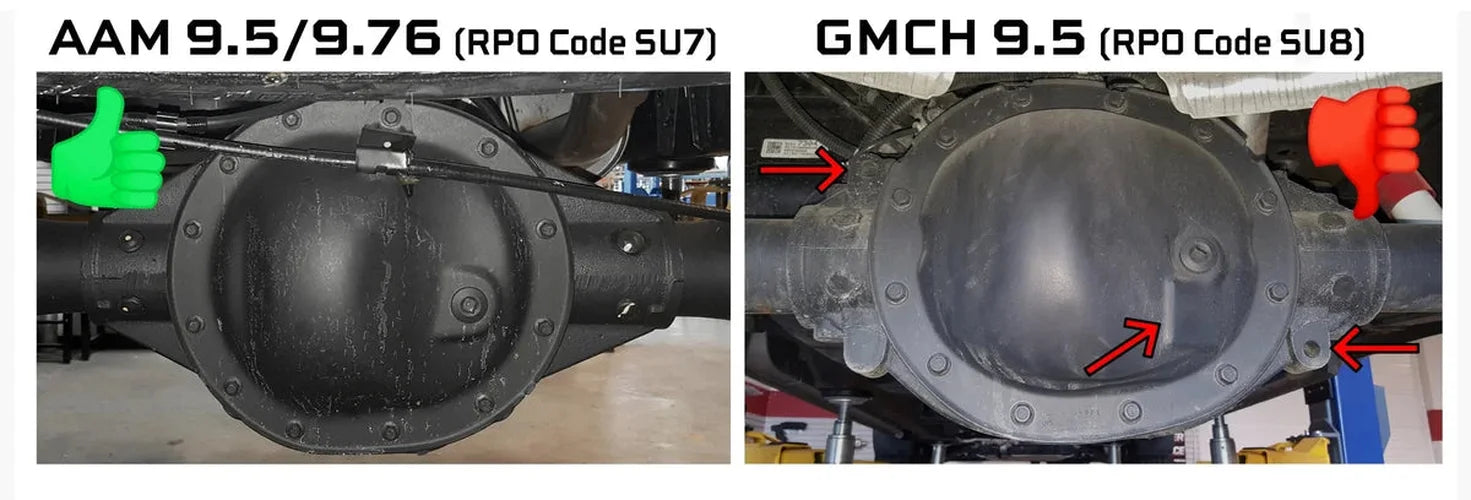

*Fits most vehicles with AAM 9.5/9.76 (SU7) rear differential, however, vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars, etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to the ID guide and measurement drawings for specifications.*Does not fit Silverado/Sierra with GMCH 9.5 (SU8) differential |
| Description_DES |

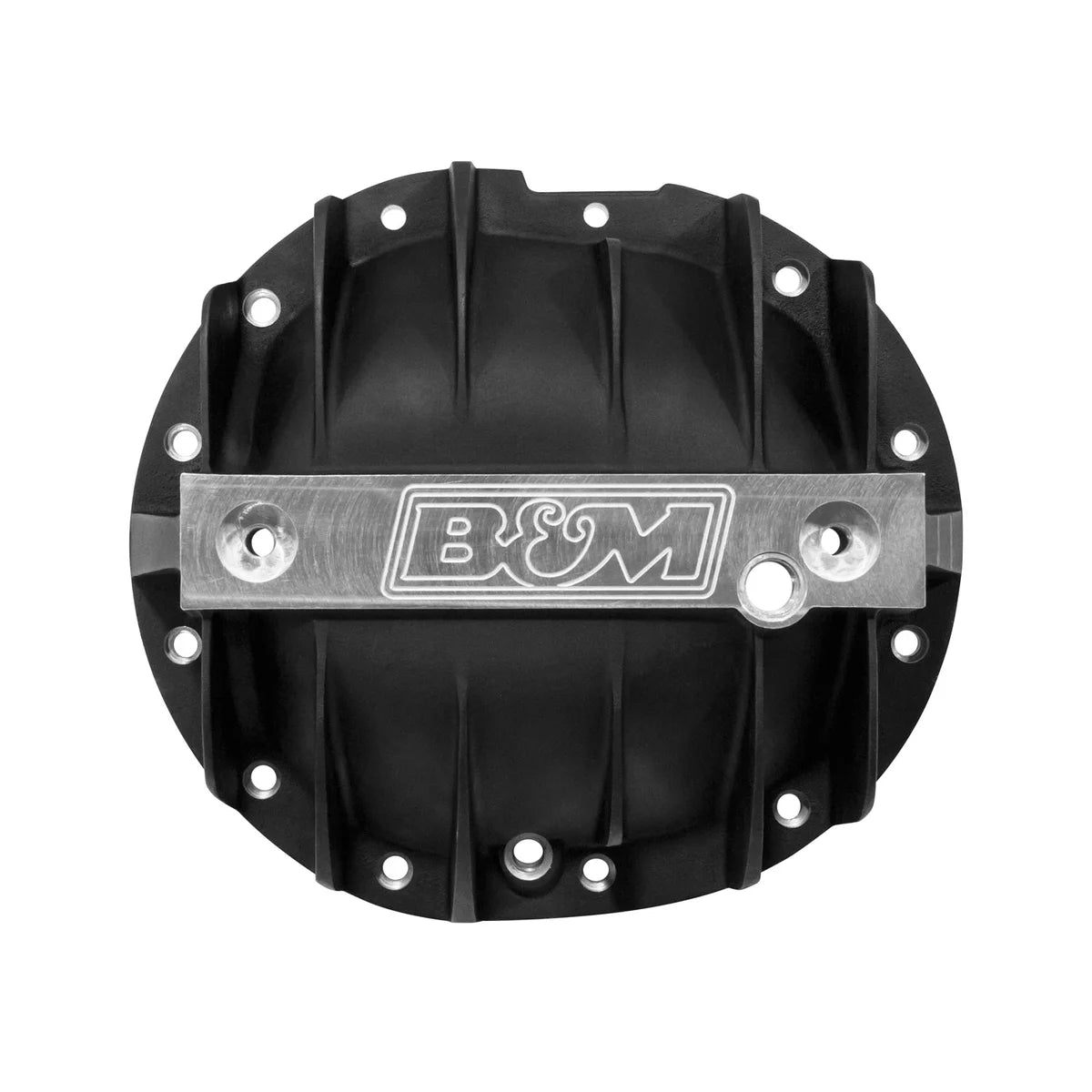

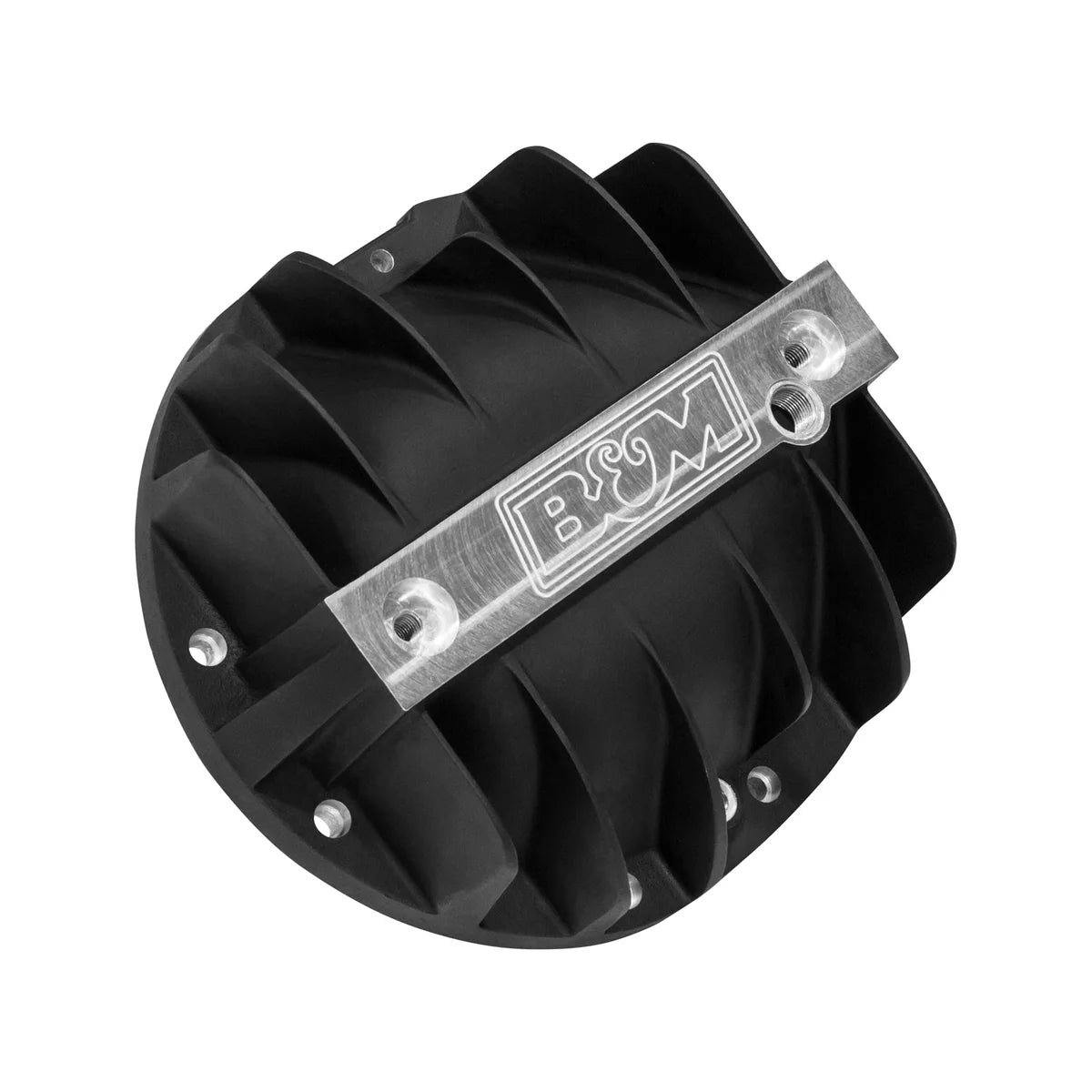

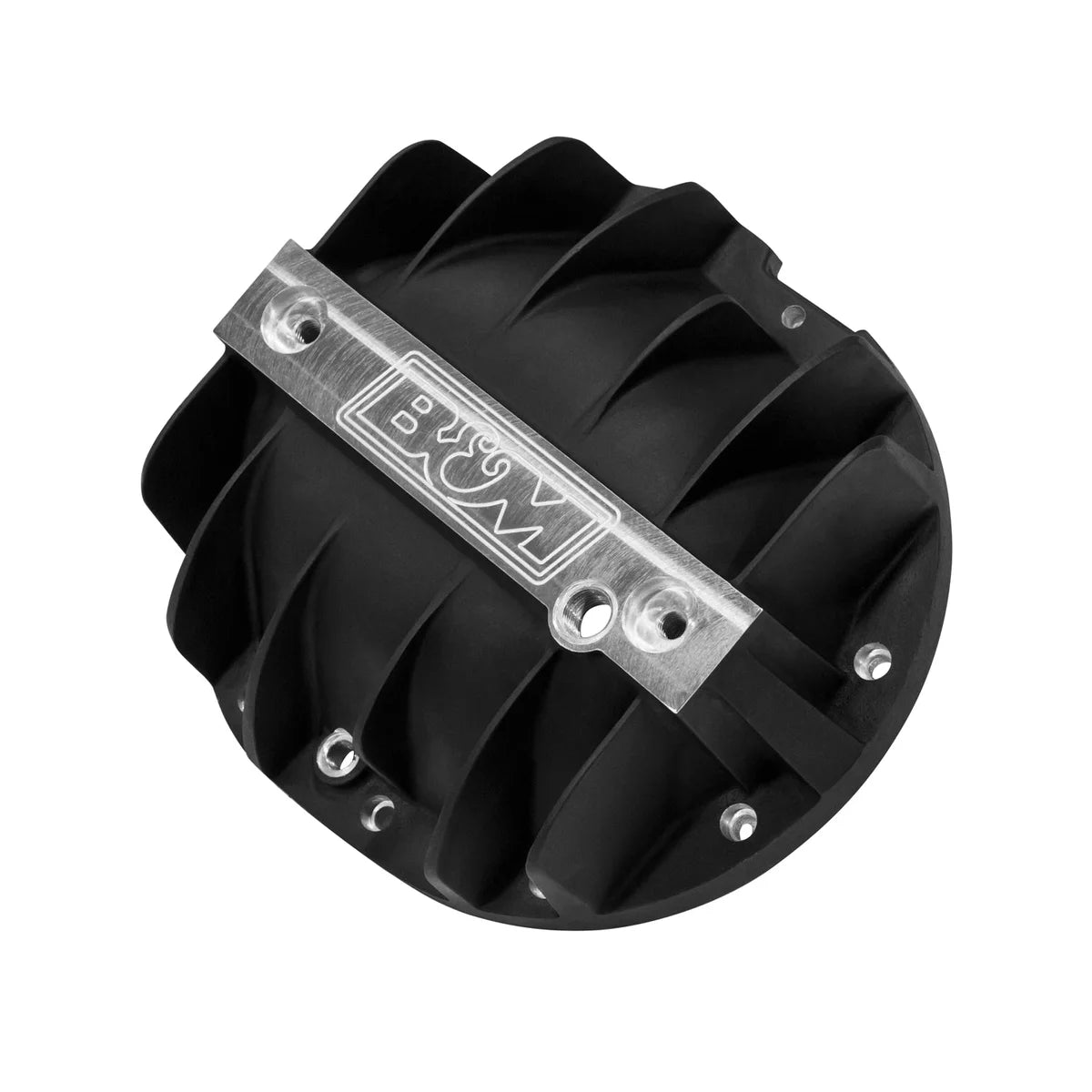

B&M Hi-Tek Aluminum Differential Cover for AAM 9.5/9.76 - Black |
| Description_EXT |
Fits Silverado/Sierra 1500, SUV, and Savana/Express 2500 or 3500 with SU7 Differential |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the bearings, the ring and pinion gears. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. |
| Description_FAB |
Load Bolts for Additional Support for Bearing Caps |
| Description_FAB |
Magnetic Drain Plug for Easy Servicing |
| Description_FAB |
A356.0-T6 Aluminum Construction |
| Description_FAB |
MIL-Spec Black Anodized Finish |
| Description_FAB |
Lifetime Limited Warranty |
| Description_FAB |
Additional Fluid Capacity |
| Description_FAB |
Machined B&M Logo |
| Description_INV |
DIFF COVER AAM 9.5, 9.76-BLACK |
| Description_ASC |
*Fits most vehicles with AAM 9.5/9.76 (SU7) rear differential, however, vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars, etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to the ID guide and measurement drawings for specifications.*Does not fit Silverado/Sierra with GMCH 9.5 (SU8) differential |
| Description_DES |
B&M Hi-Tek Aluminum Differential Cover for AAM 9.5/9.76 - Black |
| Description_EXT |
Fits Silverado/Sierra 1500, SUV, and Savana/Express 2500 or 3500 with SU7 Differential |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the bearings, the ring and pinion gears. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. |
| Description_FAB |
Load Bolts for Additional Support for Bearing Caps |
| Description_FAB |
Magnetic Drain Plug for Easy Servicing |
| Description_FAB |
A356.0-T6 Aluminum Construction |
| Description_FAB |
MIL-Spec Black Anodized Finish |
| Description_FAB |
Lifetime Limited Warranty |
| Description_FAB |
Additional Fluid Capacity |
| Description_FAB |
Machined B&M Logo |
