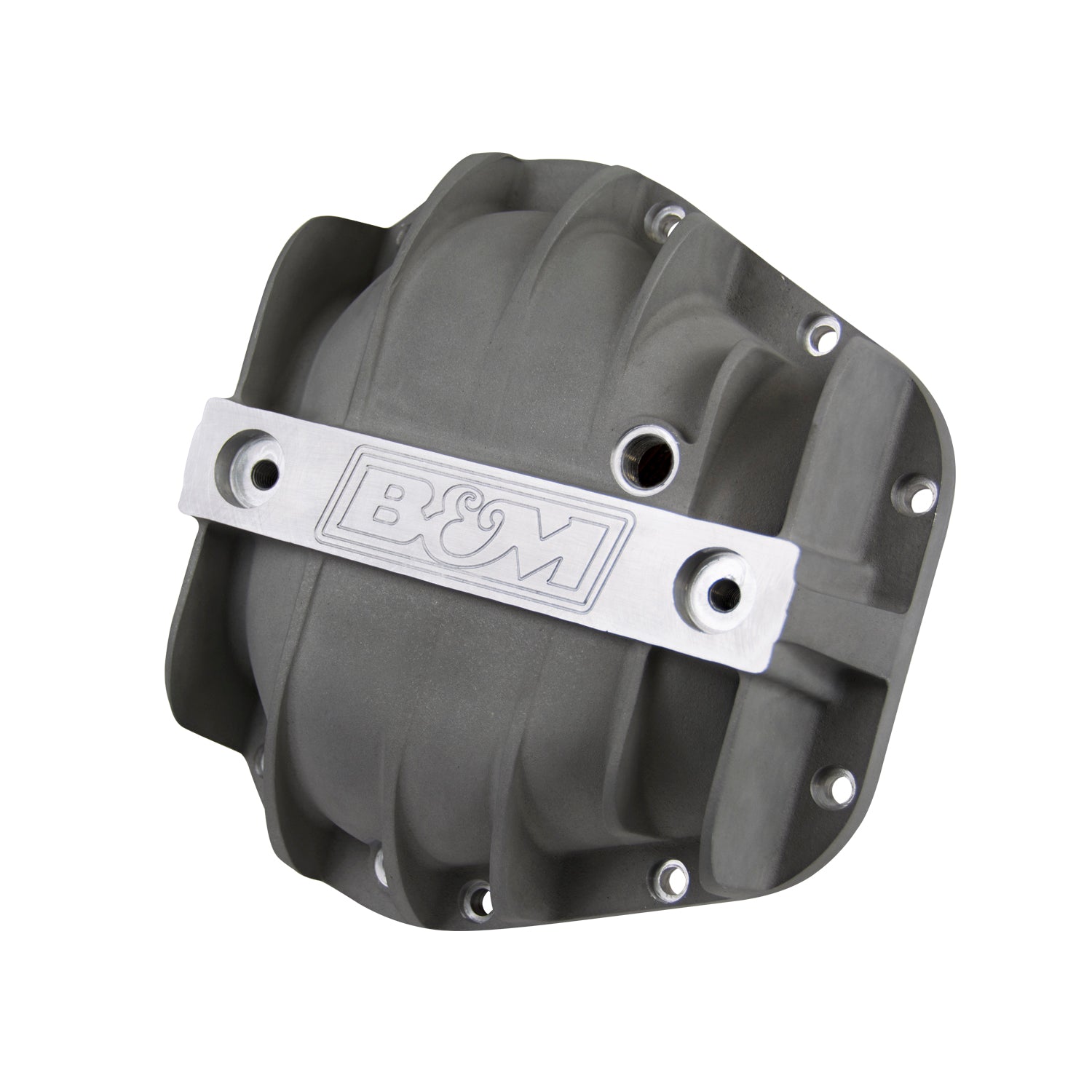

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.
Specifications:
| Additional Fluid Capacity (qts) |
No |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
10 |
| Bolt Pattern |
DANA 60/70 |
| 672 |
10 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
3.75 |
| 673 |
Yes |
| Category |
Transmission and Drivetrain |
| Color/Finish |
Cast Aluminum |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| 200 |
Cast Aluminum |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
10 |
| 9204 |
Yes |
| part type |
Differential Cover |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Thickness (in) |
3.75 |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited Lifetime Warranty |
| Description_ABR |
BM DC |
| Description_SHO |
Differential Cover |
| Description_INV |
DIFF COVERDANA 6070 CAST ALUM |
| Description_ASC |

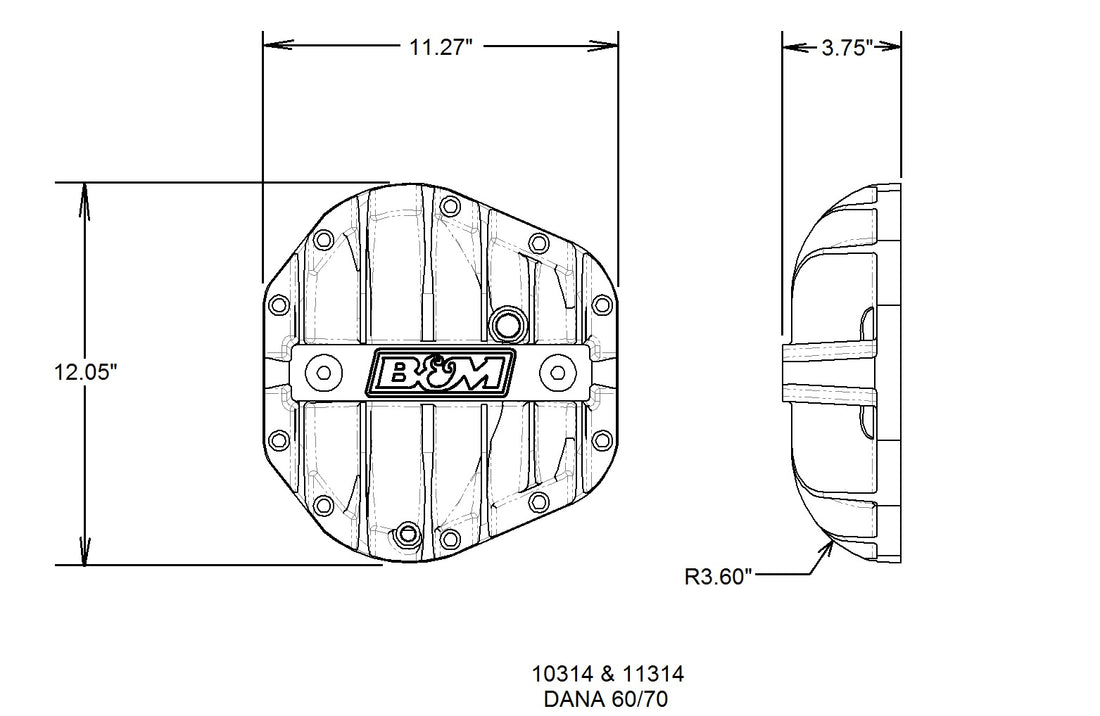

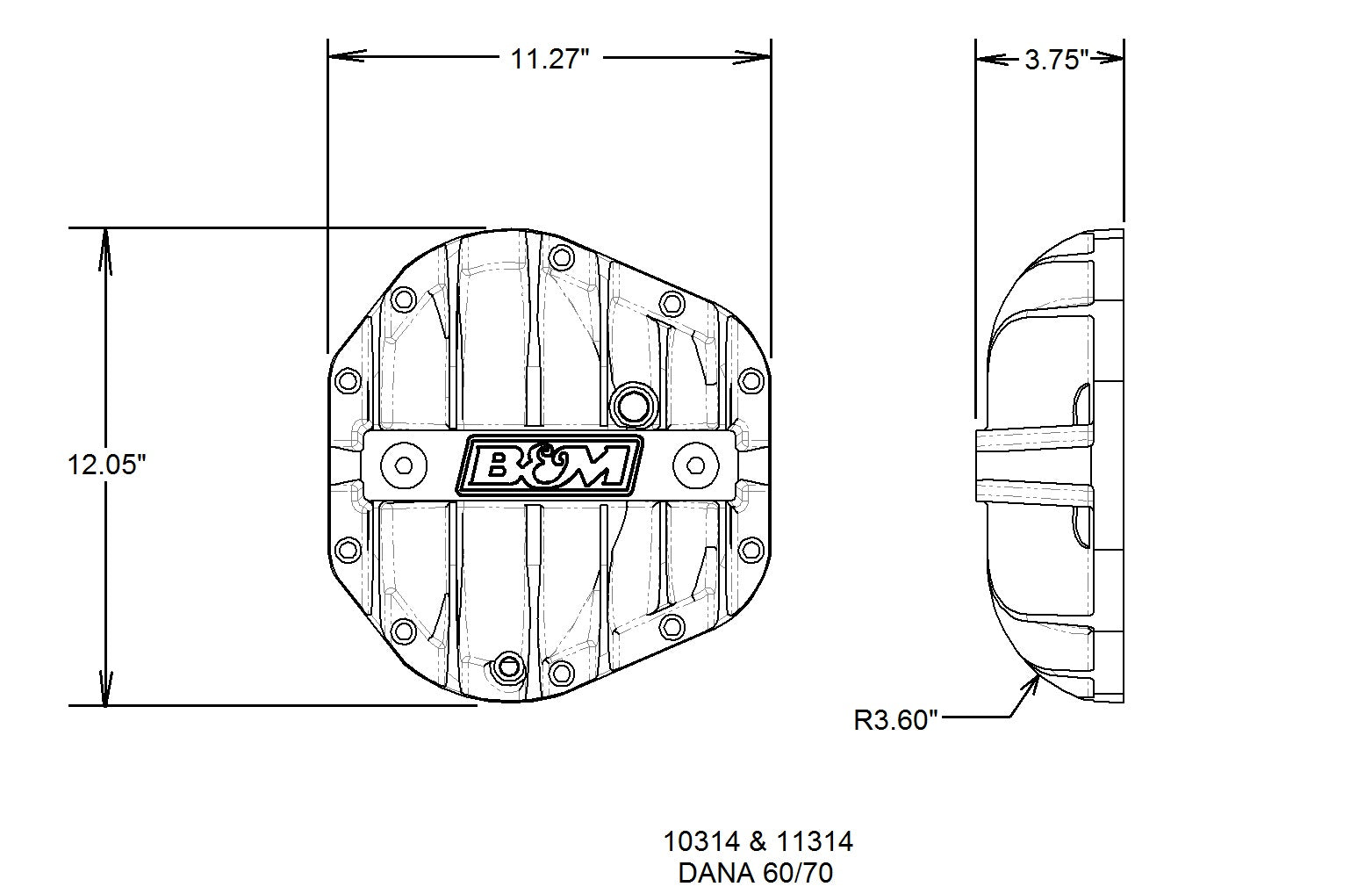

Designed to fit most vehicles with Dana 60 or a Dana 70 differential, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications. |
| Description_DES |
B&M Hi-Tek Aluminum Differential Cover for Dana 60/70 |
| Description_EXT |
Dana 60/70 Differential Cover. |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. |
| Description_FAB |
Load Bolts Provide Additional Support to Bearing Caps Magnetic Drain Plug for Easy Servicing A356.0-T6 Aluminum Construction Additional .5-quart Fluid Capacity Over 65 Years of B&M Quality Lifetime Limited Warranty Machined B&M Logo |
