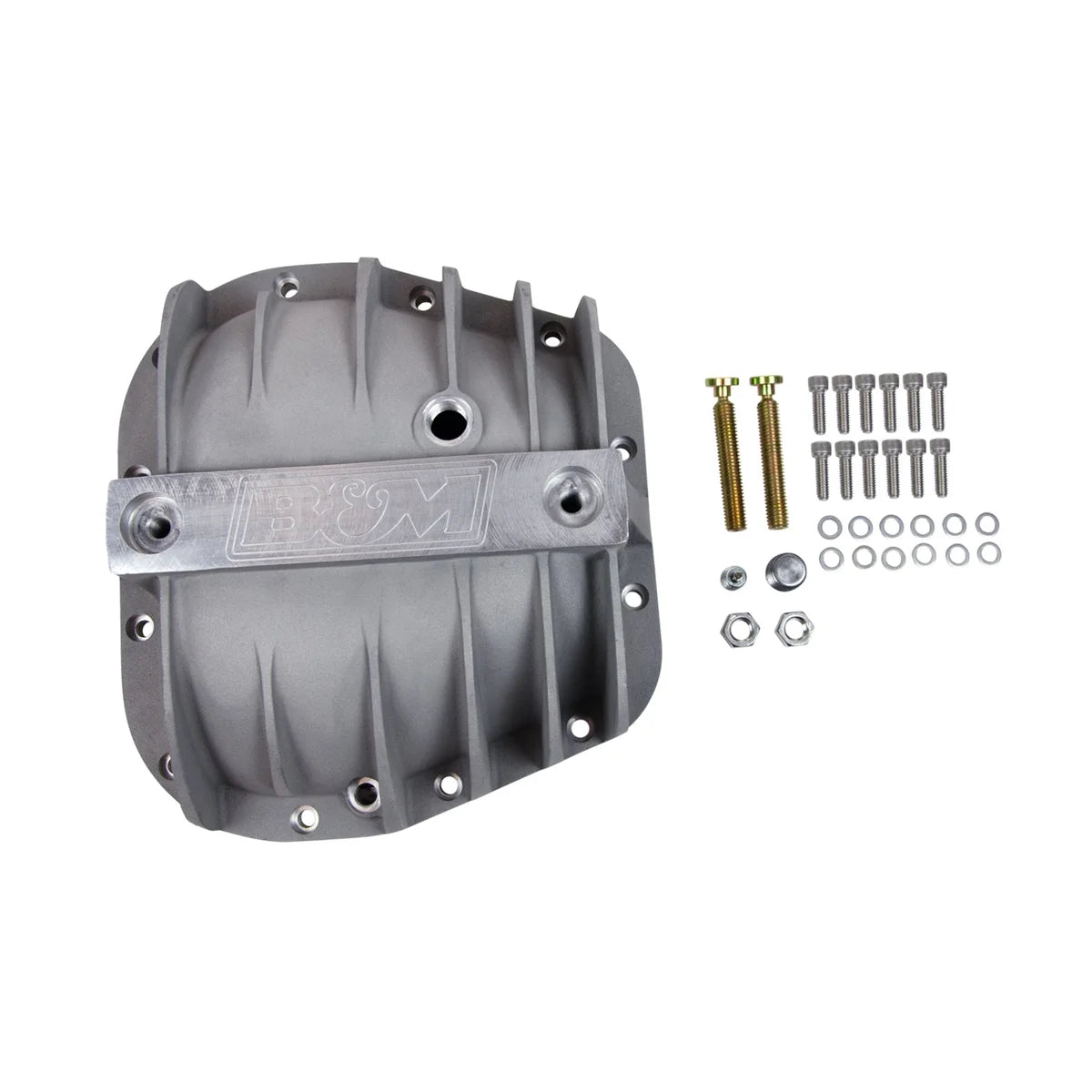

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a natural finish, a machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications.
| Additional Fluid Capacity (qts) |
No |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
12 |
| Bolt Pattern |
Ford 9.75 |
| 672 |
12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
3.28 |
| 673 |
Yes |
| Category |
Driveline and Axles |
| Color/Finish |
Raw Aluminum |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| 200 |
Cast Aluminum |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
12 |
| 9204 |
Yes |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Sub Category |
Differential |
| Thickness (in) |
3.84 |
| Warning |
California Proposition 65 |
| Additional Fluid Capacity (qts) |
No |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
12 |
| Bolt Pattern |
Ford 9.75 |
| 672 |
12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
3.28 |
| 673 |
Yes |
| Category |
Driveline and Axles |
| Color/Finish |
Raw Aluminum |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| 200 |
Cast Aluminum |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
12 |
| 9204 |
Yes |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Sub Category |
Differential |
| Thickness (in) |
3.84 |
| Warning |
California Proposition 65 |
| Description_INV |
2010-2022 DIFF COVER FORD 9.75" |
| Description_ASC |

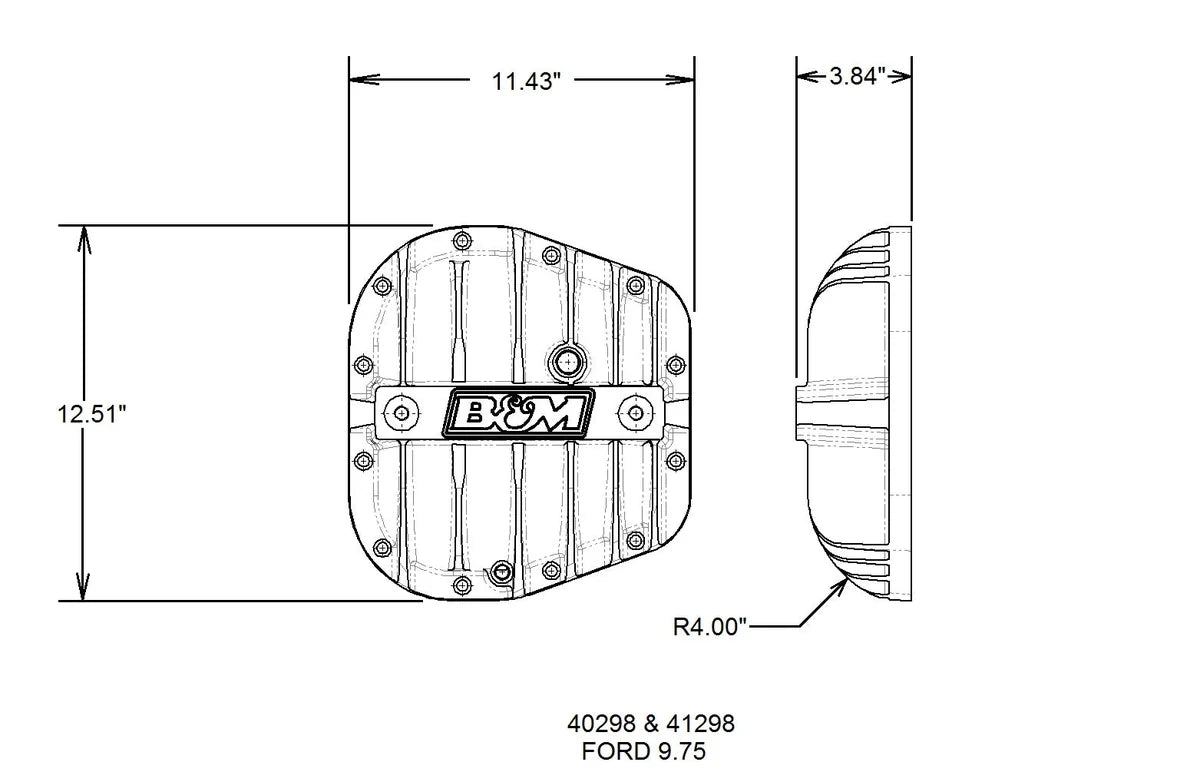

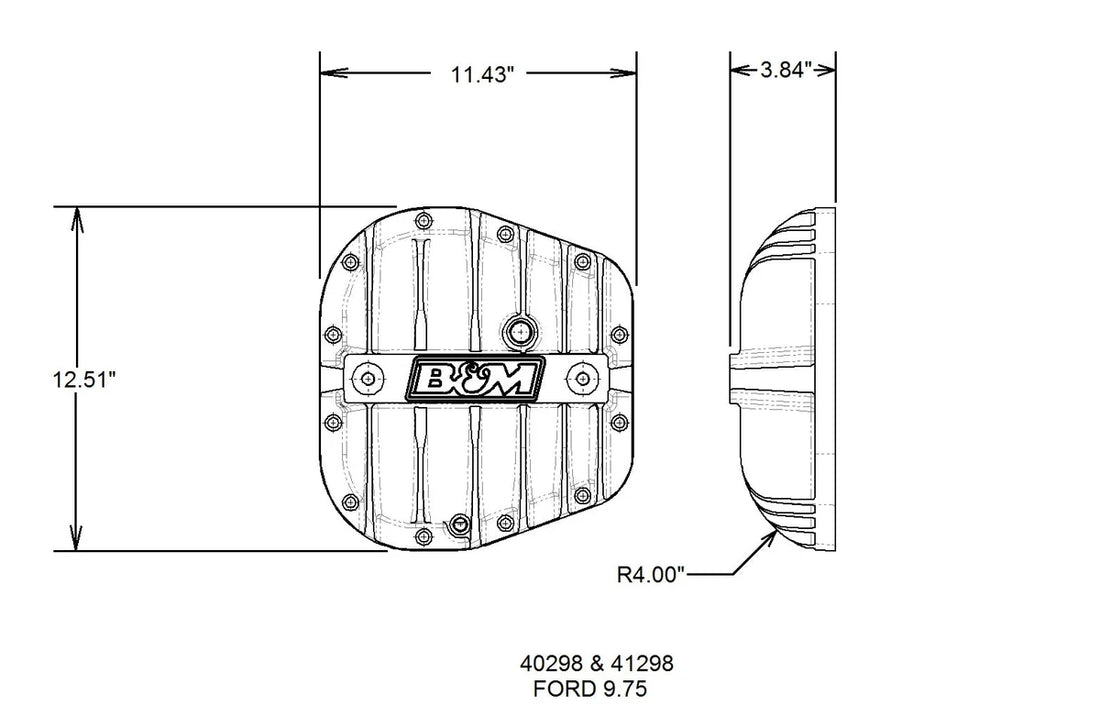

Designed to fit most vehicles with Ford 9.75-inch differential, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications. |
| Description_DES |
B&M Hi-Tek Aluminum Differential Cover for Ford 9.75-inch |
| Description_EXT |
Fits 2009-2023 Ford F-150 |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a natural finish, a machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications. |
| Description_FAB |
Load Bolts for Additional Bearing Cap Support |
| Description_FAB |
Magnetic Drain Plug for Easy Servicing |
| Description_FAB |
A356.0-T6 Aluminum Construction |
| Description_FAB |
Adds .50-quart Fluid Capacity |
| Description_FAB |
Over 65 Years of B&M Quality |
| Description_FAB |
Lifetime Limited Warranty |
| Description_FAB |
Machined B&M Logo |
| Description_INV |
2010-2022 DIFF COVER FORD 9.75" |
| Description_ASC |
Designed to fit most vehicles with Ford 9.75-inch differential, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications. |
| Description_DES |
B&M Hi-Tek Aluminum Differential Cover for Ford 9.75-inch |
| Description_EXT |
Fits 2009-2023 Ford F-150 |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a natural finish, a machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications. |
| Description_FAB |
Load Bolts for Additional Bearing Cap Support |
| Description_FAB |
Magnetic Drain Plug for Easy Servicing |
| Description_FAB |
A356.0-T6 Aluminum Construction |
| Description_FAB |
Adds .50-quart Fluid Capacity |
| Description_FAB |
Over 65 Years of B&M Quality |
| Description_FAB |
Lifetime Limited Warranty |
| Description_FAB |
Machined B&M Logo |
