Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. However, each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to the ID guide and measurement diagram for specifications.
| Additional Fluid Capacity (qts) |
1.13 |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
12 |
| 672 |
12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
2.65 |
| 673 |
Yes |
| Category |
Driveline and Axles |
| Color/Finish |
Black Anodized |
| Differential Cover Bolt Pattern |
Ford Super 8.8 |
| Differential Thickness (in) |
3.1 |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| Finish |
Black |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
12 |
| 9204 |
Yes |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Sub Category |
Differential |
| Warning |
California Proposition 65 |
| Additional Fluid Capacity (qts) |
1.13 |
| Additonal Fluid Capacity (qts) |
No |
| Bolt Count |
12 |
| 672 |
12 |
| Bolt/Studs Included |
Yes |
| Brand |
B&M |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Required |
Yes |
| Call Out Size (in) |
2.65 |
| 673 |
Yes |
| Category |
Driveline and Axles |
| Color/Finish |
Black Anodized |
| Differential Cover Bolt Pattern |
Ford Super 8.8 |
| Differential Thickness (in) |
3.1 |
| 1948 |
Yes |
| Emission Code |
5 |
| 674 |
Yes |
| Finish |
Black |
| Gasket Included |
No |
| 353 |
No |
| Gaskets Included |
No |
| 3390 |
Performance |
| 10 |
A356.0-T6 Aluminum |
| 264 |
12 |
| 9204 |
Yes |
| Product Type |
Differential Cover |
| Studs Included |
Yes |
| Sub Category |
Differential |
| Warning |
California Proposition 65 |
| Description_INV |
DIFF COVER SUPER 8.8 BLACK |
| Description_ASC |

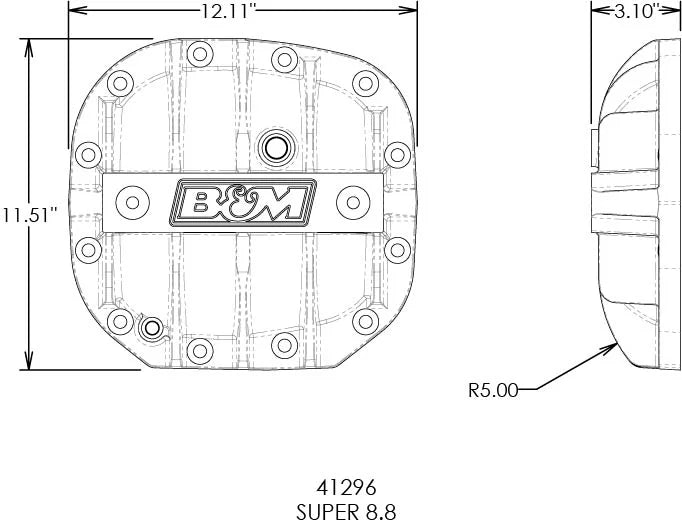

Fits most vehicles with Ford Super 8.8 rear differential such as 2015+ Ford 1/2 ton trucks and SUV's, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications. |
| Description_DES |
B&M Hi-Tek Aluminum Differential Cover for Ford Super 8.8 - Black |
| Description_EXT |
Fits 2015-2023 Ford F150 Trucks and SUVs with Super 8.8 |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. However, each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to the ID guide and measurement diagram for specifications. |
| Description_FAB |
Load Bolts for Additional Support for Bearing Caps |
| Description_FAB |
Increased Fluid Capacity of 1.13 Quarts |
| Description_FAB |
Magnetic Drain Plug for Easy Servicing |
| Description_FAB |
A356.0-T6 Aluminum Construction |
| Description_FAB |
MIL-Spec Black Anodized Finish |
| Description_FAB |
Over 65 Years of B&M Quality |
| Description_FAB |
Lifetime Limited Warranty |
| Description_FAB |
Machined B&M Logo |
| Description_INV |
DIFF COVER SUPER 8.8 BLACK |
| Description_ASC |
Fits most vehicles with Ford Super 8.8 rear differential such as 2015+ Ford 1/2 ton trucks and SUV's, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications. |
| Description_DES |
B&M Hi-Tek Aluminum Differential Cover for Ford Super 8.8 - Black |
| Description_EXT |
Fits 2015-2023 Ford F150 Trucks and SUVs with Super 8.8 |
| Description_MKT |
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. However, each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to the ID guide and measurement diagram for specifications. |
| Description_FAB |
Load Bolts for Additional Support for Bearing Caps |
| Description_FAB |
Increased Fluid Capacity of 1.13 Quarts |
| Description_FAB |
Magnetic Drain Plug for Easy Servicing |
| Description_FAB |
A356.0-T6 Aluminum Construction |
| Description_FAB |
MIL-Spec Black Anodized Finish |
| Description_FAB |
Over 65 Years of B&M Quality |
| Description_FAB |
Lifetime Limited Warranty |
| Description_FAB |
Machined B&M Logo |
