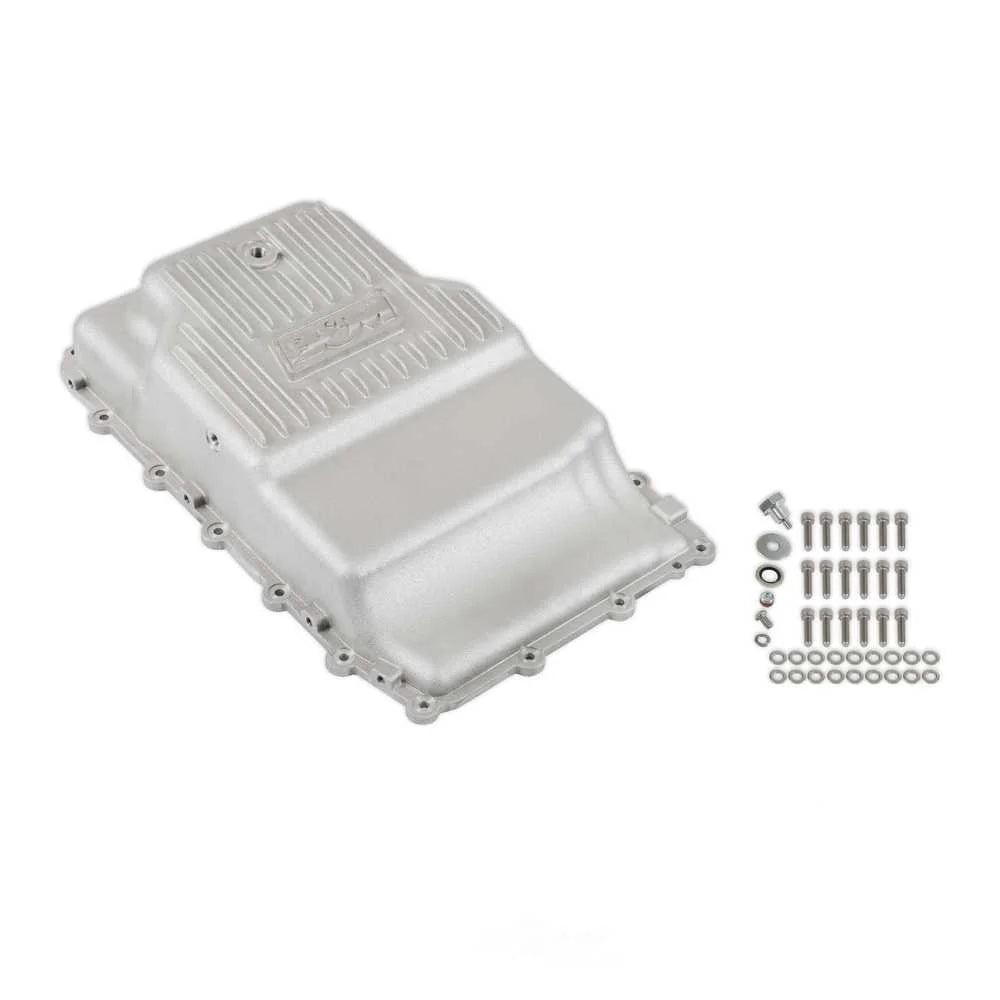

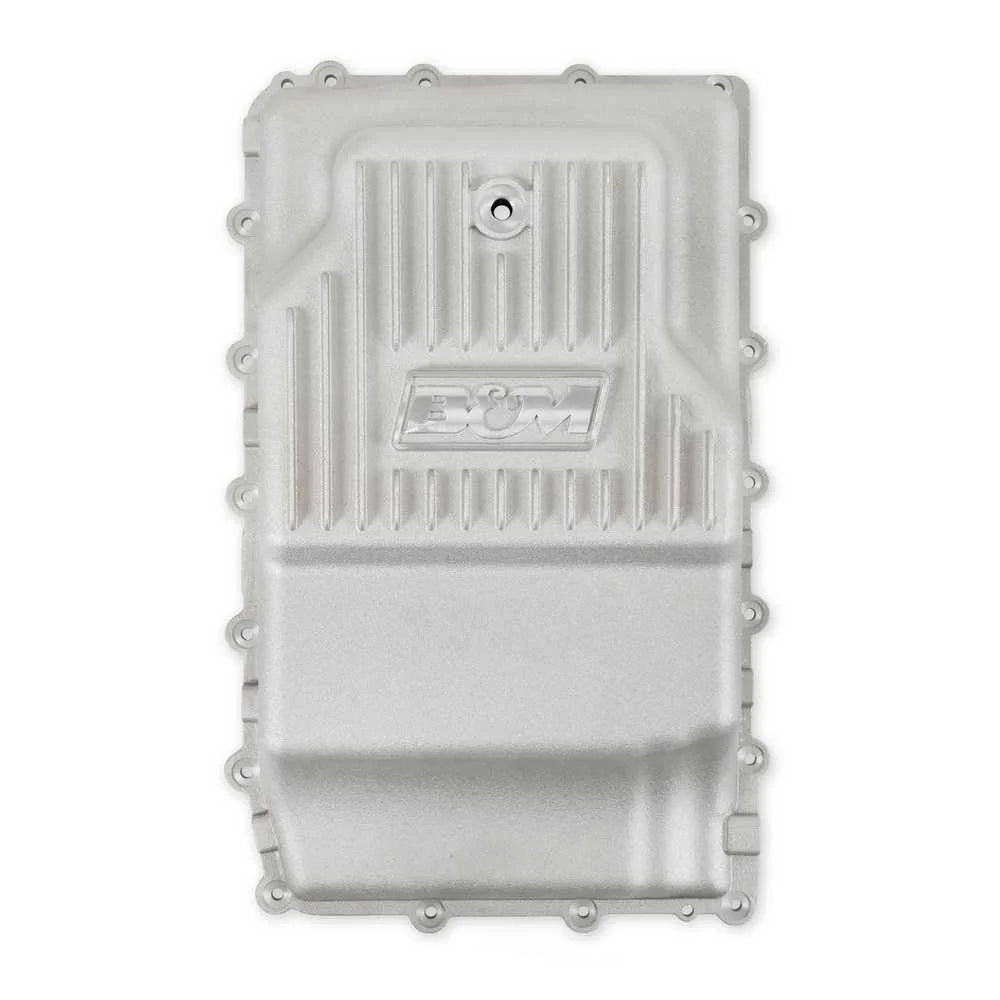

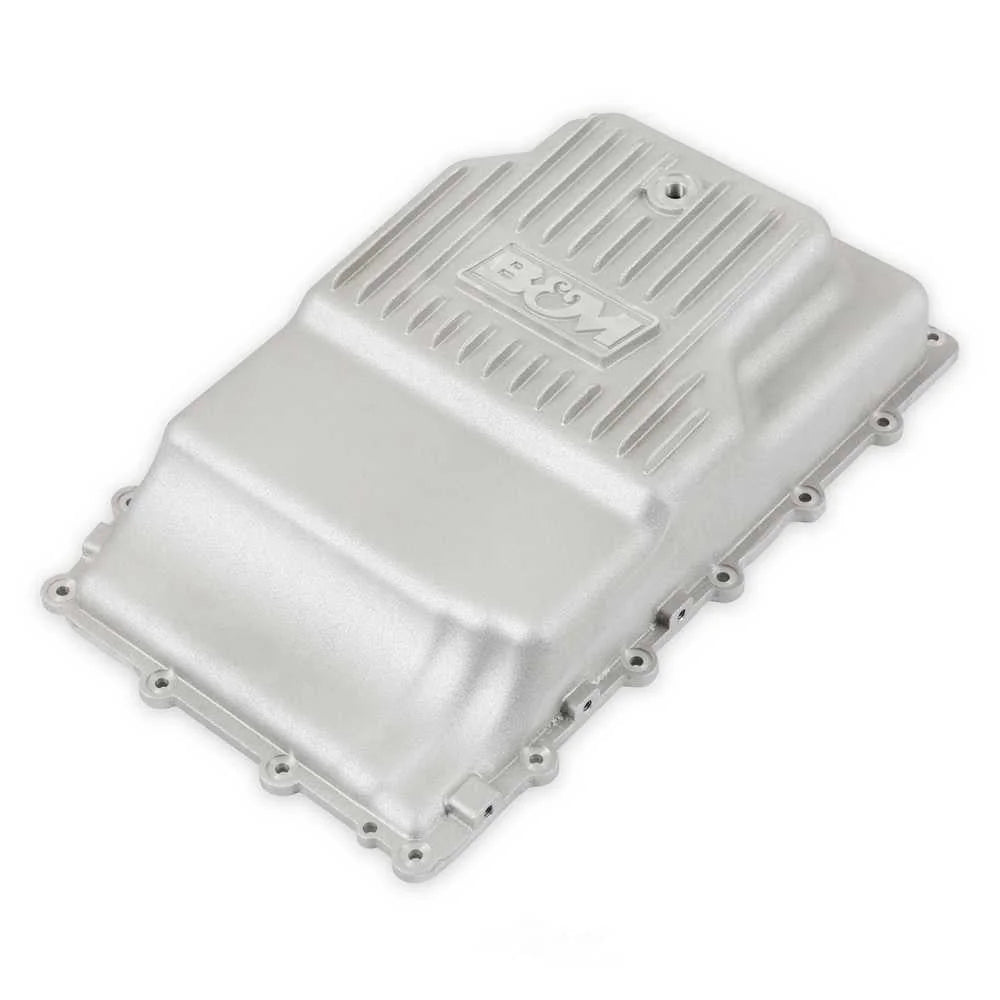

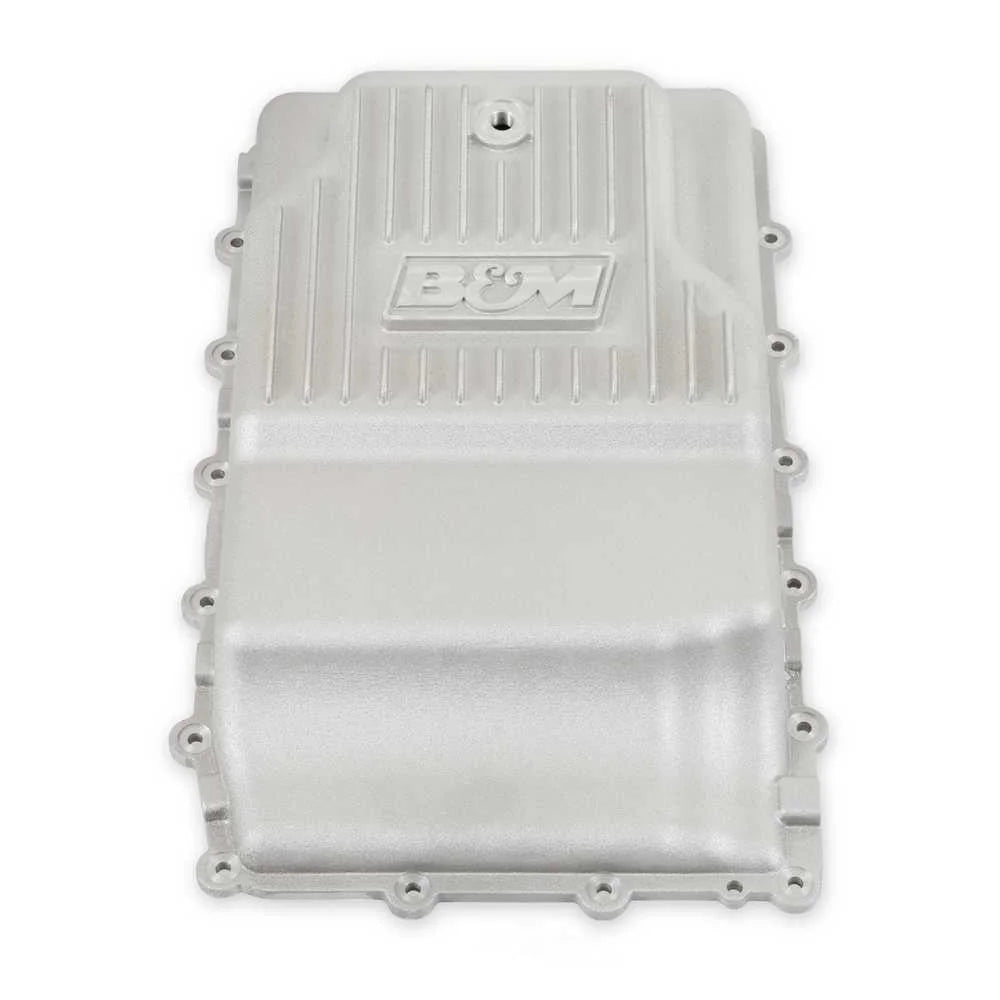

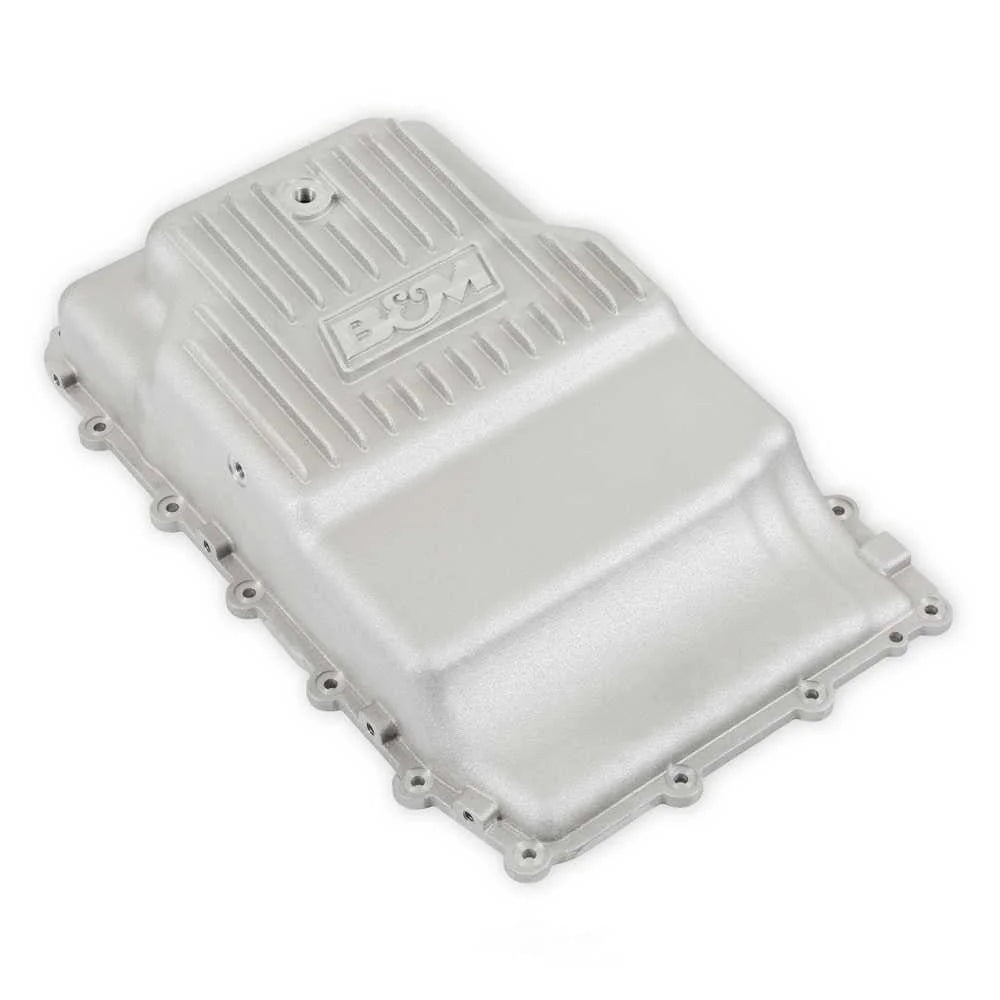

B&M B&M Hi-Tek Heavy-Duty Deep Transmission Pan - Ford 10R80 - Aluminum - Natural 70400

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation. Note: 10R80 transmissions do not come with a dipstick from the factory to check the fluid level. As a solution, B&M offers an optional locking dipstick part #22200 to measure transmission fluid level. Also available in a black anodized finish (B&M Part #71400).

Specifications:

Additional Fluid Capacity (qts)	2
Bolt Count	21
Bolt/Studs Included	Yes
Brand	B&M
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
California Proposition 65 Required	Yes
1315	14.5
Category	Transmission
17	Aluminum
Color/Finish	Natural
1948	Yes
Drain Plug Type	Magnetic
Emission Code	5
Filler Plug Included	No
Gasket Included	No
353	No
3390	Performance
Material	A356.0-T6 Aluminum
30	Yes
4094	No
Product Type	Automatic Transmission Pans
Sub Category	Transmission Hard Parts
Temp Sensor Port	Yes
Transmission	10R80
6559	No
Transmission Type	Automatic
Warning	California Proposition 65
Description_INV	CAST TRANS PAN, 17-24 FORD 10R80
Description_ASC	Fits 2017-2024 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions. Increase of 2.0-quarts of fluid capacity. Pan is 4 5/8" deep and while it will physically fit car applications, it will sit about flush with the bellhousing depthwise and could cause issues with road debris and other hazards (speed bumps, etc.), especially on lowered vehicles. AVOID SERIOUS INJURY OR DEATH BY CRUSHING! If additional clearance is required, securely support the vehicle on a lift or jack stands. WARNING: NEVER work under a vehicle that is supported only by jacks! AVOID BURNS! Automatic transmissions typically operate at 150-250°F. Allow the transmission to cool down sufficiently before starting work.
Description_DES	B&M Hi-Tek Heavy-Duty Deep Transmission Pan - Ford 10R80 - Aluminum - Natural
Description_EXT	Fits 2017-2024 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions
Description_MKT	Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation. Note: 10R80 transmissions do not come with a dipstick from the factory to check the fluid level. As a solution, B&M offers an optional locking dipstick part #22200 to measure transmission fluid level. Also available in a black anodized finish (B&M Part #71400).
Description_FAB	Drain Port with Magnetic Drain Plug for Easy Servicing
Description_FAB	Durable A356 Aluminum Construction
Description_FAB	Features a Temperature Sensor Port
Description_FAB	Additional 2-Quart Fluid Capacity
Description_FAB	Lifetime Limited Warranty
Description_FAB	Over 65 Years of B&M Experience and Quality
Description_FAB	Increased Cooling Properties

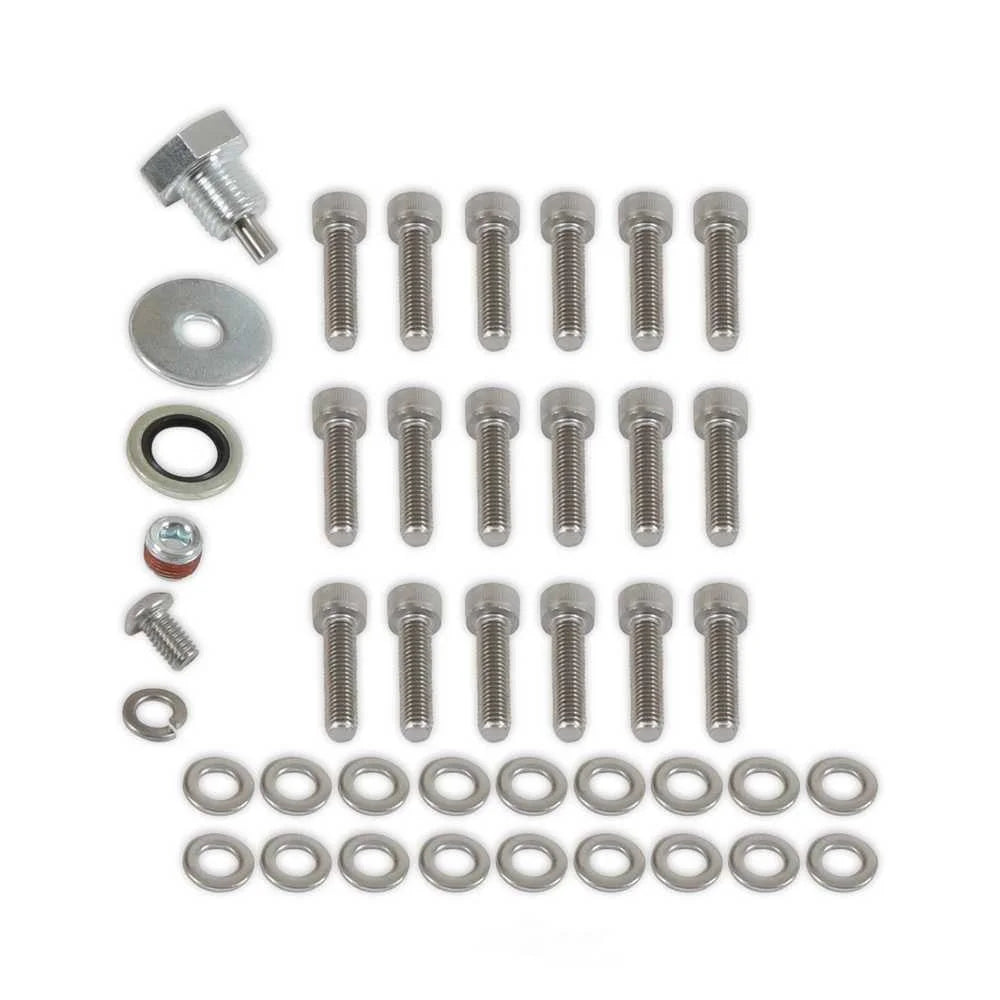

Description_FAB	Hardware Included
Description_FAB	Easy Installation
