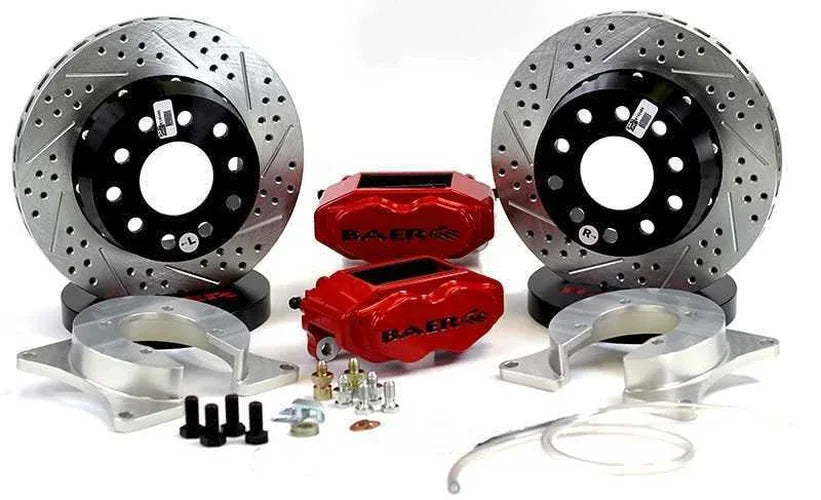

This system features the 4-piston, S4 caliper mounted to a 11" 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. With 1.75” pistons, the S4 Deep Stage caliper will offer additional clamping force over the standard S4 caliper. While this usually desired in a drag race application, it may not be ideal for street use. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting brackets and hardware are also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels. *** NOTE: This system was designed for racing only. If used on the street (due to brake bias change) be sure to spend some time to make sure adjusted correctly. ***
| Description_INV |
11" SS4+ DS Drag Sys RR Clr Mopar |
| Description_INV |
11" SS4+ DS Drag Sys RR Clr Mopar |
| Description_DES |
Baer Brakes 11" SS4+ Deep Stage Rear Brake Kit, Clear, SDZ |
| Description_DES |
Baer Brakes 11" SS4+ Deep Stage Rear Brake Kit, Clear, SDZ |
| Description_EXT |
Fits Rear Ends w/Dana 60 or Mopar 8-3/4" Car Housing Ends |
| Description_EXT |
Fits Rear Ends w/Dana 60 or Mopar 8-3/4" Car Housing Ends |
| Description_MKT |
This system features the 4-piston, S4 caliper mounted to a 11" 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. With 1.75” pistons, the S4 Deep Stage caliper will offer additional clamping force over the standard S4 caliper. While this usually desired in a drag race application, it may not be ideal for street use. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting brackets and hardware are also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels. *** NOTE: This system was designed for racing only. If used on the street (due to brake bias change) be sure to spend some time to make sure adjusted correctly. *** |
| Description_MKT |
This system features the 4-piston, S4 caliper mounted to a 11" 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. With 1.75” pistons, the S4 Deep Stage caliper will offer additional clamping force over the standard S4 caliper. While this usually desired in a drag race application, it may not be ideal for street use. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting brackets and hardware are also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels. *** NOTE: This system was designed for racing only. If used on the street (due to brake bias change) be sure to spend some time to make sure adjusted correctly. *** |
| Description_FAB |
First Drag Race System Designed Specifically for Heavy, Fast Cars That Might Also See Street Use |
| Description_FAB |
All the benefits of our larger brake systems just in a smaller package to fit 15" wheels |
| Description_FAB |

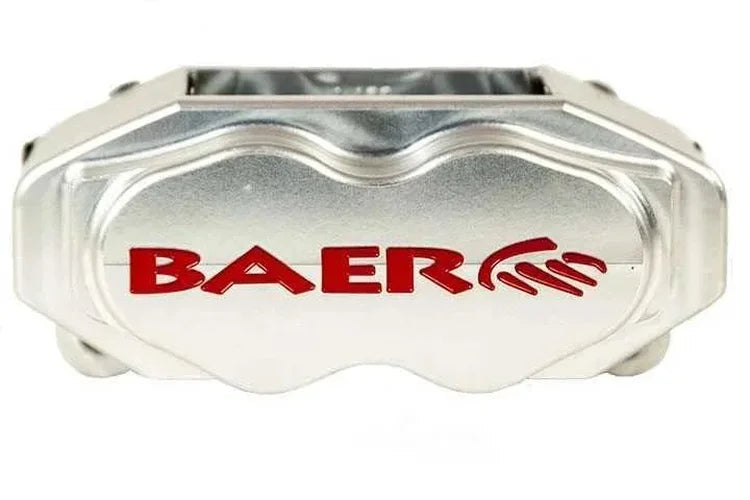

Two, 2-Piece, 4-Piston (1.750"), S4 Calipers Manufactured in Phoenix, AZ |
| Description_FAB |
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips |
| Description_FAB |
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Includes 2 Calipers (1.75" Pistons) |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Vented Rotor |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Comes Standard with a High Friction Pads Designed for Drag Race Applications |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plated Rotor |
| Description_FAB |
Designed to Fit Inside Most 15" Wheels |
| Description_FAB |
Comes Standard with a High Friction Pads Designed for Drag Race Applications |
| Axle |
Rear |
| Description_FAB |
Billet Aluminum Hats, Drilled for 5/8" Wheel Studs |
| Axle Flange |
Dana 60, Mopar 8-3/4" |
| Brand |
Baer Brakes |
| Caliper |
S4 |
| 8247 |
Clear |
| Category |
Brake |
| 9362 |
4 |
| 9359 |
Fixed |
| 151 |
DR1 |
| 9360 |
Vented |
| Disc Brake Rotor (Rear) Outside Diameter |
11.000 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Fitment Notes |
Fits standard and Green Bearing conversions |
| 3 |
Semi-metallic |
| 3390 |
Performance |
| Hose Material |
Hoses Not Included |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
15 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
SS4+ Deep Stage Rear |
| Product Type |
11 Inch SS4+ Deep Stage Rear Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.020 |
| Rotor Type |
2-Piece |
| 7171 |
Vented |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
NOTE: This system comes equipped with a street compound pad that offers low noise and dust and are NOT suited for track use. Race compound pads are also available for track use, call for information. |
| System Notes |
Max hub outer diameter of 5.75" is required for the rotor to fit, if larger machining will be required. |
| Template |
S125A |
| Title |
SS4+ Deep Stage Rear |
| Wheel Lug/Bolt Pattern |
5x4.50, 5.4.75 |
| Axle |
Rear |
| Axle Flange |
Dana 60, Mopar 8-3/4" |
| Brand |
Baer Brakes |
| Caliper |
S4 |
| 8247 |
Clear |
| Category |
Brake |
| 9362 |
4 |
| 9359 |
Fixed |
| 151 |
DR1 |
| 9360 |
Vented |
| 9364 |
11.000 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Fitment Notes |
Fits standard and Green Bearing conversions |
| 3 |
Semi-metallic |
| 3390 |
Performance |
| Hose Material |
Hoses Not Included |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
15 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
SS4+ Deep Stage Rear |
| Product Type |
11 Inch SS4+ Deep Stage Rear Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.020 |
| Rotor Type |
2-Piece |
| 7171 |
Vented |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
No Park Brake, Max Axle Flange Diameter of 5.75" |
| Template |
S125A |
| Title |
SS4+ Deep Stage Rear |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
