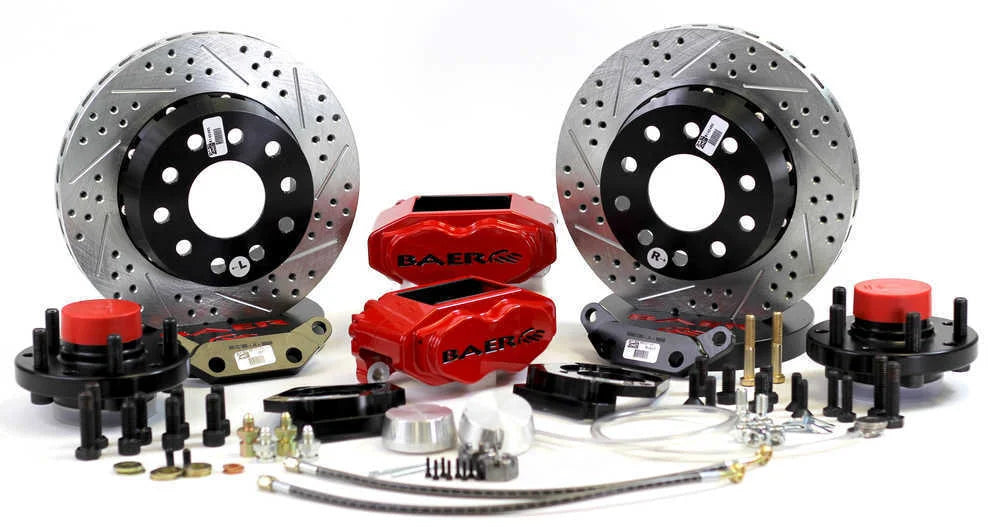

This system features the 4-piston, S4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" SS4 is designed to fit most 17" or larger wheels.
| Applications |
GM A-Body 64-72 |
| Applications |
GM A-Body 64-72 |
| Applications |
GM X-Body 64-74 |
| Applications |
GM X-Body 64-74 |
| Applications |
GM F-Body 67-69 |
| Applications |
GM F-Body 67-69 |
| Axle |
Front |
| Axle |
Front |
| Brand |
Baer Brakes |
| Brand |
Baer Brakes |
| Caliper |
S4 |
| Caliper |
S4 |
| 8247 |
Comp Yellow |
| 8247 |
Comp Yellow |
| Category |
Brake |
| Category |
Brake |
| 9363 |
4 |
| 9363 |
4 |
| 9358 |
Fixed |
| 9358 |
Fixed |
| 151 |
DR1 |
| 151 |
DR1 |
| 9361 |
Vented |
| 9361 |
Vented |
| 9365 |
13.000 |
| 9365 |
13.000 |
| Emission Code |
6 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Export Description |
Brake Components |
| Fitment Notes |
w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles |
| Fitment Notes |
w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles |
| 3390 |
Performance |
| 3390 |
Performance |
| 761 |
Stainless Steel |
| 761 |
Stainless Steel |
| Lug Count |
5 Lug |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
17 |
| Min Wheel Dia (verify using template) |
17 |
| part type |
Disc Brake Upgrade Kit |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
13 Inch SS4 |
| Product Line |
13 Inch SS4 |
| Product Type |
Front Brakes |
| Product Type |
Front Brakes |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.100 |
| Rotor Thickness |
1.100 |
| Rotor Type |
1-Piece |
| Rotor Type |
1-Piece |
| Spindle Type |
GM AFX (also fits DSE, Heidt's, Fatman, Ridetech & L&H 2" drop spindles) |
| Spindle Type |
GM AFX (also fits DSE, Heidt's, Fatman, Ridetech & L&H 2" drop spindles) |
| Spindles Included |
No |
| Spindles Included |
No |
| Sub Category |
Service Kits |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
Widens track .200" a side on stock front drum brake cars |
| System Notes |
Widens track .200" a side on stock front drum brake cars |
| Template |
S085H |
| Template |
S085H |
| Title |
S4 Brake System Front |
| Title |
S4 Brake System Front |
| Warning |
California Proposition 65 |
| Warning |
California Proposition 65 |
| Wheel Lug/Bolt Pattern |
5x4.75 |
| Wheel Lug/Bolt Pattern |
5x4.75 |
| Wheel Stud Size |
1/2-20 x 2.25 inch |
| Wheel Stud Size |
1/2-20 x 2.25 inch |
| Description_INV |
13" SS4 F Brk Kit CY SDZ Std Studs |
| Description_ASC |
Increases track width .200" Per Side on OE drum spindles ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 13" SS4 Front Brake Kit, Comp Yellow, SDZ, Std. Studs |
| Description_EXT |
Fits 1964-72 GM A-Body, 67-69 F-Body & 64-74 X-Body Cars w/OE Spindles (Also fits DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles) |
| Description_MKT |
This system features the 4-piston, S4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" SS4 is designed to fit most 17" or larger wheels. |
| Description_FAB |
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
1-Piece Slot, Drilled, Zinc-Plate Rotor |
| Description_INV |
13" SS4 F Brk Kit CY SDZ Std Studs |
| Description_ASC |
Increases track width .200" Per Side on OE drum spindles ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 13" SS4 Front Brake Kit, Comp Yellow, SDZ, Std. Studs |
| Description_EXT |
Fits 1964-72 GM A-Body, 67-69 F-Body & 64-74 X-Body Cars w/OE Spindles (Also fits DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles) |
| Description_MKT |
This system features the 4-piston, S4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" SS4 is designed to fit most 17" or larger wheels. |
| Description_FAB |
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
1-Piece Slot, Drilled, Zinc-Plate Rotor |
