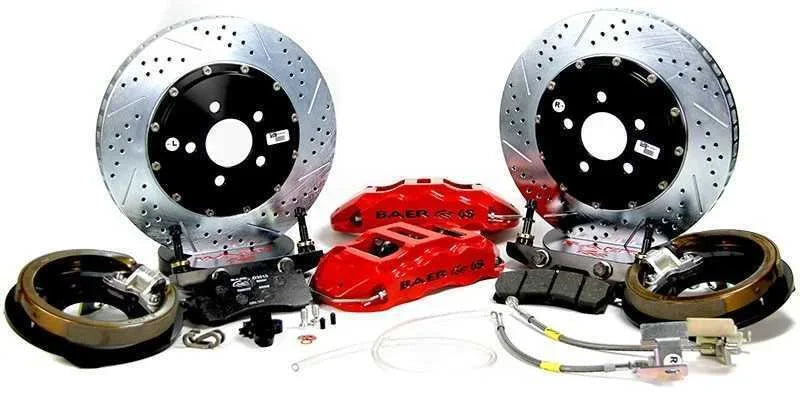

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
| Axle |
Rear |
| Axle |
Rear |
| Axle Flange |
GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Axle Flange |
GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Brand |
Baer Brakes |
| Brand |
Baer Brakes |
| Caliper |
6S |
| Caliper |
6S |

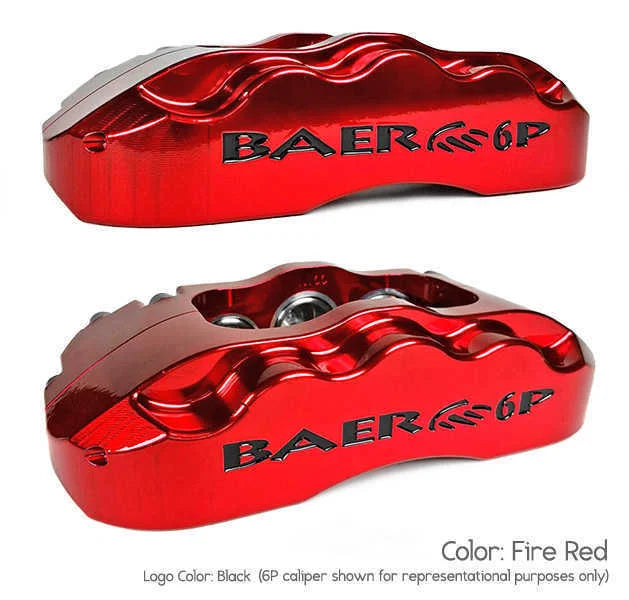

| 8247 |
Fire Red |
| 8247 |
Fire Red |
| Category |
Brake |
| Category |
Brake |
| 9362 |
6 |
| 9362 |
6 |
| 9359 |
Fixed |
| 9359 |
Fixed |
| 151 |
D1247 |
| 151 |
D1247 |
| 9360 |
Vented |
| 9360 |
Vented |
| 9364 |
14.000 |
| 9364 |
14.000 |
| Emission Code |
6 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Export Description |
Brake Components |
| 3390 |
Performance |
| 3390 |
Performance |
| 761 |
Stainless Steel |
| 761 |
Stainless Steel |
| Includes Park Brake |
Yes |
| Includes Park Brake |
Yes |
| Includes Park Brake Cables |
No |
| Includes Park Brake Cables |
No |
| Lug Count |
5 Lug |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
18 |
| Min Wheel Dia (verify using template) |
18 |
| part type |
Disc Brake Upgrade Kit |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
14 Inch Extreme+ |
| Product Line |
14 Inch Extreme+ |
| Product Type |
14 Inch Extreme+ Rear Brake Kit |
| Product Type |
14 Inch Extreme+ Rear Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.250 |
| Rotor Thickness |
1.250 |
| Rotor Type |
2-Piece |
| Rotor Type |
2-Piece |
| Sub Category |
Service Kits |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |

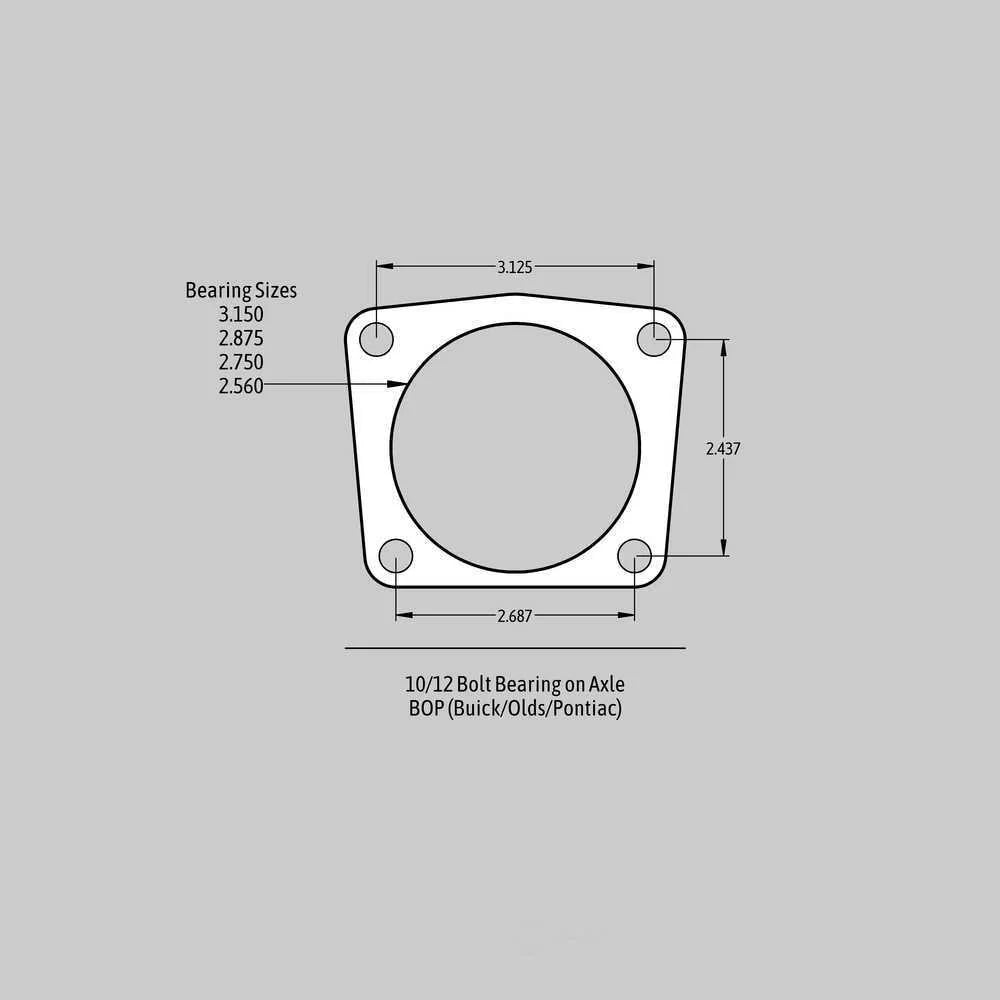

Fits GM Small Pattern 10/12 bolt Bearing on Axle (BOP) Housing Ends, Also Fits Hybrid 10/12 Bolt Non-Flush Mount 3.150" Bearing, 2.780" axle register |
| System Notes |
Fits GM Small Pattern 10/12 bolt Bearing on Axle (BOP) Housing Ends, Also Fits Hybrid 10/12 Bolt Non-Flush Mount 3.150" Bearing, 2.780" axle register |
| Template |
N110P |
| Template |
N110P |
| Title |
Extreme+ Brake System Rear |
| Title |
Extreme+ Brake System Rear |
| Warning |
California Proposition 65 |
| Warning |
California Proposition 65 |
| Wheel Lug/Bolt Pattern |
5x4.75/5x5.00 |
| Wheel Lug/Bolt Pattern |
5x4.75/5x5.00 |
| Description_INV |
14" Ext+ R Brk Kit Fire R SDZ |
| Description_ASC |
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 14" Extreme+ Rear Brake Kit, Fire Red, SDZ |
| Description_EXT |
Fits Rear Ends w/GM Small Pattern 10/12 Bolt Bearing on Axle (BOA) Non-Flush Mount Housing Ends (5x4.75", 5x5"BC) |
| Description_MKT |
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels. |
| Description_FAB |
1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced 2618 Aluminum Forging |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB |
Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Description_INV |
14" Ext+ R Brk Kit Fire R SDZ |
| Description_ASC |
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 14" Extreme+ Rear Brake Kit, Fire Red, SDZ |
| Description_EXT |
Fits Rear Ends w/GM Small Pattern 10/12 Bolt Bearing on Axle (BOA) Non-Flush Mount Housing Ends (5x4.75", 5x5"BC) |
| Description_MKT |
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels. |
| Description_FAB |
1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced 2618 Aluminum Forging |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB |
Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
