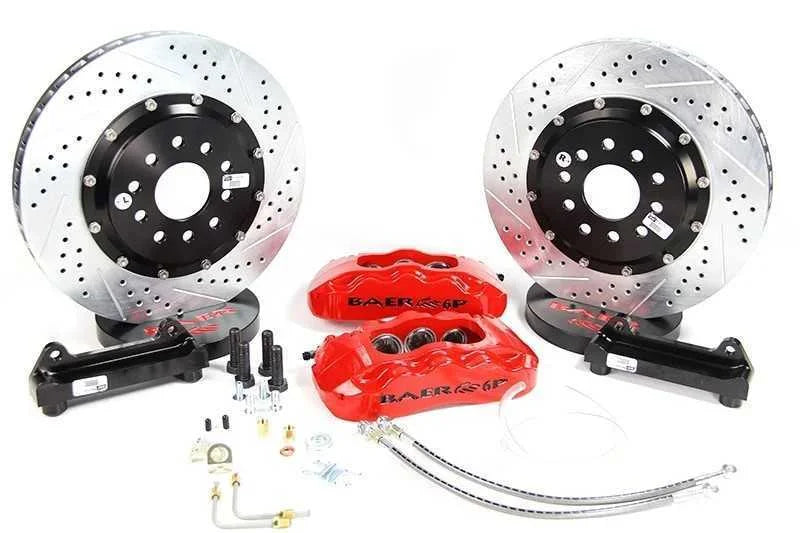

The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.
| Axle |
Front |
| Axle |
Front |
| Brand |
Baer Brakes |
| Brand |
Baer Brakes |
| Caliper |
6P |
| Caliper |
6P |
| 8247 |
Fire Red |
| 8247 |
Fire Red |
| Category |
Brake |
| Category |
Brake |
| 9363 |
6 |
| 9363 |
6 |
| 9358 |
Fixed |
| 9358 |
Fixed |
| 151 |
D0731 |
| 151 |
D0731 |
| 9361 |
Vented |
| 9361 |
Vented |
| 9365 |
14.000 |
| 9365 |
14.000 |
| Emission Code |
6 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Export Description |
Brake Components |
| 3390 |
Performance |
| 3390 |
Performance |
| 761 |
Stainless Steel |
| 761 |
Stainless Steel |
| Lug Count |
5 Lug |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
18 |
| Min Wheel Dia (verify using template) |
18 |
| part type |
Disc Brake Upgrade Kit |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
14 Inch Pro+ |
| Product Line |
14 Inch Pro+ |
| Product Type |
14 Inch Pro+ Front Brake Kit |
| Product Type |
14 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.150 |
| Rotor Thickness |
1.150 |
| Rotor Type |
2-Piece |
| Rotor Type |
2-Piece |
| Spindle Type |
C5/C6 Corvette Based |
| Spindle Type |
C5/C6 Corvette Based |
| Spindles Included |
No |
| Spindles Included |
No |
| Sub Category |
Service Kits |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
Fits C5/C6 Corvette based spindles & hubs, Also fit Speedtech ATS spindles & hubs. |
| System Notes |
Fits C5/C6 Corvette based spindles & hubs, Also fit Speedtech ATS spindles & hubs. |
| Template |
Q040P |
| Template |
Q040P |
| Title |
Pro+ Brake System Front |
| Title |
Pro+ Brake System Front |
| Warning |
California Proposition 65 |
| Warning |
California Proposition 65 |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
| Description_INV |
14" Pro+ F Brk Kit FR SDZ |
| Description_ASC |
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 14" Pro+ Front Brake Kit, Fire Red, SDZ |
| Description_EXT |
Fits C5/C6 Corvette Based Spindles & Hubs |
| Description_MKT |
The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels. |
| Description_FAB |

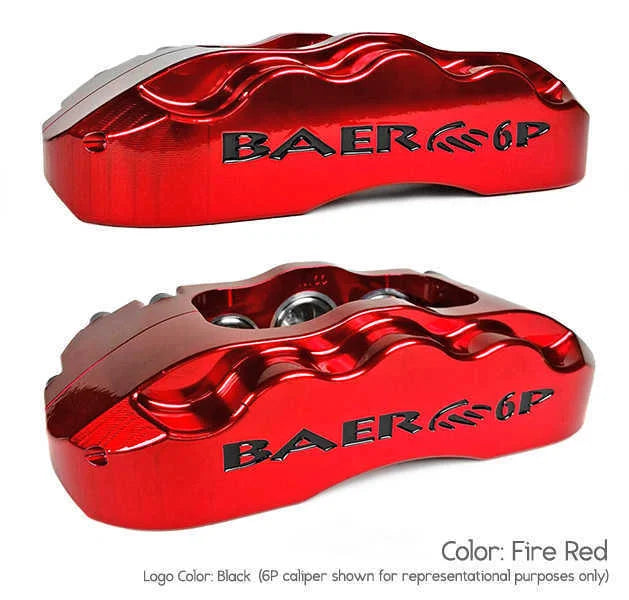

2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB |
Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Description_INV |
14" Pro+ F Brk Kit FR SDZ |
| Description_ASC |
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 14" Pro+ Front Brake Kit, Fire Red, SDZ |
| Description_EXT |
Fits C5/C6 Corvette Based Spindles & Hubs |
| Description_MKT |
The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels. |
| Description_FAB |
2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB |
Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
