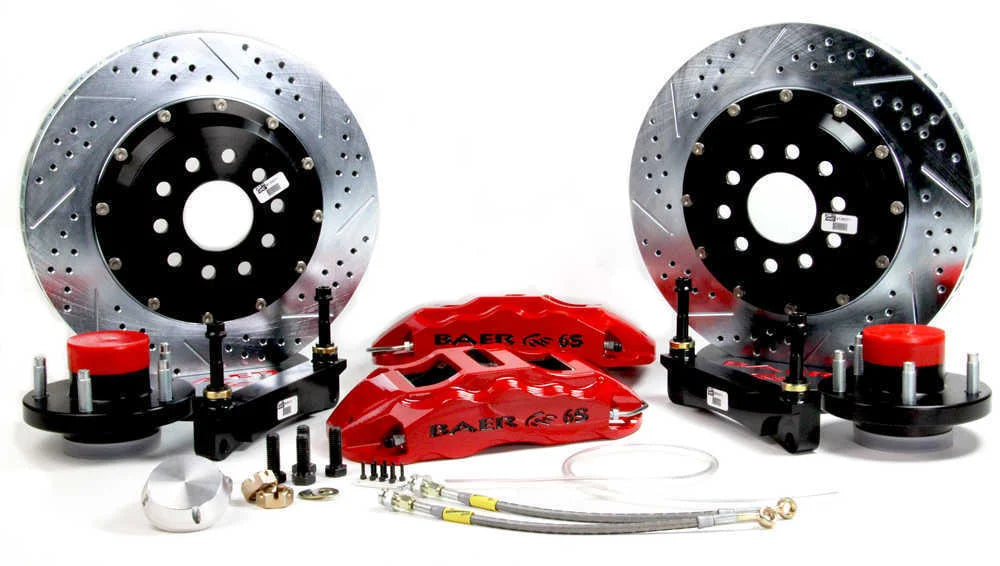

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 15", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets and hardware are also included. The 15” Extreme+ fits most 19” or larger wheels.
| Axle |
Front |
| Axle |
Front |
| Brand |
Baer Brakes |
| Brand |
Baer Brakes |
| Caliper |
6S |
| Caliper |
6S |

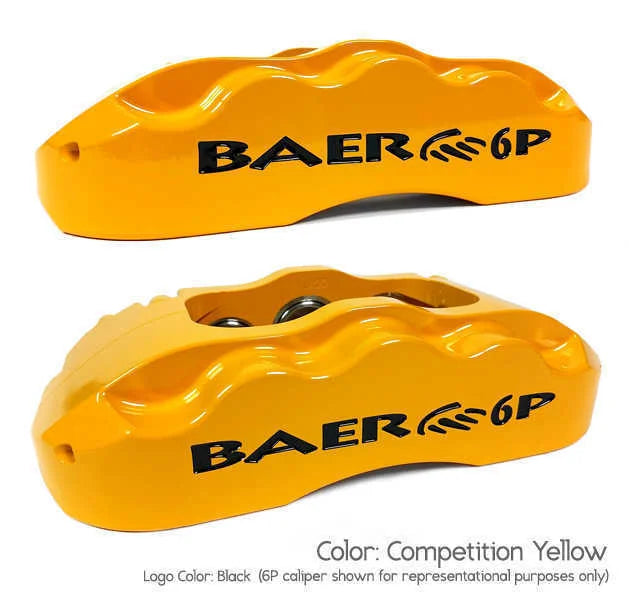

| 8247 |
Comp Yellow |
| 8247 |
Comp Yellow |
| Category |
Brake |
| Category |
Brake |
| 9363 |
6 |
| 9363 |
6 |
| 9358 |
Fixed |
| 9358 |
Fixed |
| 151 |
D1247 |
| 151 |
D1247 |
| 9361 |
Vented |
| 9361 |
Vented |
| 9365 |
15.000 |
| 9365 |
15.000 |
| Emission Code |
6 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Export Description |
Brake Components |
| 3390 |
Performance |
| 3390 |
Performance |
| Hose Material |
Hoses Not Included |
| Hose Material |
Hoses Not Included |
| Lug Count |
5 Lug |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
19 |
| Min Wheel Dia (verify using template) |
19 |
| part type |
Disc Brake Upgrade Kit |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
15 Inch Extreme+ |
| Product Line |
15 Inch Extreme+ |
| Product Type |
15 Inch Extreme+ Front Brake Kit |
| Product Type |
15 Inch Extreme+ Front Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.250 |
| Rotor Thickness |
1.250 |
| Rotor Type |
2-Piece |
| Rotor Type |
2-Piece |
| Spindle Type |
Wilwood Mustang II Pro |
| Spindle Type |
Wilwood Mustang II Pro |
| Spindles Included |
No |
| Spindles Included |
No |
| Sub Category |
Service Kits |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
Designed to be used with Wilwood Mustang II Pro Spindles (Stock & Drop Height) |
| System Notes |
Designed to be used with Wilwood Mustang II Pro Spindles (Stock & Drop Height) |
| Template |
N147U |
| Template |
N147U |
| Title |
Extreme+ Brake System Front |
| Title |
Extreme+ Brake System Front |
| Warning |
California Proposition 65 |
| Warning |
California Proposition 65 |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
| Wheel Stud Size |
1/2-20 x 2.25 inch |
| Wheel Stud Size |
1/2-20 x 2.25 inch |
| Description_INV |
15" Ext+ F Brk Kit CY SDZ Std Studs |
| Description_ASC |
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 15" Extreme+ Front Brake Kit, Comp Yellow, SDZ, Std. Studs |
| Description_EXT |
Fits Wilwood Mustang II Pro Spindles |
| Description_MKT |
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 15", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets and hardware are also included. The 15” Extreme+ fits most 19” or larger wheels. |
| Description_FAB |
1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced 2618 Aluminum Forging |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB |
Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Description_INV |
15" Ext+ F Brk Kit CY SDZ Std Studs |
| Description_ASC |
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES |
Baer Brakes 15" Extreme+ Front Brake Kit, Comp Yellow, SDZ, Std. Studs |
| Description_EXT |
Fits Wilwood Mustang II Pro Spindles |
| Description_MKT |
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 15", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets and hardware are also included. The 15” Extreme+ fits most 19” or larger wheels. |
| Description_FAB |
1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
CNC Machined from US Sourced 2618 Aluminum Forging |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB |
Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB |
Dual Seals, Dust/Weather & Pressure |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
