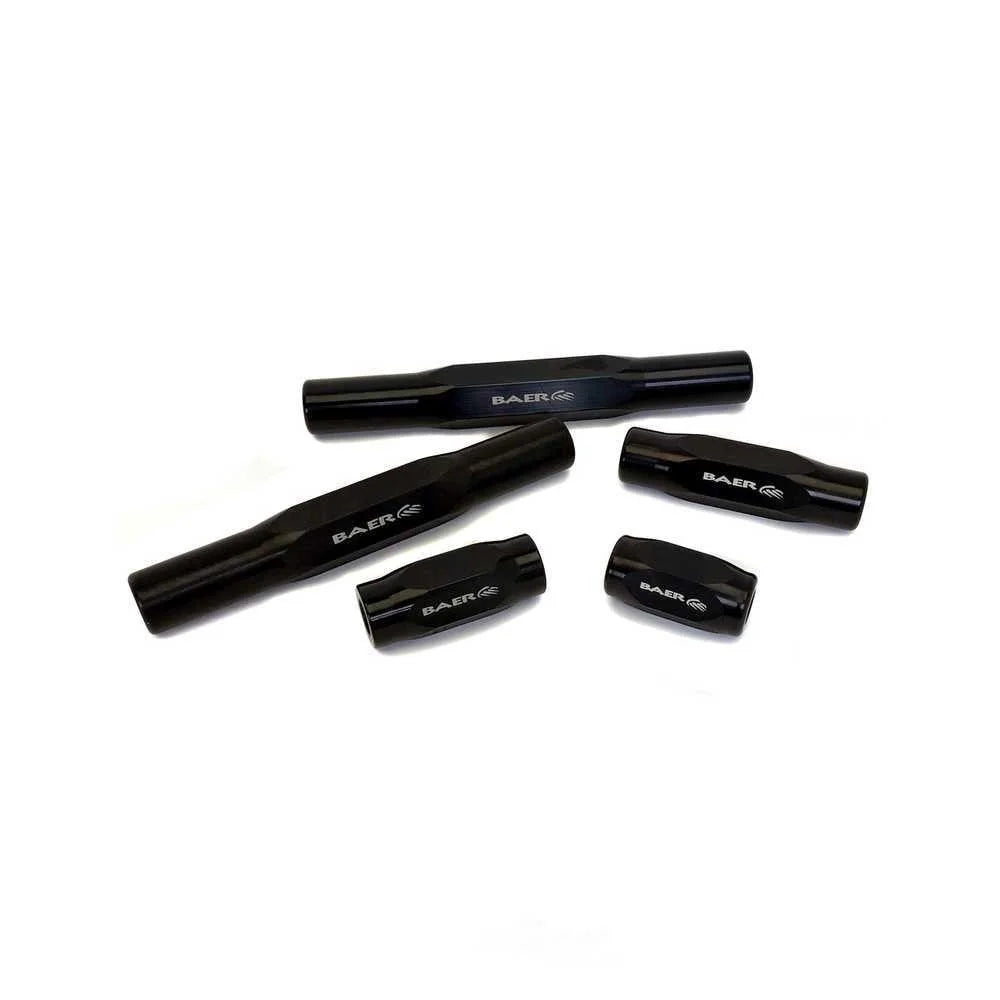

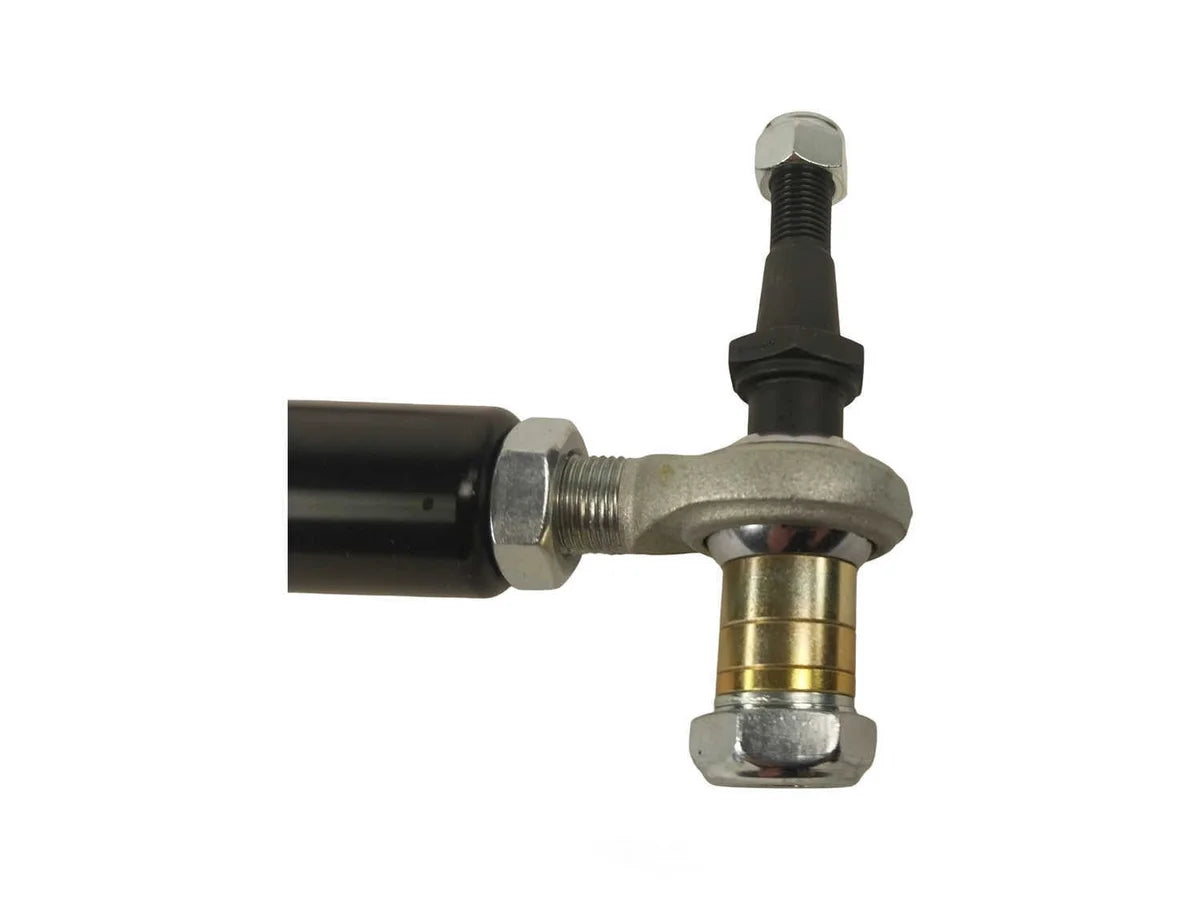

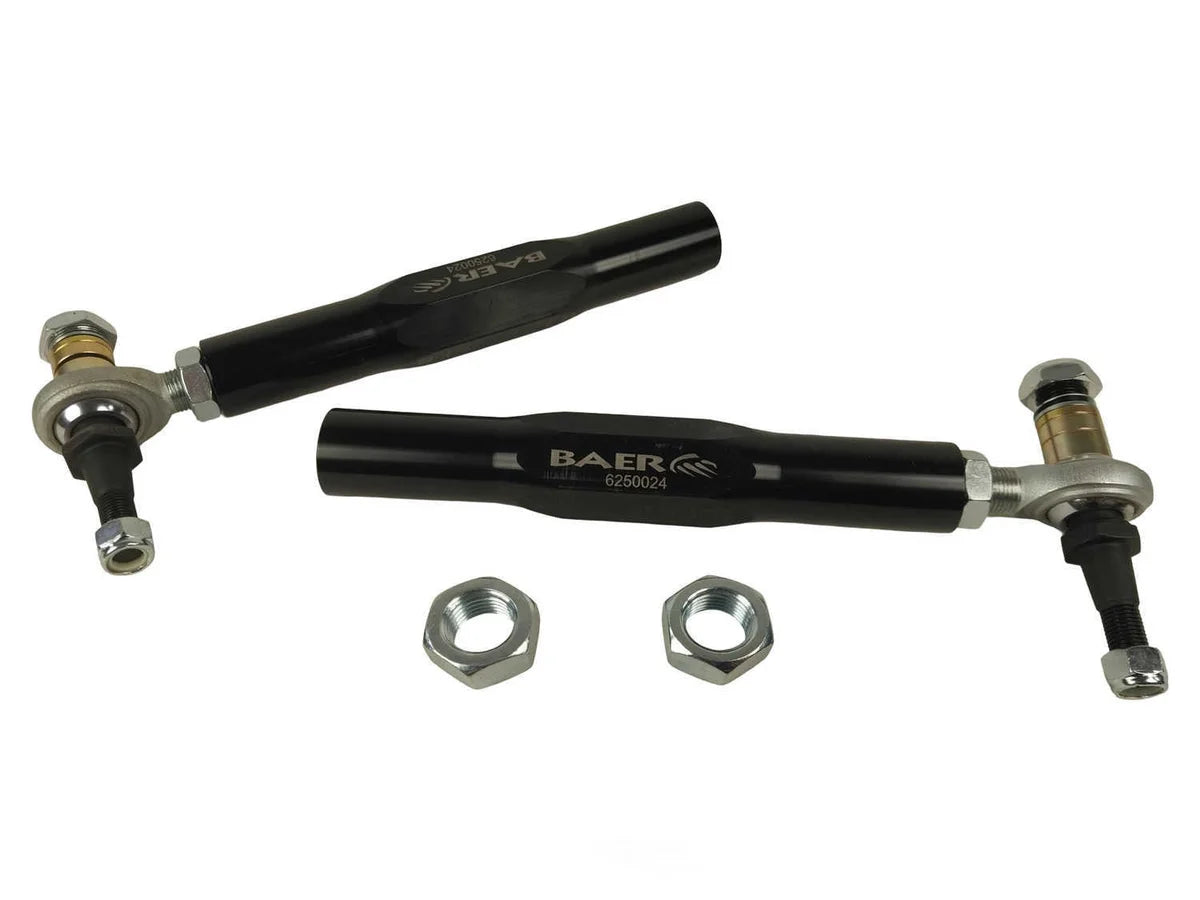

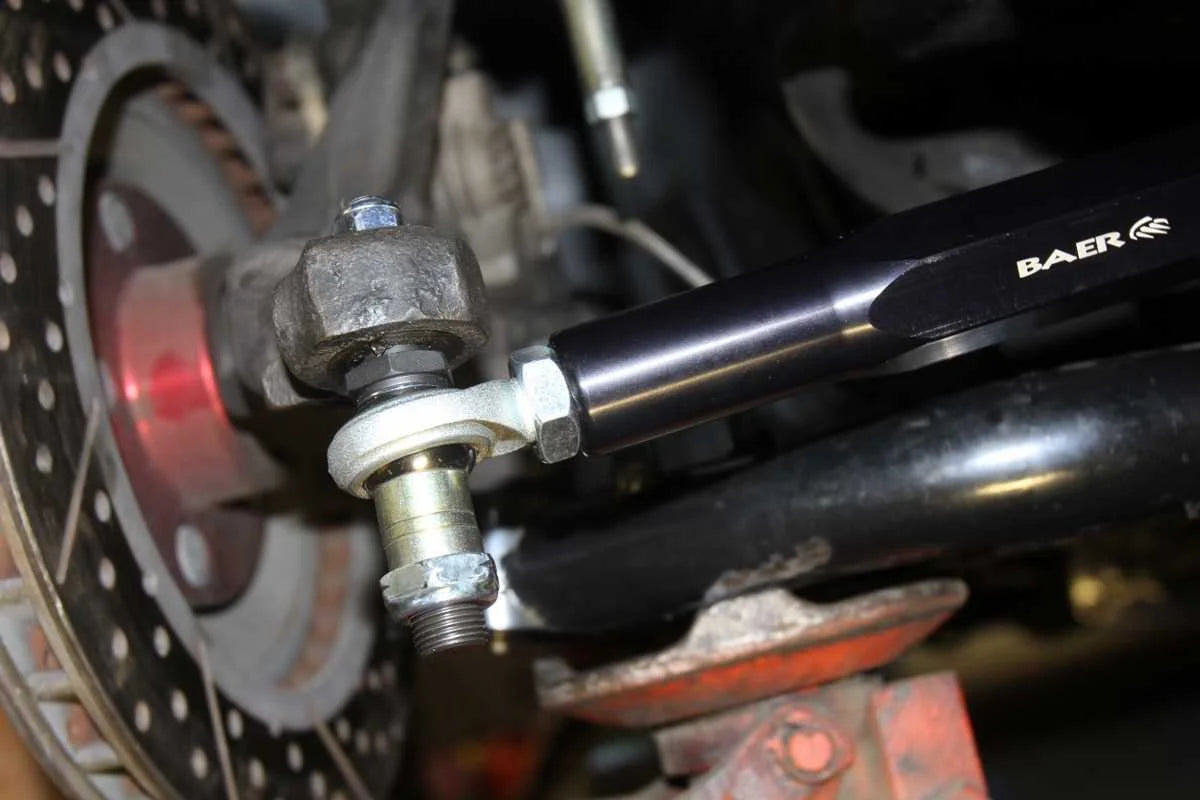

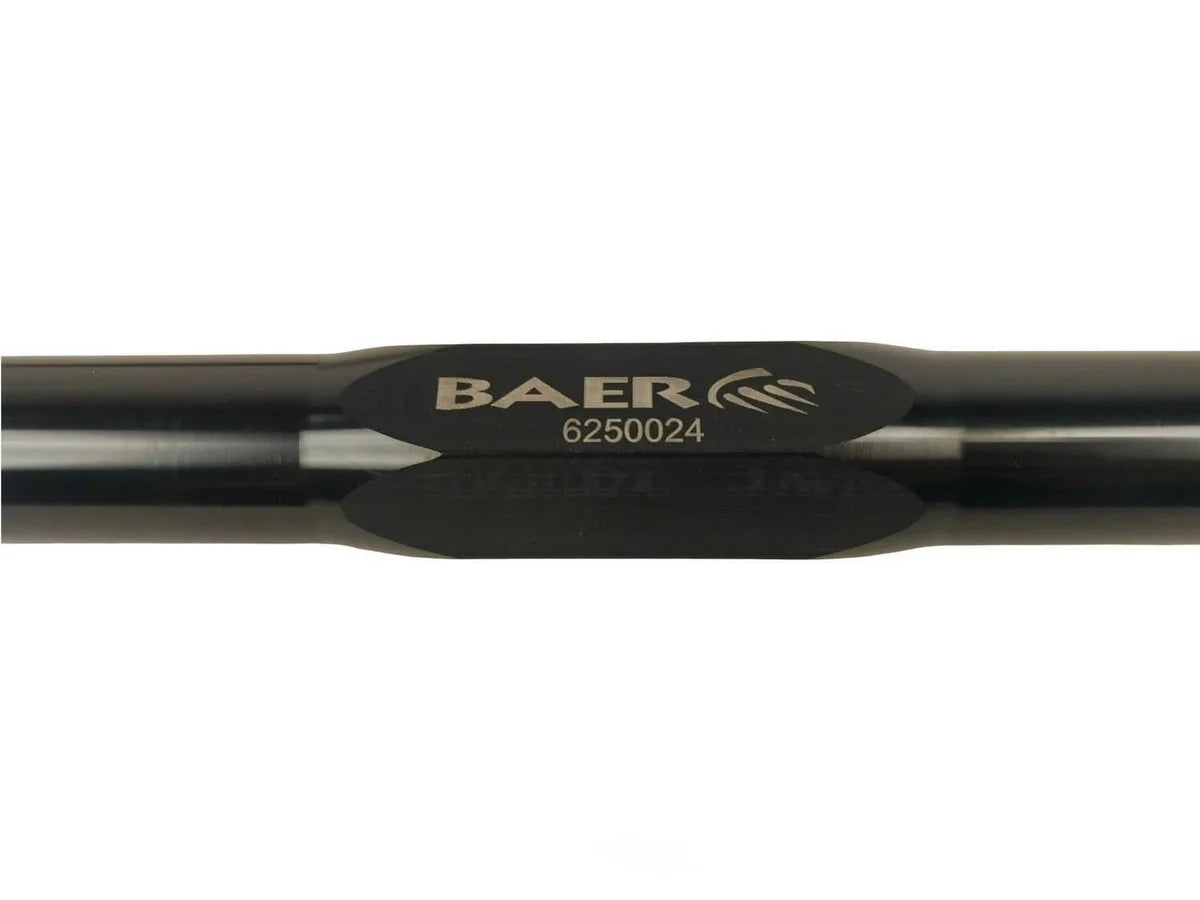

The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA!
| Description_SHO |
Adjustable Tie Rods |
| Description_SHO |
Adjustable Tie Rods |
| Description_INV |
Bump Steer Adj Kit, Frt |
| Description_INV |
Bump Steer Adj Kit, Frt |
| Description_ASC |
Ships in 1 Box |
| Description_ASC |
Ships in 1 Box |
| Description_DES |
Baer Brakes Tracker Tie Rod/Bump Steer Kit |
| Description_DES |
Baer Brakes Tracker Tie Rod/Bump Steer Kit |
| Description_EXT |
Fits 1988-1998 GM C10 2WD Truck with Stock Spindles;1992-1999 GM C10 2WD SUV with Stock Spindles |
| Description_EXT |
Fits 1988-1998 GM C10 2WD Truck with Stock Spindles;1992-1999 GM C10 2WD SUV with Stock Spindles |
| Description_MKT |
The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA! |
| Description_MKT |
The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA! |
| Description_FAB |
Direct bolt on upgrade |
| Description_FAB |
Direct bolt on upgrade |
| Description_FAB |
Black E-Coated for Rust Protection |
| Description_FAB |
Black E-Coated for Rust Protection |
| Description_FAB |
Fully adjustable |
| Description_FAB |
Fully adjustable |
| Description_FAB |
Simple installation |
| Description_FAB |
Simple installation |
| Description_FAB |
Tapered pin for NO spindle modifications |
| Description_FAB |
Tapered pin for NO spindle modifications |
| Description_FAB |
Vehicle specific |
| Description_FAB |
Vehicle specific |
| 40 |
Yes |
| 5235 |
Yes |
| Adjustment Range |
0.875 |
| Applications |
1988-98 GM C10 (2wd) Trucks with stock spindles |
| Applications |
1992-99 GM C10 (2wd) SUV's with stock spindles |
| Axle |
Front |
| 606 |
N/A |
| Box Count |
1 |
| Brand |
Baer Brakes |
| 2334 |
No |
| Category |
Steering |
| 17 |
Black |
| 2827 |
No |
| 2378 |
No |
| Emission Code |
6 |
| 1924 |
Female |
| 1925 |
Female |
| Export Description |
Suspension Components |
| Finish |
Black e-coated |
| 3390 |
Premium |
| 2339 |
No |
| 4417 |
Yes |
| 9 |
Hex |
| Heim Joint |
Teflon lined 5/8” heim joint |
| 357 |
6061 T-6 aluminum |
| Includes |
2x Tie Rods |
| Inner Sleeve Thread Size |
11/16"x18 LH Thread |
| 4241 |
Yes |
| Manufacturer Restriction |
None |
| 30 |
Yes |
| Outer Sleeve Thread Size |
5/8"x18 RH Thread |
| part type |
Steering Tie Rod End |
| 2330 |
Yes |
| Product Line |
Steering Tie Rod End |
| Product Type |
Bump Steer Kit |
| Prop 65 - Short Label |
WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity |
1 |
| 1260 |
Yes |
| Sleeve Length |
8.125 |
| 6529 |
Manual |
| Sub Category |
Steering, Gear and Related Components |
| Thread Direction |
Right Hand Thread |
| 9091 |
6061 T-6 aluminum |
| Title |
Baer Brakes Tracker Adjustable Front Tie Rods Bump Steer Kit for 1988-98 GM C10 Trucks |
| Tube Diameter |
5/8" |
| 26 |
Straight |
| Universal Or Specific Fit |
Specific Fit |
| Warning |
California Proposition 65 |
| 1917 |
Yes |
| Weight |
3.54 |
| 40 |
Yes |
| 5235 |
Yes |
| Adjustment Range |
0.875 |
| Applications |
1988-98 GM C10 (2wd) Trucks with stock spindles |
| Applications |
1992-99 GM C10 (2wd) SUV's with stock spindles |
| Axle |
Front |
| 606 |
N/A |
| Box Count |
1 |
| Brand |
Baer Brakes |
| 2334 |
No |
| Category |
Steering |
| 17 |
Black |
| 2827 |
No |
| 2378 |
No |
| Emission Code |
6 |
| 1924 |
Female |
| 1925 |
Female |
| Export Description |
Suspension Components |
| Finish |
Black e-coated |
| 3390 |
Premium |
| 2339 |
No |
| 4417 |
Yes |
| 9 |
Hex |
| Heim Joint |
Teflon lined 5/8” heim joint |
| 357 |
6061 T-6 aluminum |
| Includes |
2x Tie Rods |
| Inner Sleeve Thread Size |
11/16"x18 LH Thread |
| 4241 |
Yes |
| Manufacturer Restriction |
None |
| 30 |
Yes |
| Outer Sleeve Thread Size |
5/8"x18 RH Thread |
| part type |
Steering Tie Rod End |
| 2330 |
Yes |
| Product Line |
Steering Tie Rod End |
| Product Type |
Bump Steer Kit |
| Prop 65 - Short Label |
WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity |
1 |
| 1260 |
Yes |
| Sleeve Length |
8.125 |
| 6529 |
Manual |
| Sub Category |
Steering, Gear and Related Components |
| Thread Direction |
Right Hand Thread |
| 9091 |
6061 T-6 aluminum |
| Title |
Baer Brakes Tracker Adjustable Front Tie Rods Bump Steer Kit for 1988-98 GM C10 Trucks |
| Tube Diameter |
5/8" |
| 26 |
Straight |
| Universal Or Specific Fit |
Specific Fit |
| Warning |
California Proposition 65 |
| 1917 |
Yes |
| Weight |
3.54 |
