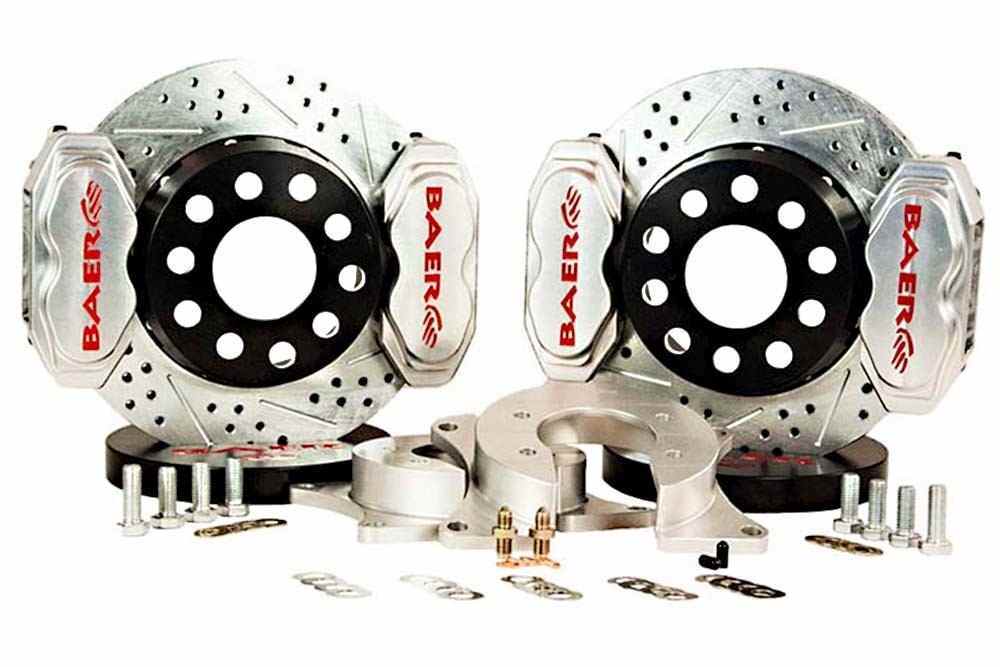

The Dual Deep Stage Rear Brake kit features four, 4-piston, S4 calipers mounted to a 11" 2 piece slot, drill, zinc plated rotor for optimin clamping force. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting hardware is also included. The SS4+ Dual Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels.
| Description_SHO |
Deep Stage SS4+ RDCC |
| Description_SHO |
Deep Stage SS4+ RDCC |
| Description_INV |
11" SS4+ DS Drag Sys RR Clr |
| Description_INV |
11" SS4+ DS Drag Sys RR Clr |
| Description_DES |
Baer Brakes 11" SS4+ Dual Deep Stage Rear Brake Kit, Clear, SDZ |
| Description_DES |
Baer Brakes 11" SS4+ Dual Deep Stage Rear Brake Kit, Clear, SDZ |
| Description_EXT |
Fits GM Small Pattern 10/12 Bolt Bearing on Axle (BOP) Housing Ends w/Non-Flush Mount 3.150" Bearing |
| Description_EXT |
Rear Brake Components SS4+ Brake System Rear Deep Stage SS4+ RDCC Deep Stage SS4+ RDCC S4 Clear SDZ GM/Ford Hybrid 10/12 bolt Deep Stage Drag race brake. Dual set of rear calipers, no park brake. Axle flange needs to be 5.75in. |
| Description_MKT |
The Dual Deep Stage Rear Brake kit features four, 4-piston, S4 calipers mounted to a 11" 2 piece slot, drill, zinc plated rotor for optimin clamping force. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting hardware is also included. The SS4+ Dual Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels. |
| Description_MKT |
Complete System, we pride ourselves on delivering complete and detail oriented performance brake solutions to our consumers. We do not cut any corners. To give an example of this, we assemble the hubs prior to sending them to you, installing all the bearings and races, packing them with Redline synthetic grease. When we send you your brake system, everything is already installed, all you have to do it bolt it onto the control arms. |
| Description_FAB |
All the benefits of our larger brake systems just in a smaller package to fit 15" wheels |
| Axle |
Rear |
| Description_FAB |
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ |
| Brand |
Baer Brakes |
| Description_FAB |
Includes 4 Calipers (1.75" Pistons) |
| Caliper |
S4 |
| Description_FAB |
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips |
| 8247 |
Clear |
| Description_FAB |
Powder Coated Finish |
| Category |
Brake |
| Description_FAB |
Comes Standard with a High Friction Pads Designed for Drag Race Applications |
| 9362 |
4 |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plated Rotor |
| 9359 |
Fixed |
| Description_FAB |
Billet Aluminum Hats, Drilled for 5/8" Wheel Studs |
| 151 |
DR1 |
| 9360 |
Vented |
| Disc Brake Rotor (Rear) Outside Diameter |
11.000 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| 3 |
Semi-metallic |
| 3390 |
Performance |
| Hose Material |
Hoses Not Included |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
15 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
SS4+ Deep Stage Rear |
| Product Type |
11 Inch SS4+ Deep Stage Rear Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.020 |
| Rotor Type |
2-Piece |
| 7171 |
Vented |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
GM/Ford Hybrid 10/12 bolt Deep Stage Drag race brake. Dual set of rear calipers, no park brake. Axle flange needs to be 5.75IN |
| Template |
S125A |
| Title |
SS4+ Deep Stage Rear |
| Axle |
Rear |
| Axle Flange |
GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Brand |
Baer Brakes |
| Caliper |
S4 |
| 8247 |
Clear |
| Category |
Brake |
| 9362 |
4 |
| 9359 |
Fixed |
| 151 |
DR1 |
| 9360 |
Vented |
| 9364 |
11.000 |
| Emission Code |
6 |
| Export Description |
Brake Components |
| 3 |
Semi-metallic |
| 3390 |
Performance |
| Hose Material |
Hoses Not Included |
| Includes Park Brake |
No |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
15 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
SS4+ Deep Stage Rear |
| Product Type |
11 Inch SS4+ Deep Stage Rear Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.020 |
| Rotor Type |
2-Piece |
| 7171 |
Vented |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
2 Calipers per Side, No Park Brake, Max Axle Flange Diameter of 5.75" |
| Template |
S125A |
| Title |
SS4+ Deep Stage Rear |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
