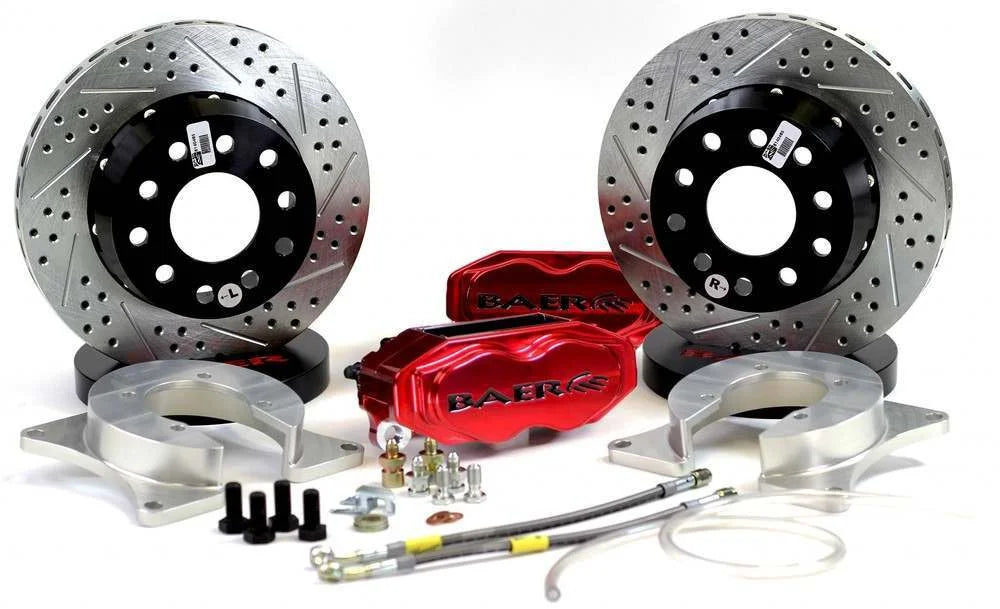

The Deep Stage Rear Brake kit features two, 4-piston, S4 calipers mounted to a 11" 2 piece slot, drill, zinc plated rotor for optimin clamping force. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting hardware is also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels.
| Axle |
Rear |
| Axle |
Rear |
| Brand |
Baer Brakes |
| Axle Flange |
GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Caliper |
S4 |
| Brand |
Baer Brakes |
| 8247 |
Fire Red |
| Caliper |
S4 |
| Category |
Brake |
| 8247 |
Fire Red |
| 9362 |
4 |
| Category |
Brake |
| 9359 |
Fixed |
| 9362 |
4 |
| 151 |
DR1 |
| 9359 |
Fixed |
| 9360 |
Vented |
| 151 |
DR1 |
| Disc Brake Rotor (Rear) Outside Diameter |
11.000 |
| 9360 |
Vented |
| Emission Code |
6 |
| 9364 |
11.000 |
| Export Description |
Brake Components |
| Emission Code |
6 |
| 3 |
Semi-metallic |
| Export Description |
Brake Components |
| 3390 |
Performance |
| 3 |
Semi-metallic |
| Hose Material |
Hoses Not Included |
| 3390 |
Performance |
| Lug Count |
5 Lug |
| Hose Material |
Hoses Not Included |
| Min Wheel Dia (verify using template) |
15 |
| Includes Park Brake |
No |
| part type |
Disc Brake Upgrade Kit |
| Lug Count |
5 Lug |
| Product Line |
SS4+ Deep Stage Rear |
| Min Wheel Dia (verify using template) |
15 |
| Product Type |
11 Inch SS4+ Deep Stage Rear Brake Kit |
| part type |
Disc Brake Upgrade Kit |
| Prop 65 (C, R or CR) |
CR |
| Product Line |
SS4+ Deep Stage Rear |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Product Type |
11 Inch SS4+ Deep Stage Rear Brake Kit |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Rotor Thickness |
1.020 |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Rotor Type |
2-Piece |
| Prop 65 Yes/No |
Yes |
| 7171 |
Vented |
| Rotor Thickness |
1.020 |
| Sub Category |
Service Kits |
| Rotor Type |
2-Piece |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| 7171 |
Vented |
| System Notes |
GM/Ford Hybrid 10/12 bolt Deep Stage Drag race brake. Single set of rear calipers, no park brake. Axle flange needs to be 5.75IN |
| Sub Category |
Service Kits |
| Template |
S125A |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| Title |
SS4+ Deep Stage Rear |
| System Notes |
Fits Non-Flush Mount 3.150" Bearing, No Park Brake, Max Axle Flange Diameter of 5.75" |
| Description_SHO |
Deep Stge SS4+ RDCFR |
| Template |
S125A |
| Description_INV |
11" SS4+ DS Drag Sys RR F/Red |
| Title |
SS4+ Deep Stage Rear |
| Description_DES |
Baer Brakes 11" SS4+ Deep Stage Rear Brake Kit, Fire Red, SDZ |
| Wheel Lug/Bolt Pattern |
5x4.50/5x4.75 |
| Description_EXT |
Fits GM Small Pattern 10/12 Bolt Bearing on Axle (BOP) Housing Ends w/Non-Flush Mount 3.150" Bearing |
| Description_MKT |
The Deep Stage Rear Brake kit features two, 4-piston, S4 calipers mounted to a 11" 2 piece slot, drill, zinc plated rotor for optimin clamping force. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting hardware is also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels. |
| Description_FAB |
All the benefits of our larger brake systems just in a smaller package to fit 15" wheels |
| Description_FAB |
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ |
| Description_FAB |
Includes 2 Calipers (1.75" Pistons) |
| Description_FAB |
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips |
| Description_FAB |
Powder Coated Finish |
| Description_FAB |
2-Piece Slot, Drilled, Zinc-Plated Rotor |
| Description_FAB |
Comes Standard with a High Friction Pads Designed for Drag Race Applications |
| Description_FAB |
Billet Aluminum Hats, Drilled for 5/8" Wheel Studs |
| Description_SHO |
Deep Stge SS4+ RSCFR |
| Description_INV |
11" SS4+ DS Drag Sys RR F/Red |
| Description_DES |
Baer Brakes 11" SS4+ Deep Stage Rear Brake Kit, Fire Red, SDZ |
| Description_EXT |
Rear Brake Components SS4+ Brake System Rear Deep Stge SS4+ RSCFR Deep Stage SS4+ RSCFR S4 Fire Red SDZ GM/Ford Hybrid 10/12 bolt Deep Stage Drag race brake. Single set of rear calipers, no park brake. Axle flange needs to be 5.75in. |
| Description_MKT |
Complete System, we pride ourselves on delivering complete and detail oriented performance brake solutions to our consumers. We do not cut any corners. To give an example of this, we assemble the hubs prior to sending them to you, installing all the bearings and races, packing them with Redline synthetic grease. When we send you your brake system, everything is already installed, all you have to do it bolt it onto the control arms. |
