The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA!
| Description_SHO |
Adjustable Tie Rods |
| Description_SHO |
Adjustable Tie Rods |
| Description_INV |
Bump Steer Adj Kit, Frt |
| Description_INV |
Bump Steer Adj Kit, Frt |
| Description_ASC |
There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for early design with an OE outer end measuring 5.750" from the center of the bowl to the end of the tie rod. |
| Description_ASC |
There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for early design with an OE outer end measuring 5.750" from the center of the bowl to the end of the tie rod. |
| Description_DES |
Baer Brakes Tracker Tie Rod/Bump Steer Kit |
| Description_DES |
Baer Brakes Tracker Tie Rod/Bump Steer Kit |
| Description_EXT |
Fits 1970-1974 GM F-Body with Stock Spindles;1975 Firebird with Stock Spindles |
| Description_EXT |
Fits 1970-1974 GM F-Body with Stock Spindles;1975 Firebird with Stock Spindles |
| Description_MKT |
The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA! |
| Description_MKT |
The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA! |
| Description_FAB |
Direct bolt on upgrade |
| Description_FAB |
Direct bolt on upgrade |
| Description_FAB |
Black E-Coated for Rust Protection |
| Description_FAB |
Black E-Coated for Rust Protection |
| Description_FAB |
Fully adjustable |
| Description_FAB |
Fully adjustable |
| Description_FAB |
Simple installation |
| Description_FAB |
Simple installation |
| Description_FAB |
Tapered pin for NO spindle modifications |
| Description_FAB |
Tapered pin for NO spindle modifications |
| Description_FAB |
Vehicle specific |
| Description_FAB |
Vehicle specific |
| 40 |
Yes |
| 5235 |
Yes |
| Adjustment Range |
0.875 |
| Applications |
1970-74 GM F-Body cars with stock spindles |
| Applications |
1975 Pontiac Firebird with stock spindles Note: There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for early design with OE outer end measuring 5.750" from center of bowl to end of tie rod. |
| Axle |
Front |
| 606 |
N/A |
| Box Count |
1 |
| Brand |
Baer Brakes |
| 2334 |
No |
| Category |
Steering |
| 17 |
Black |
| 2827 |
No |
| 2378 |
No |
| Emission Code |
6 |
| 1924 |
Female |
| 1925 |
Female |
| Export Description |
Suspension Components |
| Finish |
Black e-coated |
| 3390 |
Premium |
| 2339 |
No |
| 4417 |
Yes |
| 9 |
Hex |
| Heim Joint |

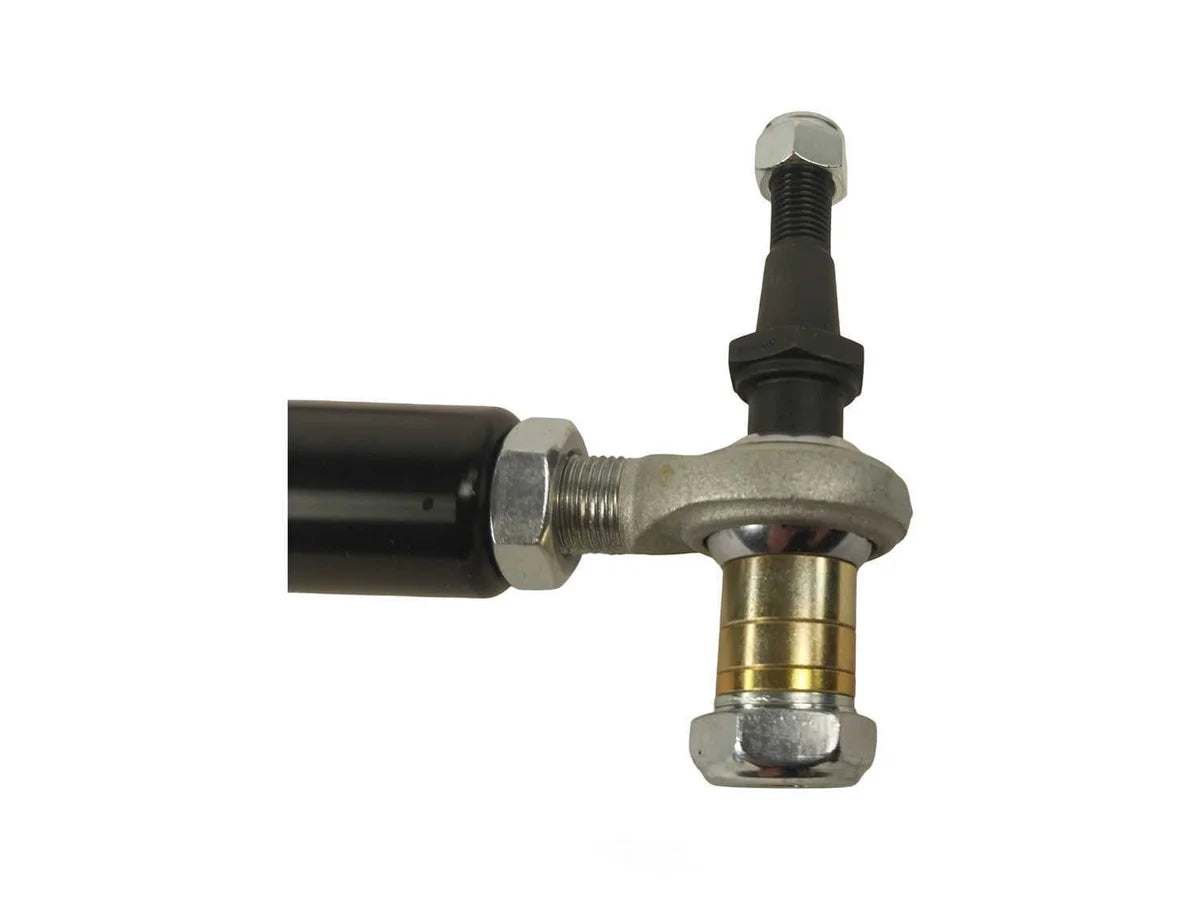

Teflon lined 5/8” heim joint |
| 357 |
6061 T-6 aluminum |
| Includes |

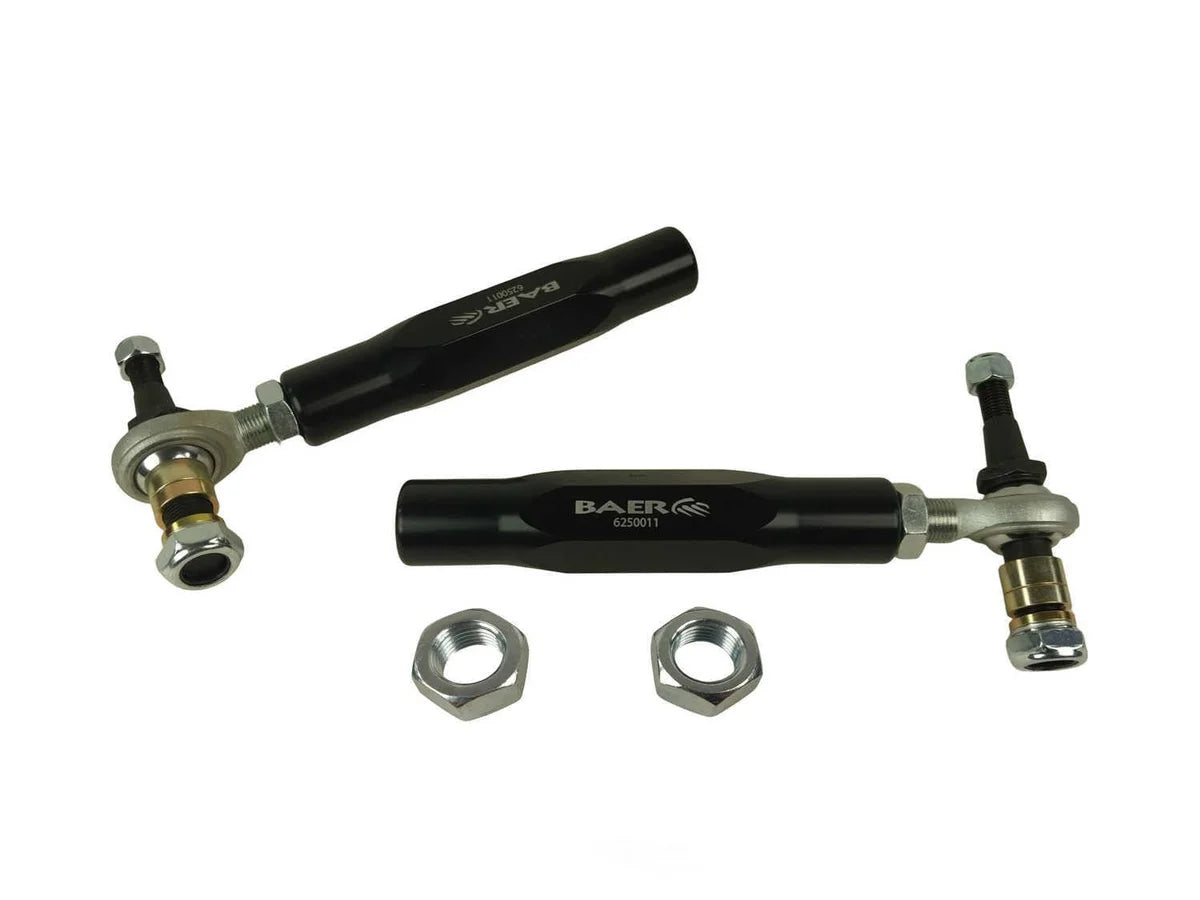

2x Tie Rods |
| Inner Sleeve Thread Size |
11/16"x18 LH Thread |
| 4241 |
Yes |
| Manufacturer Restriction |
None |
| 30 |
Yes |
| Outer Sleeve Thread Size |
5/8"x18 RH Thread |
| part type |
Steering Tie Rod End |
| 2330 |
Yes |
| Product Line |
Steering Tie Rod End |
| Product Type |
Bump Steer Kit |
| Prop 65 - Short Label |
WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity |
1 |
| 1260 |
Yes |
| Sleeve Length |
6.6 |
| 6529 |
Manual |
| Sub Category |
Steering, Gear and Related Components |
| System Notes |
5.75 inch eye of ball to end of sleeve |
| Thread Direction |
Right Hand Thread |
| 9091 |
6061 T-6 aluminum |
| Title |
Baer Brakes Tracker Adjustable Front Tie Rods Bump Steer Kit for 1970-1974 F-Body & Early 1975 Firebird |
| Tube Diameter |
5/8" |
| 26 |
Straight |
| Universal Or Specific Fit |
Specific Fit |
| Warning |
California Proposition 65 |
| 1917 |
Yes |
| Weight |
3.135 |
| 40 |
Yes |
| 5235 |
Yes |
| Adjustment Range |
0.875 |
| Applications |
1970-74 GM F-Body cars with stock spindles |
| Applications |
1975 Pontiac Firebird with stock spindles Note: There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for early design with OE outer end measuring 5.750" from center of bowl to end of tie rod. |
| Axle |
Front |
| 606 |
N/A |
| Box Count |
1 |
| Brand |
Baer Brakes |
| 2334 |
No |
| Category |
Steering |
| 17 |
Black |
| 2827 |
No |
| 2378 |
No |
| Emission Code |
6 |
| 1924 |
Female |
| 1925 |
Female |
| Export Description |
Suspension Components |
| Finish |
Black e-coated |
| 3390 |
Premium |
| 2339 |
No |
| 4417 |
Yes |
| 9 |
Hex |
| Heim Joint |
Teflon lined 5/8” heim joint |
| 357 |
6061 T-6 aluminum |
| Includes |
2x Tie Rods |
| Inner Sleeve Thread Size |
11/16"x18 LH Thread |
| 4241 |
Yes |
| Manufacturer Restriction |
None |
| 30 |
Yes |
| Outer Sleeve Thread Size |
5/8"x18 RH Thread |
| part type |
Steering Tie Rod End |
| 2330 |
Yes |
| Product Line |
Steering Tie Rod End |
| Product Type |
Bump Steer Kit |
| Prop 65 - Short Label |
WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity |
1 |
| 1260 |
Yes |
| Sleeve Length |
6.6 |
| 6529 |
Manual |
| Sub Category |
Steering, Gear and Related Components |
| System Notes |
5.75 inch eye of ball to end of sleeve |
| Thread Direction |
Right Hand Thread |
| 9091 |
6061 T-6 aluminum |
| Title |
Baer Brakes Tracker Adjustable Front Tie Rods Bump Steer Kit for 1970-1974 F-Body & Early 1975 Firebird |
| Tube Diameter |
5/8" |
| 26 |
Straight |
| Universal Or Specific Fit |
Specific Fit |
| Warning |
California Proposition 65 |
| 1917 |
Yes |
| Weight |
3.135 |
