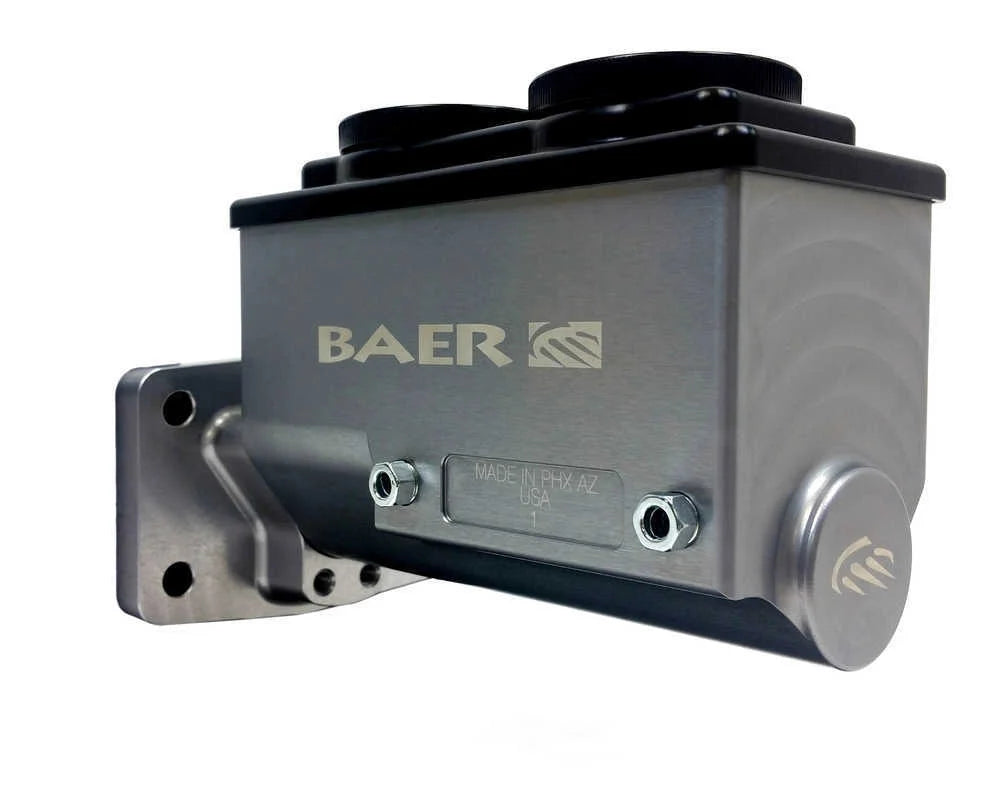

Baer Brake Systems ReMaster 4-Bolt Mopar Master Cyl Assembly, Gray, 1in bore, Right port 6801300RP

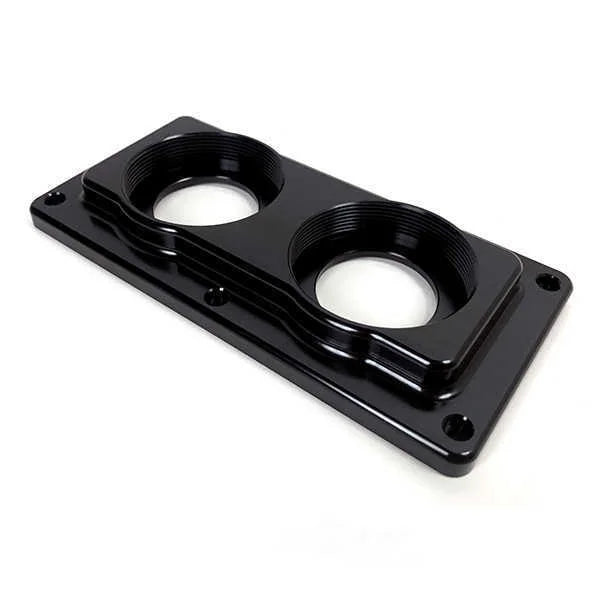

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1" bore, right side ports and a 4-bolt mounting flange fitting many early Mopar applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available

Specifications:

7699	No
5005	No
644	No
9562	No
353	No
3390	Premium
646	Yes
647	6061 T6 billet aluminum
30	No
652	Yes
1751	6061 T6 billet aluminum
9570	Integral
653	Dual
8073	No
Area	0.78
Bore Size	1.00
Box Count	1
Brand	Baer Brakes
Connector For Warning Light	No
Emission Code	6
Export Description	Brake Components
Fittings Included	Yes
Flange Type	4 Bolt Mopar

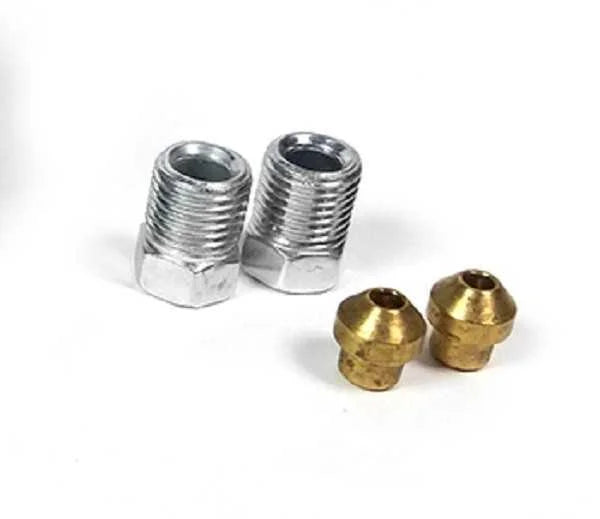

Includes	1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts
Master Cylinder Outlet Port Fittings	Banjo w/o Brass Seat
Master Cylinder Outlet Port Fittings	3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Master Cylinder Outlet Port Quantity	2
Master Cylinder Outlet Port Size	3/8-24
Master Cylinder Port Exit	Right Side
Product Line	Master Cylinder Assembly
Prop 65 - Short Label	WARNING: Cancer Harm - www.p65warnings.ca.gov
Quantity	Sold Individually
Remaster Body Color	Gray
Remaster Body Finish	Anodized
Remaster Caps Color	Black
Remaster Caps Finish	Anodized
Remaster lid Color	Black
Remaster lid Finish	Anodized
Removable Seats	Yes
Reservoir Size	7oz per reservoir, Fill to 75% or 5.25oz per reservoir
Series	ReMaster
Stroke	1.1
System Notes	gray anodized,1IN bore,right port
Title	ReMaster Master Cylinder 4 Bolt Mopar, Gray Anodized Finish, Right Port, 1.00" Bore
Universal Or Specific Fit	Universal
Volume Ratio	2:1
Category	Brake
part type	Brake Master Cylinder
Sub Category	Brake Hydraulics
Description_SHO	ReMastr Gray Anod RP
Description_INV	ReMaster 1" Right Port Gray 4-Bolt
Description_ASC	Ships in 1 Box
Description_DES	ReMaster 4-Bolt Mopar Master Cyl Assembly, Gray, 1in bore, Right port
Description_EXT	Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 1.000 in. Bore, Right Side Ports, Gray Anodized, with a early Mopar 4-bolt mounting flange.
Description_MKT	This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1" bore, right side ports and a 4-bolt mounting flange fitting many early Mopar applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available
Description_FAB	4-Bolt Mopar Firewall Mounting Bracket
Description_FAB	Fully machined 6061 T6 billet aluminum construction
Description_FAB	Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
Description_FAB	Right Side Ports

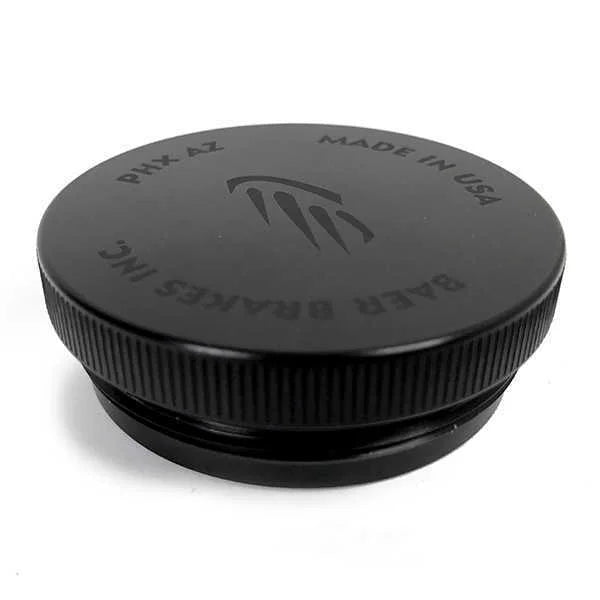

Description_FAB	Machined and knurled screw-on caps for easy access to fill without spillage
Description_FAB	Anodized Remasters feature laser-etched logos
