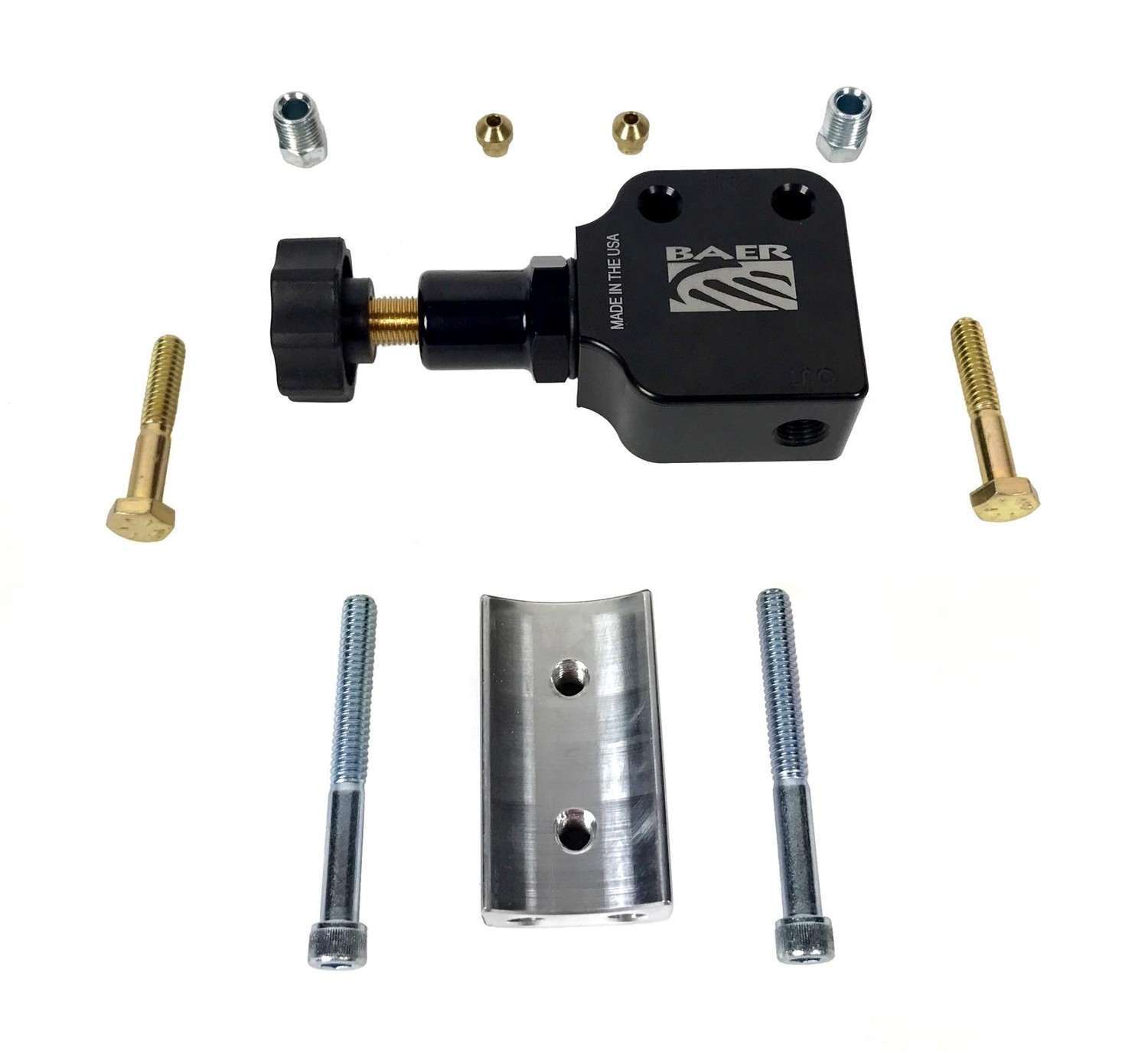

Baer Brake Systems Universal ReMaster Proportioning Valve with Mount, Adjustment Knob & Fittings 6801243

A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. The General Fit Adjustable Proportioning Valve allows quick and easy adjustments to your your Proportioning Valve with easy to acces Adjustment Knob. Featuring removable brass seats that when installed create a 3/16" inverted flare or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) seats and 2) 3/8” x 24 tube nuts. Baer offers several mounting options for the general fit adjustable proportioning valve. This SKU includes the optional mounting block, which mounts directly under the Remaster master cylinder. On OE style master cylinders Baer offers both horizontal and vertical mounting brackets. In situations where spacer is limited, the general fit valve can also be mounted inline on the firewall, fender or even in the interior of the car. Vertical Mount: 6600393, Horizontal Mount: 6600395, Remaster Block Gray: 6801244, Remaster Block Black: 6801275, Remaster Block Polished: 6801242. Aso Available are optional pre-bent, hard line which Connect a Remaster Master Cylinder to a General Fit Valve when installed with a mounting block. Note - line kit varies depending on size of Remaster, select accordingly when ordering.

Specifications:

Adjustment Style	Knob
Bleeder Hoses Included	No
Bleeder Screw Included	No
Box Count	1
Brake Booster Included	No
Brand	Baer Brakes
Category	Brake
Connector For Warning Light	No
Emission Code	6
Export Description	Brake Components
Fittings Included	Yes
3390	Premium
Includes	1x Proportioning Valve, 1x Proportioning Moutning Block, 4x Mounting Bolts, 2x Brass Seats, 2x Tube Nuts
Inlet Fitting	Banjo w/o Brass Seat
Inlet Fitting	3/16" Inverted Flare and Tube Nuts w/ Brass Seat
1923	0.375
Inlet Port Inside Diameter	3/8
766	1
Inlet Port Size	3/8-24
10	Aluminum
Mounting Block Included	Yes
92	No
30	Yes
356	2
Outlet Fitting	3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Outlet Fitting	Banjo w/o Brass Seat
1899	0.375
Outlet Port Inside Diameter	3/8
769	1
Outlet Port Size	3/8-24
part type	Brake Proportioning Valve
Port Exit	In-line
Product Line	General Fit Proportioning Valve & Mount, Kit
Prop 65 - Short Label	WARNING: Cancer Harm - www.p65warnings.ca.gov
Proportioning Mounting Block Color	Silver
Proportioning Mounting Block Finish	Polished
Proportioning Mounting Block Material	Aluminum
Proportioning Valve Color	Black
Proportioning Valve Finish	Black Anodized
Proportioning Valve Material	Aluminum
Quantity	Kit
Removable Seats	Yes
Series	Remaster
Sub Category	Valves
System Notes	polished,with Prop Valve
42	2
29	Threaded
Title	Baer Brakes Black General Fit Adjustable Proportioning Valve with Chrome Mount, Inline, 3/8-24 Fittings
Universal Or Specific Fit	Universal
Valve Type	Adjustable
Description_SHO	Prop Valve w/ Mount
Description_INV	OBS ReMaster Gen Fit Prop Valve w/Pol M
Description_ASC	Ships in 1 Box
Description_DES	Universal ReMaster Proportioning Valve with Mount, Adjustment Knob & Fittings
Description_EXT	This General Fit Adjustable Proportioning Valve with a Polished Mount, features removable brass seats, when installed create a 3/16" inverted flare or when removed can accept banjo or straight 3/8-24 fittings. Bracket sold separately.
Description_MKT	A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. The General Fit Adjustable Proportioning Valve allows quick and easy adjustments to your your Proportioning Valve with easy to acces Adjustment Knob. Featuring removable brass seats that when installed create a 3/16" inverted flare or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) seats and 2) 3/8” x 24 tube nuts. Baer offers several mounting options for the general fit adjustable proportioning valve. This SKU includes the optional mounting block, which mounts directly under the Remaster master cylinder. On OE style master cylinders Baer offers both horizontal and vertical mounting brackets. In situations where spacer is limited, the general fit valve can also be mounted inline on the firewall, fender or even in the interior of the car. Vertical Mount: 6600393, Horizontal Mount: 6600395, Remaster Block Gray: 6801244, Remaster Block Black: 6801275, Remaster Block Polished: 6801242. Aso Available are optional pre-bent, hard line which Connect a Remaster Master Cylinder to a General Fit Valve when installed with a mounting block. Note - line kit varies depending on size of Remaster, select accordingly when ordering.
Description_FAB	Includes tube nuts and brass seats
Description_FAB	3/8-24 Thread, IFF w/included seats, Straight (Banjo) w/o seats
Description_FAB	Includes a mounting block for easy installation beneath ReMaster Master Cylinders.
Description_FAB	Laser etched body
Description_FAB	Made in the USA
