Hedman Hedders Black Long-Tube LS Engine Swap Headers fits Chevrolet S10 2WD / GMC S15 2WD Trucks

Hedman Hedders
69053
Out of stock
$1,702.34 USD $856.99 USD
Hedman Hedders Black Long-Tube LS Engine Swap Headers fits Chevrolet S10 2WD / GMC S15 2WD Trucks
Description

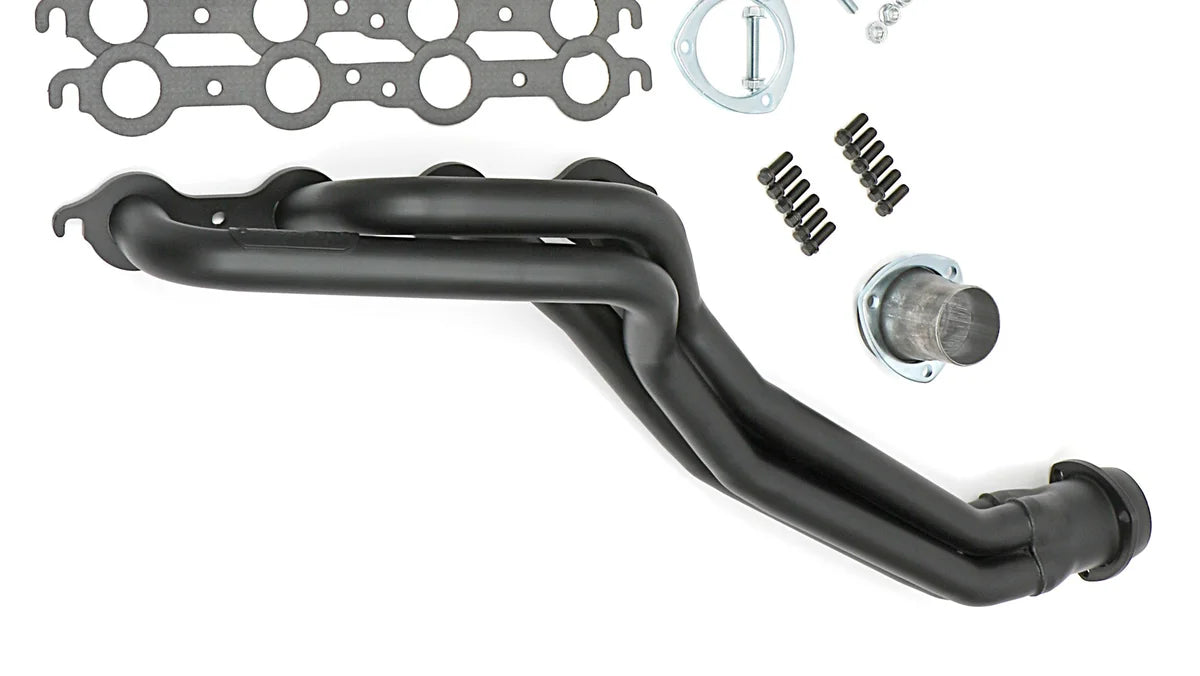

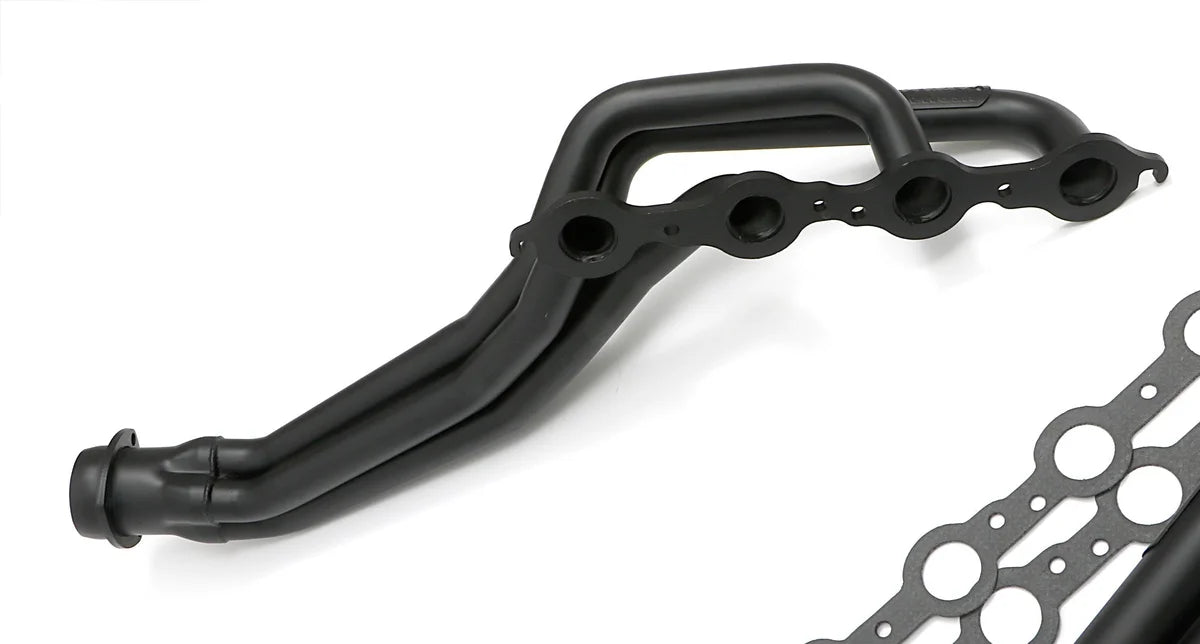

Hedman Hedders 1982-04 Chevy/GMC S10/S15 (2WD) LS Swap Headers; Under Chassis Design; 1-1/2 in. Long Tube; 3 in. Ball/Socket Collector- Black Maxx Ceramic Coated


Specifications:

Description_DEF [B@5a4b2218
Description_DES [B@6d5ddd50
Description_EXT [B@3a069a46
Description_FAB [B@e932641
Description_FAB [B@d4b9e69
Description_FAB [B@e7f65cd
Description_FAB [B@a51aee
Description_FAB [B@17939595
Description_FAB [B@46fae9d8
Description_FAB [B@335ebdc7
Description_INV [B@1b04b328
Description_SHO [B@1030a2e0
Title HEDMAN HEDDERS HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- BLACK MAXX CERAMIC COATED
Tube Diameter 1-1/2 in.
Reducers Included Yes
Head Type Factory Heads
with A.I.R. System No
with EGR No
Weld-Up No
Tuned No
Bolts/Studs Included Yes
Catalytic Converter(s) Included No
Collector Bolts Included Yes
Crossover Pipe Included No
Gasket Or Seal Included Yes
Header Fasteners Included Yes
Installation Hardware Included Yes
Motor Mounts Included No
Y-Pipe Included No
Variations 69050, 69053, 69056
Quantity Sold as a pair.
Primary Tube Gauge 16g
Primary Tube Diameter (in) 1.50 in.
Tube Material Thickness 16g
Material Mild Steel
Tube Design Standard
Tube Length Long Tubes

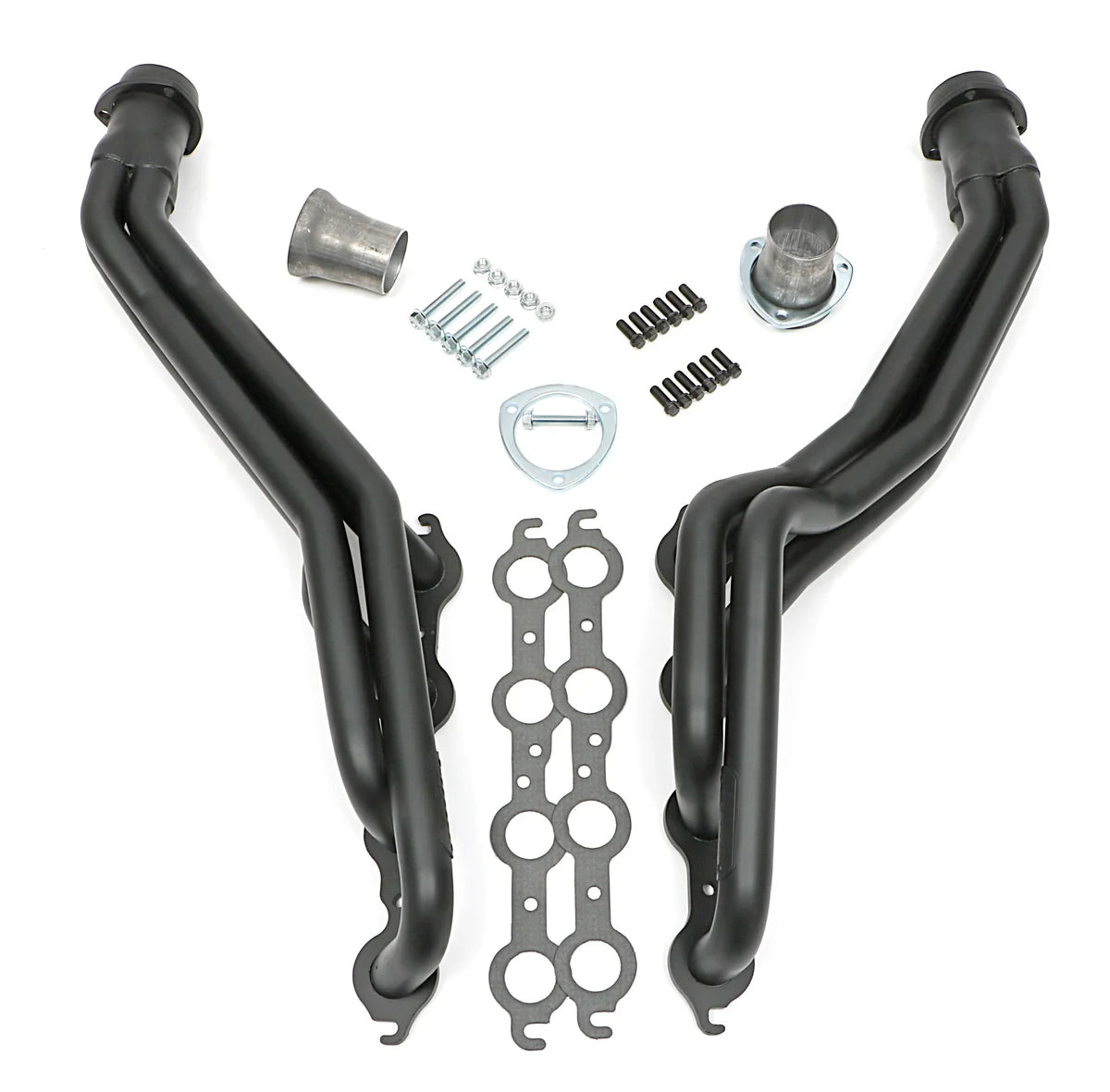

Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material Mild Steel
Header Finish BLACK MAXX Satin Black Ceramic-Metallic
Cylinder Head Port Shape Round
Cylinder Head Stock Profile Heads
Vehicle Family Chevy/GMC S10/S15 Family; 1982-04
Header Construction MILD STEEL- Standard-Duty
Replacement Gasket 27470
Replacement Head Flange Gasket 27470
California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Installation Notes Requires Trans-dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel)
Tube Size 1-1/2 in.
Tube Style Long Tubes
Air Conditioning Yes
Automatic Transmission - Column No
Automatic Transmission - Floor Yes
Manual Transmission - Column No
Manual Transmission - Floor Yes
Flange Thickness 0.375 in.
Exhaust System Dia 2-1/2 in.
Reducer Outlet Size 2-1/2 in.
Drivetrain 2WD Only!
Collector Attachment 3 in.
Collector Diameter 3 in.
Collector Size 3 in.
Collector Style BALL and SOCKET Style (Gasketless)
Finish BLACK MAXX Satin Black Ceramic-Metallic
Finish Type BLACK MAXX- Black Ceramic-Metallic Coating
Engine Chevy LS Series
Product Type Headers
Contents Headers, gaskets, 3-bolt exhaust adapters, mounting hardware
Header Style Long Tube
E.O. # No
Emissions Notes Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Header Port Shape Round
Port Shape Round
Flange Style Standard
Power Steering Yes
