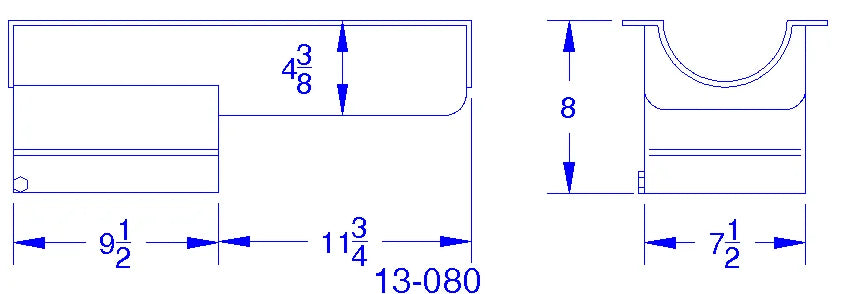

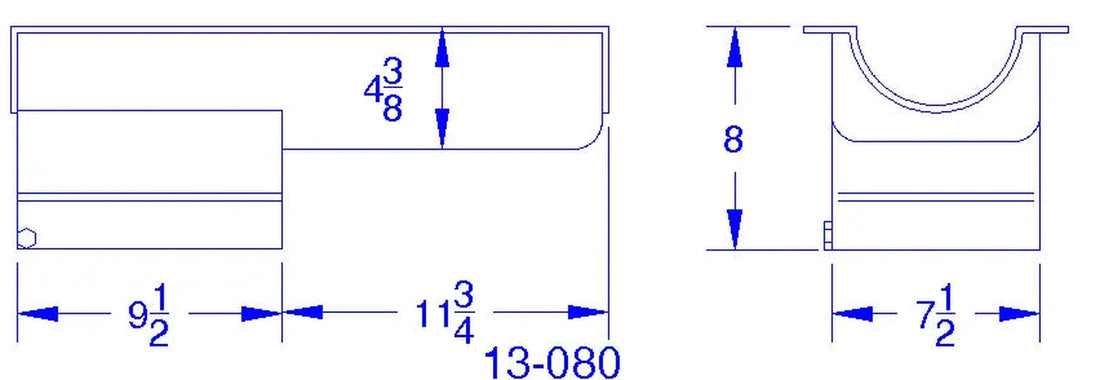

This black powder coat bracket drag race oil pan is for Small Block Chevy pre-?80 blocks with left side dipstick and is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
Specifications:
| Baffled |
Yes |
| Material |
16 Gauge Steel |
| Sump Width |
7.5 inches |
| Sump Depth |
8 inches |
| Stoke |
3.875 inches |
| Recommended Accessory 7 |
88-100 ? SBC Pre ?85 Oil Pan Gasket |
| Recommended Accessory 6 |
20-085 - Pickup for SBC High Volume Pump M155HV w/ 3/4" Inlet |
| Recommended Accessory 5 |
20-082 - Press-in Pickup for SBC High Volume Melling 10555 Pump |
| Recommended Accessory 4 |
20-081 - Bolt-On Pickup for Melling M10555 Pumps |
| Recommended Accessory 3 |
20-080 - Pickup for SBC High Volume Pump M55HV |
| Recommended Accessory 2 |
20-055 - Pickup for SBC Standard Volume Pump M155 w/ 3/4" Inlet |
| Recommended Accessory 1 |
20-050 - Pickup for SBC Standard Volume Pumps M55 & M55A |
| Pickup Included |
No |
| Kicked Out |
No |
| Capacity |
6 Quart System Capacity |
| Hardware Included |
No |
| Gasket or Seal Included |
No |
| Finish |
Black Powdercoat |
| Feature 5 |
Magnetic Drain Plug |
| Feature 4 |
Trap Door Baffle For Oil Control |
| Feature 3 |
Built in Crank Scraper |
| Feature 2 |

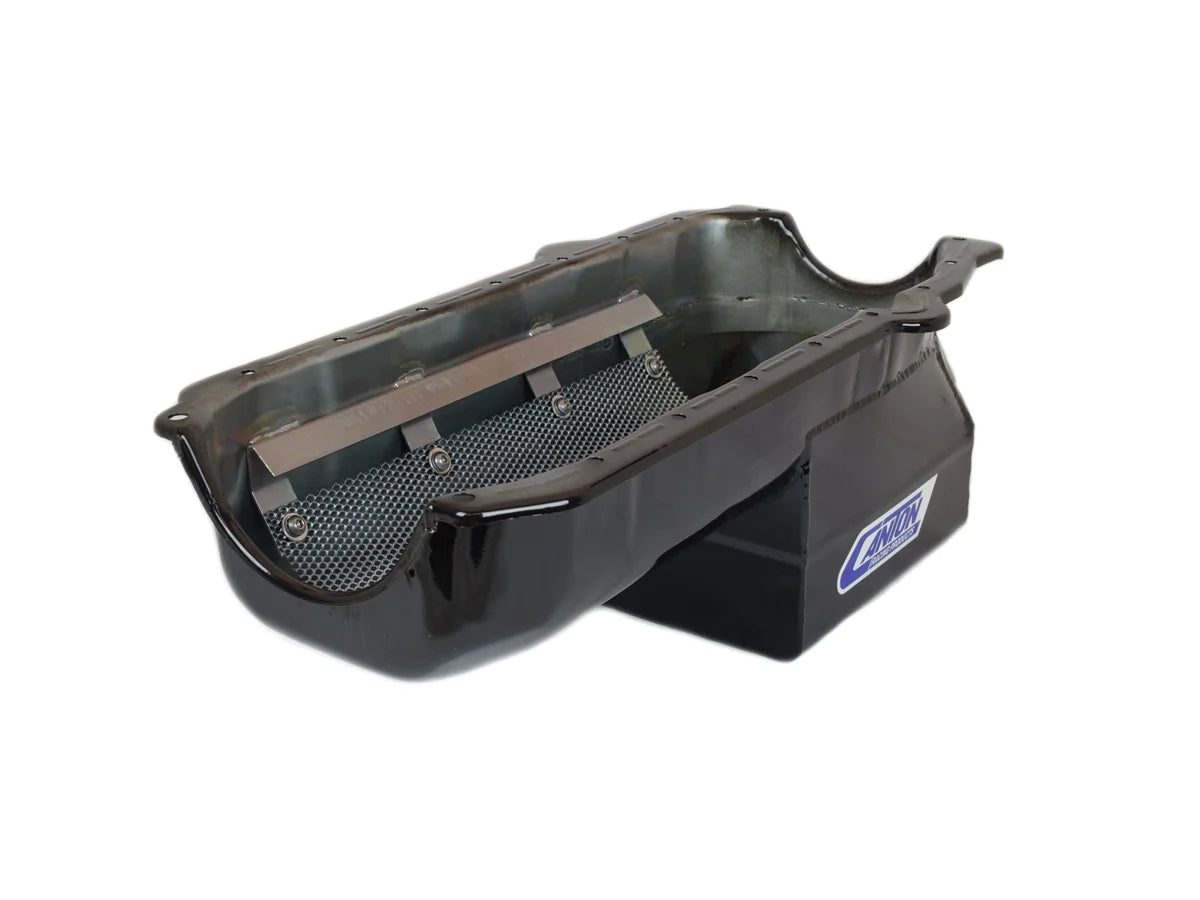

Removable Screen Windage Tray |
| Feature 1 |
Features Competition Oil Recovery System |
| Engine |
For S.B. Chevy Pre-1980 Blocks |
| Drain Plug Included |
Yes |
| Dipstick Port |
No |
| Crank Scraper Included |
Yes |
| Windage Tray Included |
Yes |
| Description_ABR |
- |
| Description_SHO |
SB Chevy Oil Pan |
| Description_INV |
SBC DRAG PAN BLK |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 13-080BLK Oil Pan For Small Block Chevy Bracket Drag Race Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 13-080BLK Oil Pan For Small Block Chevy Bracket Drag Race Pan |
| Description_MKT |
This black powder coat bracket drag race oil pan is for Small Block Chevy pre-?80 blocks with left side dipstick and is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups. |
| Description_FAB |
6 qt System Capacity |
| Description_FAB |
Clears 3.875" Stroke |
| Description_FAB |
Drag Racing Trap Door Baffle System |
| Description_FAB |
Screen Windage Tray |
| Description_FAB |
Crank Scraper |
| Description_FAB |
Magnetic Drain Plug |
| Description_FAB |
Black Powder Coat |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
