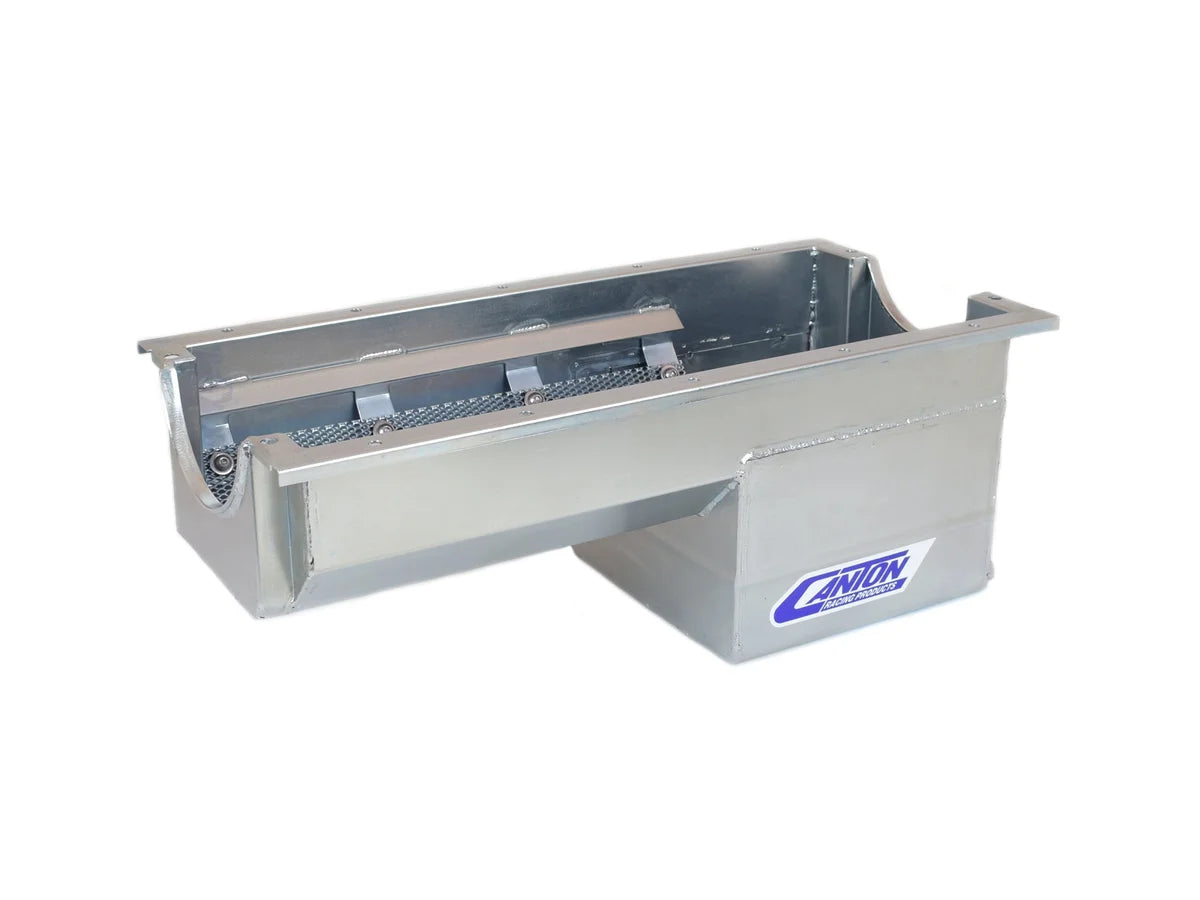

Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Main Product View

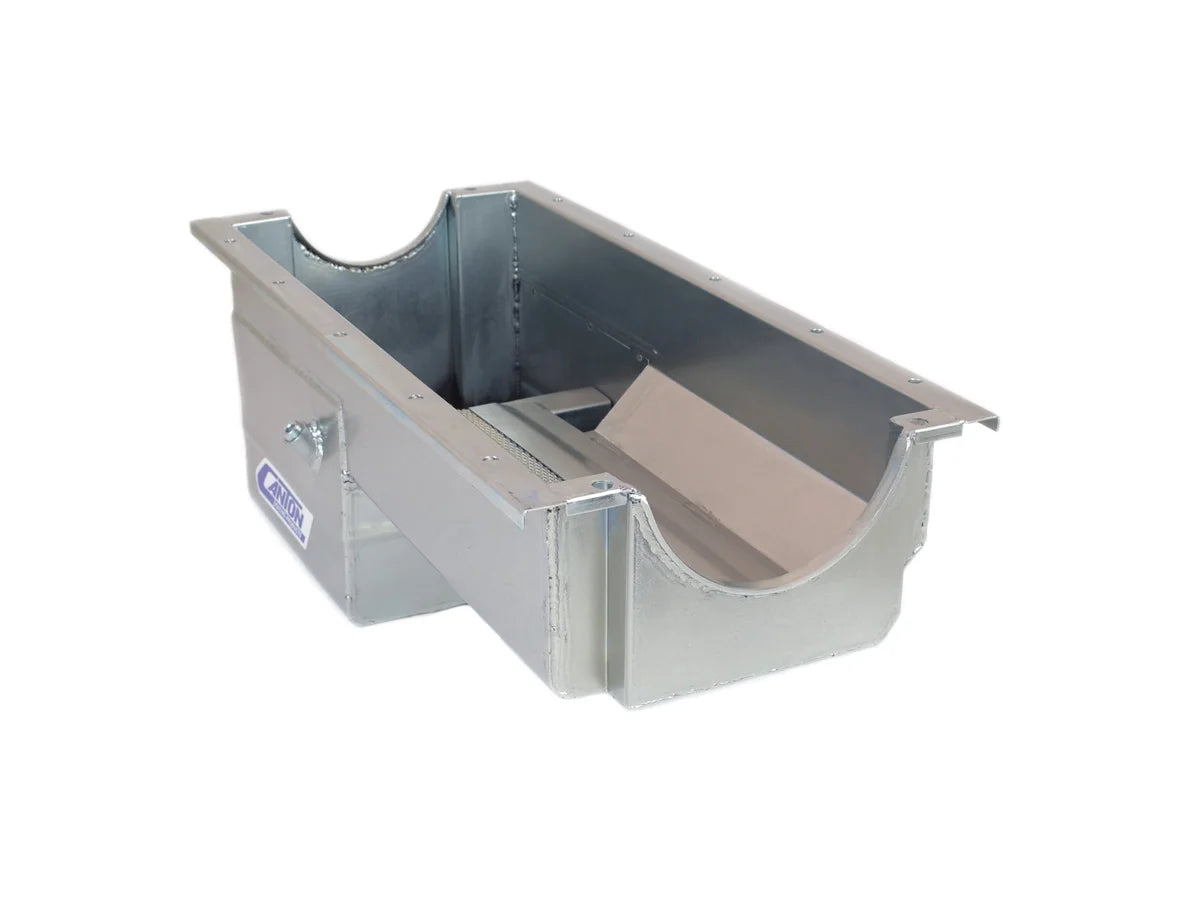

Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Side View

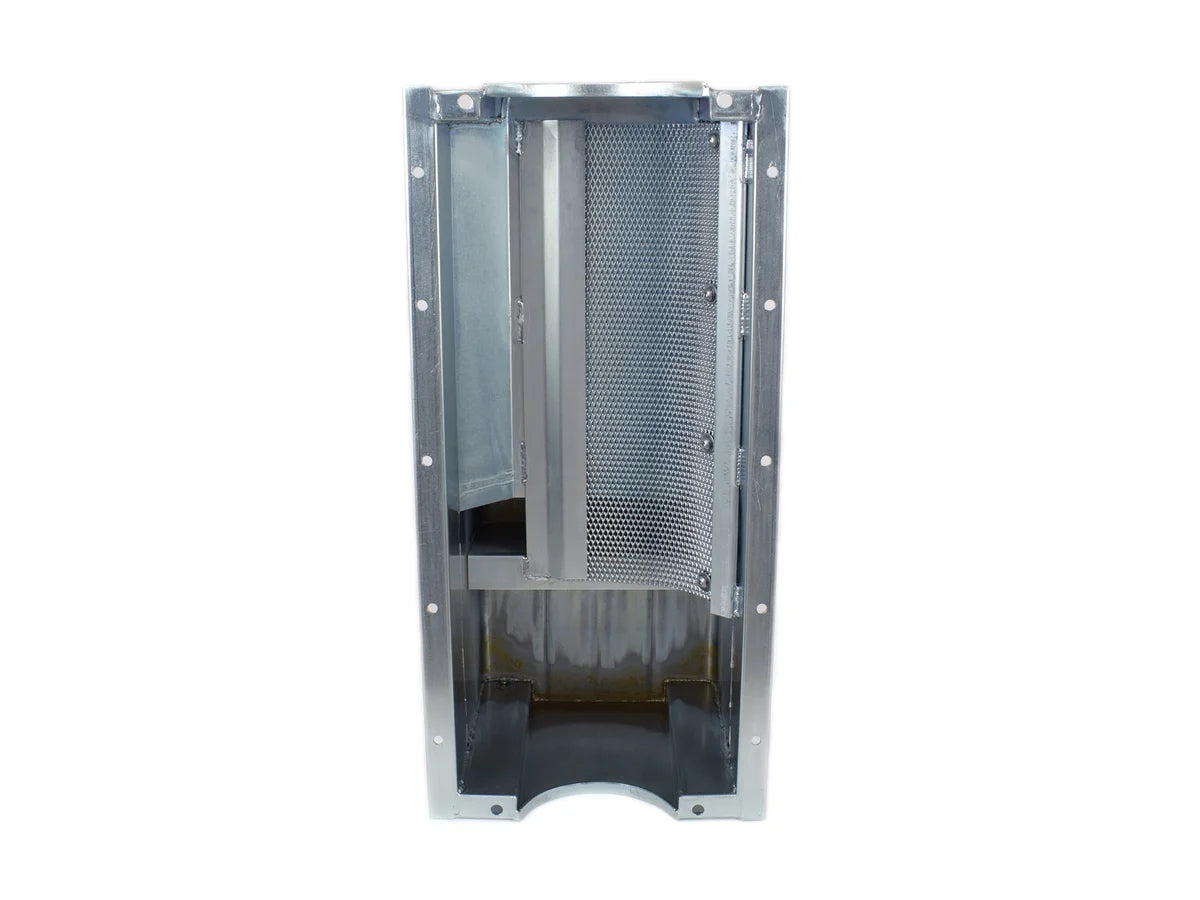

Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Back View
Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Installation View

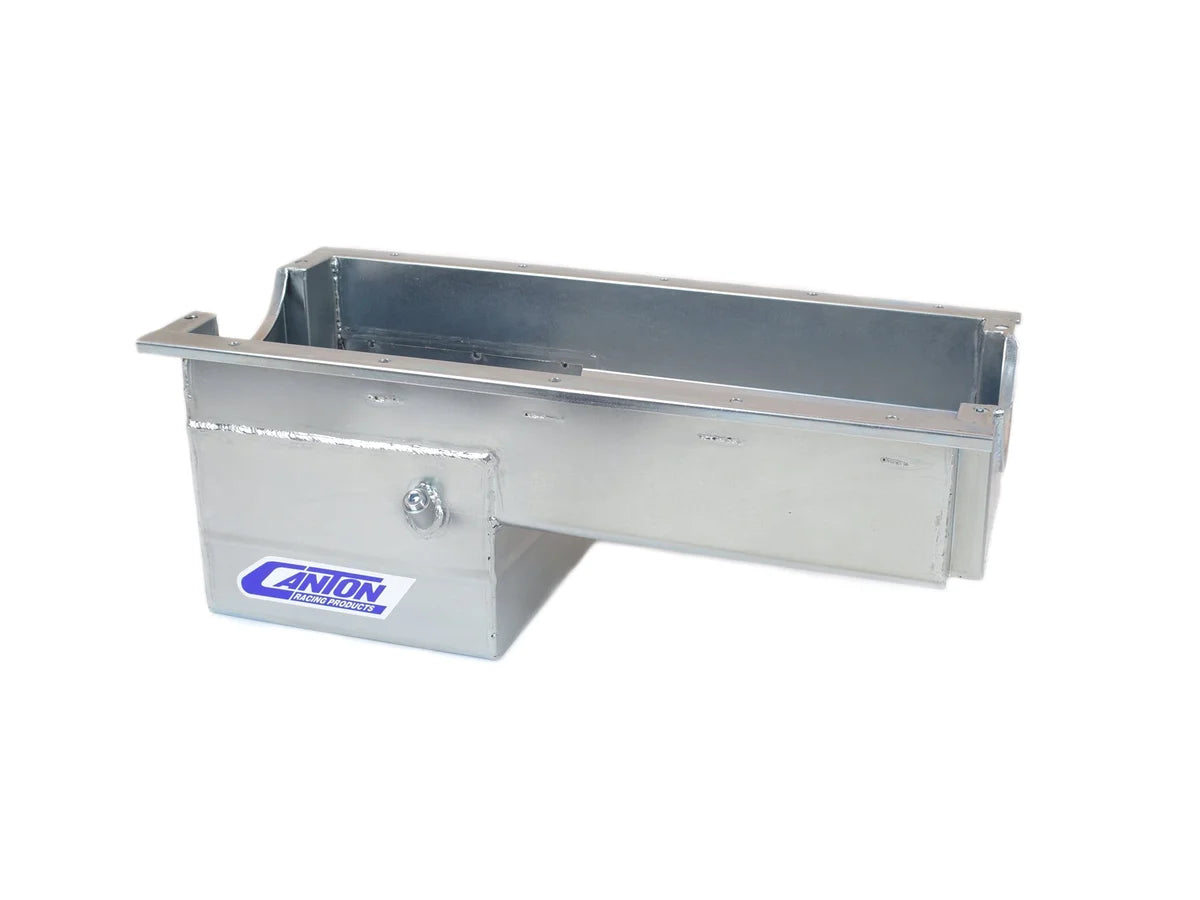

Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Additional View 5
Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Additional View 6
Click to zoom in
Load image into Gallery viewer, Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Main Product View
Load image into Gallery viewer, Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Side View
Load image into Gallery viewer, Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Back View
Load image into Gallery viewer, Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Installation View
Load image into Gallery viewer, Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Additional View 5
Load image into Gallery viewer, Canton Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan 13-090 - Additional View 6

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton Oil Pan Drag Race Pan 13-090 fits Dart / Rocket Engine Block

Canton
13-090
Out of stock
$567.99 USD
Canton Oil Pan Drag Race Pan 13-090 fits Dart / Rocket Engine Block
Description

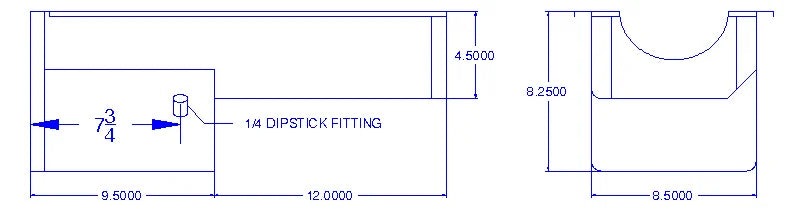

This bracket drag race oil pan is for Dart/Rocket aluminum and iron, spread rail blocks. It has an 8-1/4" deep by 9-1/2" long by 8-1/2" wide sump with a 6 qt. system capacity. Clears a 4.25" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.


Specifications:

Baffled Yes
Material 16 Gauge Steel
Sump Width 8.5 inches
Sump Depth 8.25 inches
Stoke 4.125 inches
Recommended Accessory 8 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 7 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 6 20-085 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
Recommended Accessory 5 20-082 - Press-in Pickup for Melling 105552 & 10555 Pump
Recommended Accessory 4 20-081 - Bolt-On Pickup for Melling 105552 & 10555 Pumps
Recommended Accessory 3 20-080 - Pickup for Small Block High Volume Pump M55HV
Recommended Accessory 2 20-055 - Pickup for Small Standard Volume Pump M155 w/ 3/4" Inlet
Recommended Accessory 1 20-050 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included No
Kicked Out No
Capacity 6 Quart System Capacity
Hardware Included No
Gasket or Seal Included No
Finish Silver Plating
Feature 6 Magnetic Drain Plug
Feature 5 Provision for Canton Pan Mounted Dipstick
Feature 4 Trap Door Baffle For Oil Control
Feature 3 Built in Crank Scraper
Feature 2 Removable Screen Windage Tray
Feature 1 Features Competition Oil Recovery System
Engine For Dart Rocket Alum and Iron Spread Rail Blocks
Drain Plug Included Yes
Dipstick Port Yes
Crank Scraper Included Yes
Windage Tray Included Yes
Description_ABR -
Description_SHO Dart/Rocket Oil Pan
Description_INV DART/ROCKET DRAG PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan
Description_SHP N/A
Description_ASM -
Description_EXT Canton 13-090 Oil Pan Dart/Rocket Engine Block Drag Race Pan
Description_MKT This bracket drag race oil pan is for Dart/Rocket aluminum and iron, spread rail blocks. It has an 8-1/4" deep by 9-1/2" long by 8-1/2" wide sump with a 6 qt. system capacity. Clears a 4.25" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
Description_FAB Clears 4.125" Stroke
Description_FAB 6 qt System Capacity
Description_FAB Trap Door Baffle
Description_FAB Screen Windage Tray
Description_FAB Crank Scraper
Description_FAB Provision For Our Pan Mounted Dipstick
Description_FAB Magnetic Drain Plug
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
