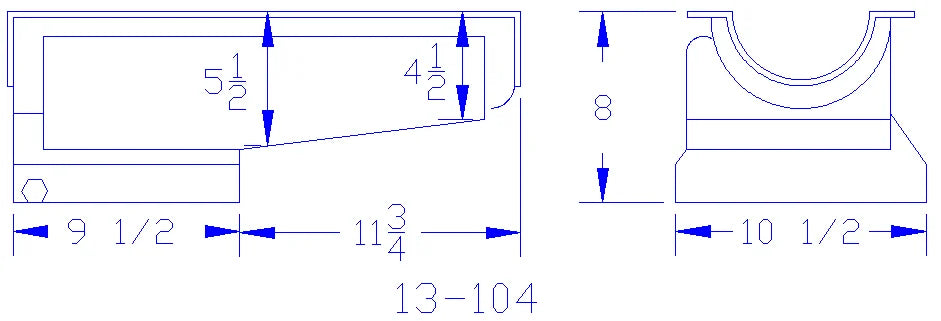

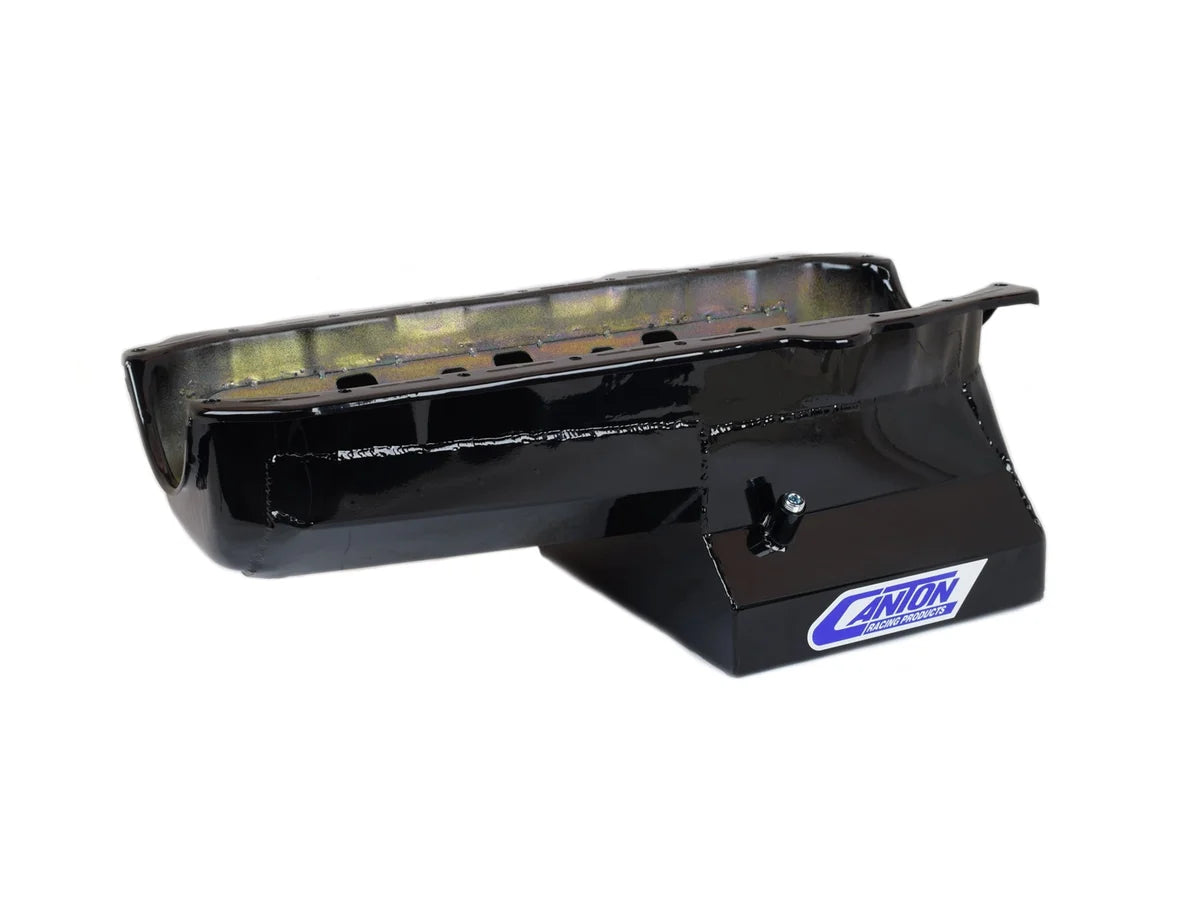

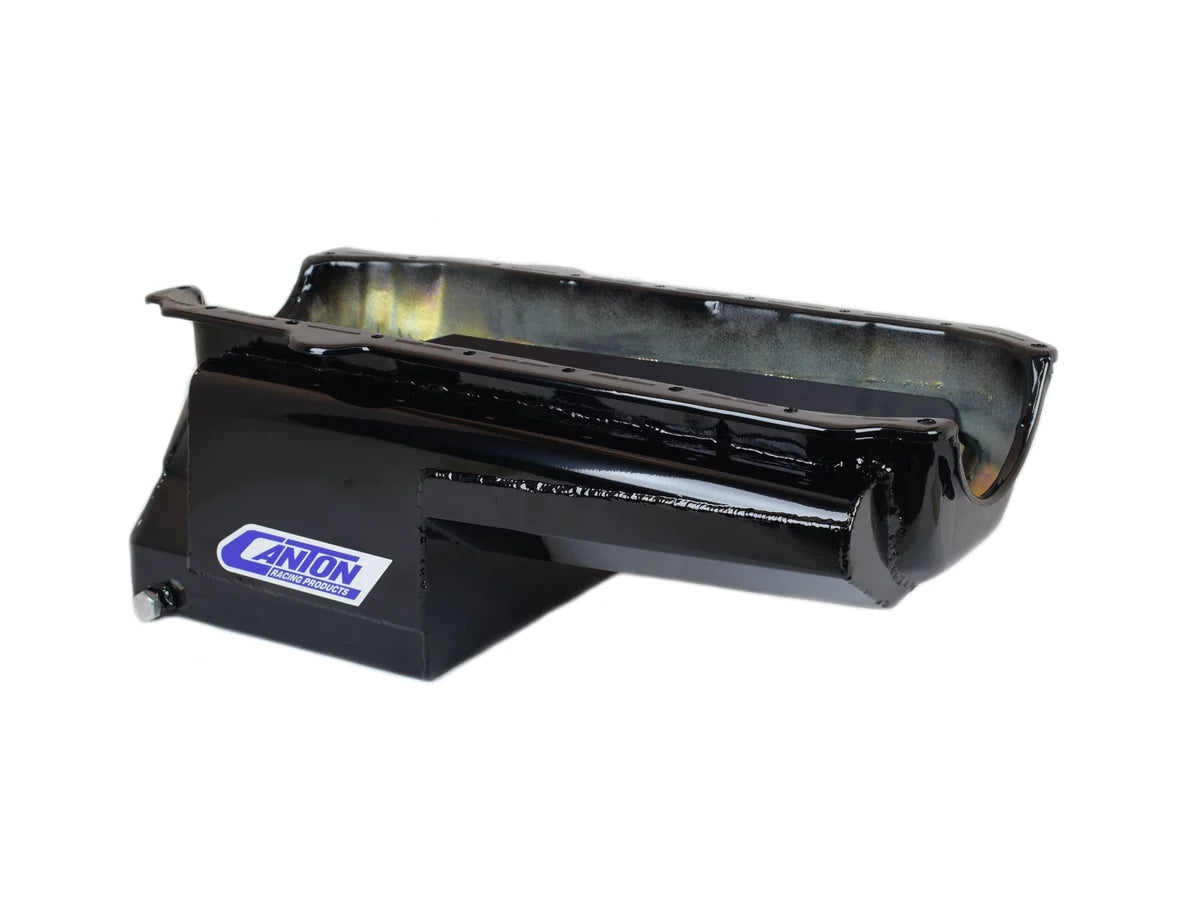

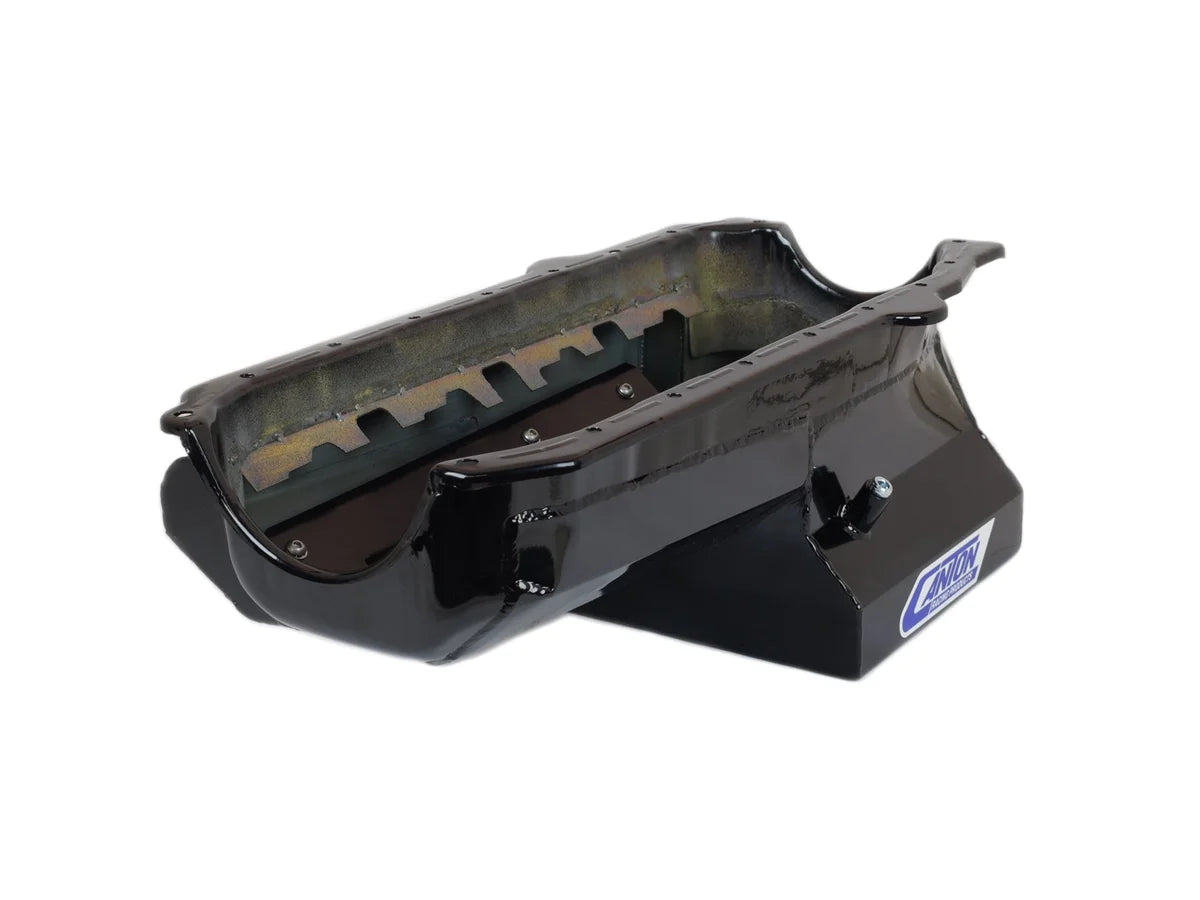

This black powder coat Drag Race Oil Pan is for pre-?85 Small Block Chevys with left side dipstick. It has an 8" deep by 9-1/2" long by 10-1/2" wide sump and a 7 qt. system capacity. Works with an aftermarket starter and a 153 or 168 tooth flywheel. This pan requires one of our pickups.
Specifications:
| Baffled |
Yes |
| Kicked Out |
Yes |
| Sump Width |
10.5 inches |
| Sump Depth |
8 inches |
| Stoke |
3.875 inches |
| Recommended Accessory 8 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 7 |
20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting |
| Recommended Accessory 6 |
20-085 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet |
| Recommended Accessory 5 |
20-082 - Press-in Pickup for Melling 105552 & 10555 Pump |
| Recommended Accessory 4 |
20-081 - Bolt-On Pickup for Melling 105552 & 10555 Pumps |
| Recommended Accessory 3 |
20-080 - Pickup for Small Block High Volume Pump M55HV |
| Recommended Accessory 2 |
20-055 - Pickup for Small Standard Volume Pump M155 w/ 3/4" Inlet |
| Recommended Accessory 1 |
20-050 - Pickup for Small Block Standard Volume Pumps M55 & M55A |
| Pickup Included |
No |
| Material |
16 Gauge Steel |
| Hardware Included |
No |
| Capacity |
7 Quart System Capacity |
| Gasket or Seal Included |
No |
| Finish |
Black Powdercoat |
| Feature 8 |
Magnetic Drain Plug |
| Feature 7 |
Provision for Canton Pan Mounted Dipstick |
| Feature 6 |
Trap Door Baffle For Oil Control |
| Feature 5 |
Built in Crank Scraper |
| Feature 4 |

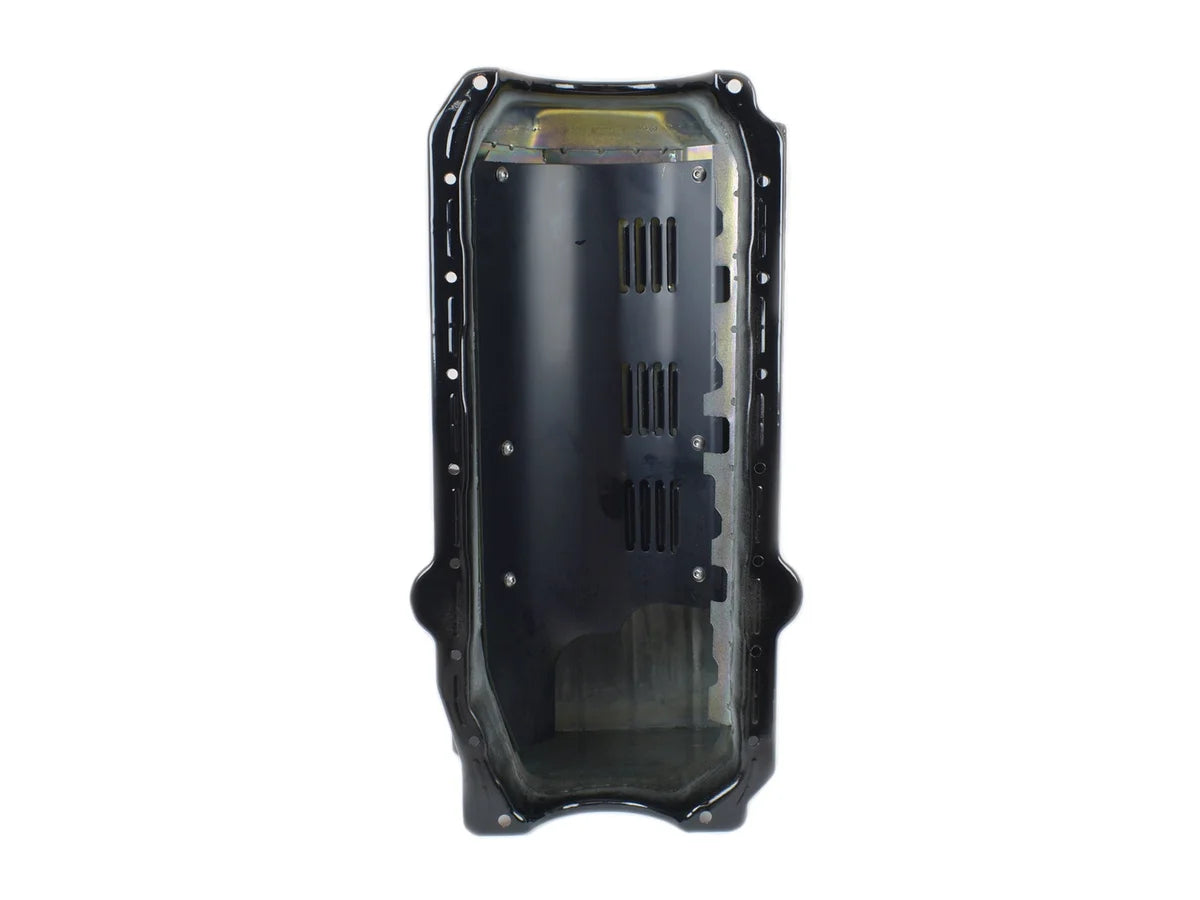

Removable Louvered Windage Tray |
| Feature 3 |
Features Competition Oil Recovery System |
| Feature 2 |
Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower |
| Feature 1 |
Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft |
| Engine |
For S.B. Chevy Pre-1980 Blocks |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
Yes |
| Windage Tray Included |
Yes |
| Description_ABR |
- |
| Description_SHO |
SB Chevy Oil Pan |
| Description_INV |
SBC DRAG POWER PAN BLK |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 13-104BLK Oil Pan Small Block Chevy Pre-1985 Drag Race Power Series Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 13-104BLK Oil Pan Small Block Chevy Pre-1985 Drag Race Power Series Pan |
| Description_MKT |
This black powder coat Drag Race Oil Pan is for pre-?85 Small Block Chevys with left side dipstick. It has an 8" deep by 9-1/2" long by 10-1/2" wide sump and a 7 qt. system capacity. Works with an aftermarket starter and a 153 or 168 tooth flywheel. This pan requires one of our pickups. |
| Description_FAB |
7 qt System Capacity |
| Description_FAB |
Clears 3.875" Stroke |
| Description_FAB |
Oil Recovery Pouch |
| Description_FAB |
Drag Race Trap Door Baffle System |
| Description_FAB |
Windage Tray |
| Description_FAB |
Crank Scraper |
| Description_FAB |
Provision For Our Pan Mounted Dipstick |
| Description_FAB |
Magnetic Drain Plug |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
