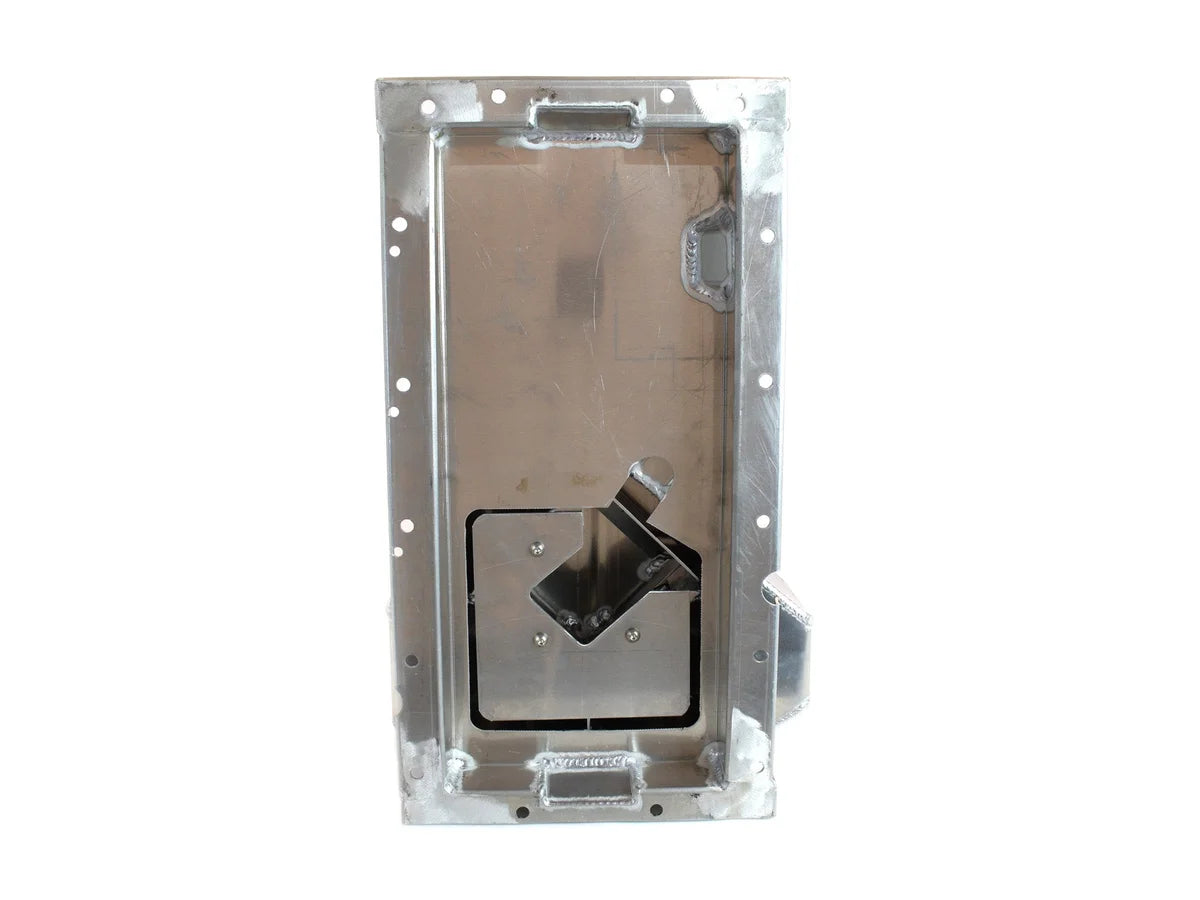

Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Main Product View

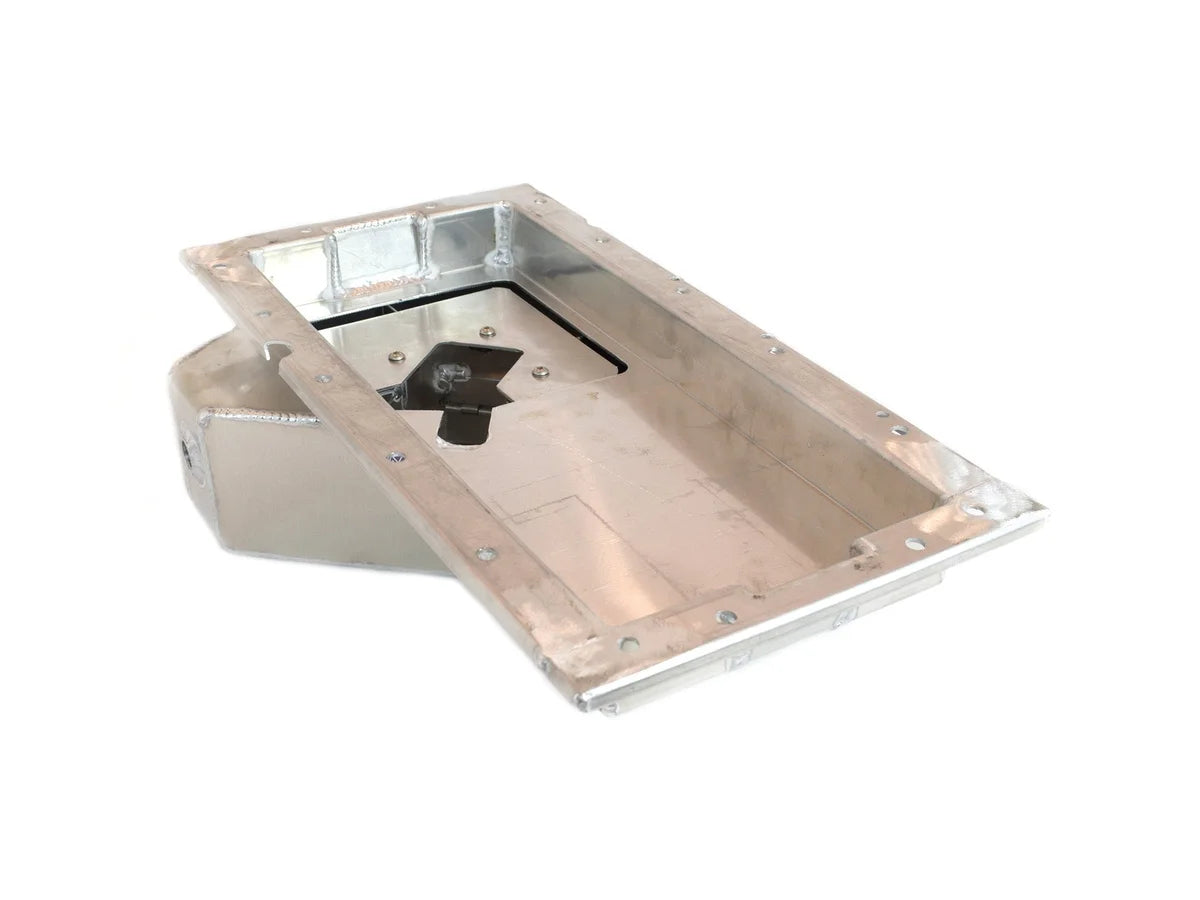

Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Side View

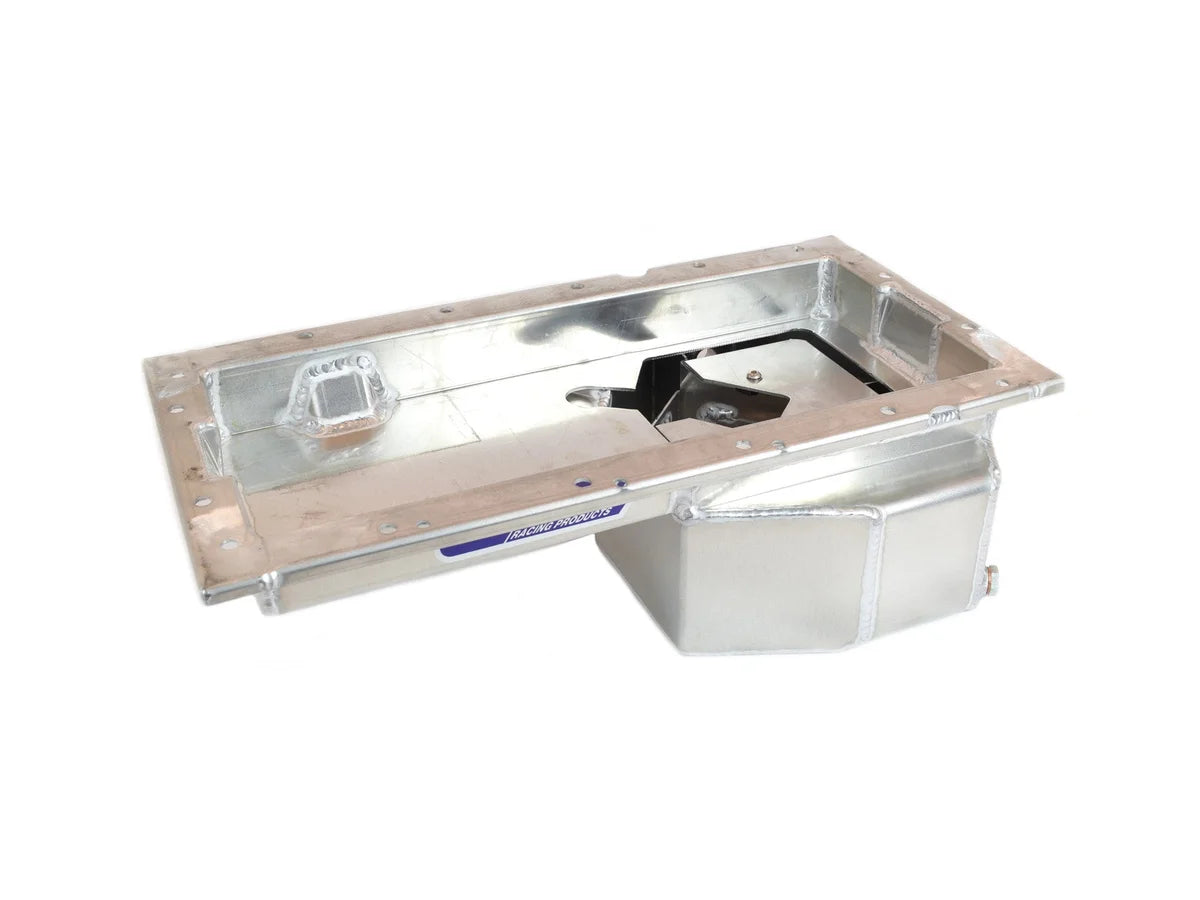

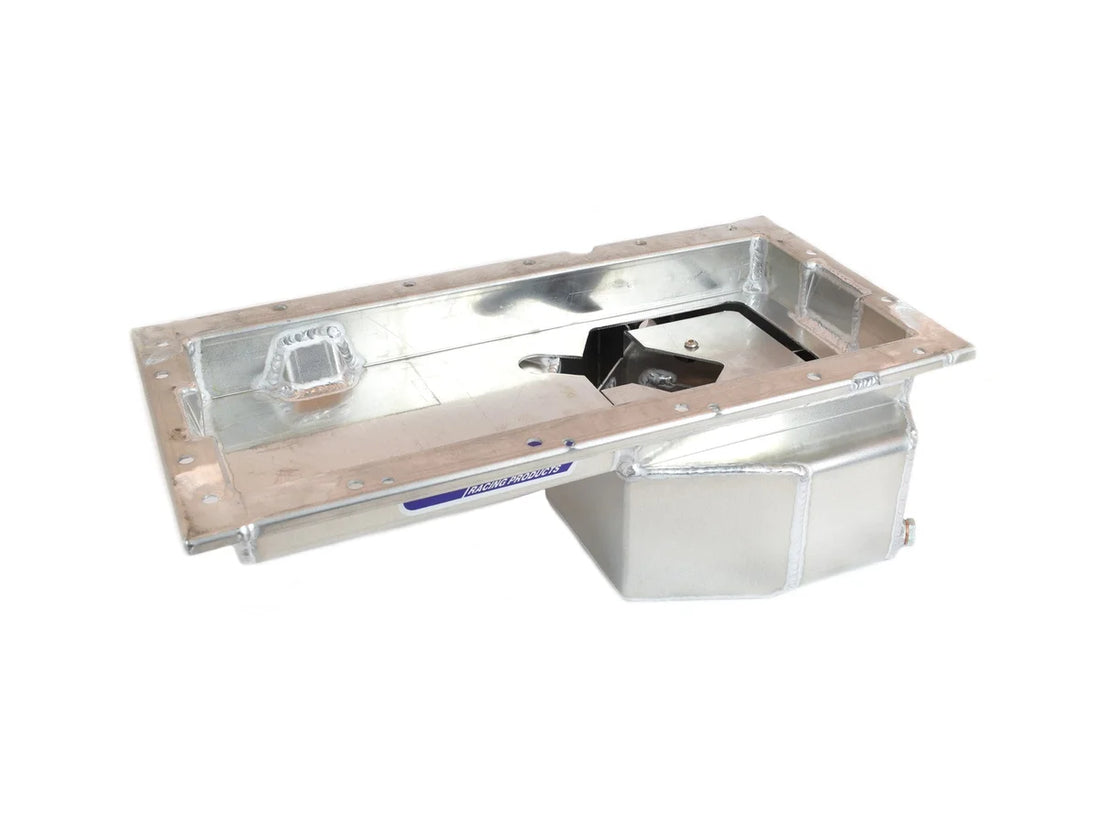

Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Back View
Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Installation View

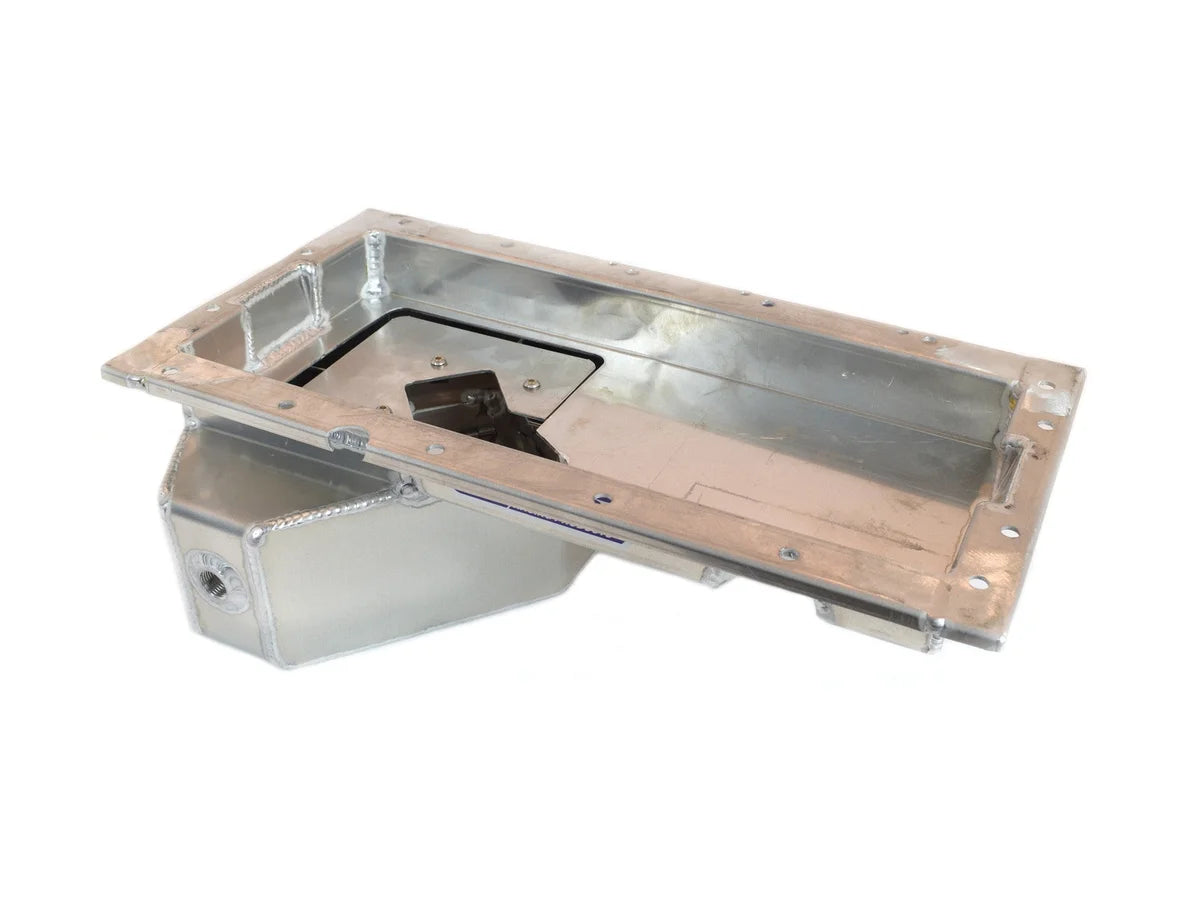

Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Additional View 5
Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Additional View 6
Click to zoom in
Load image into Gallery viewer, Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Main Product View
Load image into Gallery viewer, Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Side View
Load image into Gallery viewer, Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Back View
Load image into Gallery viewer, Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Installation View
Load image into Gallery viewer, Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Additional View 5
Load image into Gallery viewer, Canton Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled 13-784A - Additional View 6

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton 13-784A Oil Pan Rear T Sump Aluminum Race Baffled fits Ford 4.6L 5.4L

Canton
13-784A
Out of stock
$978.00 USD $896.99 USD
Canton 13-784A Oil Pan Rear T Sump Aluminum Race Baffled fits Ford 4.6L 5.4L
Description

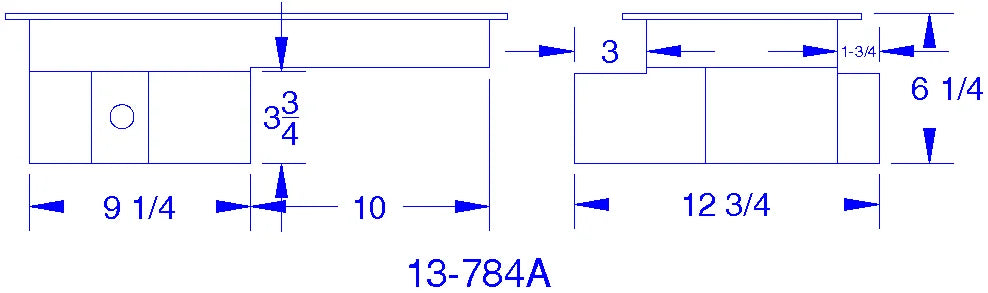

This rear sump aluminum oil pan is for Ford 4.6L / 5.4L modular engines. The "T" style sump is 6-1/4" deep, 12-3/4" wide by 9-1/4" long with a 7 quart system capacity. The pan increases oil capacity without losing ground clearance. Use the factory pickup for this pan. Designed to fit 96-04 and 05-10 Mustangs in competition drag and road racing.


Specifications:

Baffled Yes
Gasket or Seal Included No
Sump Width 12.75 inches
Sump Depth 6.25 inches
Stoke 106MM
Recommended Accessory 2 88-780 - Ford 4.6/5.4L Oil Pan Gasket
Recommended Accessory 1 20-939 - Ford 4.6/5.4L Screened Windage Tray
Pickup Included No
Material .100 Thick Aluminum
Kicked Out No
Hardware Included No
Finish Raw Aluminum
Capacity 7 Quart System Capacity
Feature 5 Magnetic Drain Plug
Feature 4 1/2 NPT Temp Sensor Bung
Feature 3 Bolt On Windage / Anti-Slosh Baffle For Oil Control
Feature 2 Features Four Trap Door Baffle Assembly
Feature 1 Increases Capacity Without Losing Ground Clearance
Engine For Ford 4.6 / 5.4 L Engines
Drain Plug Included Yes
Dipstick Port No
Crank Scraper Included No
Windage Tray Included No
Description_ABR -
Description_SHO Ford 4.6 Oil Pan
Description_INV FORD 4.6/5.4 R/S ALUM BAFFLED PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled
Description_SHP N/A
Description_ASM -
Description_EXT Canton 13-784A Oil Pan For Ford 4.6L 5.4L Rear T Sump Aluminum Race Baffled
Description_MKT This rear sump aluminum oil pan is for Ford 4.6L / 5.4L modular engines. The "T" style sump is 6-1/4" deep, 12-3/4" wide by 9-1/4" long with a 7 quart system capacity. The pan increases oil capacity without losing ground clearance. Use the factory pickup for this pan. Designed to fit 96-04 and 05-10 Mustangs in competition drag and road racing.
Description_FAB Increases Capacity Without Losing Ground Clearance
Description_FAB Features Four Trap Door Baffle Assembly
Description_FAB Bolt On Wind age / Anti-Slosh Baffle For Oil Control
Description_FAB 1/2 NPT Temp Sensor Bung
Description_FAB Magnetic Drain Plug
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
