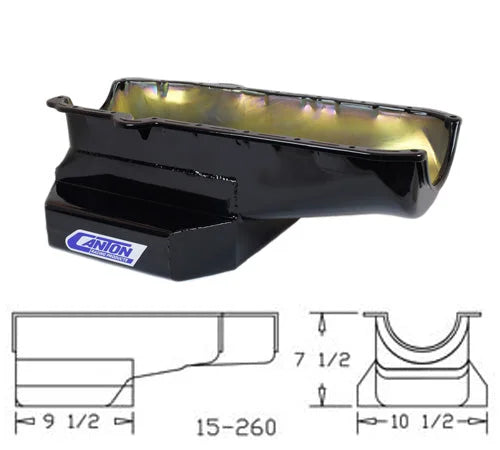

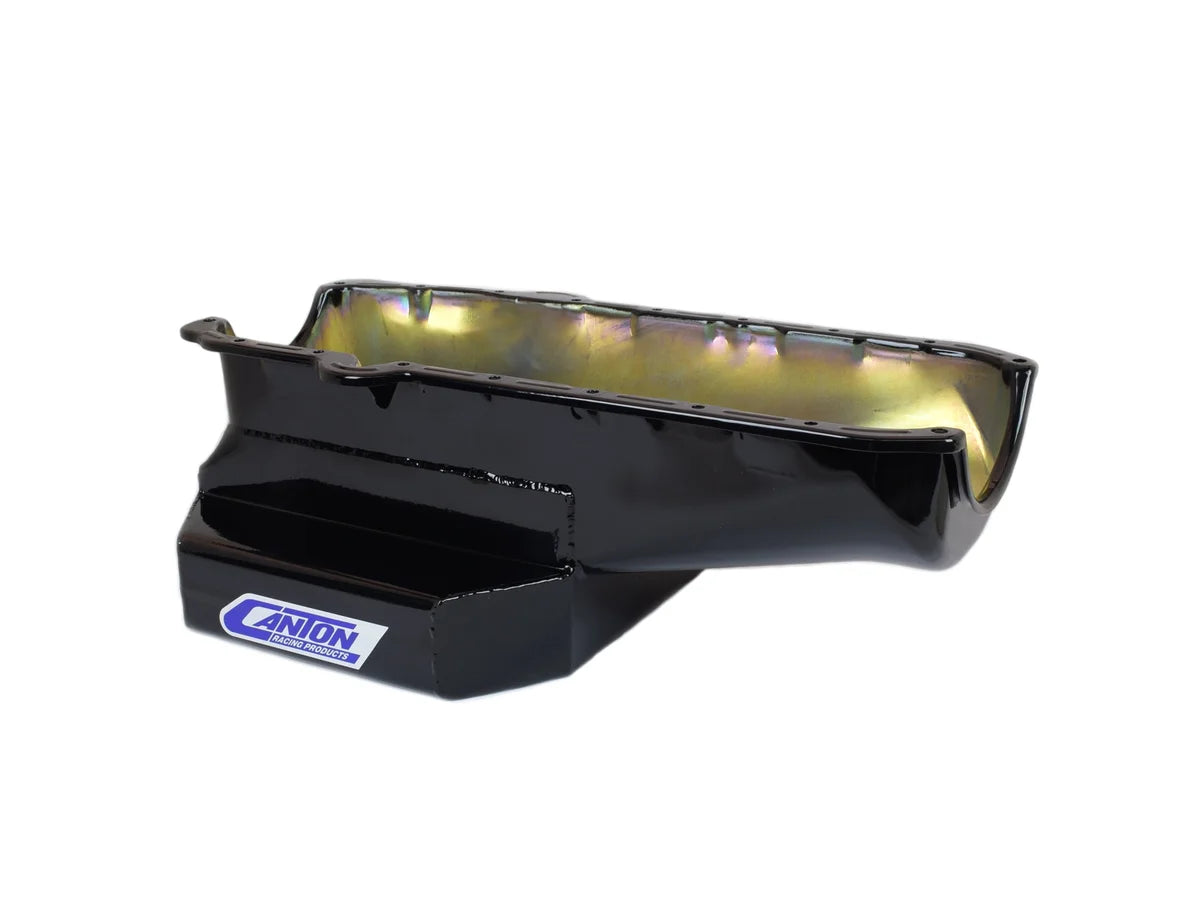

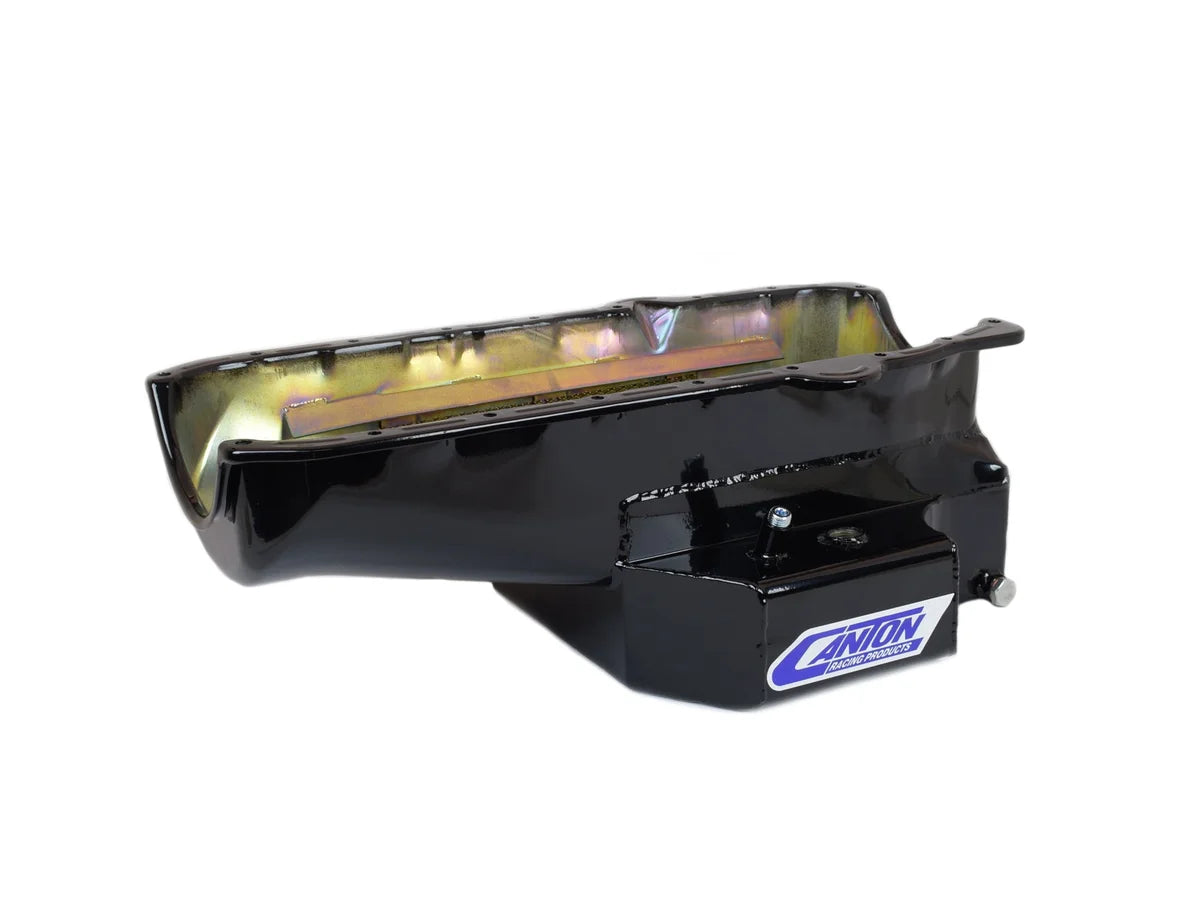

This black powder coat SBC road race pan is for pre-?80 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front ends. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity. This pan requires one of our pickups.
Specifications:
| Baffled |
Yes |
| Material |
16 Gauge Steel |
| Sump Width |
10.5 inches |
| Sump Depth |
7.5 inches |
| Stoke |
3.75 inches |
| Recommended Accessory 8 |
88-100 ? SBC Pre ?85 Oil Pan Gasket |
| Recommended Accessory 7 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 6 |
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 5 |
20-021 - Bolt-On Pickup for Melling M10555 Pumps |
| Recommended Accessory 4 |
20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet |
| Recommended Accessory 3 |
20-020 - Pickup for SBC High Volume Oil Pump M55HV |
| Recommended Accessory 2 |
20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet |
| Recommended Accessory 1 |
20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A |
| Pickup Included |
No |
| Kicked Out |
Yes |
| Capacity |
8 Quart System Capacity |
| Hardware Included |
No |
| Gasket or Seal Included |
No |
| Finish |
Black Powdercoat |
| Feature 5 |
Provision for Pan Mounted Dipstick |
| Feature 4 |
1/2" NPT Temperature Bung |
| Feature 3 |

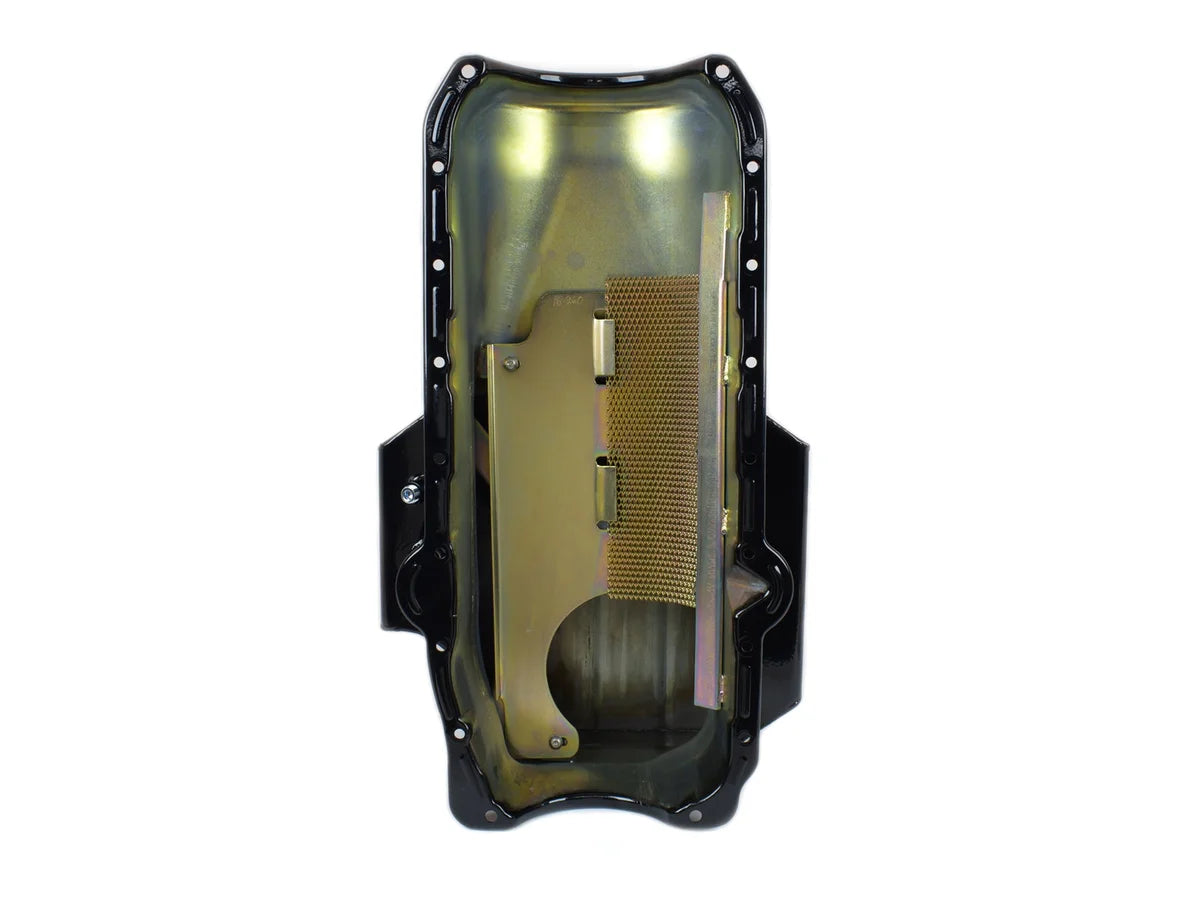

Bolt in Windage Tray |
| Feature 2 |
Crank Scraper |
| Feature 1 |
Trap Door Baffle for Oil Control |
| Engine |
For S.B. Chevy Pre-1980 Blocks |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
Yes |
| Windage Tray Included |
Yes |
| Description_ABR |
- |
| Description_SHO |
SB Chevy Oil Pan |
| Description_INV |
SBC 12? LONG SUMP RR PAN BLK |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 15-260BLK Oil Pan Small Block Chevy 12in Long Sump Pre-1980 Road Race Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 15-260BLK Oil Pan Small Block Chevy 12in Long Sump Pre-1980 Road Race Pan |
| Description_MKT |
This black powder coat SBC road race pan is for pre-?80 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front ends. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity. This pan requires one of our pickups. |
| Description_FAB |
8 qt System Capacity |
| Description_FAB |
Five Trap Door Baffles |
| Description_FAB |
Crank Scraper |
| Description_FAB |
Built In Screen Windage Tray |
| Description_FAB |
1/2" NPT Temperature Bung |
| Description_FAB |
Provision For Our Pan Mounted Dipstick |
| Description_FAB |
Magnetic Drain Plug |
| Description_FAB |
Black Powder Coat |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
