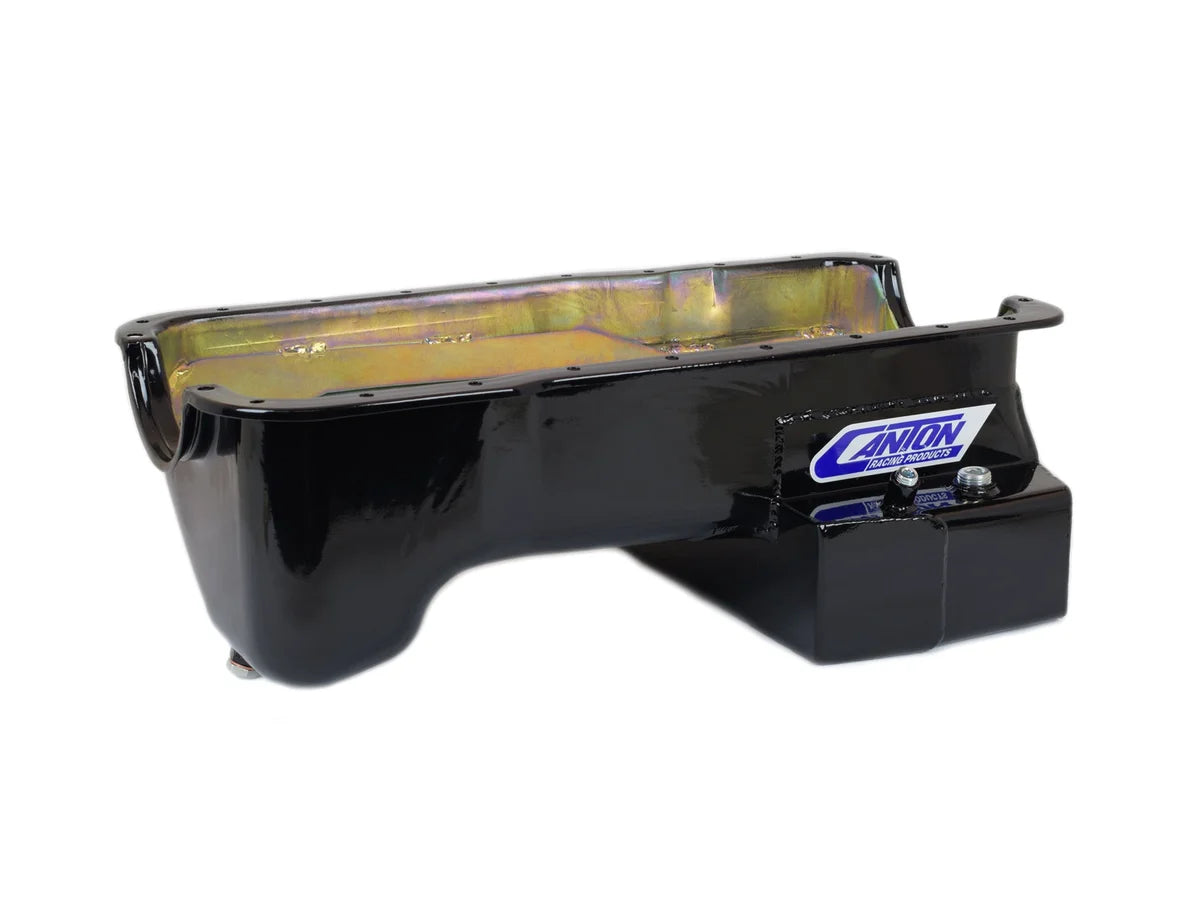

Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Main Product View
Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Side View
Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Back View
Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Installation View

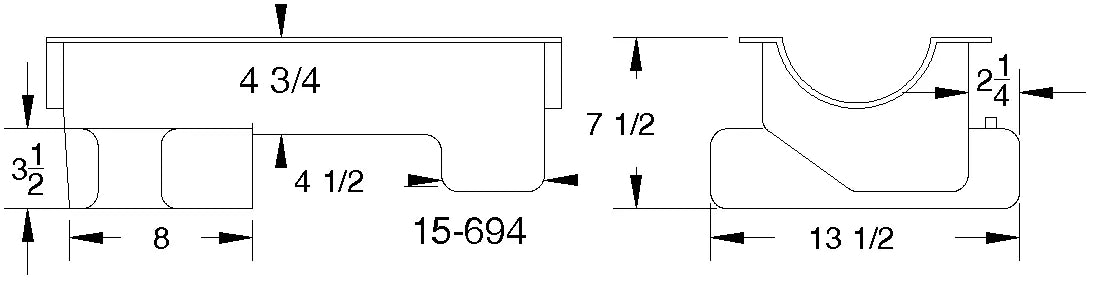

Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Additional View 5
Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Additional View 6
Click to zoom in
Load image into Gallery viewer, Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Main Product View
Load image into Gallery viewer, Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Side View
Load image into Gallery viewer, Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Back View
Load image into Gallery viewer, Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Installation View
Load image into Gallery viewer, Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Additional View 5
Load image into Gallery viewer, Canton Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan 15-694BLK - Additional View 6

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton 15-694BLK Oil Pan Fox Body Rear T Sump Road Race Pan fits Ford Mustang 351w

Canton
15-694BLK
Out of stock
$678.99 USD
Canton 15-694BLK Oil Pan Fox Body Rear T Sump Road Race Pan fits Ford Mustang 351w
Description
This black powder coat "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-695 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.


Specifications:

Baffled Yes
Hardware Included No
Sump Width 13.5 inches
Sump Depth 7.5 inches
Stoke 4.0 inches
Recommended Accessory 5 88-652 - Small Block Ford 351W One Piece Oil Pan Gasket
Recommended Accessory 4 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 3 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2 20-953 - Pickup Mounting Stud for 351W Based Engines
Recommended Accessory 1 15-695 - Pickup with 3/4" Dia. Inlet
Pickup Included No
Material 16 Gauge Steel
Kicked Out Yes
Gasket or Seal Included No
Capacity 7 Quart System Capacity
Finish Black Powdercoat
Feature 8 Magnetic Drain Plug
Feature 7 Provision For Our Pan Mounted Dipstick
Feature 6 1/2" NPT Temperature Bung
Feature 5 Removable Windage/Anti-Slosh Baffle
Feature 4 Crank Scraper
Feature 3 Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 2 Retains Stock Depth
Feature 1 7 qt System Capacity
Drain Plug Included Yes
Dipstick Port Yes
Crank Scraper Included Yes
Windage Tray Included No
Description_ABR -
Description_SHO 351W Ford Oil Pan
Description_INV 351W R/S RR PAN BLK
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan
Description_SHP N/A
Description_ASM -
Description_EXT Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan
Description_MKT This black powder coat "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-695 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Description_FAB 7 qt System Capacity
Description_FAB Retains Stock Depth
Description_FAB Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Description_FAB Crank Scraper
Description_FAB Removable Windage/Anti-Slosh Baffle
Description_FAB 1/2" NPT Temperature Bung
Description_FAB Provision For Our Pan Mounted Dipstick
Description_FAB Magnetic Drain Plug
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
