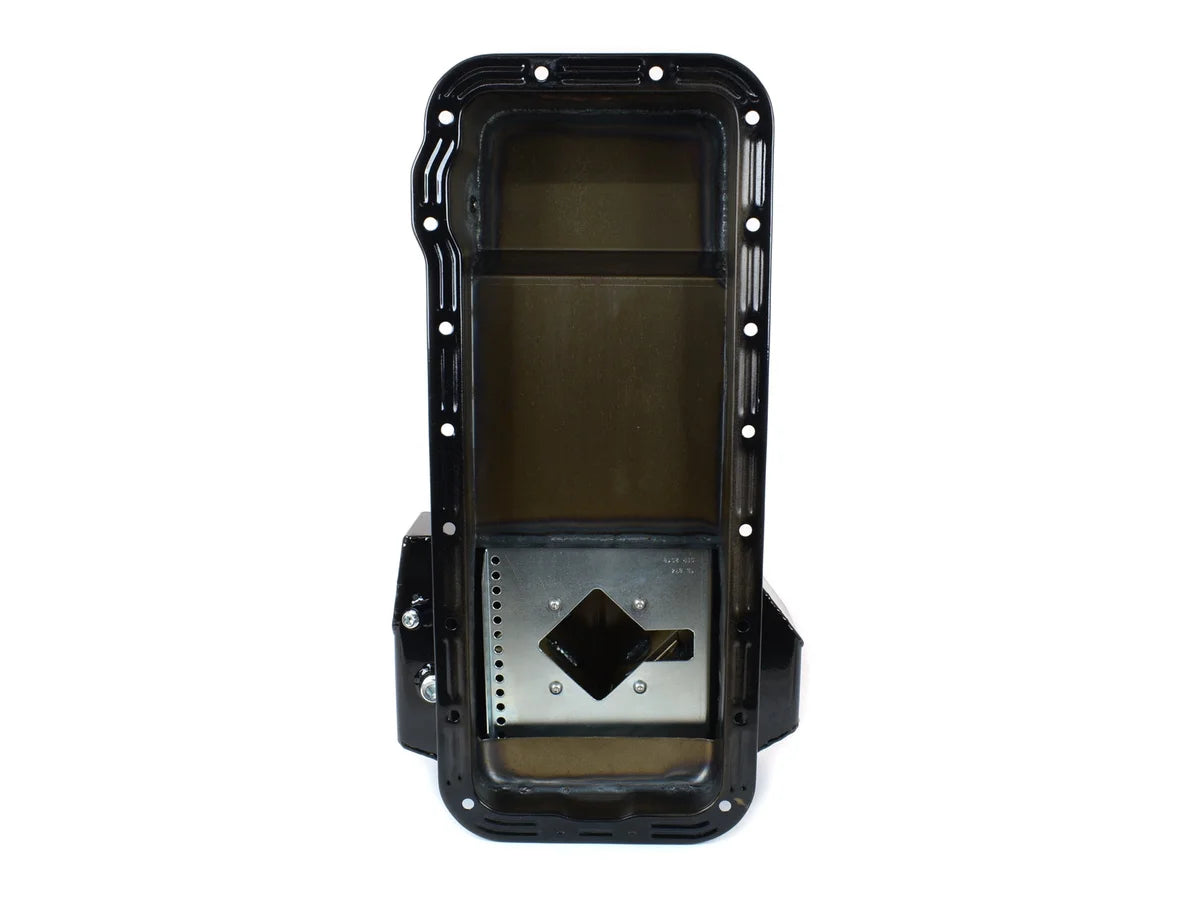

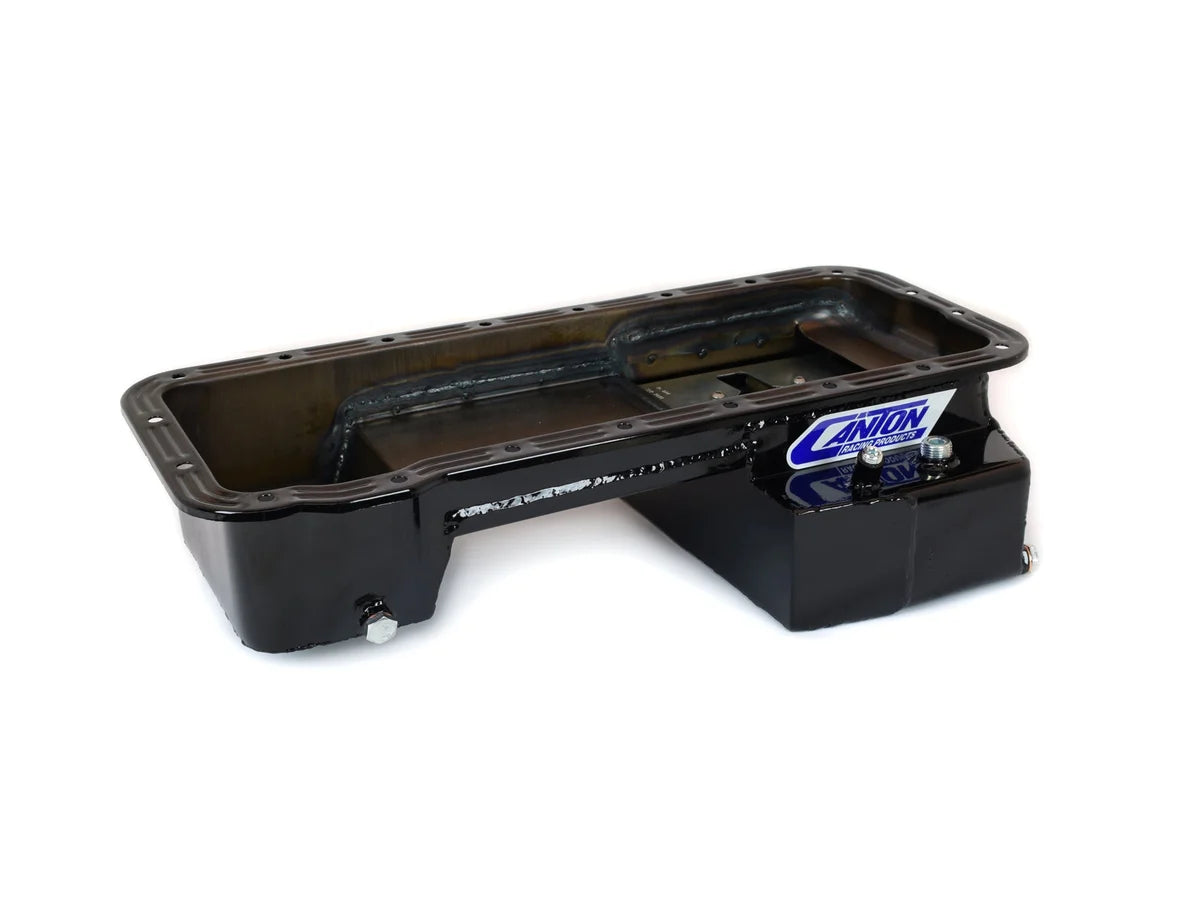

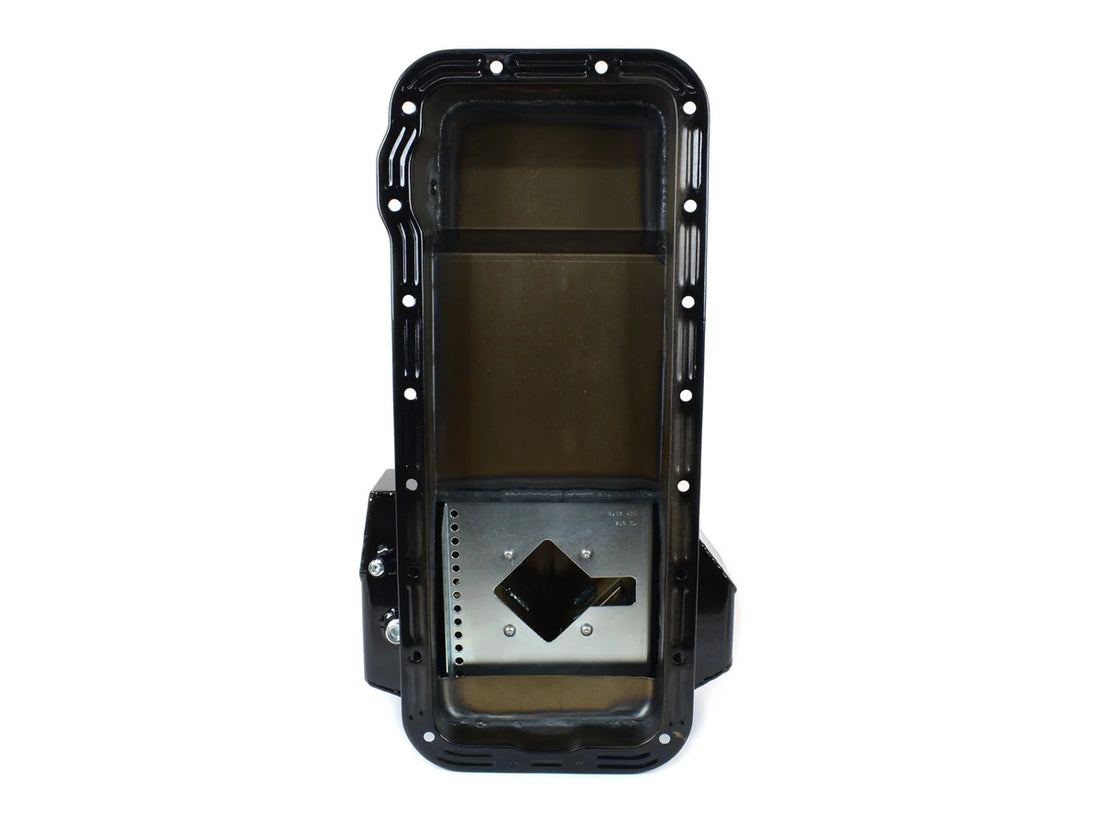

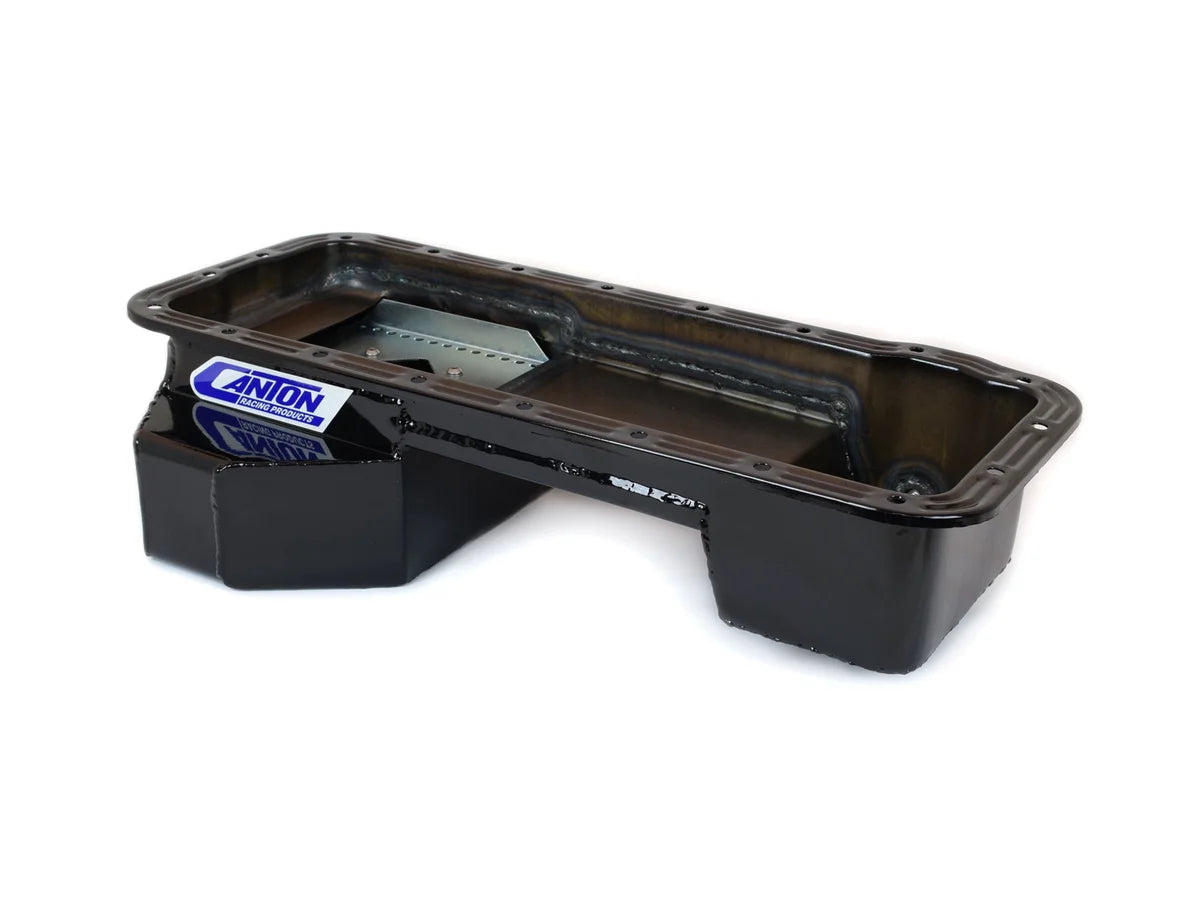

This "T" style Ford 332-428 FE rear sump black powdercoated oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6? deep, 13? wide by 8? long sump with a 7 quart system capacity. This pan requires our 15-875 pickup.
Specifications:
| Baffled |
Yes |
| Kicked Out |
Yes |
| Stoke |
4.125 inches |
| Recommended Accessory 6 |
20-953 - Pickup Main Cap Mounting Stud for Ford 332-428 FE Based Engines |
| Recommended Accessory 5 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 4 |
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 3 |
88-800 ? Ford FE Oil Pan Gasket |
| Recommended Accessory 2 |
20-938 - Ford 332-428 FE Screen Windage Tray |
| Recommended Accessory 1 |
15-875 - Pickup for FE 15-784 Pan |
| Pickup Included |
No |
| Material |
16 Gauge Steel |
| Hardware Included |
No |
| Capacity |
7 Quart System Capacity |
| Gasket or Seal Included |
No |
| Finish |
Black Powdercoat |
| Feature 5 |
Magnetic Drain Plug |
| Feature 4 |
Provision For Our Pan Mounted Dipstick |
| Feature 3 |
1/2" NPT Temperature Bung |
| Feature 2 |
Diamond Shape Road Race Baffle Assembly With Six Trap Doors |
| Feature 1 |
7 qt System Capacity |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
No |
| Windage Tray Included |
No |
| Description_ABR |
- |
| Description_SHO |
Ford FE Oil Pan |
| Description_INV |
FE R/S RR PAN BLK |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 15-874BLK Oil Pan For Ford 332-428 FE Rear T Sump Road Race Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 15-874BLK Oil Pan For Ford 332-428 FE Rear T Sump Road Race Pan |
| Description_MKT |
This "T" style Ford 332-428 FE rear sump black powdercoated oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6? deep, 13? wide by 8? long sump with a 7 quart system capacity. This pan requires our 15-875 pickup. |
| Description_FAB |
7 qt System Capacity |
| Description_FAB |
Diamond Shape Road Race Baffle Assembly With Six Trap Doors |
| Description_FAB |
1/2" NPT Temperature Bung |
| Description_FAB |
Provision For Our Pan Mounted Dipstick |
| Description_FAB |
Magnetic Drain Plug |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
