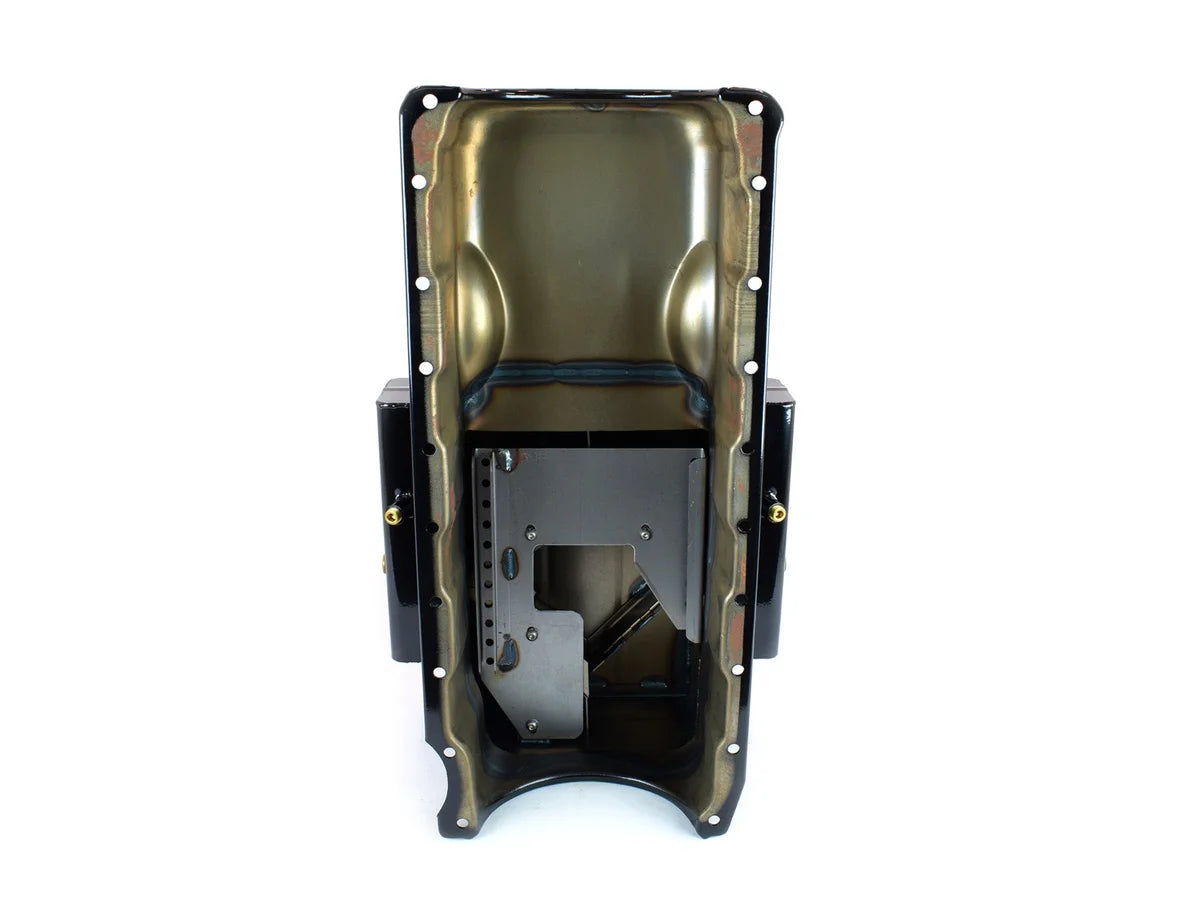

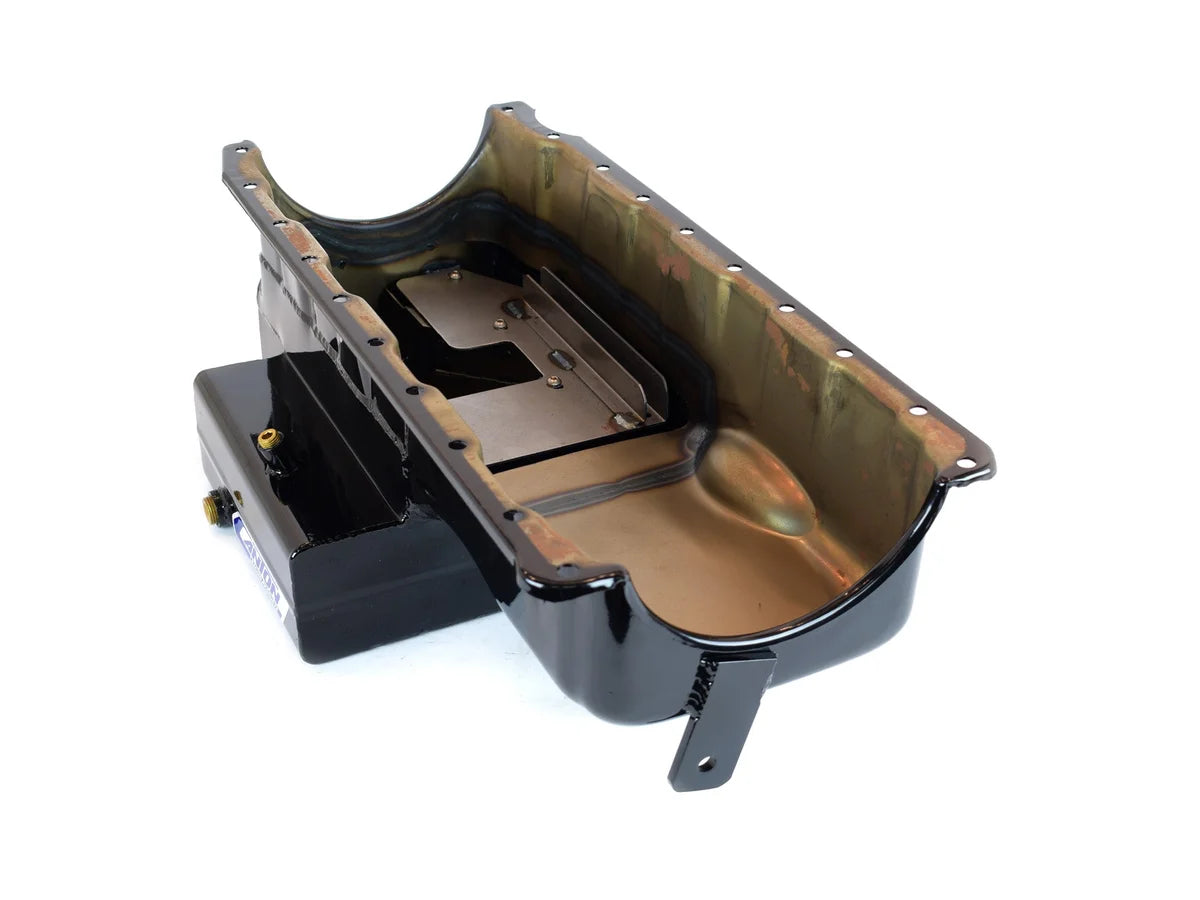

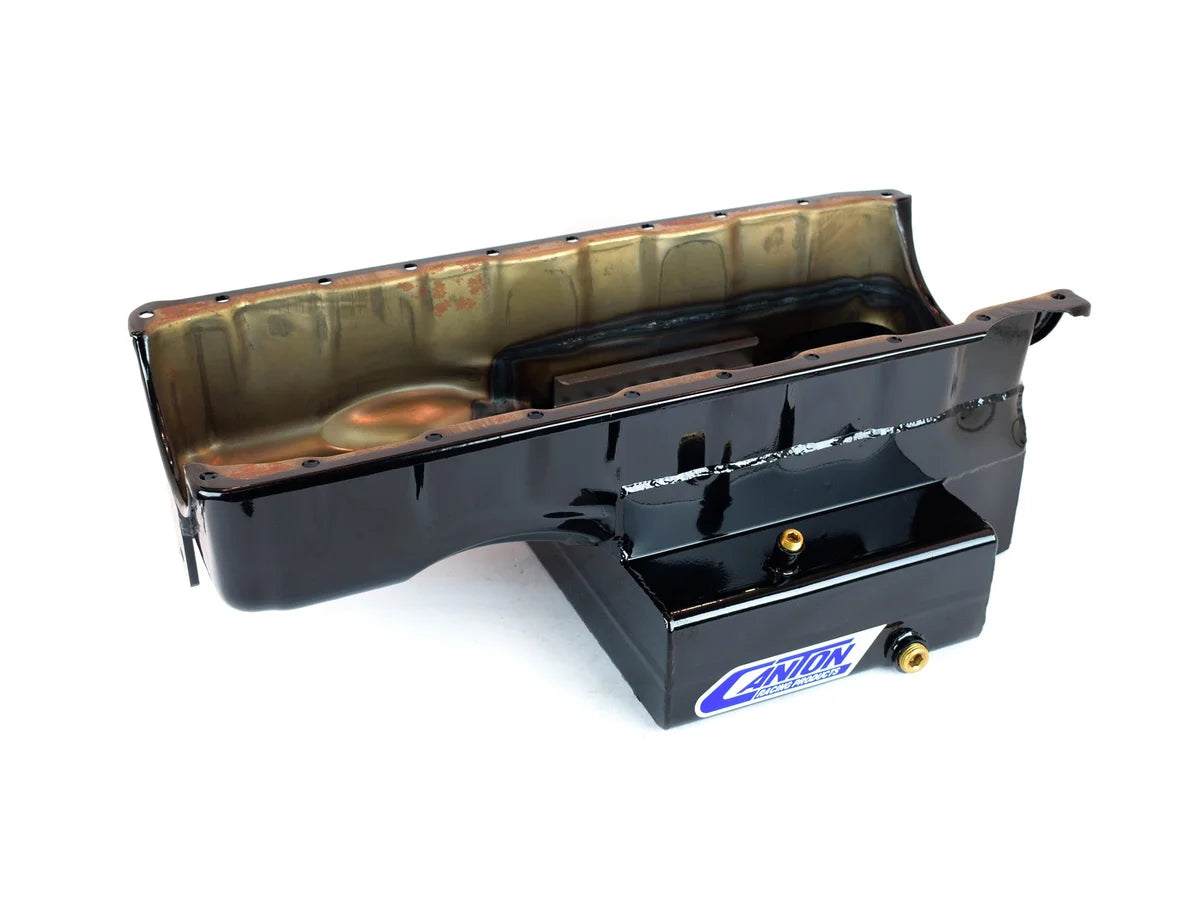

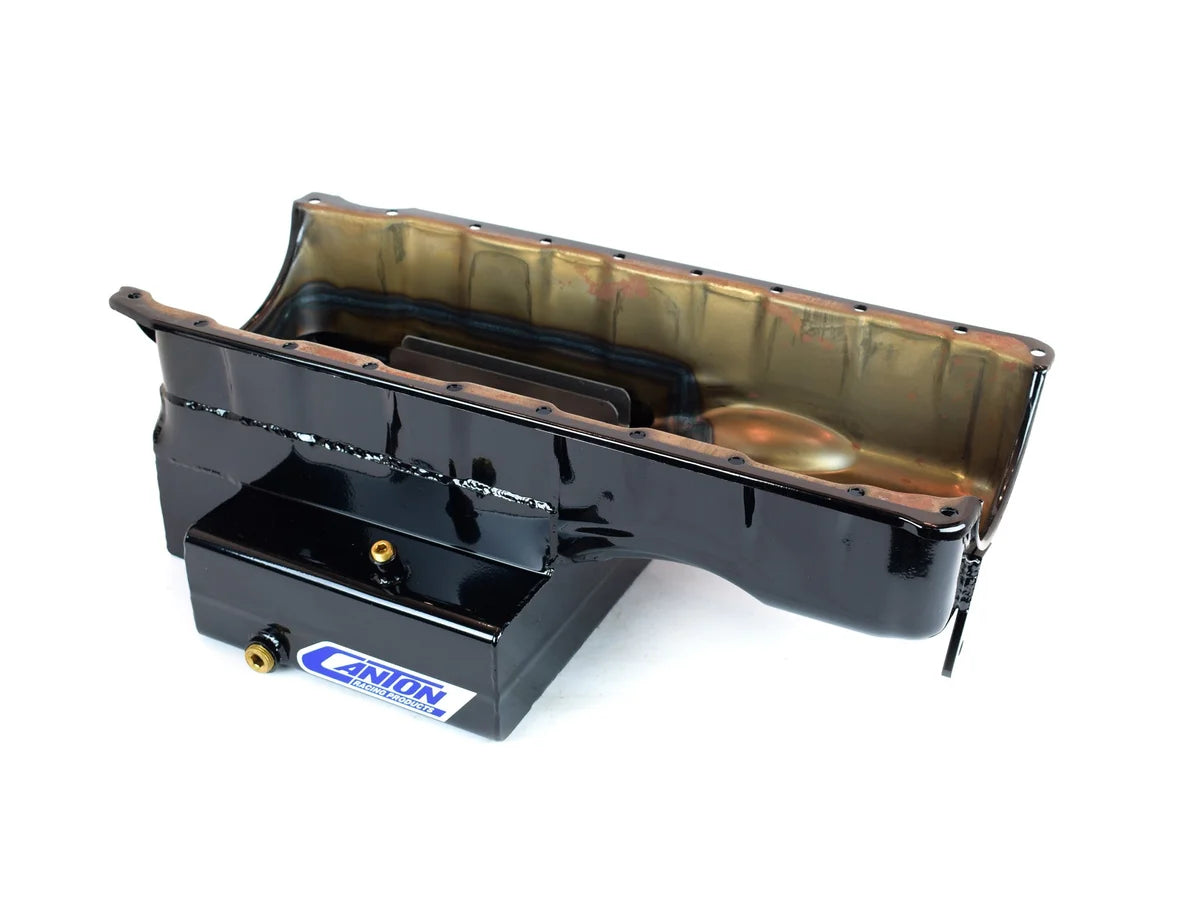

This BBC marine pan is for Mark 5 blocks with one piece seal. It is designed for applications with the pickup at the flywheel end of the engine. It has a 8-1/2" deep, 13" long, 14-1/4" wide sump, and holds 10 quarts of oil. This pan requires our 18-361 pickup.
Specifications:
| Baffled |
Yes |
| Finish |
Black Gloss Powdercoat |
| Stoke |
4.5 inches |
| Recommended Accessory 3 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 2 |
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 1 |
18-361 - Our Stock Replacement Pickup |
| Pickup Included |
No |
| Material |
14 Gauge Steel |
| Kicked Out |
Yes |
| Hardware Included |
No |
| Gasket or Seal Included |
No |
| Feature 7 |
Powder Coating & Brass Plugs For Corrosion Protection |
| Capacity |
10 Quart System Capacity |
| Feature 6 |
Provision For our Pan Mounted Dipstick |
| Feature 5 |
1/2" NPT Drain Fittings |
| Feature 4 |
Removable Windage/Anti-Slosh Baffle |
| Feature 3 |
Diamond Shaped Baffle Assembly With Four Trap Door Baffles |
| Feature 2 |
14 ga. Steel Construction |
| Feature 1 |
10 qt Pan Capacity |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
No |
| Windage Tray Included |
No |
| Description_ABR |
- |
| Description_SHO |
Marine Oil Pan |
| Description_INV |
BBC T SUMP MARINE PAN 1 PIECE SEAL |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 18-362 Oil Pan For Big Block Chevy Mark 5 Gen 6 Marine 10 Qt Oil Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 18-362 Oil Pan For Big Block Chevy Mark 5 Gen 6 Marine 10 Qt Oil Pan |
| Description_MKT |
This BBC marine pan is for Mark 5 blocks with one piece seal. It is designed for applications with the pickup at the flywheel end of the engine. It has a 8-1/2" deep, 13" long, 14-1/4" wide sump, and holds 10 quarts of oil. This pan requires our 18-361 pickup. |
| Description_FAB |
10 qt Pan Capacity |
| Description_FAB |
14 ga. Steel Construction |
| Description_FAB |
Diamond Shaped Baffle Assembly With Four Trap Door Baffles |
| Description_FAB |
Removable Windage/Anti-Slosh Baffle |
| Description_FAB |
1/2" NPT Drain Fittings |
| Description_FAB |
Provision For our Pan Mounted Dipstick |
| Description_FAB |
Powder Coating & Brass Plugs For Corrosion Protection |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
