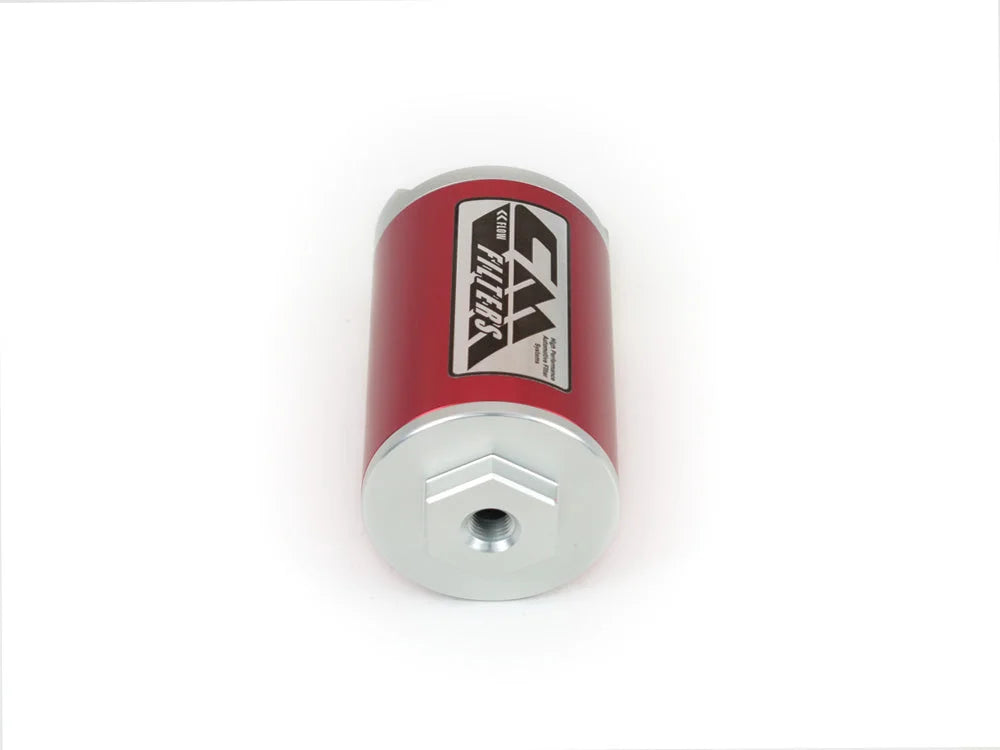

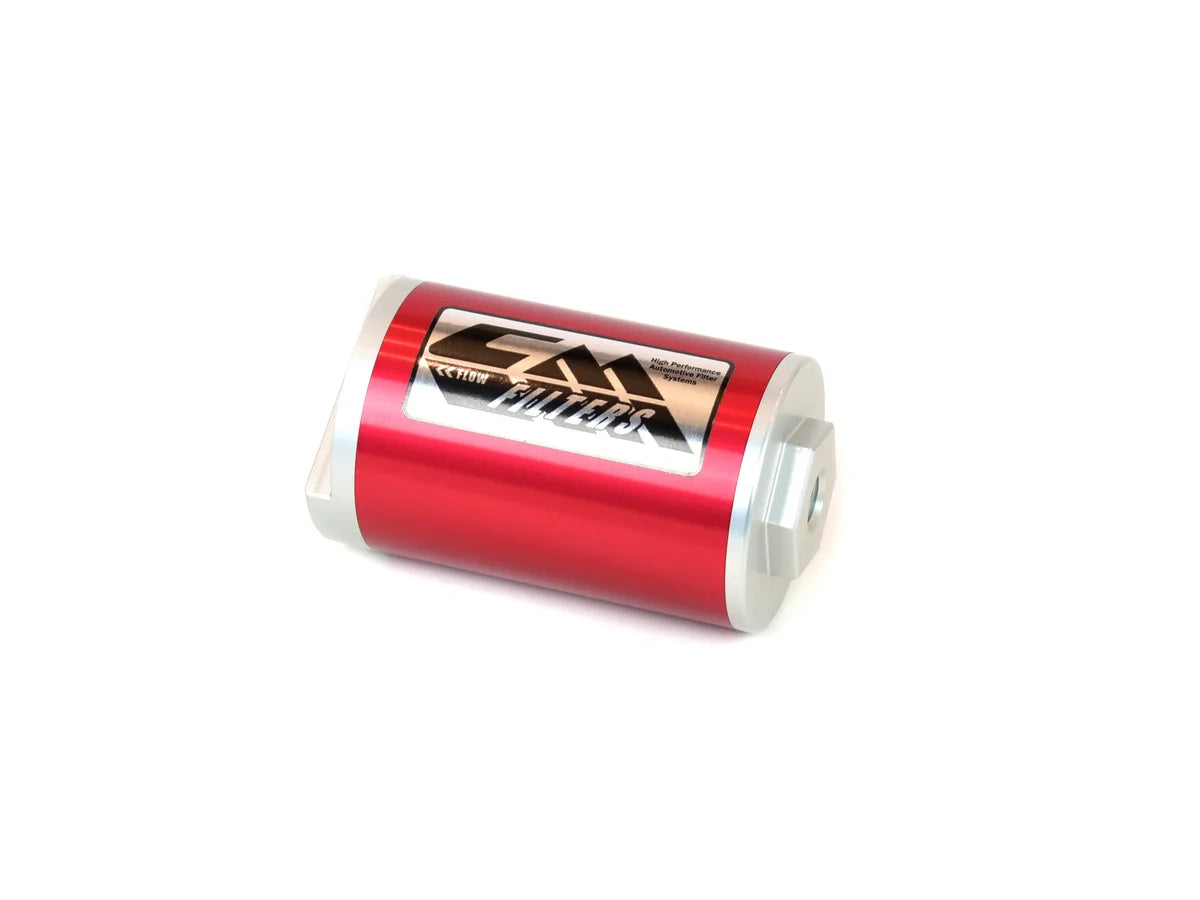

This recirculating "Y" block filter allows you to easily switch from a blocking or non-return style fuel system to a return style or bypass style fuel system, as is common when swapping from a carbureted fuel system to an EFI fuel system. Using the recirculating filter eliminates the need to fabricated a return line into your fuel tank.
Specifications:
| Feature 1 |
4 in Body |
| Feature 2 |
Straight Through Design Provides Excellent Flow |
| Feature 3 |
2-3/4 in Diamater Tube |
| Feature 4 |
1/4" NPT fittings |
| Feature 5 |
O-Ring Sealed Caps |
| Feature 6 |
8 Micron Sythetic Element pre-installed For High Flow Fine Filtration |
| Finish |
Red ANodize |
| Material |
Billet Aluminum |
| Description_ABR |
- |
| Description_SHO |
In-Line Fuel Filter |
| Description_INV |
CM -15 FUEL FILTER 1/4 Y BLOCK FILTER |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 25-918 CM -15 Fuel Filter - Recirculating 1/4" NPT "Y" Block Filter |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 25-918 CM -15 Fuel Filter - Recirculating 1/4" NPT "Y" Block Filter |
| Description_MKT |
This recirculating "Y" block filter allows you to easily switch from a blocking or non-return style fuel system to a return style or bypass style fuel system, as is common when swapping from a carbureted fuel system to an EFI fuel system. Using the recirculating filter eliminates the need to fabricated a return line into your fuel tank. |
| Description_FAB |
Lightweight billet aluminum |
| Description_FAB |
Straight through design provides excellent flow |
| Description_FAB |
2-3/4" diameter red anodized filter body |
| Description_FAB |
Clear anodized removable end caps |
| Description_FAB |
O-ring seals |
| Description_FAB |
1/4 NPT inlet, outlet, and return |
| Description_FAB |
Installed 8 micron filtration element |
| Description_FAB |
Shortens the re-circulation of the fuel system |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Fuel Filter |
