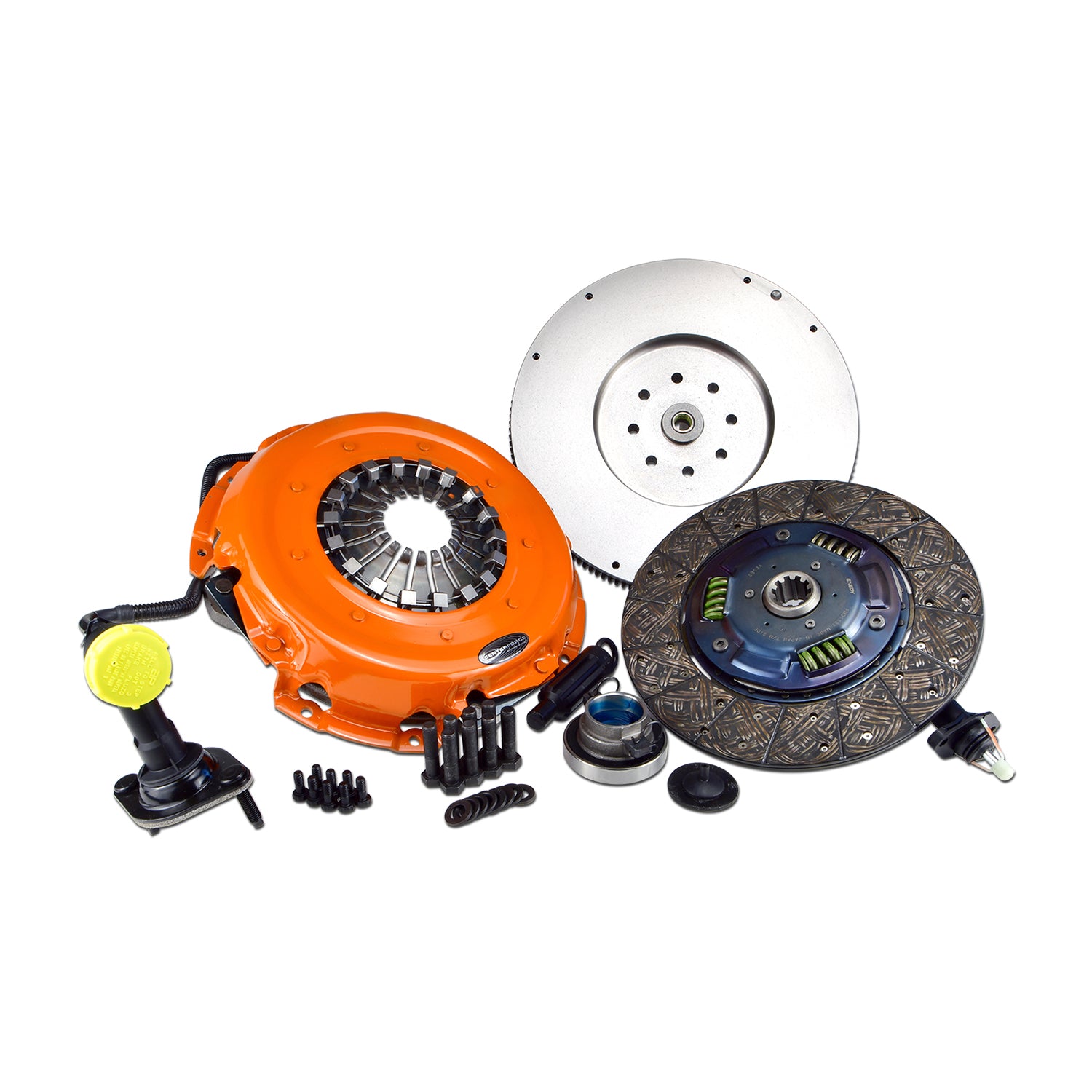

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
| Alignment Tool Included |
Yes |
| California Proposition 65 |
WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Bolt Pattern |
23 |
| Clutch Disc Diameter |
13 |
| Clutch Disc Diameter |
330.2 |
| Counterweight Assist |
Yes |
| Crankshaft Bolt Hole Quantity |
8 |
| Disc Material |
Organic |
| Disc Quantity |
1 |
| Disc Type Sprung Solid |
Sprung |
| Disc Type |
Full Face |
| Flywheel Counter Balance Weight |
0 |
| Flywheel Crank Bolt Size |
12 |
| Input Shaft Diameter |
1-3/8 |
| Input Spline Quantity |
10 |
| Made In The USA |
Assembled |
| Material |
Cast Iron Pressure Plate / Organic Friction |
| Mounting Hardware Included |
Yes |
| Pilot Bushing Included |
Yes |
| Release Bearing Included |
Yes |
| Ring Gear O.D. |
15.625 |
| Title |
Centerforce ? II, Performance Clutch Pressure Plate, Performance Disc, Performance and Flywheel Set, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 800 ft/lbs Capacity, 13in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L |
| Tooth Quantity |
152 |
| Torque Capacity |
800 |
| Description_ABR |
CFT |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
Centerforce(R) II, Clutch Pressure Plate, Disc, and Flywheel Set |
| Description_EXT |
Centerforce(R) II Clutch Series utilizes our centrifugal weights and patented machining processes for superb holding power and maximum clutch life. |
| Description_INV |
Centerforce, Cover, Disc, Flyw |
| Description_LAB |
Cover, Discs, Flywh, Hardware, T.O.B., Pilot, Slave, Tool |
| Description_MKT |
The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc. |
| Description_SHO |
Cover, Disc, Flyw |
| Description_SLD |
Centerforce II, 13-IN, 1-3/8-IN - 10 Spl., 800 Ft/Lbs |
| Description_TLE |
Centerforce(R) II, Performance Clutch Pressure Plate, Performance Disc |
