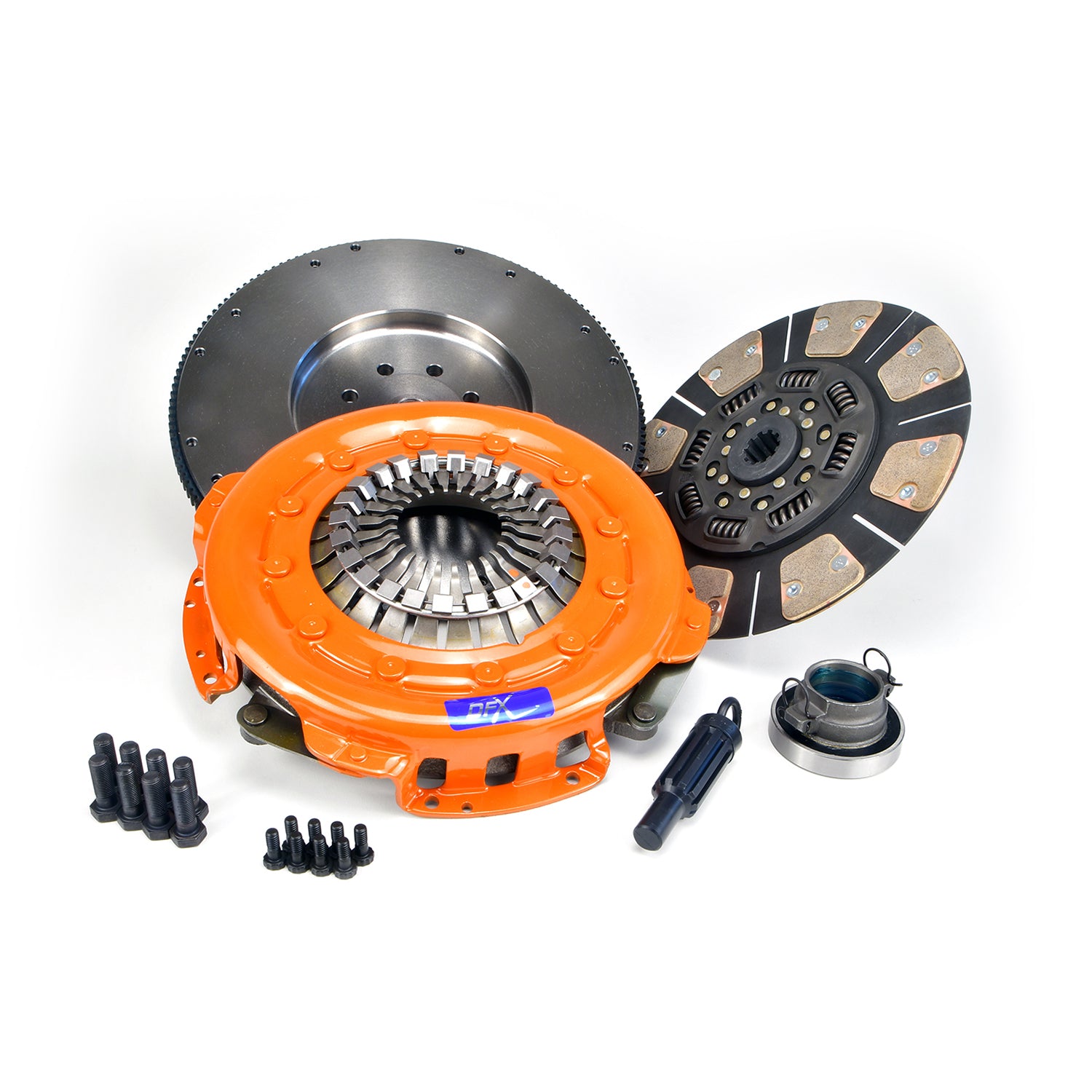

The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
| Alignment Tool Included |
Yes |
| California Proposition 65 |
WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Bolt Pattern |
22 |
| Clutch Bolt Type |
with Shoulder Bolt |
| Clutch Disc Diameter |
12.25 |
| Counterweight Assist |
Yes |
| Crankshaft Bolt Hole Quantity |
8 |
| Disc Material |
Cerametallic |
| Disc Quantity |
1 |
| Disc Type Sprung Solid |
Sprung |
| Disc Type |
8-Paddle |
| Flywheel Counter Balance Weight |
0 |
| Input Shaft Diameter |
1-1/4 |
| Input Spline Quantity |
10 |
| Made In The USA |
Assembled |
| Material |
Cast Iron Pressure Plate / Cerametallic Button Style Friction |
| Mounting Hardware Included |
Yes |
| Out of Package Weight |
93.3 |
| Pilot Bushing Included |
Yes |
| Release Bearing Included |
Yes |
| Ring Gear O.D. |
15.625 |
| SFI 1.1 Approved |
N |
| Title |
Centerforce DFX ?, Extreme Performance Clutch Pressure Plate, Extreme Performance Disc, Extreme Performance and Flywheel Set, 93.3 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 900 ft/lbs Capacity, 12.25in Dia., 10-Spline, Fits Dodge Ram 2500 and Ram 3500 5.9L |
| Tooth Quantity |
152 |
| Torque Capacity |
900 |
| Description_ABR |
DFX |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
DFX(R), Clutch Pressure Plate, Disc, and Flywheel Set |
| Description_EXT |
The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch. |
| Description_INV |
Centerforce, Cover, Disc, Flyw |
| Description_LAB |
Cover, Disc, Flywheel and Hardware |
| Description_MKT |
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter. |
| Description_SHO |
Cover, Disc, Flyw |
| Description_SLD |
DFX, 12.25-IN, 1-1/4-IN - 10 Spl., 900 Ft/Lbs |
| Description_TLE |
Centerforce DFX(R), Extreme Performance Clutch Pressure Plate |
