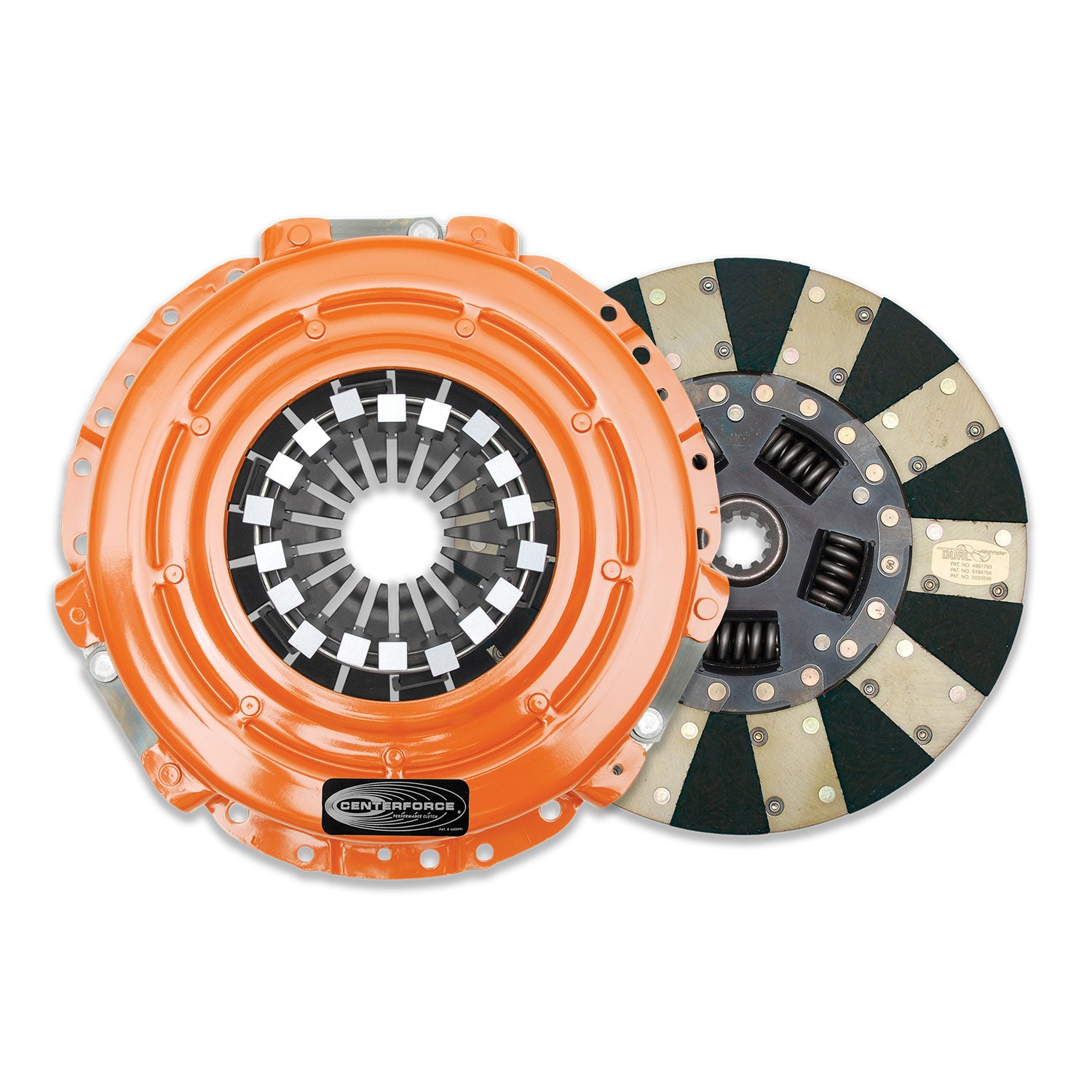

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
This Part Fits:
| Year |
Make |
Model |
Submodel |
Notes |
| 1975 |
Nissan |
280Z |
2+2 |
|
| 1976 |
Nissan |
280Z |
2+2 |
|
| 1977 |
Nissan |
280Z |
2+2 |
|
| 1978 |
Nissan |
280Z |
2+2 |
|
| 1980 |
Nissan |
280ZX |
2+2 GL |
|
| 1981 |
Nissan |
280ZX |
2+2 GL |
|
| 1983 |
Nissan |
720 |
|
|
| 1983 |
Nissan |
720 |
|
|
| 1984 |
Nissan |
720 |
|
|
| 1984 |
Nissan |
720 |
|
|
| 1985 |
Nissan |
720 |
|
|
| 1985 |
Nissan |
720 |
|
|
| 1986 |
Nissan |
720 |
|
|
| 1986 |
Nissan |
720 |
|
|
| 1986 |
Nissan |
D21 |
|
|
| 1987 |
Nissan |
D21 |
|
|
| 1988 |
Nissan |
D21 |
|
|
| 1989 |
Nissan |
D21 |
|
|
| 1990 |
Nissan |
D21 |
|
|
| 1991 |
Nissan |
D21 |
|
|
| 1992 |
Nissan |
D21 |
|
|
| 1993 |
Nissan |
D21 |
|
|
| 1994 |
Nissan |
D21 |
|
|
| 1998 |
Nissan |
Frontier |
|
|
| 1999 |
Nissan |
Frontier |
|
|
| 1995 |
Nissan |
Pickup |
|
|
| 1996 |
Nissan |
Pickup |
|
|
| 1997 |
Nissan |
Pickup |
|
|
Specifications:
| Alignment Tool Included |
Yes |
| California Proposition 65 |
WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Disc Diameter |
9.4375 |
| Clutch Disc Diameter |
240 |
| Counterweight Assist |
YES |
| Disc Material |
Organic/Carbon Composite |
| Disc Type Sprung Solid |
Sprung |
| Disc Type |
Full face/Segmented face |
| Flywheel Step |
0.004 |
| Input Shaft Diameter |
1 |
| Input Spline Quantity |
24 |
| Made In The USA |
Assembled |
| Material |
Cast Iron Pressure Plate / Full Face and Segmented Organic Friction |
| Title |
Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 464 ft/lbs Capacity, 9.4375in Dia., 24-Spline, Fits Nissan Cars and Trucks 4/6 Cyl |
| Torque Capacity |
464 |
| Description_ABR |
DF |
| Description_DEF |
Clutch Pressure Plate and Disc Set |
| Description_DES |
Dual Friction(R), Clutch Pressure Plate and Disc Set |
| Description_EXT |
The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination. |
| Description_INV |
Centerforce, Clutch Cover/Disc |
| Description_LAB |
Cover, Disc, Tool |
| Description_MKT |
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications. |
| Description_SHO |
Clutch Cover/Disc |
| Description_SLD |
Dual Friction, 9.4375-IN, 1-IN - 24 Spl. |
| Description_TLE |
Centerforce Dual Friction(R), High Performance Clutch Pressure Plate and Disc Set |
