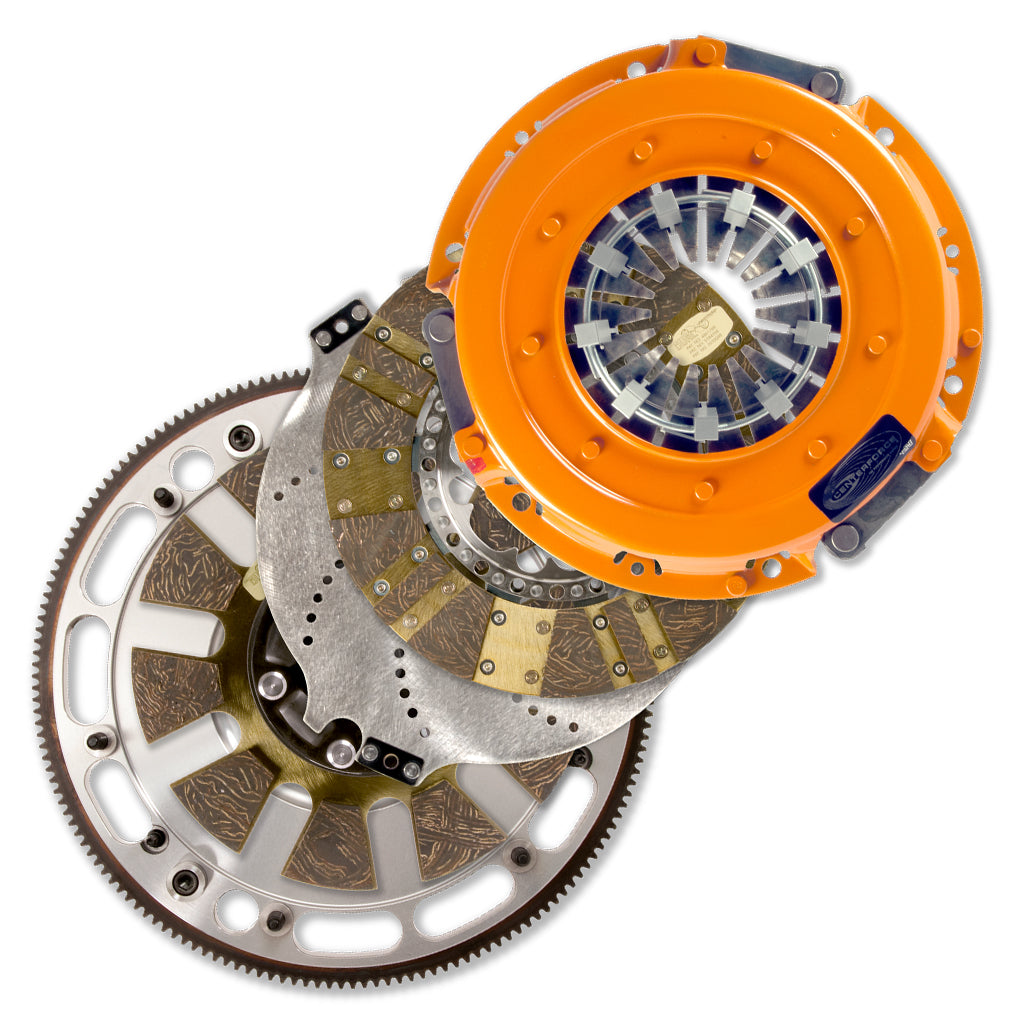

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
| Alignment Tool Included |
Yes |
| California Proposition 65 |
WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Disc Diameter |
10.4 |
| Clutch Disc Diameter |
264.2 |
| Counterweight Assist |
YES |
| Crankshaft Bolt Hole Quantity |
8 |
| Disc Material |
Organic/Carbon Composite |
| Disc Quantity |
2 |
| Disc Type Sprung Solid |
Sprung |
| Disc Type |
Segmented face |
| Flywheel Counter Balance Weight |
0 |
| Flywheel Crank Bolt Size |
M10 x 1.00 x 25 |
| Flywheel Crank Flange Register |
1.750 |
| Input Shaft Diameter |
1-1/16 |
| Input Spline Quantity |
10 |
| Installed Height |
2.960 |
| Made In The USA |
Assembled |
| Material |
Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction |
| Mounting Hardware Included |
Yes |
| Out of Package Weight |
45.95 |
| Pilot Bushing Included |
Yes |
| Ring Gear O.D. |
14.236 |
| Title |
Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 45.95 lbs, 164 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Ford Mustang GT 4.6L |
| Tooth Quantity |
164 |
| Torque Capacity |
1300 |
| Description_ABR |
MDA |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
DYAD(R) DS 10.4, Clutch and Flywheel Kit |
| Description_EXT |
The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs. |
| Description_INV |
Centerforce, Full Kits W/Flywheel |
| Description_LAB |
Cover, Discs, Floater, Flywheel, Hardware, Pilot, Shim, Tool |
| Description_MKT |
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners. |
| Description_SHO |
Full Kits W/Flywheel |
| Description_SLD |
DYAD DS, 10.4-IN, 1-1/16-IN - 10 Spl., Twin Disc, 1300 Ft/Lbs |
| Description_TLE |
Centerforce DYAD(R) DS 10.4, Multi-Disc Clutch and Flywheel Kit, 45.95 lbs |
