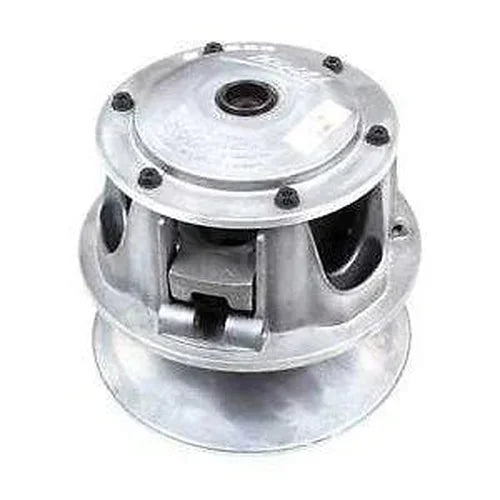

Tried, tested and built to handle high-horsepower engines. Consistently smooth shifting even after hours of use. Wider rollers for increased bearing area (33% more). '97 and newer 108-EXP clutches include special recessed mounting bolt with special pilot washer. Features a bushing in the movable face. Uncalibrated clutches are sold without cam arms and spring. 108-EXP clutches use the same cam arms and spring as the 108-C. Change clutch to accept 1-7/16” belt width by installing one spacer washer under the spider washers. A flush bore depth indicates the taper begins exactly at the inner edge of the fixed face casting. 1-3/8” standard belt width and 1-1/4” optional belt width. Yamaha gear bosses. Accepts OEM ring gear for electric start models.
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 1976 |
Yamaha |
SRX340 |
Base |
| 1977-1979 |
Yamaha |
SRX440 |
Base |
| 1990 |
Yamaha |
High Altitude |
EX570H |
| 1991-1993 |
Yamaha |
Exciter II |
EX570 |
| 1994-1997,1999 |
Yamaha |
VMAX 600 |
VX600 |
| 1994-2000 |
Yamaha |
VMAX 500 |
VX500 |
| 1997-1999 |
Yamaha |
VMAX 700 SX |
VX700SX |
| 1997-2001 |
Yamaha |
Venture 500 |
VT500 |
| 1997-2003 |
Yamaha |
Mountain Max 700 |
MM700 |
| 1997-2005 |
Yamaha |
Venture 600 |
VT600 |
| 1998 |
Yamaha |
Mountain SRX 700 |
MSRX700 |
| 1998 |
Yamaha |
VMAX 500 XT |
VX500XT |
| 1998 |
Yamaha |
VMAX 500 XTC |
VX500XTC |
| 1998 |
Yamaha |
VMAX 600 XT |
VX600XT |
| 1998 |
Yamaha |
VMAX 600 XTC |
VX600XTC |
| 1998 |
Yamaha |
VMAX 700 XT |
VX700XT |
| 1998 |
Yamaha |
VMAX 700 XTC |
VX700XTC |
| 1998-1999 |
Yamaha |
Ovation LE |
CS340E |
| 1998-1999 |
Yamaha |
SRX600 |
Base |
| 1998-2001 |
Yamaha |
Mountain Max 600 |
MM600 |
| 1998-2002 |
Yamaha |
SRX700 |
Base |
| 1999 |
Yamaha |
VMAX 500 SX |
VX500SX |
| 1999-2001 |
Yamaha |
Phazer 500 |
PZ500 |
| 1999-2001 |
Yamaha |
Venture 500 XL |
VT500XL |
| 1999-2001 |
Yamaha |
VMAX 700 |
VX700DX Deluxe |
| 2000-2001 |
Yamaha |
Phazer Mountain Lite |
PZ500ML |
| 2000-2001 |
Yamaha |
SX500R |
Base |
| 2000-2001 |
Yamaha |
SX600R |
Base |
| 2000-2001 |
Yamaha |
SX700R |
Base |
| 2000-2001 |
Yamaha |
VMAX 500 |
VX500DX Deluxe |
| 2000-2001 |
Yamaha |
VMAX 600 |
VX600DX Deluxe |
| 2001 |
Yamaha |
Phazer 500 |
PZ500DX Deluxe |
| 2002 |
Yamaha |
VMAX 700 ER |
VX700ER |
| 2002-2003 |
Yamaha |
SX Viper |
SXV700 |
| 2002-2003 |
Yamaha |
VMAX 600 ER |
VX600ER |
| 2002-2004 |
Yamaha |
SX Viper ER |
SXV700ER |
| 2003-2005 |
Yamaha |
RX1 ER |
RX10R |
| 2003-2005 |
Yamaha |
RX1 Mountain |
RX10M |
| 2003-2006 |
Yamaha |
SX Viper Mountain |
SXV70MH |
| 2004 |
Yamaha |
SX Viper S |
SXV700 |
| 2004-2005 |
Yamaha |
RX Warrior |
RXW10 |
| 2004-2006 |
Yamaha |
SX Venom |
SXV60 |
| 2006-2007 |
Yamaha |
Attak |
RXW10 |
| 2007 |
Yamaha |
Phazer FX |
PZ50FX |
| 2007 |
Yamaha |
Phazer GT |
PZ50GT |
| 2007 |
Yamaha |
Phazer Mountain Lite |
PZ50MT |
| 2007 |
Yamaha |
VK Professional |
VK10 |
| 2007-2008 |
Yamaha |
Venture Lite |
PZ50VT |
| 2008 |
Yamaha |
FX Nytro |
FX10 |
| 2008 |
Yamaha |
Phazer MTX |
PZ50MT |
| 2008 |
Yamaha |
RS Viking Professional |
VK10 |
