Making sure that your cargo is tied down and fully secure for the journey is important for any towing job. Not only is unsecured cargo a danger to you, your passengers and your fellow drivers, but it can also cause damage to your trailer, pickup truck bed or vehicle cargo area, as well as to the cargo itself. Together with our cargo straps and safety chains, CURT tiedown anchors are easy to mount in any trailer, truck or full-size van, and they help keep your items safe for the road ahead. This particular tiedown anchor is a recessed floor / wall tiedown ring, designed to add a convenient anchoring point for cargo straps, ropes or cables. It comes with a 5" x 3-1/2" base and three mounting holes. The recessed feature allows it to remain flush with the base and out of the way when not in use, making it especially useful for truck beds and passenger vehicles. This rope ring features zinc-plated steel construction and offers a working load capacity of 1,200 lbs. (1,200 lbs. break strength). The 1/4" diameter mounting holes are spaced 4-1/16" apart, center to center. Mounting screws are not included in this package.
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
2.750 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
10.400 |
| Master Case Qty - XA |
14 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
3.000 |
| Master Case Width Inches - XA |
4.300 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
40 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
40 |
| Pallet Layer of Cases - XA |
18 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
54.500 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
70.0 |
| Retail Height - XA |
1.000 |
| Retail Length - XA |
5.000 |
| Retail Width - XA |
4.000 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
TIE DOWN ANCHORS |
| Shipping Weight - XA |
0.500 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
No |
| Title |
1-3/8" x 1-7/8" Recessed Tie-Down Ring (1,200 lbs, Clear Zinc) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
20 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
2 |
| Box Length in Inches - XA |
7 |
| Box Width in Inches - XA |
4 |
| Capacity |
1,200 LB |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
20 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
CLEAR ZINC |
| Item Class - XA |
OBS |
| Description_ABR |
TIE1 |
| Description_SHO |
Recessed Tie-Down |
| Description_INV |
Recessed Tie-Down Ring |
| Description_ASC |

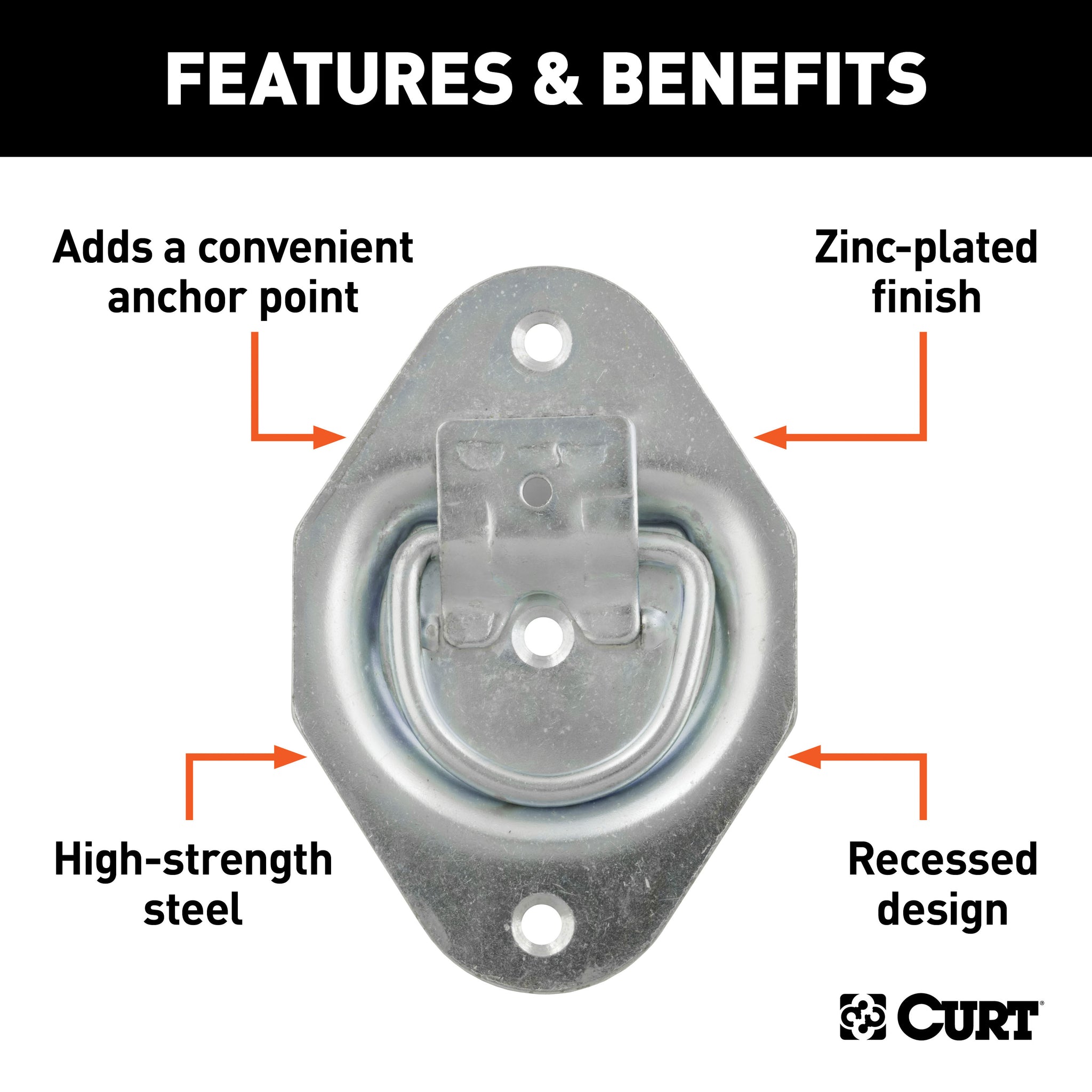

Adds a convenient anchor point for ropes, bungee cords or straps |
| Description_ASC |
Perfect for cargo management in trailers, trucks and vans |
| Description_ASC |
Rated for a working load capacity of 1,200 lbs. (1,200 lbs. break strength) |
| Description_ASC |
5" x 3-1/2" mounting bracket provides a sturdy base |
| Description_ASC |
Recessed design eliminates obstruction and provides a finished look |
| Description_ASC |
Constructed from high-strength steel |
| Description_ASC |
Protected by a durable zinc-plated finish |
| Description_ASC |

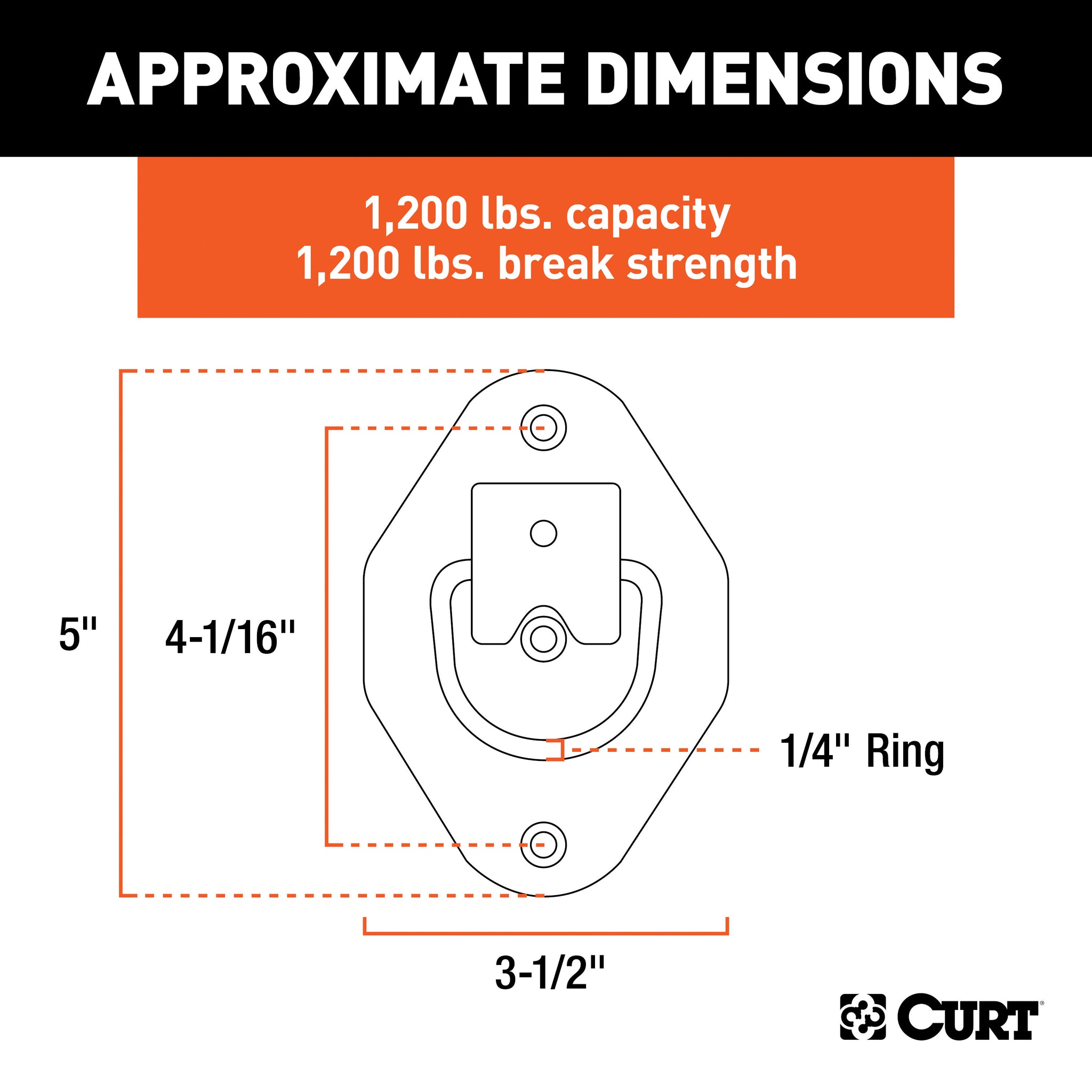

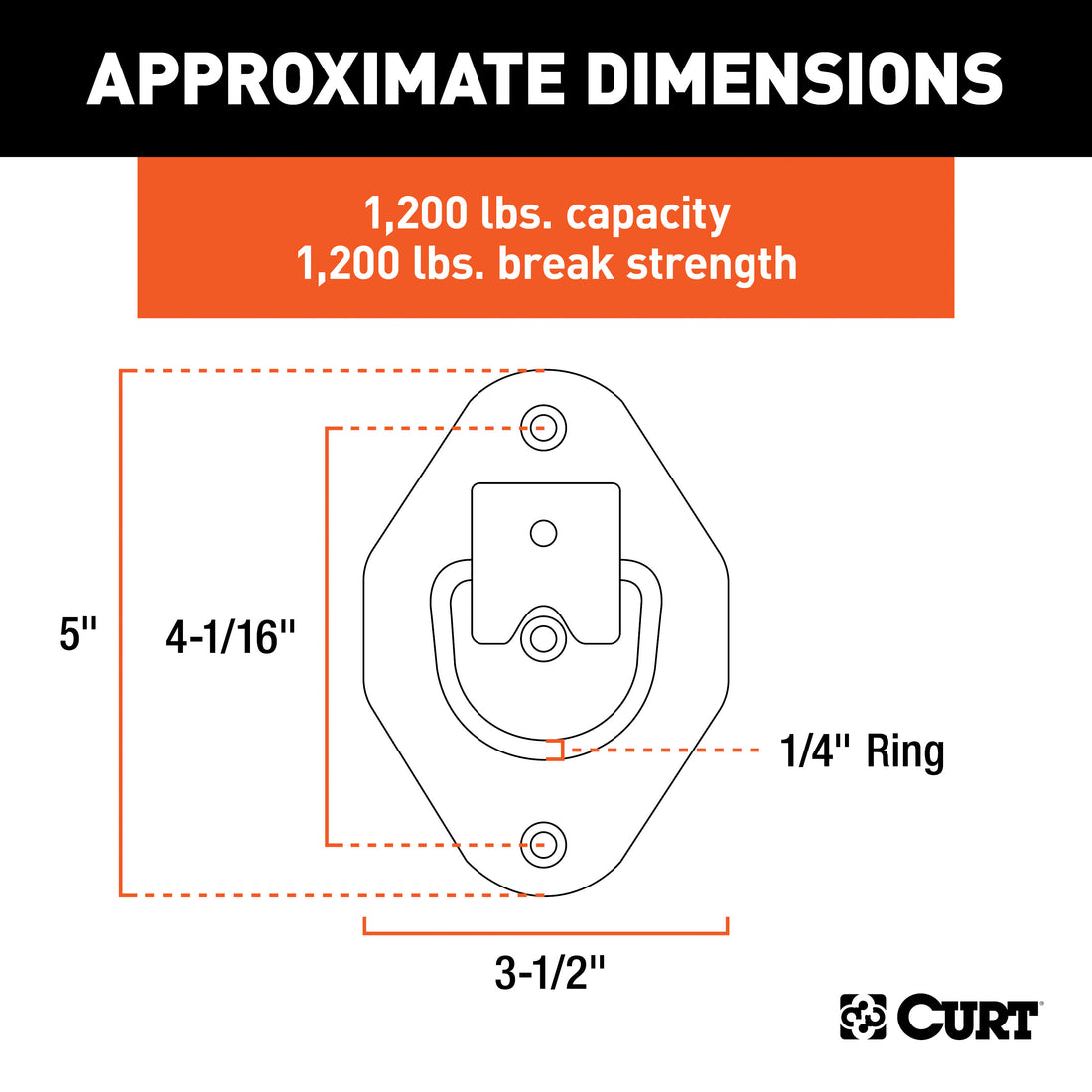

1/4" diameter mounting holes spaced 4-1/16" apart, center to center |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
1-3/8" x 1-7/8" Recessed Tie-Down Ring (1,200 lbs, Clear Zinc) |
| Description_EXT |
CURT 83601 1-3/8 x 1-7/8-Inch Recessed Trailer Rope Ring Tie Down Anchor, 1,200 lbs Break Strength |
| Description_MKT |
Making sure that your cargo is tied down and fully secure for the journey is important for any towing job. Not only is unsecured cargo a danger to you, your passengers and your fellow drivers, but it can also cause damage to your trailer, pickup truck bed or vehicle cargo area, as well as to the cargo itself. Together with our cargo straps and safety chains, CURT tiedown anchors are easy to mount in any trailer, truck or full-size van, and they help keep your items safe for the road ahead. This particular tiedown anchor is a recessed floor / wall tiedown ring, designed to add a convenient anchoring point for cargo straps, ropes or cables. It comes with a 5" x 3-1/2" base and three mounting holes. The recessed feature allows it to remain flush with the base and out of the way when not in use, making it especially useful for truck beds and passenger vehicles. This rope ring features zinc-plated steel construction and offers a working load capacity of 1,200 lbs. (1,200 lbs. break strength). The 1/4" diameter mounting holes are spaced 4-1/16" apart, center to center. Mounting screws are not included in this package. |
| Description_FAB |
Adds a convenient anchor point for ropes, bungee cords or straps |
| Description_FAB |
Perfect for cargo management in trailers, trucks and vans |
| Description_FAB |
Rated for a working load capacity of 1,200 lbs. (1,200 lbs. break strength) |
| Description_FAB |
5" x 3-1/2" mounting bracket provides a sturdy base |
| Description_FAB |
Recessed design eliminates obstruction and provides a finished look |
| Description_FAB |
Constructed from high-strength steel |
| Description_FAB |
Protected by a durable zinc-plated finish |
| Description_FAB |
1/4" diameter mounting holes spaced 4-1/16" apart, center to center |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 83601 1-3/8 x 1-7/8-Inch Recessed Trailer Rope Ring Tie Down Anchor, 1,200 lbs Break Strength |
| Description_DEF |
Tie Down Anchor |
