CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".This CURT tow ball features a ball capacity of 3,500 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 1" shank diameter, a 3" shank length, 0" of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.
| Ball Capacity |
3,500 LBS |
| Ball Diameter |
1-7/8 IN |
| Box Height in Inches - XA |
2 |
| Box Length in Inches - XA |
7 |
| Box Width in Inches - XA |
4 |
| Class ID |
0 |
| Color |
Silver |
| Container Cases Qty - XA |
1200 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
10 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
14400 |
| Container Volume Cubic Feet - XA |
305.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
35290 |
| Finish - XA |
CHROME-PLATED |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
5.800 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
60612314117002 |
| Master Case ITF14 - XA |
60612314117002 |
| Master Case Length Inches - XA |
8.300 |
| Master Case Qty - XA |
12 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
29.000 |
| Master Case Width Inches - XA |
6.300 |
| Material - XA |
FORGED STEEL |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
120 |
| Pallet Case Per Layer - XA |
30 |
| Pallet Cases Per - XA |
120 |
| Pallet Cases Per Layer - XA |
30 |
| Pallet Layer of Cases - XA |
4 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
27.000 |
| Pallet Total Weight Per - XA |
3529.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
2.380 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
2.000 |
| Retail Length - XA |
6.000 |
| Retail Width - XA |
2.000 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
TRAILER BALLS |

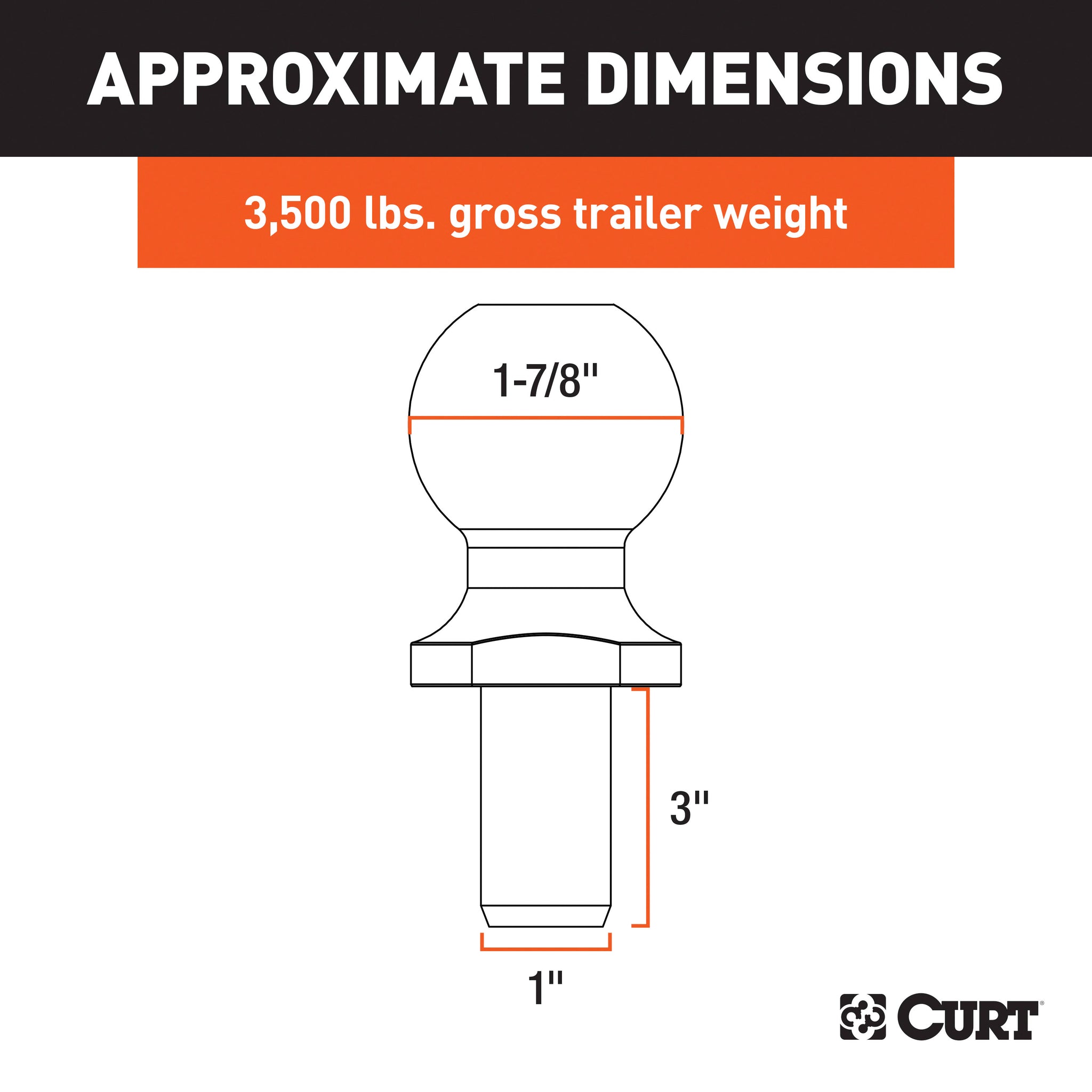

| Shank Diameter |
1 |
| Shank Length |
3 IN |
| Shank Rise |
0 IN |
| Shipping Weight - XA |
2.380 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
1-7/8" Trailer Ball (1" x 3" Shank, 3,500 lbs., Chrome) |
| Torque |
250 FT LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Dom Pickup Location - XA |
Eau Claire, Wi |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
BALL |
| Description_SHO |
1-7/8" Trailer Ball |
| Description_INV |
Chrome 1-7/8" Trailer Ball |
| Description_ASC |

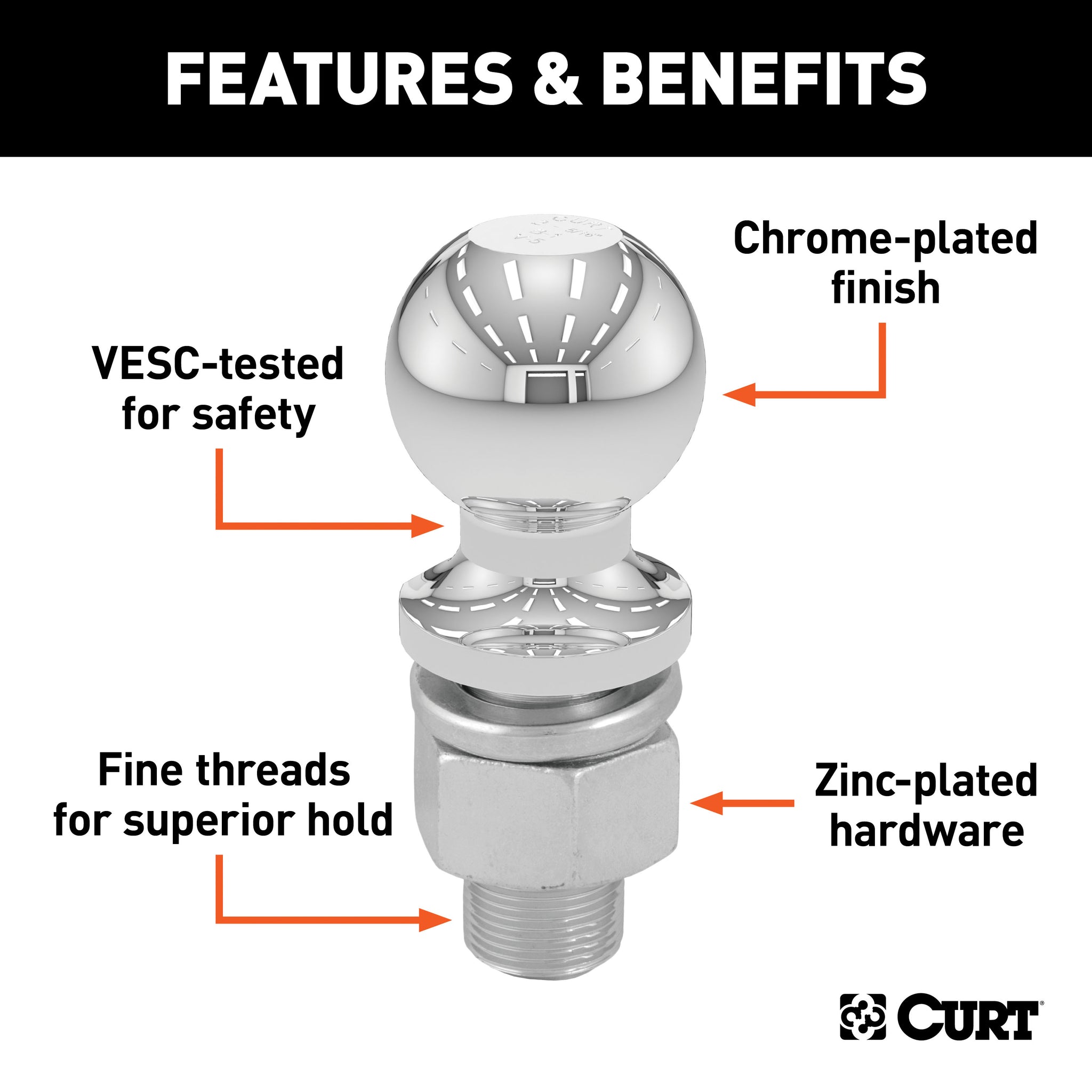

Fits 1-7/8" couplers and accepts up to 3,500 lbs. GTW |
| Description_ASC |
Constructed from high-strength, hot-forged steel |
| Description_ASC |
Protected by a durable chrome-plated finish |
| Description_ASC |
Zinc-plated hex nut and helical lock washer for secure mounting |
| Description_ASC |
Features fine threads for superior holding strength |
| Description_ASC |
Tested for safety to meet U.S. VESC V-5 specifications |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
1-7/8" Trailer Ball (1" x 3" Shank, 3,500 lbs., Chrome) |
| Description_EXT |
CURT 40017 Chrome Trailer Hitch Ball, 3,500 lbs, 1-7/8-Inch Diameter, 1 x 3-Inch Shank |
| Description_MKT |
CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".This CURT tow ball features a ball capacity of 3,500 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 1" shank diameter, a 3" shank length, 0" of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications. |
| Description_FAB |
Fits 1-7/8" couplers and accepts up to 3,500 lbs. GTW |
| Description_FAB |
Constructed from high-strength, hot-forged steel |
| Description_FAB |
Protected by a durable chrome-plated finish |
| Description_FAB |
Zinc-plated hex nut and helical lock washer for secure mounting |
| Description_FAB |
Features fine threads for superior holding strength |
| Description_FAB |
Tested for safety to meet U.S. VESC V-5 specifications |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 40017 Chrome Trailer Hitch Ball, 3,500 lbs, 1-7/8-Inch Diameter, 1 x 3-Inch Shank |
| Description_DEF |
Trailer Hitch Ball |
