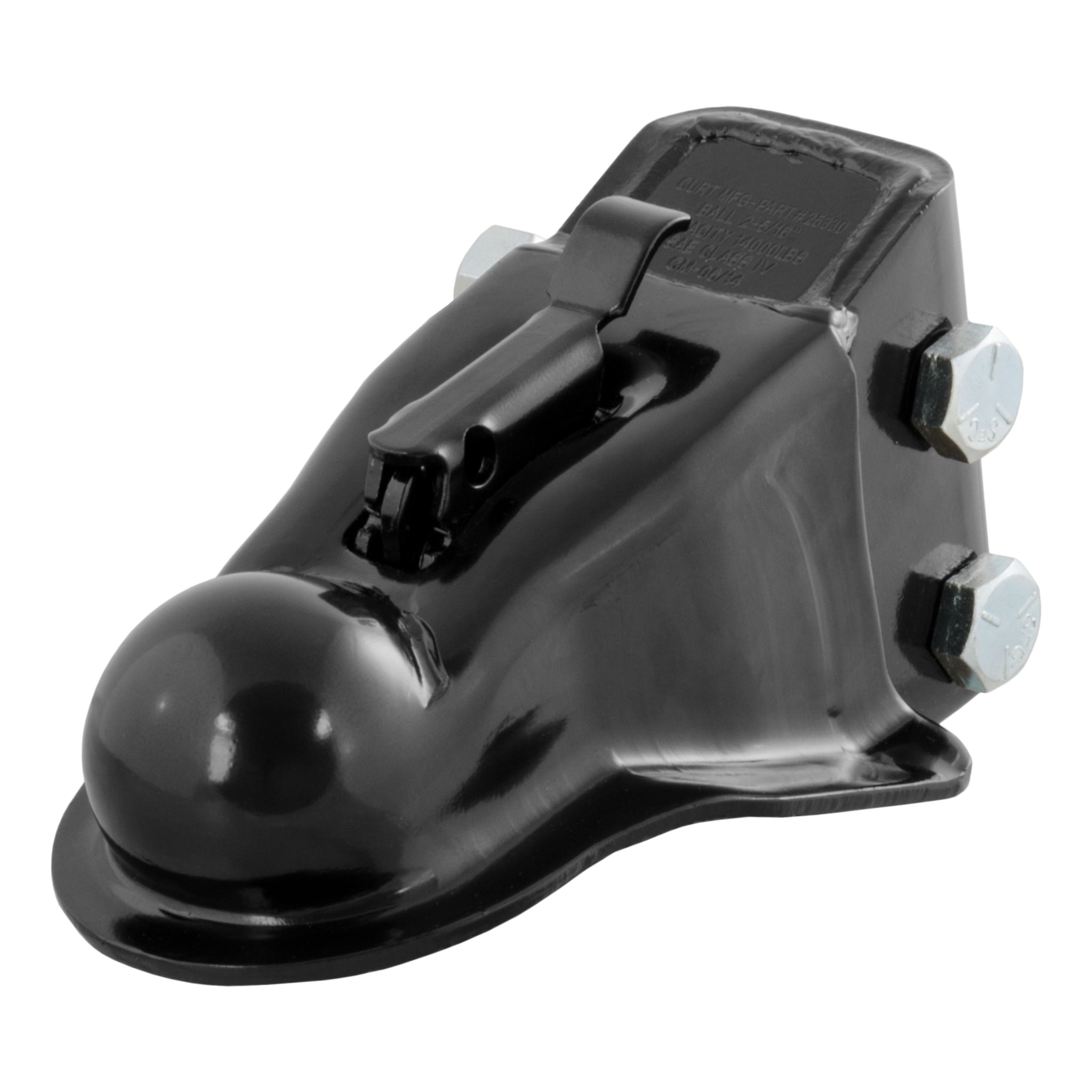

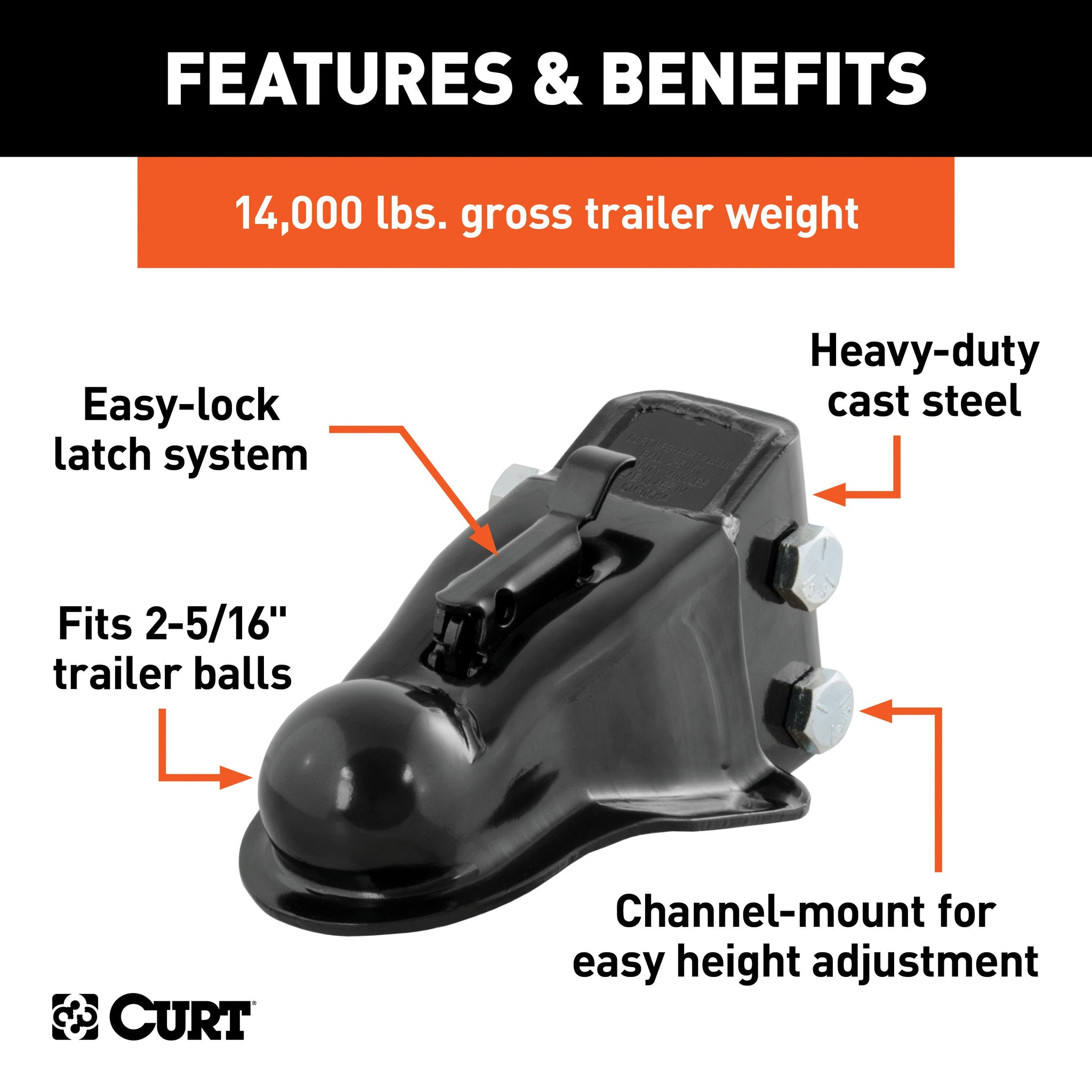

If you are replacing a broken coupler on your trailer or installing a new one on a trailer you are building, CURT has dependable couplers you can trust to keep your tow load latched on tight. Selecting the right trailer hitch, ball mount and trailer ball to manage the weight of your trailer is not the only important aspect of towing; you also need a trailer that can stand up to the road ahead. That means equipping it with a coupler that is built to go the distance. Providing the highest weight capacity and the most flexibility in coupler design, CURT adjustable channel couplers are a unique option for your trailer. This type of coupler does not bolt onto a trailer's frame the same way that a standard coupler does. It uses a pair of bolts to mount onto an adjustable eye channel to allow for easy height adjustment. The two attachment bolts also provide greater stability and less rattle. This CURT adjustable channel coupler features a cast design with a simple latch. It comes with a durable gloss black powder coat finish for corrosion resistance and has a gross trailer weight capacity of 14,000 lbs. and a tongue weight capacity of 2,100 lbs. It is designed to fit a 2-5/16" diameter trailer ball. All CURT couplers include a limited lifetime warranty and feature a lockable latch to give you peace of mind.
| Ball Diameter |
2-5/16 IN |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
14,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
4.750 |
| Item Length - XA |
9.000 |
| Item Width - XA |
6.000 |
| Master Case Height Inches - XA |
9.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
17.000 |
| Master Case Qty - XA |
6 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
55.000 |
| Master Case Width Inches - XA |
9.000 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
4.750 |
| Retail Length - XA |
9.000 |
| Retail Width - XA |
6.000 |
| Sales Family Code - XA |
TPACC |
| Sales Family Description - XA |
TRAILER PARTS AND ACCESS |
| Sales Group Description - XA |
COUPLER |
| Shipping Weight - XA |
9.020 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
2-5/16" Channel-Mount Coupler with Easy-Lock (14,000 lbs, Black) |
| Tongue Weight (TW) |
2,100 LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
COUPL |
| Description_SHO |
Channel Coupler |
| Description_INV |
Channel-Mount Coupler |
| Description_ASC |

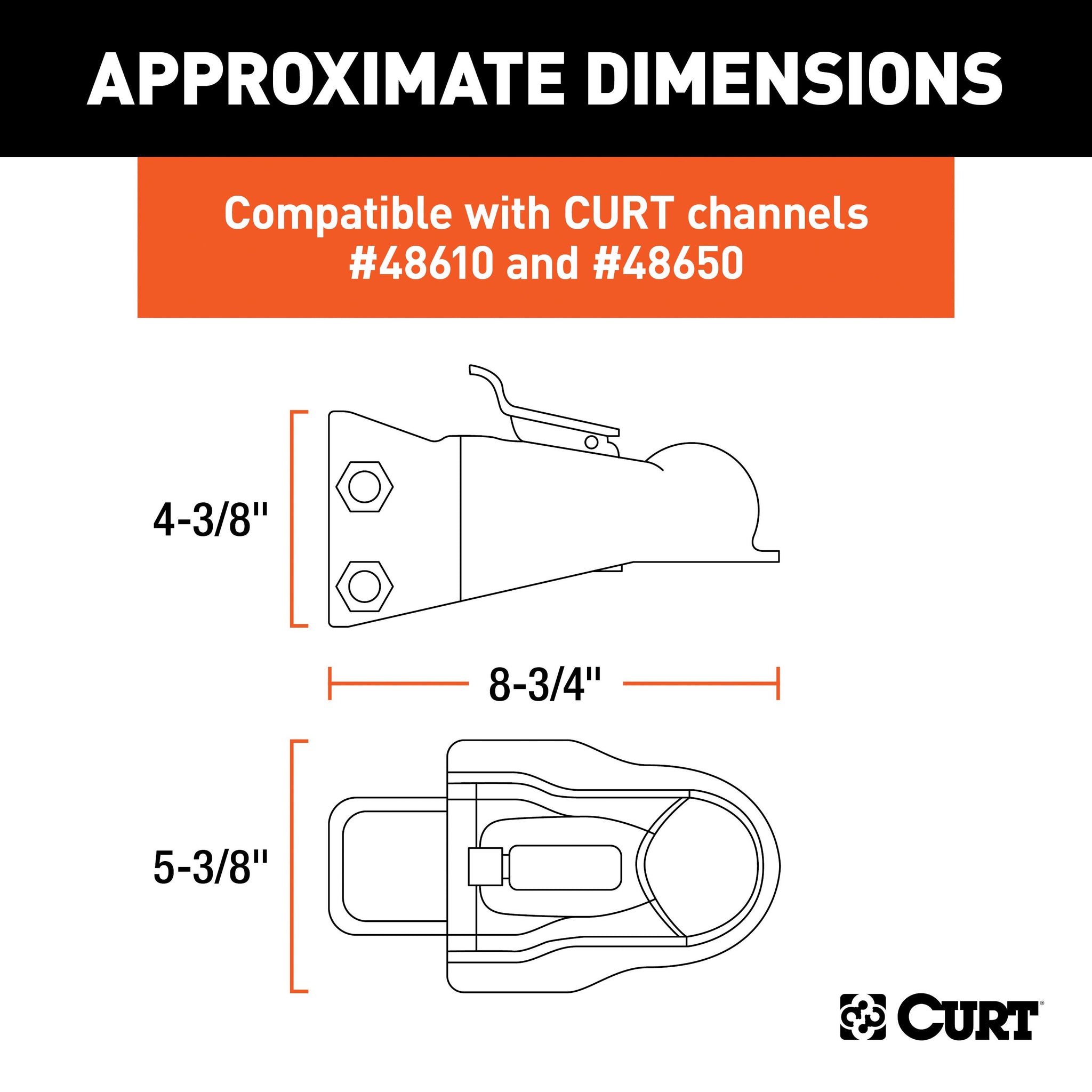

Compatible with CURT channels #48610 and #48650 |
| Description_ASC |

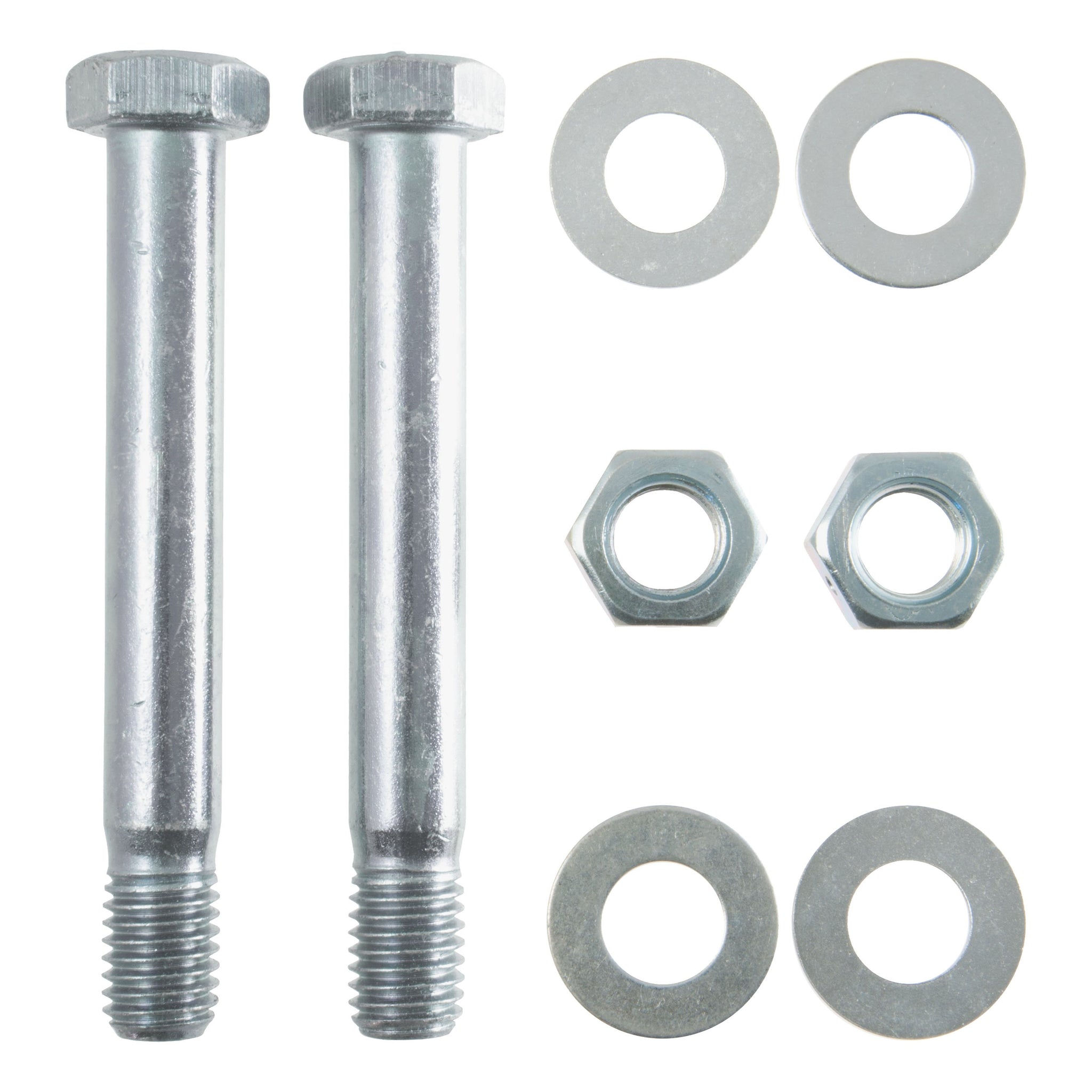

Secured by a dual-bolt mounting system |
| Description_ASC |
Channel-mount allows for easy height adjustment |
| Description_ASC |

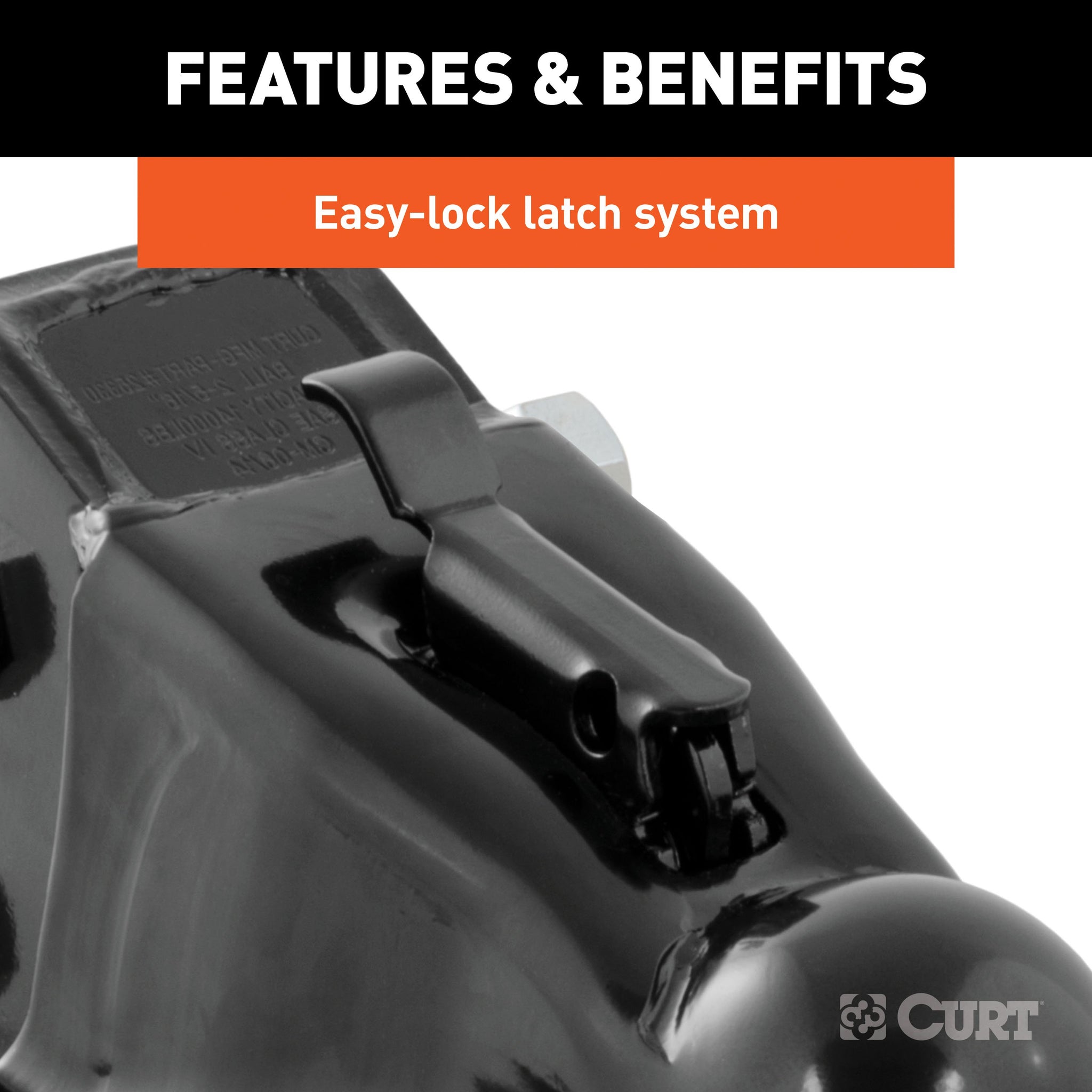

Easy-lock latching system for simple operation |
| Description_ASC |
Features holes to accept a safety pin or coupler lock |
| Description_ASC |
Constructed from heavy-duty cast steel |
| Description_ASC |
Protected by a durable gloss black powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
2-5/16" Channel-Mount Coupler with Easy-Lock (14,000 lbs, Black) |
| Description_EXT |
CURT 25330 Channel-Mount Adjustable Trailer Coupler, 2-5/16-Inch Hitch Ball, 14,000 lbs |
| Description_MKT |
If you are replacing a broken coupler on your trailer or installing a new one on a trailer you are building, CURT has dependable couplers you can trust to keep your tow load latched on tight. Selecting the right trailer hitch, ball mount and trailer ball to manage the weight of your trailer is not the only important aspect of towing; you also need a trailer that can stand up to the road ahead. That means equipping it with a coupler that is built to go the distance. Providing the highest weight capacity and the most flexibility in coupler design, CURT adjustable channel couplers are a unique option for your trailer. This type of coupler does not bolt onto a trailer's frame the same way that a standard coupler does. It uses a pair of bolts to mount onto an adjustable eye channel to allow for easy height adjustment. The two attachment bolts also provide greater stability and less rattle. This CURT adjustable channel coupler features a cast design with a simple latch. It comes with a durable gloss black powder coat finish for corrosion resistance and has a gross trailer weight capacity of 14,000 lbs. and a tongue weight capacity of 2,100 lbs. It is designed to fit a 2-5/16" diameter trailer ball. All CURT couplers include a limited lifetime warranty and feature a lockable latch to give you peace of mind. |
| Description_FAB |
Compatible with CURT channels #48610 and #48650 |
| Description_FAB |
Secured by a dual-bolt mounting system |
| Description_FAB |
Channel-mount allows for easy height adjustment |
| Description_FAB |
Easy-lock latching system for simple operation |
| Description_FAB |
Features holes to accept a safety pin or coupler lock |
| Description_FAB |
Constructed from heavy-duty cast steel |
| Description_FAB |
Protected by a durable gloss black powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 25330 Channel-Mount Adjustable Trailer Coupler, 2-5/16-Inch Hitch Ball, 14,000 lbs |
| Description_DEF |
Trailer Hitch Coupler |
