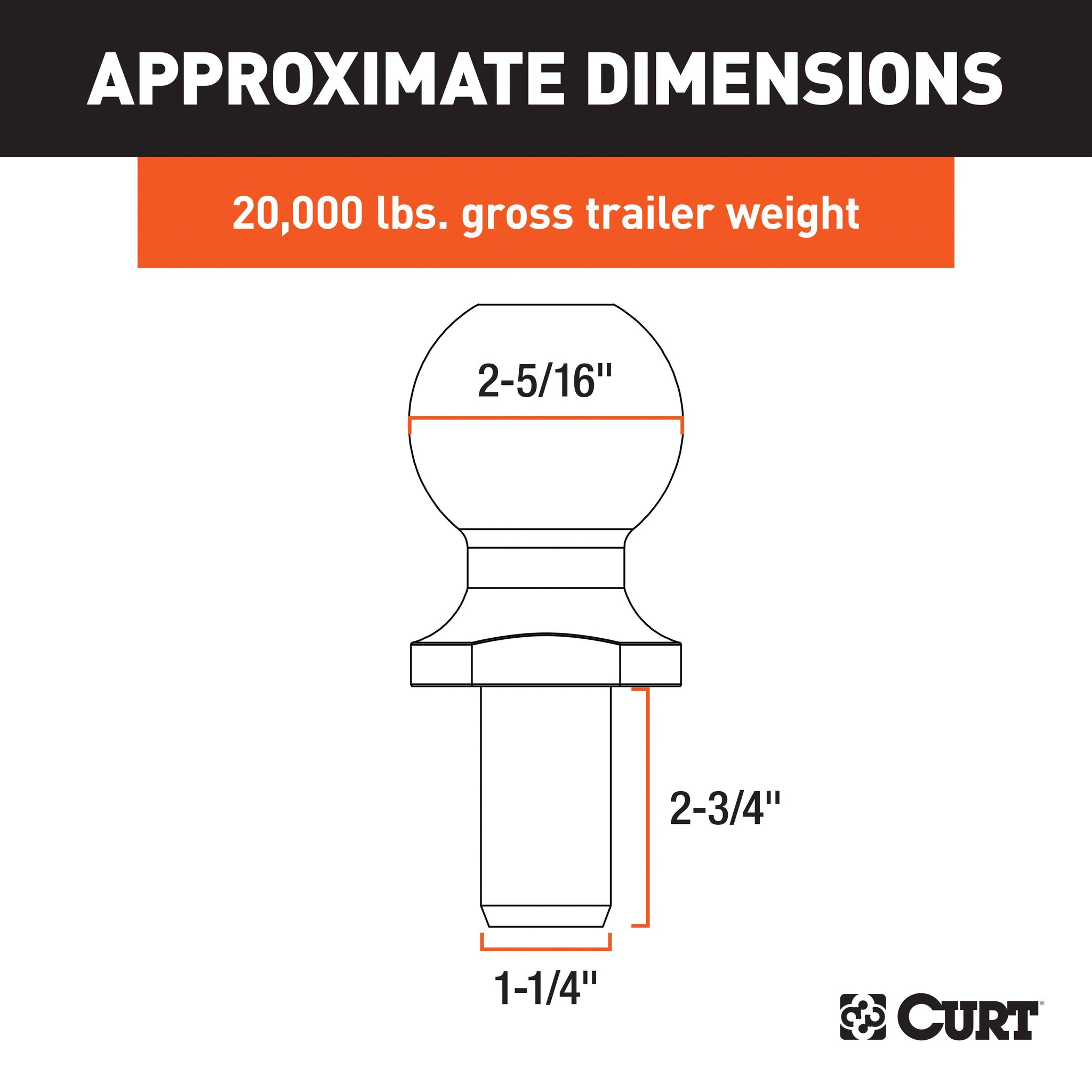

The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 20,000 lbs. It features a 1-1/4" shank diameter, a 2-3/4" shank length, 0" of rise and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
2-5/16" Trailer Ball (1-1/4" x 2-3/4" Shank, 20,000 lbs., Chrome) |
| Torque |
450 FT LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Ball Capacity |
20,000 LBS |
| Ball Diameter |
2-5/16 IN |
| Box Height in Inches - XA |
2 |
| Box Length in Inches - XA |
7 |
| Box Width in Inches - XA |
4 |
| Class ID |
0 |
| Container Cases Qty - XA |
760 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
19 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
9120 |
| Container Volume Cubic Feet - XA |
400.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
38114 |
| Finish - XA |
CHROME-PLATED |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
6.500 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
60612314400081 |
| Master Case ITF14 - XA |
60612314400081 |
| Master Case Length Inches - XA |
5.700 |
| Master Case Qty - XA |
12 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
49.600 |
| Master Case Width Inches - XA |
14.370 |
| Material - XA |
FORGED STEEL |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
40 |
| Pallet Case Per Layer - XA |
20 |
| Pallet Cases Per - XA |
40 |
| Pallet Cases Per Layer - XA |
20 |
| Pallet Layer of Cases - XA |
2 |
| Pallet Qty - XA |
12.000 |
| Pallet Total Height Inches - XA |
19.000 |
| Pallet Total Weight Per - XA |
2006.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
2.500 |
| Retail Length - XA |
5.750 |
| Retail Width - XA |
2.500 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
TRAILER BALLS |
| Shank Diameter |
1.25 |
| Shank Length |
2 3/4 IN |
| Shank Rise |
0 IN |
| Shipping Weight - XA |
4.050 |
| Description_ABR |
BALL |
| Description_SHO |
2-5/16" Trailer Ball |
| Description_INV |
Chrome 2-5/16" Trailer Ball |
| Description_ASC |

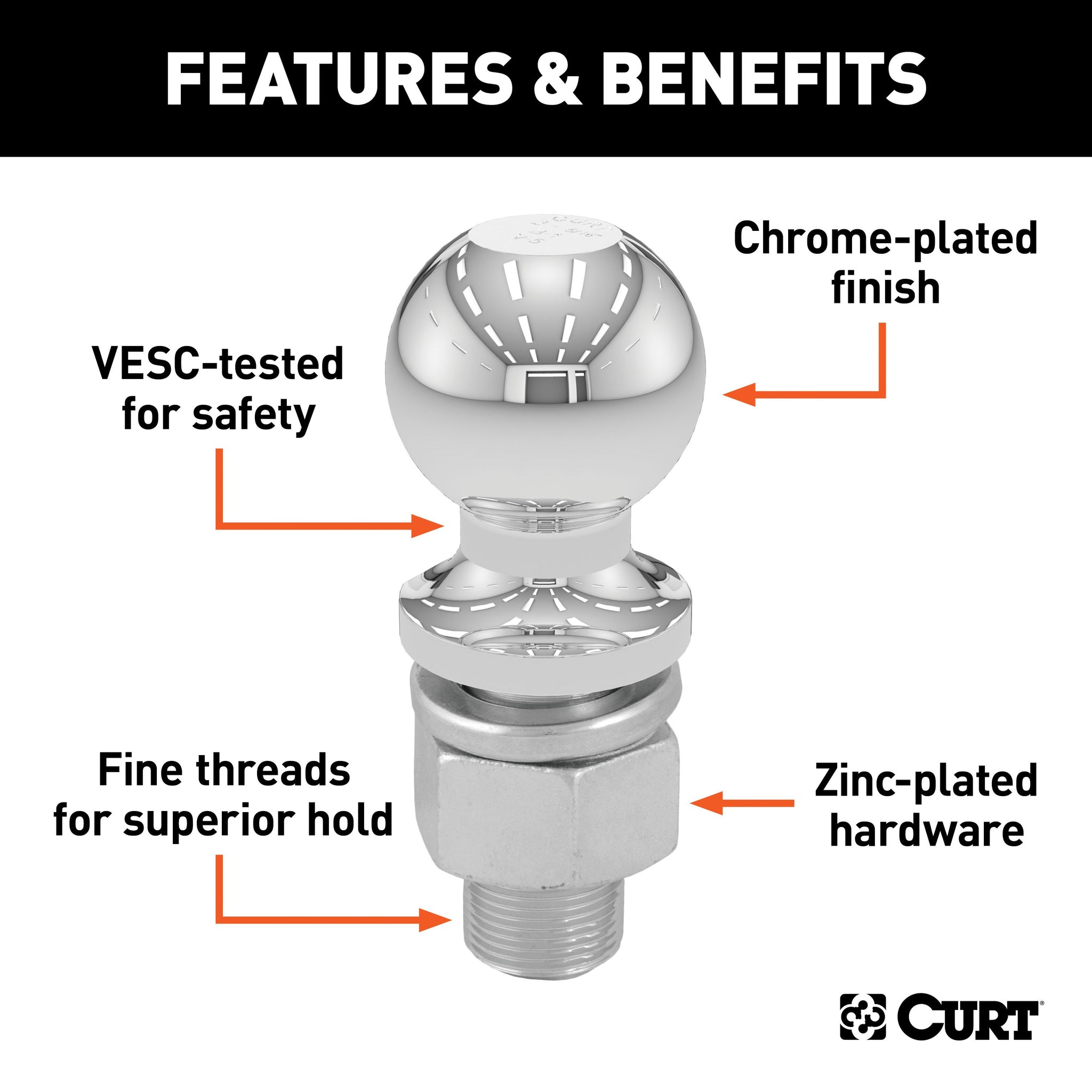

Fits 2-5/16" couplers and accepts up to 20,000 lbs. GTW |
| Description_ASC |
Constructed from high-strength, hot-forged steel |
| Description_ASC |
Heat-treated for optimum wear resistance |
| Description_ASC |
Protected by a durable chrome-plated finish |
| Description_ASC |
Zinc-plated hex nut and helical lock washer for secure mounting |
| Description_ASC |
Features fine threads for superior holding strength |
| Description_ASC |
Tested for safety to meet U.S. VESC V-5 specifications |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
2-5/16" Trailer Ball (1-1/4" x 2-3/4" Shank, 20,000 lbs., Chrome) |
| Description_EXT |
CURT 40008 Chrome Trailer Hitch Ball, 20,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-3/4-Inch Shank |
| Description_MKT |
The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 20,000 lbs. It features a 1-1/4" shank diameter, a 2-3/4" shank length, 0" of rise and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications. |
| Description_FAB |
Fits 2-5/16" couplers and accepts up to 20,000 lbs. GTW |
| Description_FAB |
Constructed from high-strength, hot-forged steel |
| Description_FAB |
Heat-treated for optimum wear resistance |
| Description_FAB |
Protected by a durable chrome-plated finish |
| Description_FAB |
Zinc-plated hex nut and helical lock washer for secure mounting |
| Description_FAB |
Features fine threads for superior holding strength |
| Description_FAB |
Tested for safety to meet U.S. VESC V-5 specifications |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 40008 Chrome Trailer Hitch Ball, 20,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-3/4-Inch Shank |
| Description_DEF |
Trailer Hitch Ball |
