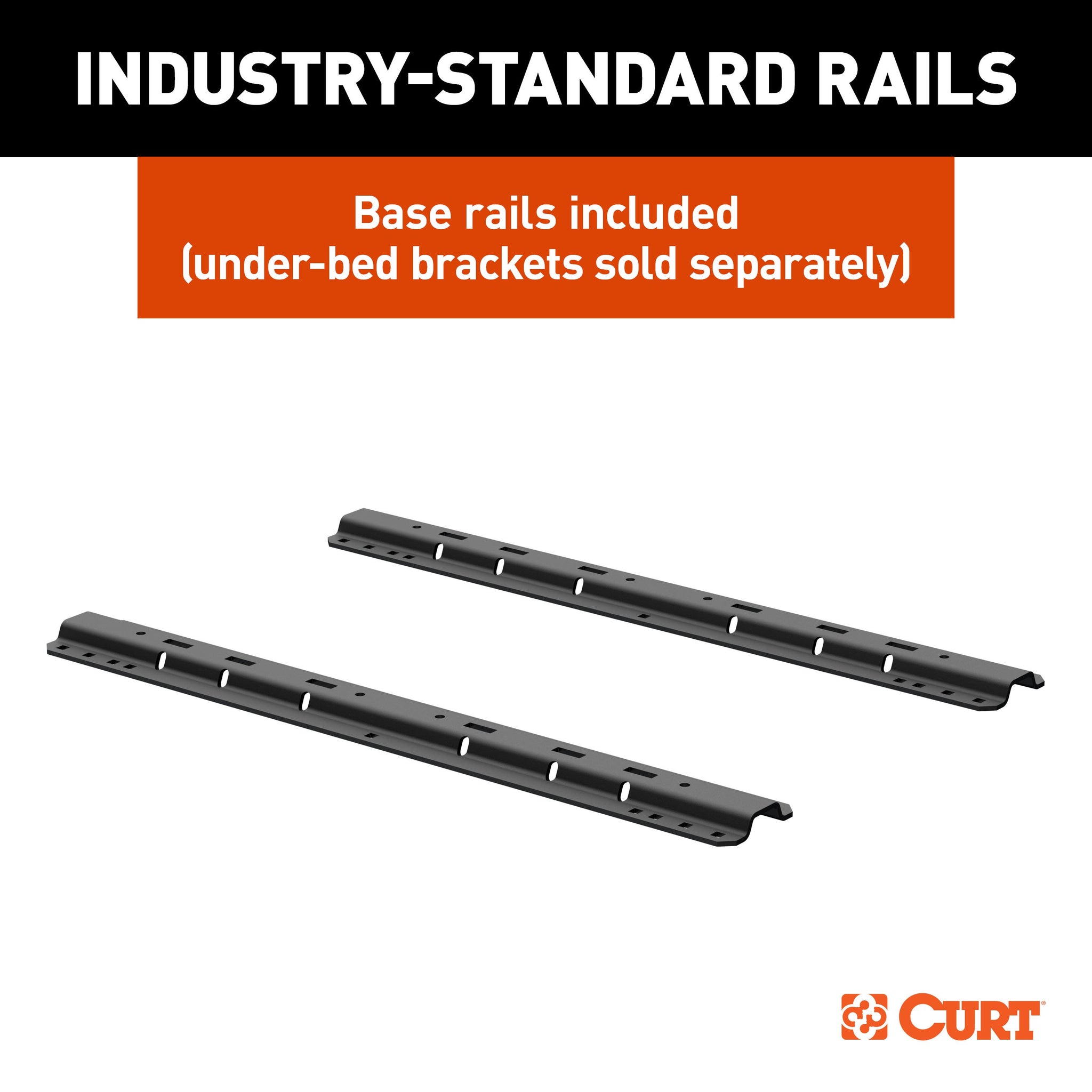

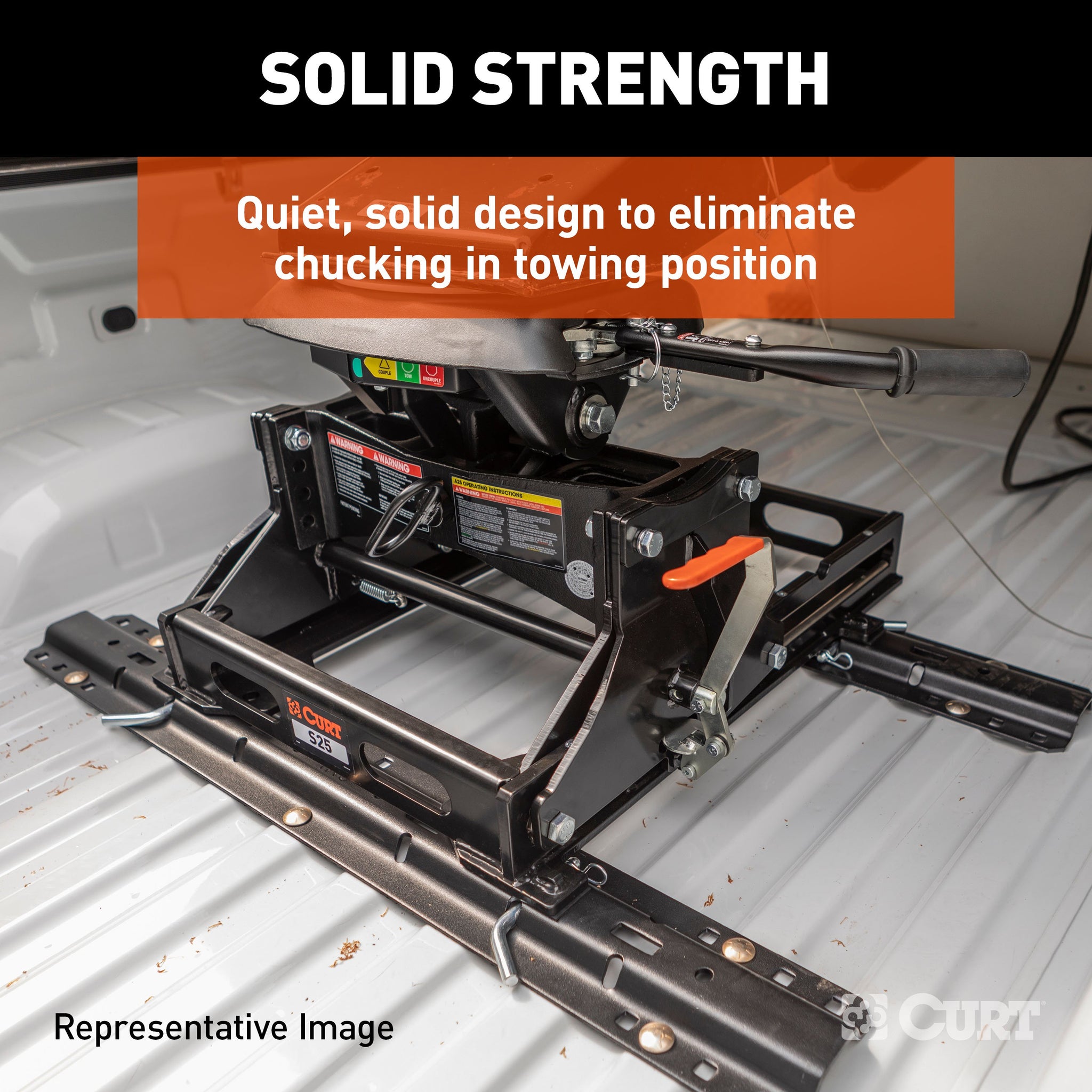

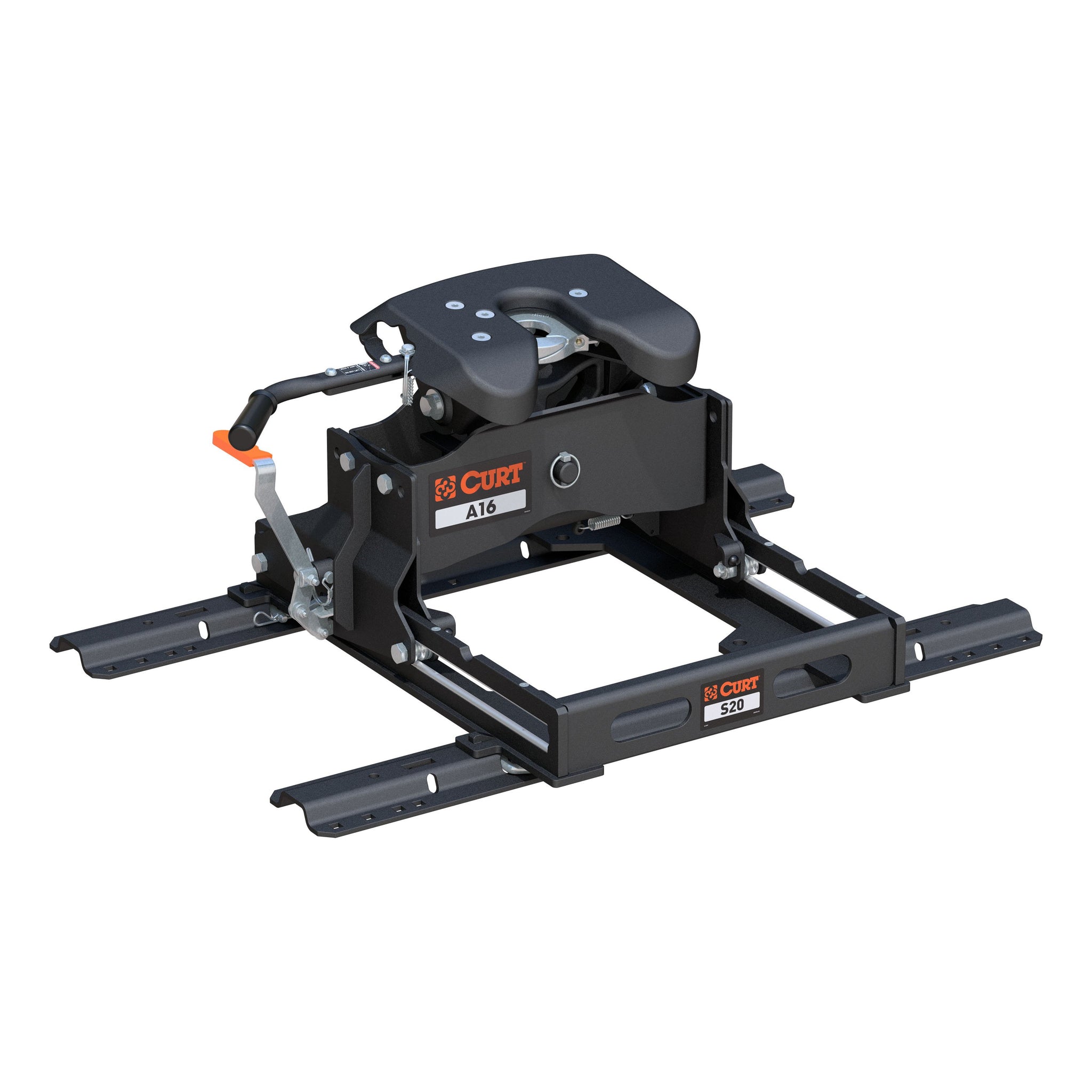

The CURT A16 is designed to provide a surprisingly quiet ride while maintain superior towing power. It has a gross trailer weight capacity of 16,000 lbs. and can handle a vertical load up to 4,000 lbs. It comes with a three-position coupling indicator visible from your pickup truck cab, an extra wide head for easier coupling and high-strength interlocking die-cast jaws for a secure hold on your 5th wheel trailer. This 16K 5th wheel hitch excels in quiet 5th wheel towing. It uses a fully articulating torsion head, a cast yoke with poly-torsion inserts and interlocking jaws to create stability for your trailer and tow vehicle. These components also allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. Like the other CURT A-Series hitches, the A16 is coated with a durable carbide powder coat finish. It is tested in accordance with SAE J2638 for safety and includes a limited lifetime warranty. This A16 5th wheel hitch head comes attached to the CURT S20 slider and a set of 5th wheel rails to be mounted in your truck bed using a 5th wheel bracket kit. CURT 5th wheel sliders are built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding. With the slider installed, you can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation.
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
16,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
14.250 |
| Item Length - XA |
60.710 |
| Item Width - XA |
45.000 |
| Master Case Height Inches - XA |
14.250 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
60.710 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
231.360 |
| Master Case Width Inches - XA |
45.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
1 |
| Pallet Cases Per Layer - XA |
1 |
| Pallet Layer of Cases - XA |
1 |
| Pallet Qty - XA |
1.000 |
| Pallet Total Height Inches - XA |
19.250 |
| Pallet Total Weight Per - XA |
271.360 |
| Parcel Allowed - XA |
No |
| Product Weight - XA |
230.360 |
| Prop 65 Label Text - XA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Material - XA |
Di(2-ethylhexyl) phthalate |
| Prop 65 Reason - XA |
Phthalates |
| Prop 65 Warning Label Type - XA |
Cancer and Birth Defect Causing |
| Prop 65 Warning Y/N - XA |
YES |
| Rate Class - XA |
92.5 |
| Retail Height - XA |
14.250 |
| Retail Length - XA |
60.710 |
| Retail Width - XA |
45.000 |
| Sales Family Code - XA |
FIFTH |
| Sales Family Description - XA |
FIFTH WHEEL |
| Sales Group Description - XA |
FIFTH WHEEL ROLLERS |
| Shipping Weight - XA |
230.360 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Title |
A16 Sliding 5th Wheel Hitch with Rails, 16,000 lbs. |
| Truckload Cases Qty - XA |
20 |
| Truckload Pallets Qty - XA |
20 |
| Truckload Units Qty - XA |
20 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
5427 |
| Vertical Load |
4,000 LB |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
ROLL |
| Description_SHO |
A16 5th Wheel Hitch |
| Description_INV |
A16 Sliding 5th Wheel Hitch with Rails |
| Description_ASC |

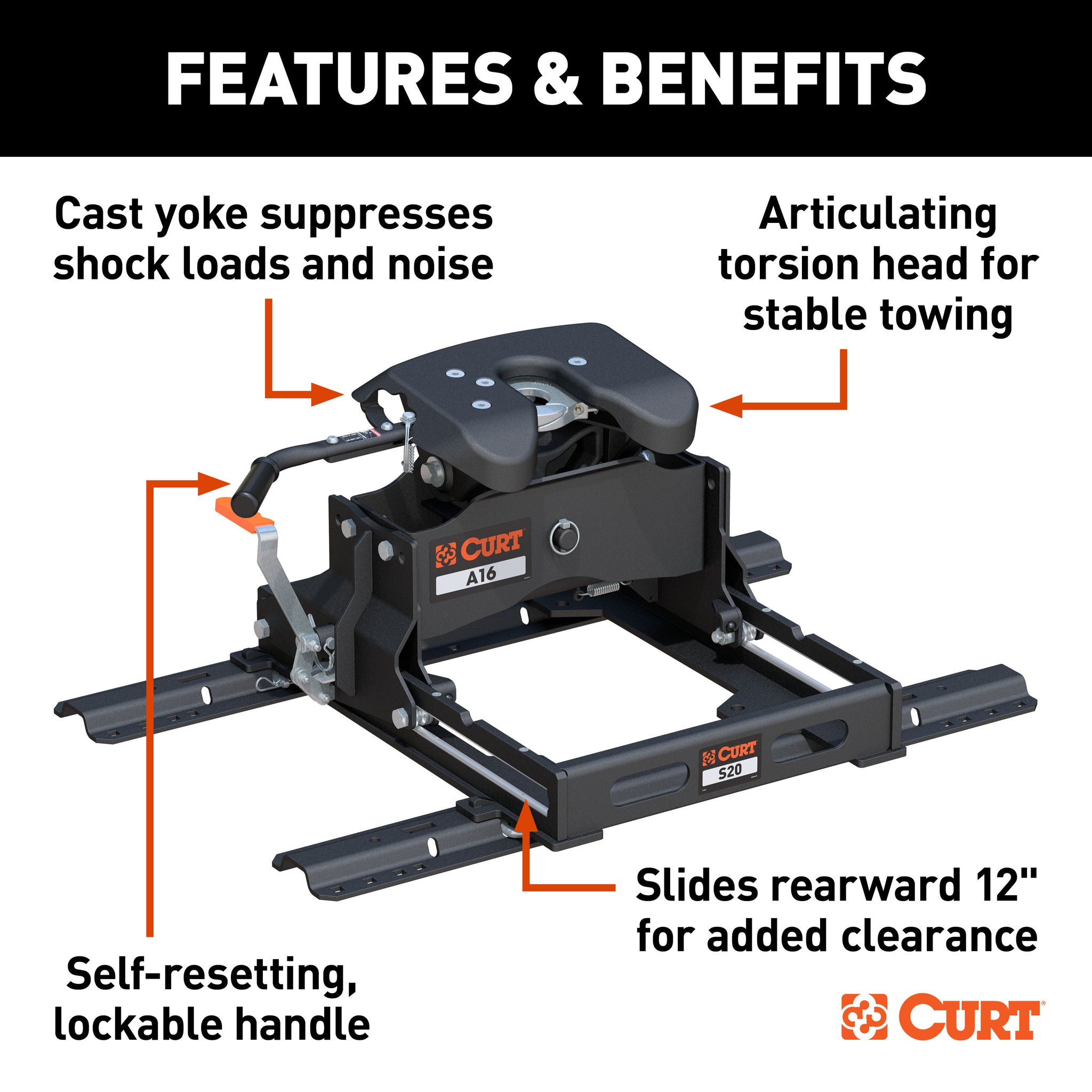

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise |
| Description_ASC |

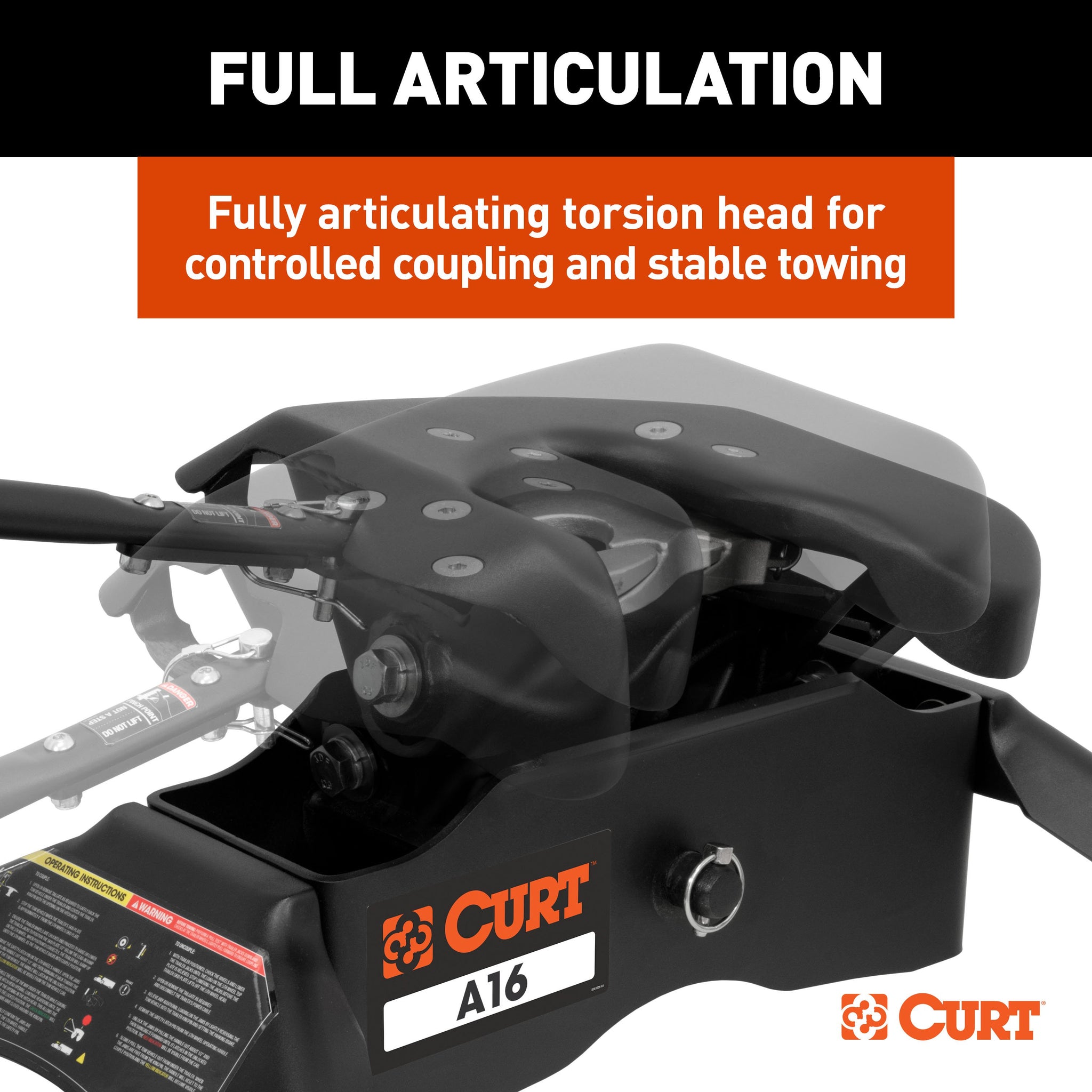

Fully articulating torsion head for controlled coupling and stable towing |
| Description_ASC |

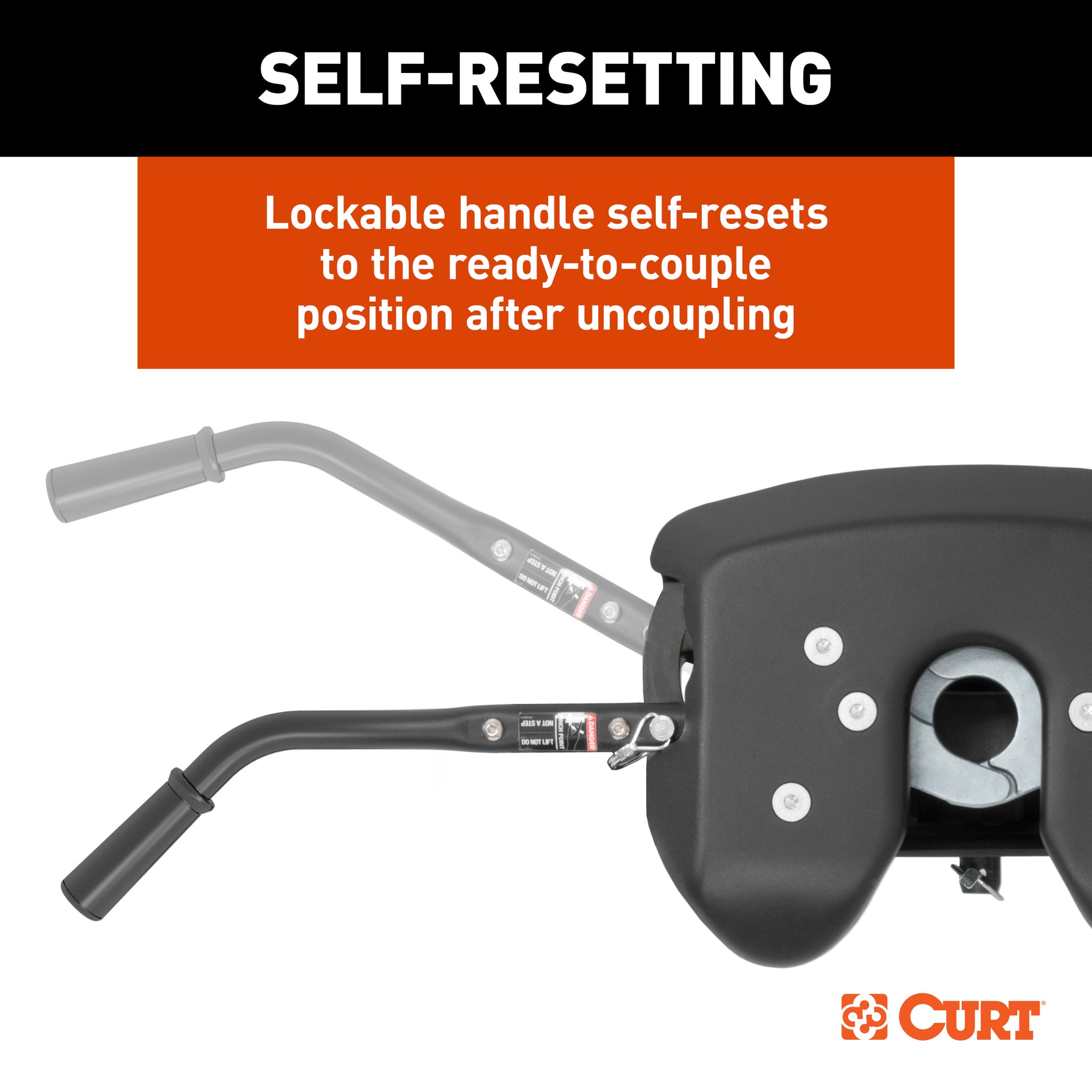

Lockable handle self-resets to the ready-to-couple position after uncoupling |
| Description_ASC |
High-strength, interlocking jaws fully wrap the kingpin to minimize noise |
| Description_ASC |
Extra wide head opening for easier coupling |
| Description_ASC |
Fast, one-pin head removal makes moving easy with smaller, lighter pieces |
| Description_ASC |

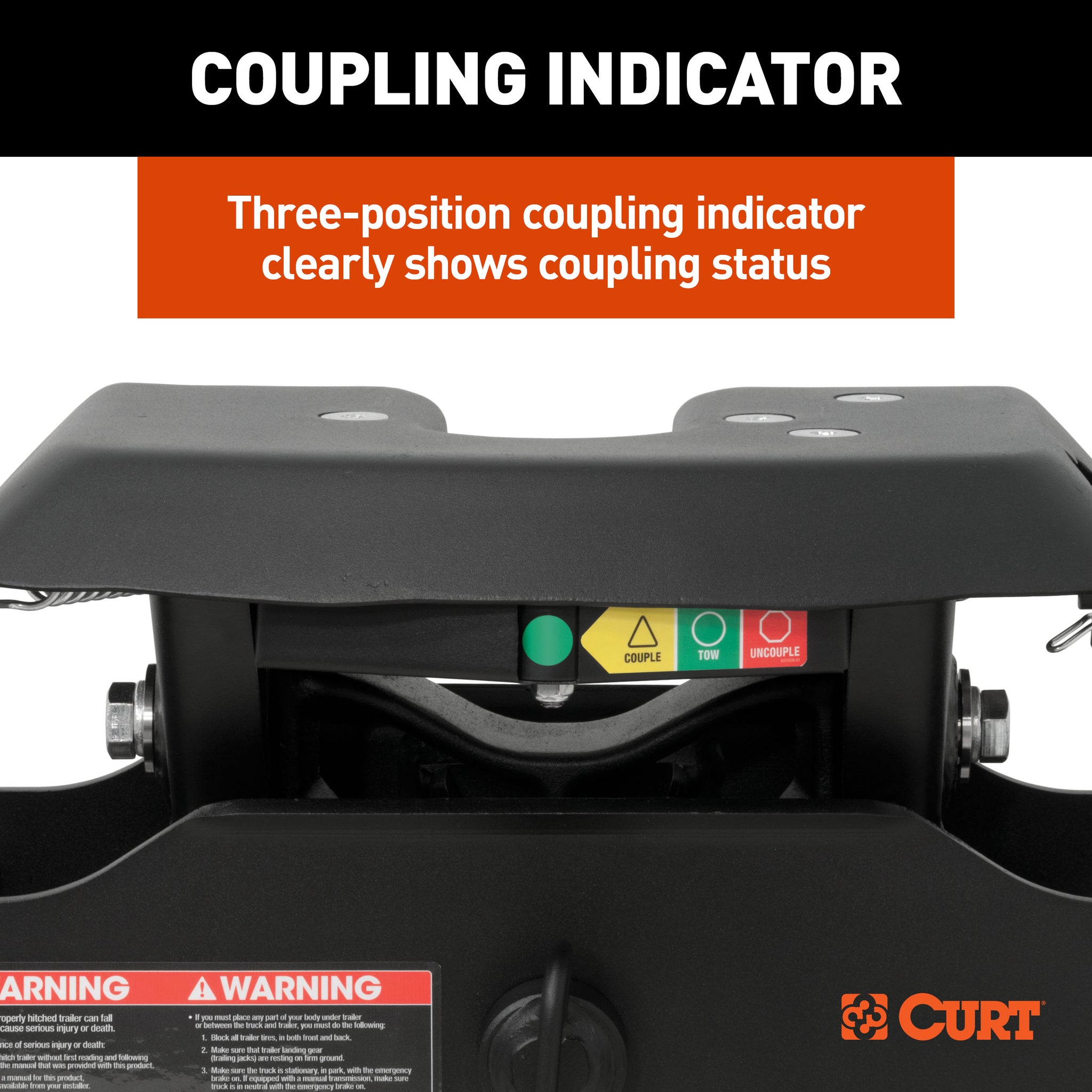

Three-position coupling indicator clearly shows coupling status |
| Description_ASC |

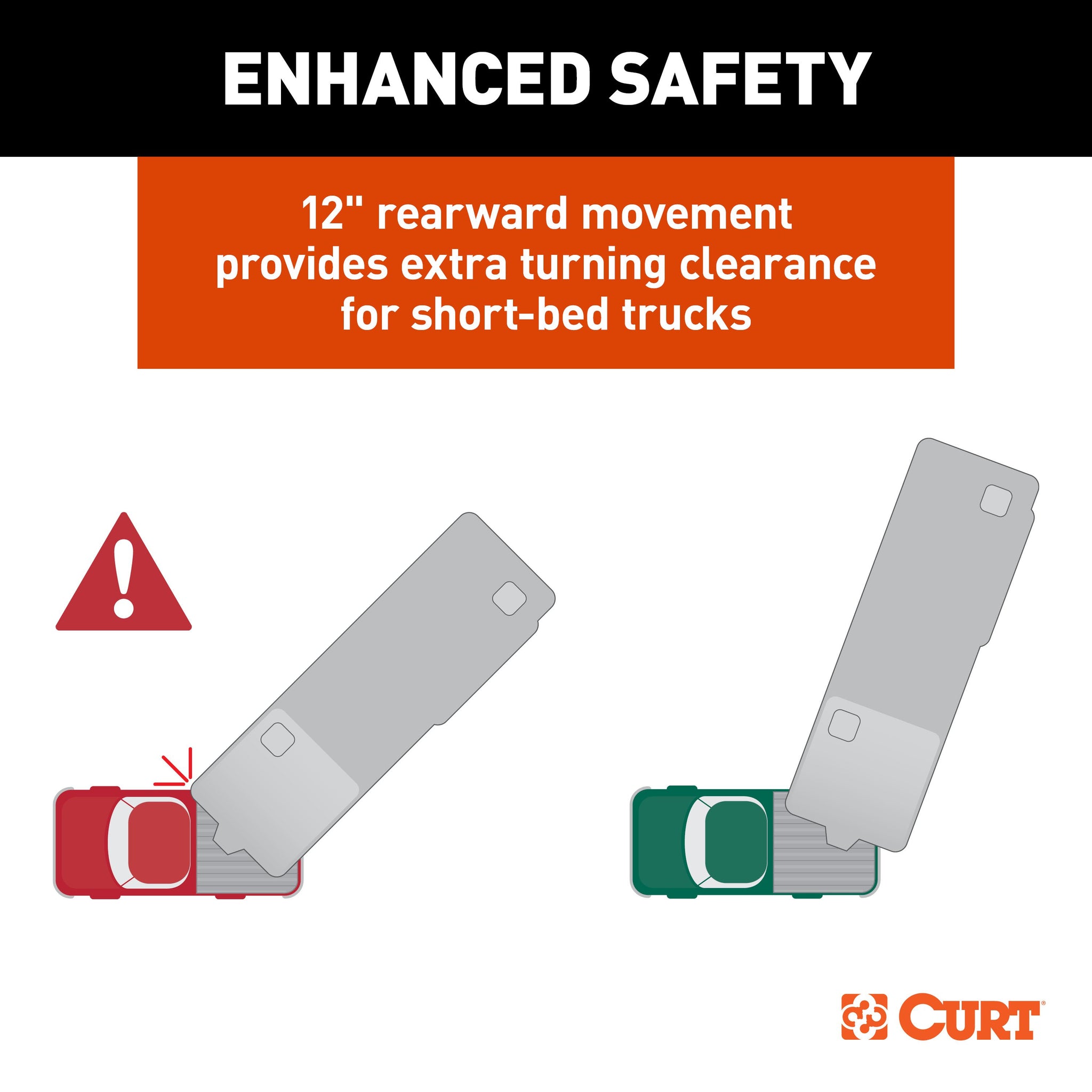

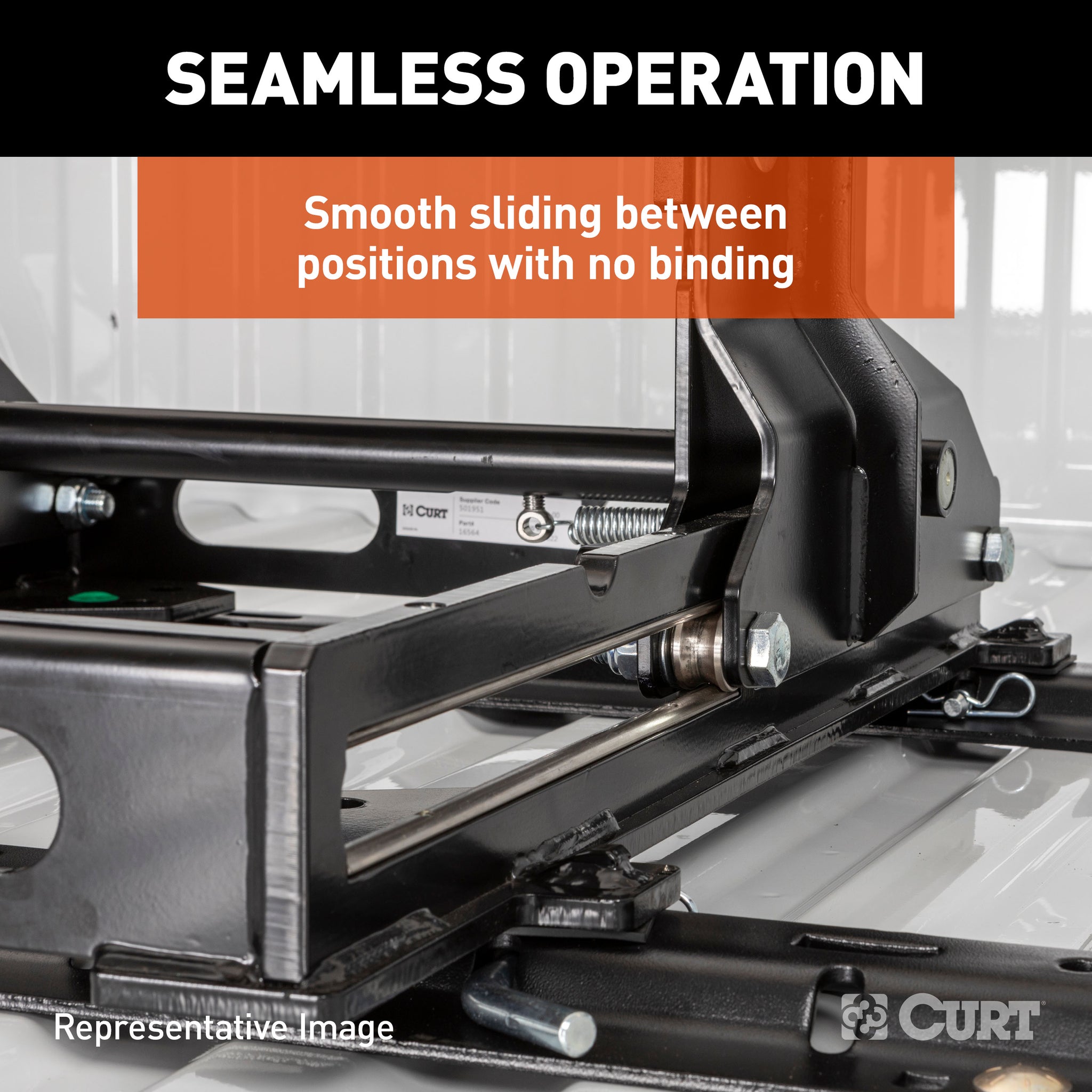

S20 5th wheel slider #16564 provides 12" of travel in the truck bed |
| Description_ASC |

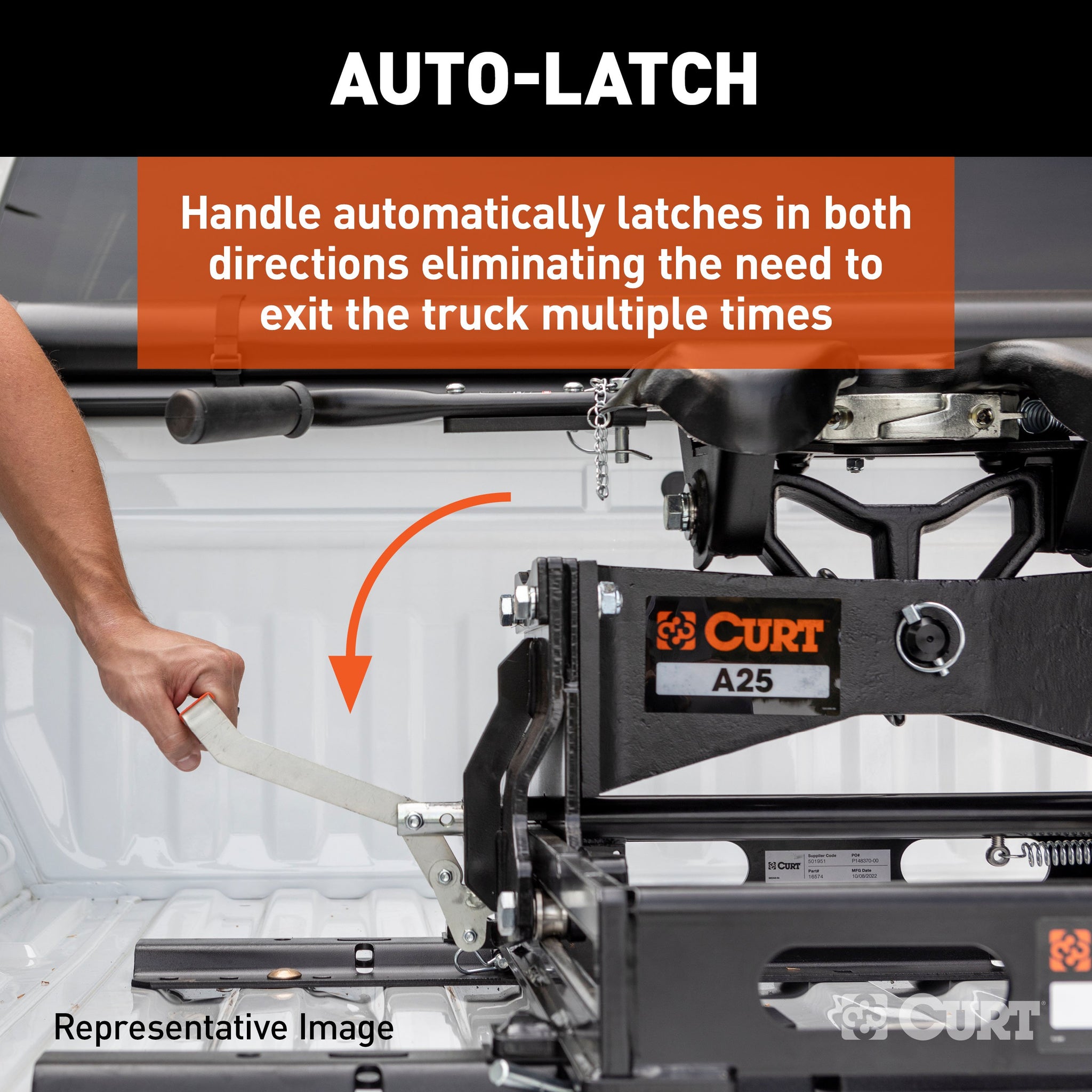

Automatically latches in both directions so you only have to exit the truck once |
| Description_ASC |
Compatible with kingpin extension boxes, including common pivoting pin boxes |
| Description_ASC |

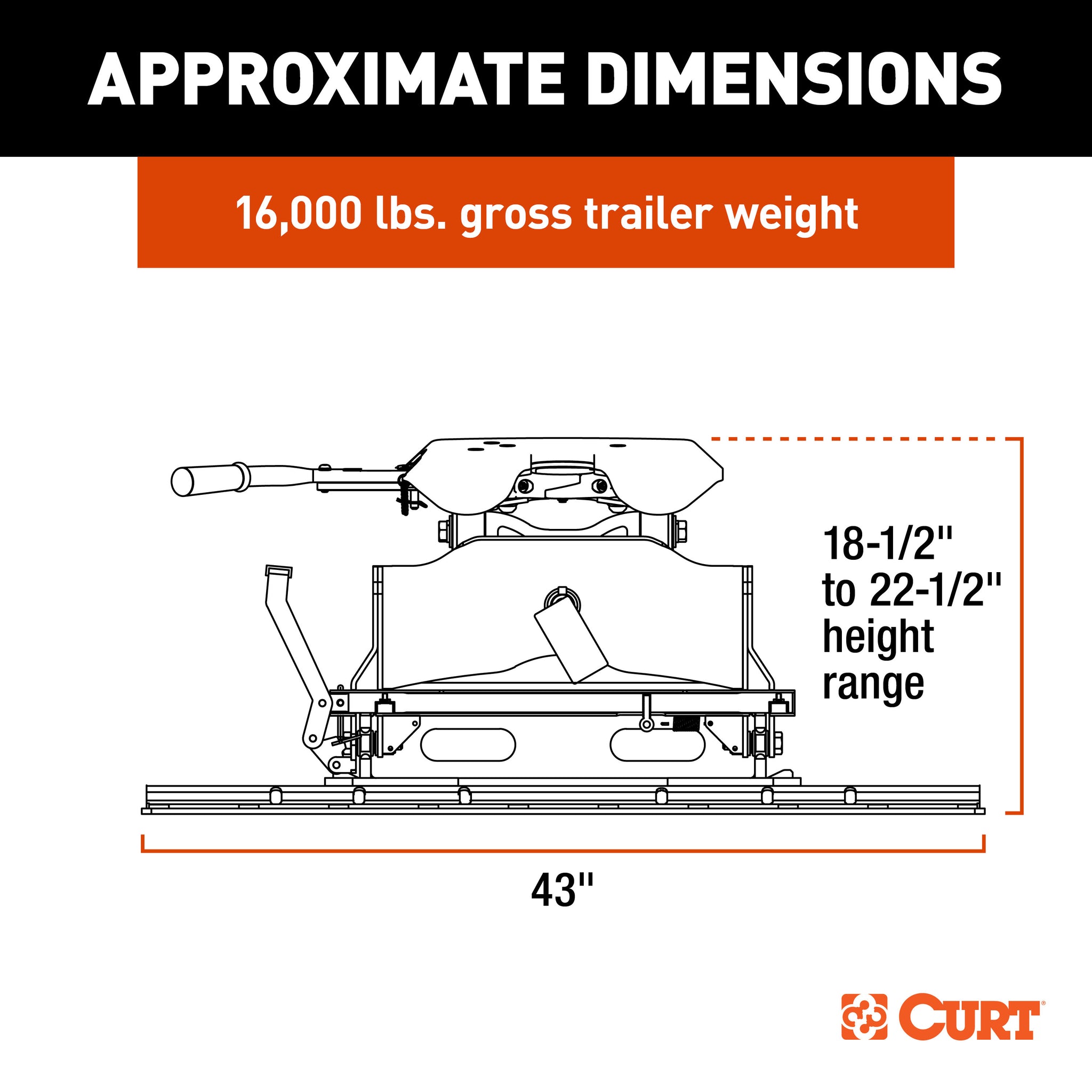

Offers three height adjustment positions to adapt to each unique truck bed |
| Description_ASC |
Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC |
Tested for safety in accordance with SAE J2638 |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC |
Patent# 8,827,298 |
| Description_DES |
A16 Sliding 5th Wheel Hitch with Rails, 16,000 lbs. |
| Description_EXT |
CURT 16053 A16 5th Wheel Slider Hitch with Base Rails for Short Bed Trucks, 16,000 lbs |
| Description_MKT |
The CURT A16 is designed to provide a surprisingly quiet ride while maintain superior towing power. It has a gross trailer weight capacity of 16,000 lbs. and can handle a vertical load up to 4,000 lbs. It comes with a three-position coupling indicator visible from your pickup truck cab, an extra wide head for easier coupling and high-strength interlocking die-cast jaws for a secure hold on your 5th wheel trailer. This 16K 5th wheel hitch excels in quiet 5th wheel towing. It uses a fully articulating torsion head, a cast yoke with poly-torsion inserts and interlocking jaws to create stability for your trailer and tow vehicle. These components also allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. Like the other CURT A-Series hitches, the A16 is coated with a durable carbide powder coat finish. It is tested in accordance with SAE J2638 for safety and includes a limited lifetime warranty. This A16 5th wheel hitch head comes attached to the CURT S20 slider and a set of 5th wheel rails to be mounted in your truck bed using a 5th wheel bracket kit. CURT 5th wheel sliders are built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding. With the slider installed, you can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. |
| Description_FAB |
Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise |
| Description_FAB |
Fully articulating torsion head for controlled coupling and stable towing |
| Description_FAB |
Lockable handle self-resets to the ready-to-couple position after uncoupling |
| Description_FAB |
High-strength, interlocking jaws fully wrap the kingpin to minimize noise |
| Description_FAB |
Extra wide head opening for easier coupling |
| Description_FAB |
Fast, one-pin head removal makes moving easy with smaller, lighter pieces |
| Description_FAB |
Three-position coupling indicator clearly shows coupling status |
| Description_FAB |
S20 5th wheel slider #16564 provides 12" of travel in the truck bed |
| Description_FAB |
Automatically latches in both directions so you only have to exit the truck once |
| Description_FAB |
Compatible with kingpin extension boxes, including common pivoting pin boxes |
| Description_FAB |
Offers three height adjustment positions to adapt to each unique truck bed |
| Description_FAB |
Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_FAB |
Tested for safety in accordance with SAE J2638 |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_FAB |
Patent# 8,827,298 |
| Description_TLE |
CURT 16053 A16 5th Wheel Slider Hitch with Base Rails for Short Bed Trucks, 16,000 lbs |
| Description_DEF |
Fifth Wheel Trailer Hitch |
