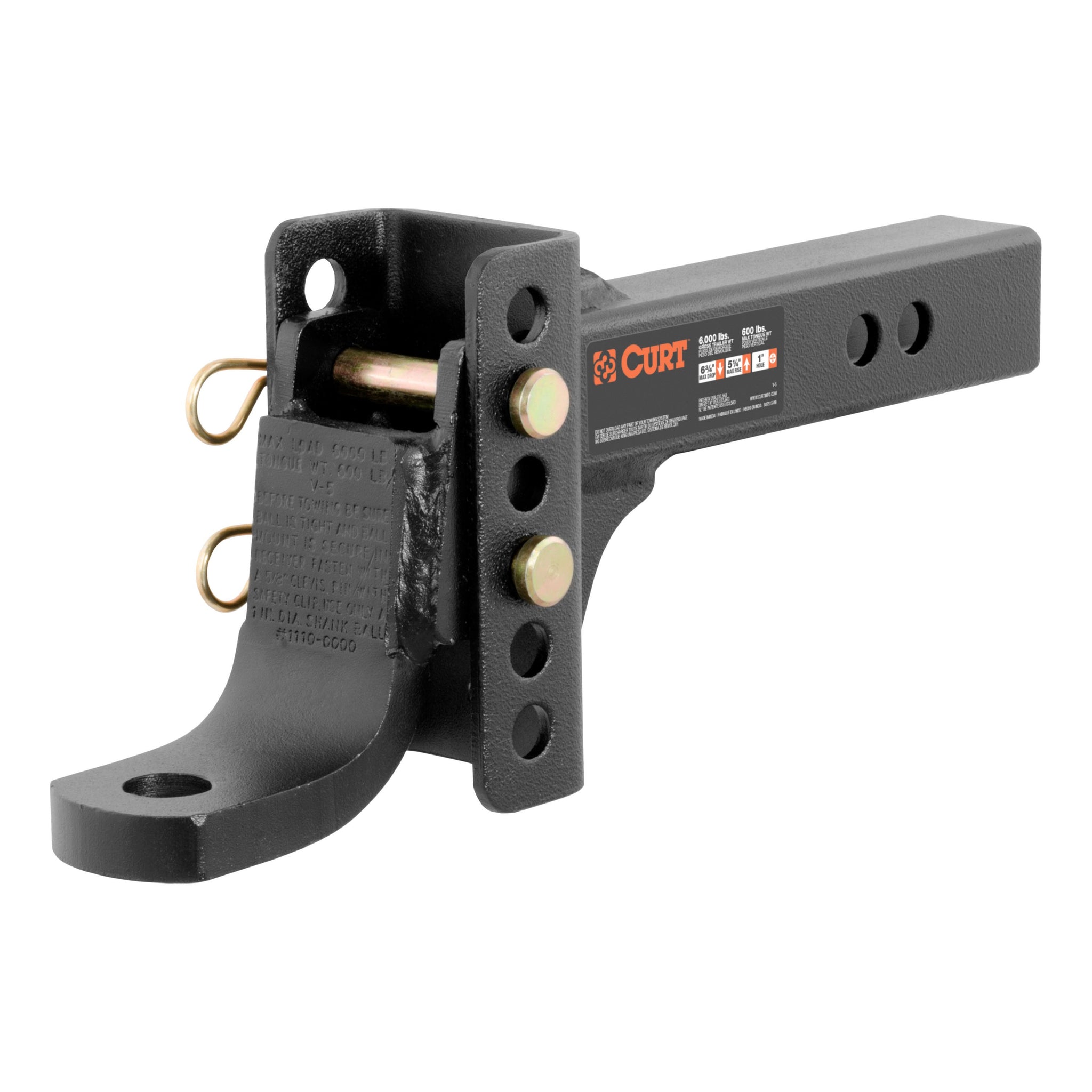

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. Its key feature is its adjustable design that takes the form of an adjustable channel-style assembly. It uses a series of holes to allow the ball mount platform to be vertically adjusted and allow for significant flexibility in drop and rise. With a variable ball height, it can easily accommodate different coupler heights and multiple trailers. This particular adjustable channel-style ball mount features a gross trailer weight capacity of 6,000 lbs. Unlike other adjustable ball mounts that have fixed trailer balls, this one comes with a trailer ball platform with a 1" ball hole, allowing it to readily accept the trailer ball of your choice. It offers a maximum drop of 6-3/4" and a maximum rise of 5-1/4". It also has a built-in anti-rattle design to eliminate chucking noises and offers two length options of 11" and 12".All CURT adjustable ball mounts come with a 2" x 2" shank and are made with sturdy steel construction. For long-lasting rust, scratch and UV resistance, this one also comes with our durable black carbide powder coat finish to give you peace of mind for the road ahead.
| Master Case Qty - XA |
0 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Blank |
| Max Drop |
6-3/4 IN |
| Max Rise |
5-1/4 IN |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
5.000 |
| Retail Length - XA |
12.000 |
| Retail Width - XA |
11.000 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shank Length |
11 IN or 12 IN |
| Shipping Weight - XA |
15.100 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
No |
| Title |
Adjustable Channel Mount with 1" Ball Hole (2" Shank, 6,000 lbs., 6-3/4" Drop) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
6,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Description_ABR |
MOUNT |
| Description_SHO |
Channel Mount |
| Description_INV |
Adjustable Channel Mount |
| Description_ASC |

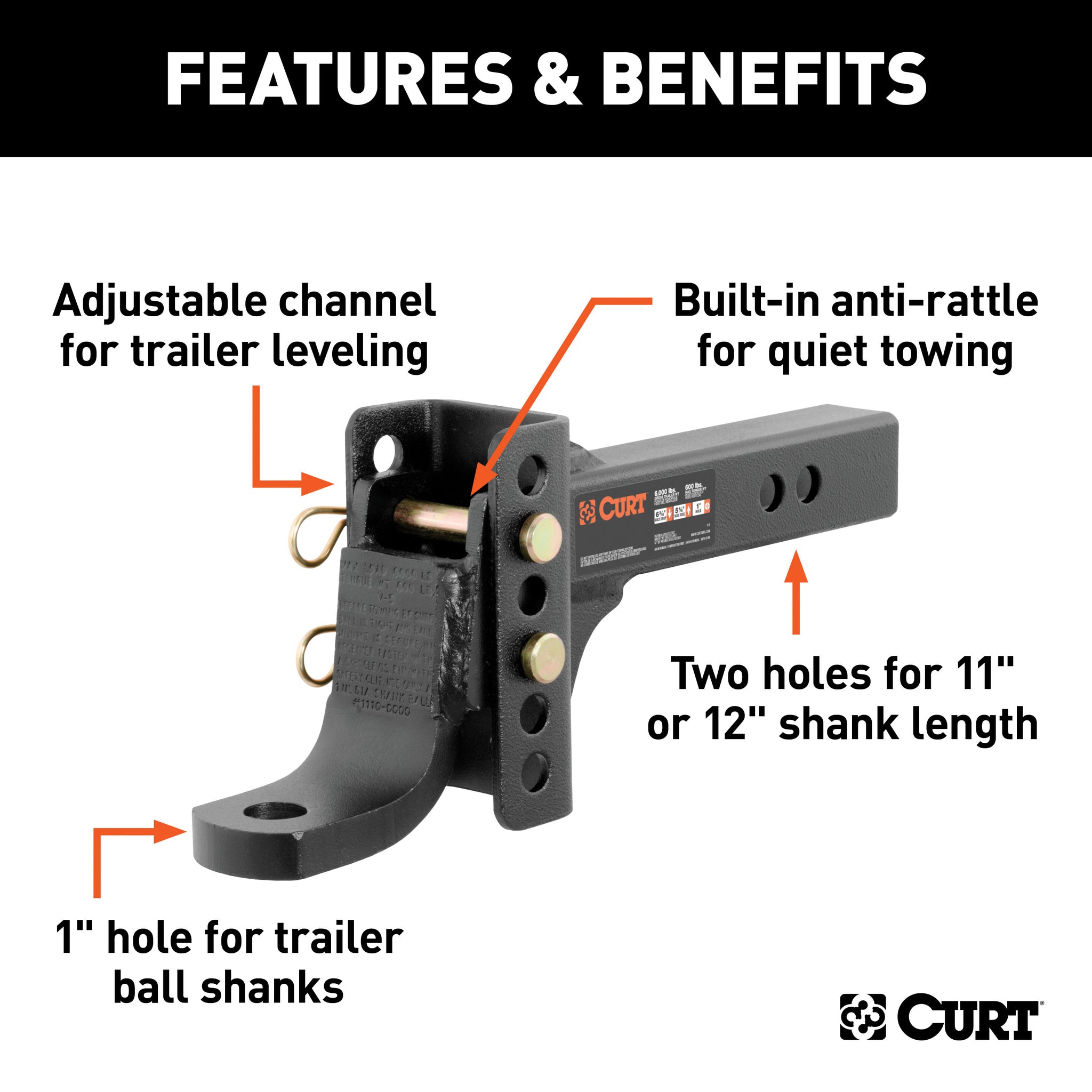

Mounts on trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |

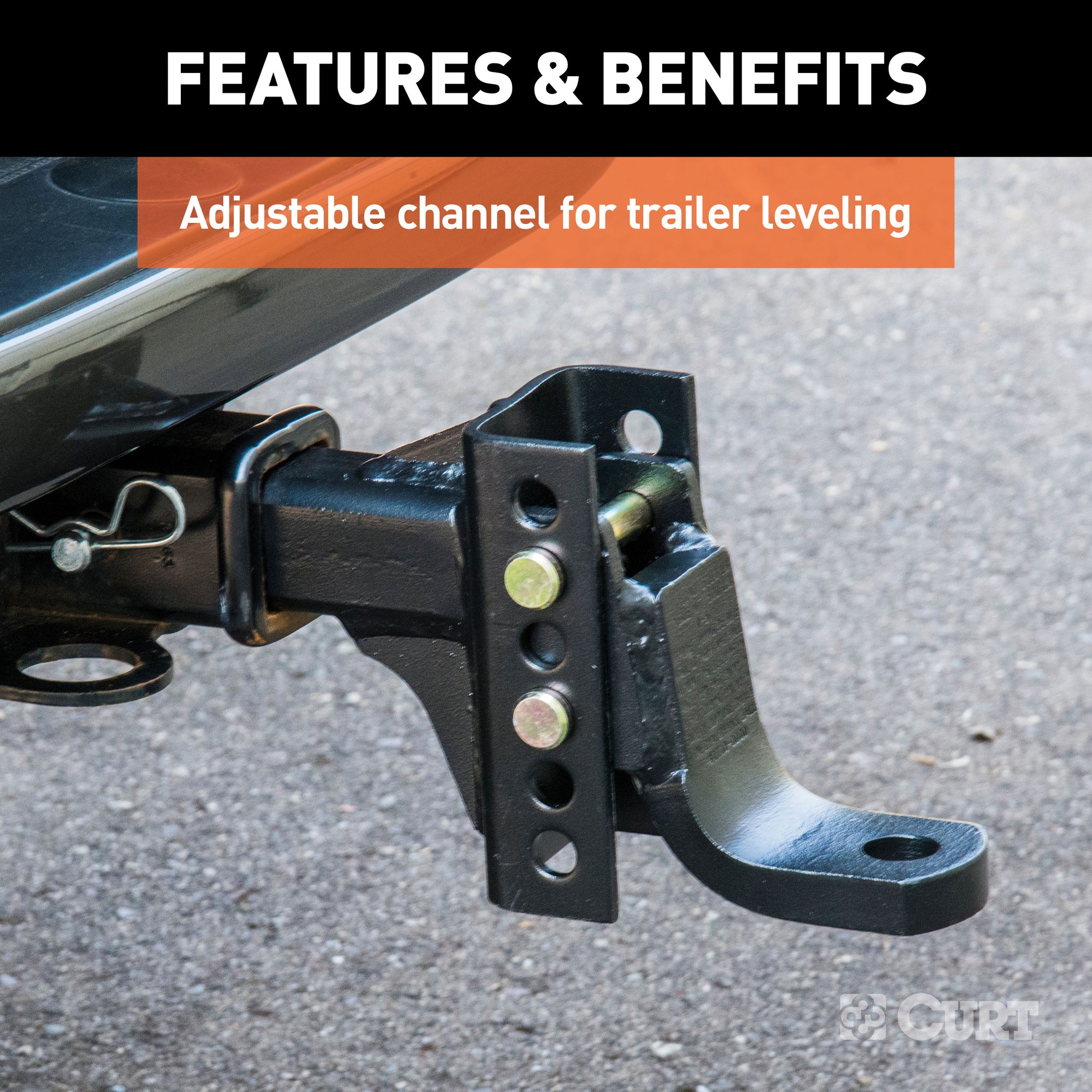

Adjustable channel mount allows for precise trailer leveling |
| Description_ASC |

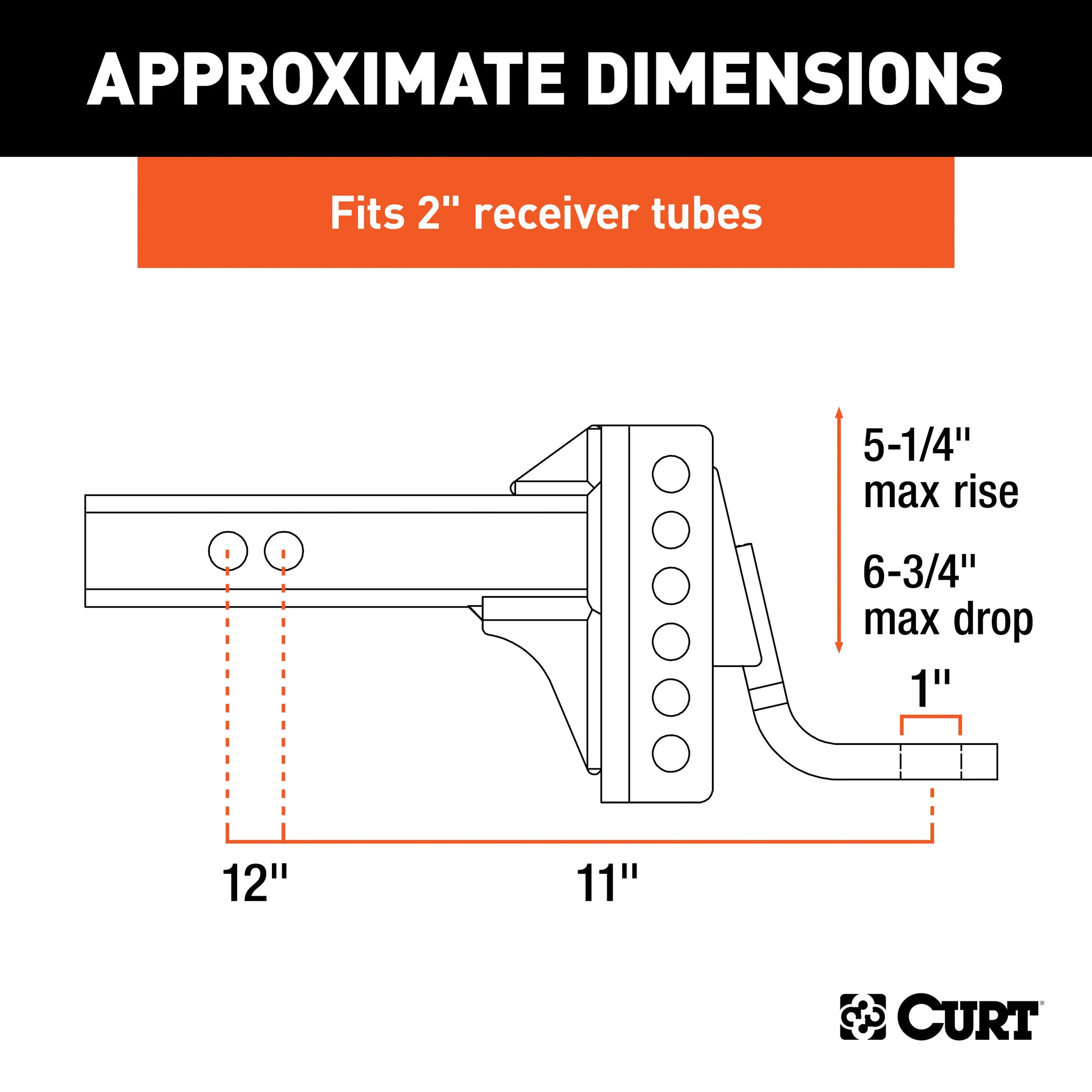

Shank can be flipped for a max rise of 5-1/4" and drop of 6-3/4" |
| Description_ASC |
Equipped with a 1" hole to accept a trailer ball shank |
| Description_ASC |
Two hitch pin holes provide shank lengths of 11" or 12" |
| Description_ASC |

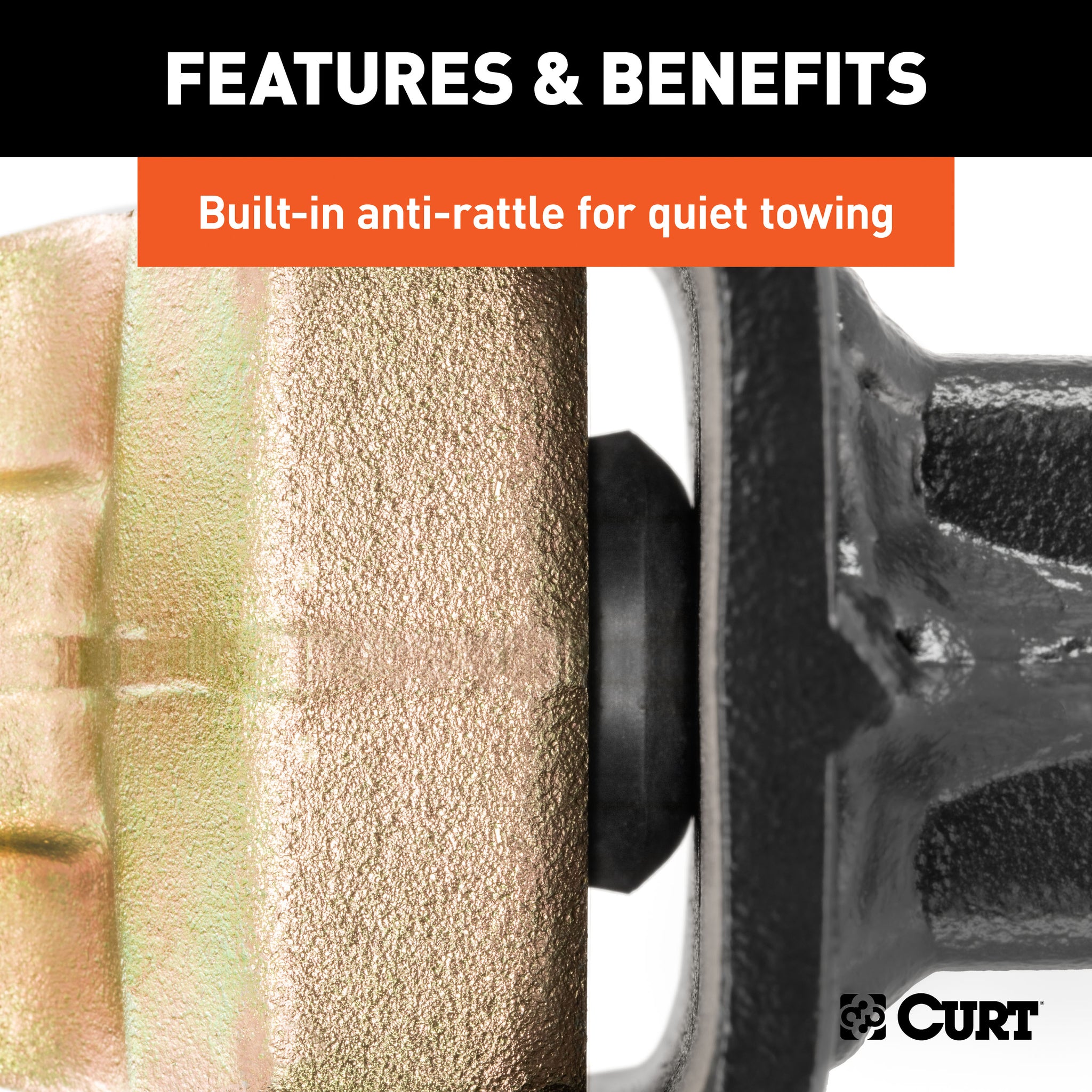

Built-in anti-rattle helps promote quiet towing |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Adjustable Channel Mount with 1" Ball Hole (2" Shank, 6,000 lbs., 6-3/4" Drop) |
| Description_EXT |
CURT 45901 Adjustable Trailer Hitch Ball Mount, 2-Inch Receiver, 6-3/4-Inch Drop, 1-Inch Hole, 6,000 lbs |
| Description_MKT |
If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. Its key feature is its adjustable design that takes the form of an adjustable channel-style assembly. It uses a series of holes to allow the ball mount platform to be vertically adjusted and allow for significant flexibility in drop and rise. With a variable ball height, it can easily accommodate different coupler heights and multiple trailers. This particular adjustable channel-style ball mount features a gross trailer weight capacity of 6,000 lbs. Unlike other adjustable ball mounts that have fixed trailer balls, this one comes with a trailer ball platform with a 1" ball hole, allowing it to readily accept the trailer ball of your choice. It offers a maximum drop of 6-3/4" and a maximum rise of 5-1/4". It also has a built-in anti-rattle design to eliminate chucking noises and offers two length options of 11" and 12".All CURT adjustable ball mounts come with a 2" x 2" shank and are made with sturdy steel construction. For long-lasting rust, scratch and UV resistance, this one also comes with our durable black carbide powder coat finish to give you peace of mind for the road ahead. |
| Description_FAB |
Mounts on trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Adjustable channel mount allows for precise trailer leveling |
| Description_FAB |
Shank can be flipped for a max rise of 5-1/4" and drop of 6-3/4" |
| Description_FAB |
Equipped with a 1" hole to accept a trailer ball shank |
| Description_FAB |
Two hitch pin holes provide shank lengths of 11" or 12" |
| Description_FAB |
Built-in anti-rattle helps promote quiet towing |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45901 Adjustable Trailer Hitch Ball Mount, 2-Inch Receiver, 6-3/4-Inch Drop, 1-Inch Hole, 6,000 lbs |
| Description_DEF |
Trailer Hitch Ball Mount |
