If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable deep drop channel-style ball mount has a shank size of 2" x 2" and features two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 9-1/8" rise or lowered to a maximum of 10-1/8" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. The adjustable channel-style shank can also be used with the channel-style combination pintle mount or ball mount platform attachment to give you the option of installing your own trailer ball size. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance.
| Ball 1 Diameter and Capacity |
2 IN - 10,000 LB |
| Ball 2 Diameter and Capacity |
2-5/6 IN - 14,000 LB |
| Ball Diameter |
2 IN or 2-5/16 IN |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| GTW/TW Ball 1 |
2 IN - 10,000 LB |
| GTW/TW Ball 2 |
2-5/16 IN - 14,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Qty - XA |
0 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Blank |
| Max Drop |
10.125 |
| Max Rise |
9-1/8 IN |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
42.450 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
5.000 |
| Retail Length - XA |
17.000 |
| Retail Width - XA |
13.000 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
42.450 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
No |
| Title |
Adjustable Channel Mount with Dual Ball (2" Shank, 14,000 lbs., 10-1/8" Drop) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
MOUNT |
| Description_SHO |
Channel Mount |
| Description_INV |
Adjustable Channel Mount |
| Description_ASC |
Mounts on trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |

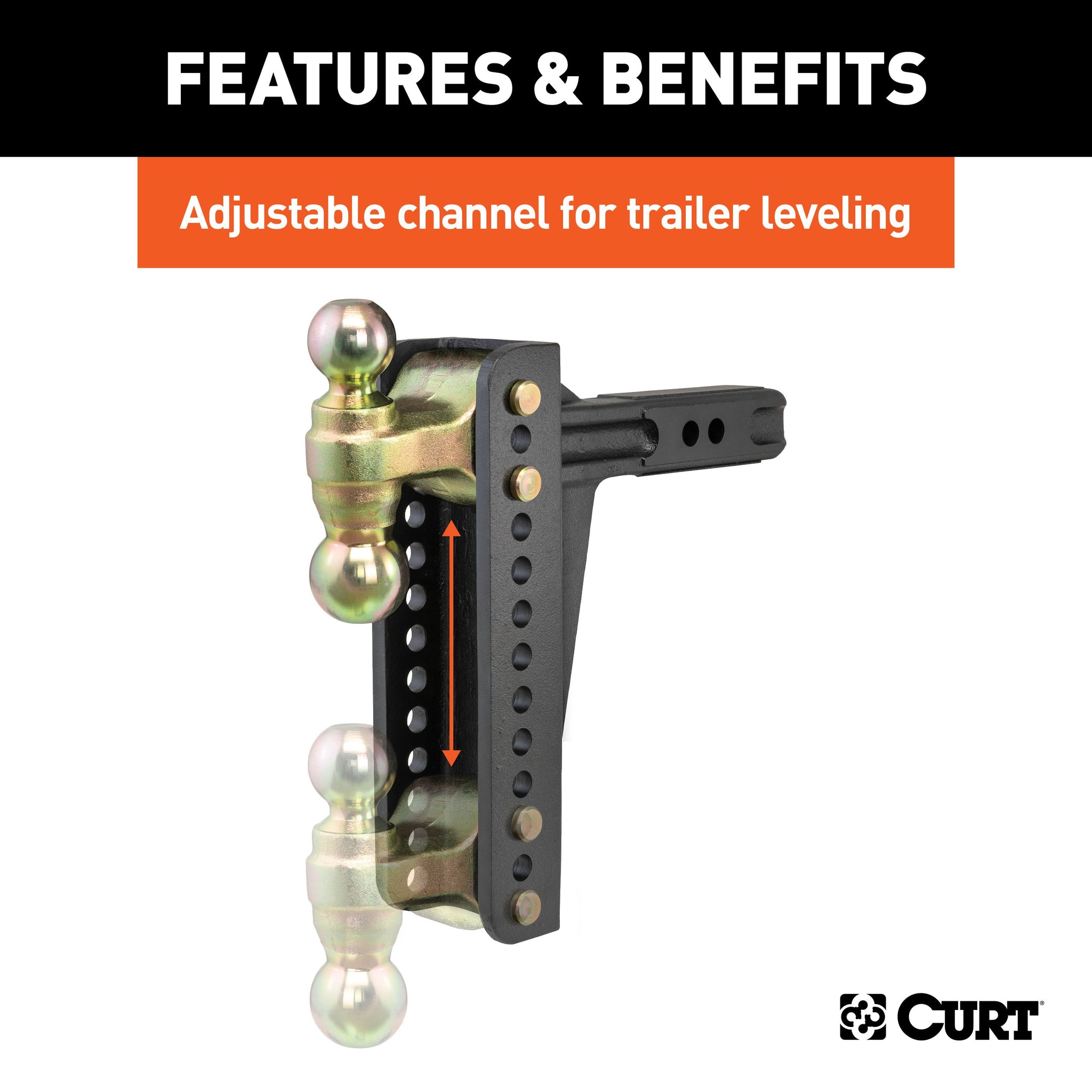

Adjustable channel mount allows for precise trailer leveling |
| Description_ASC |

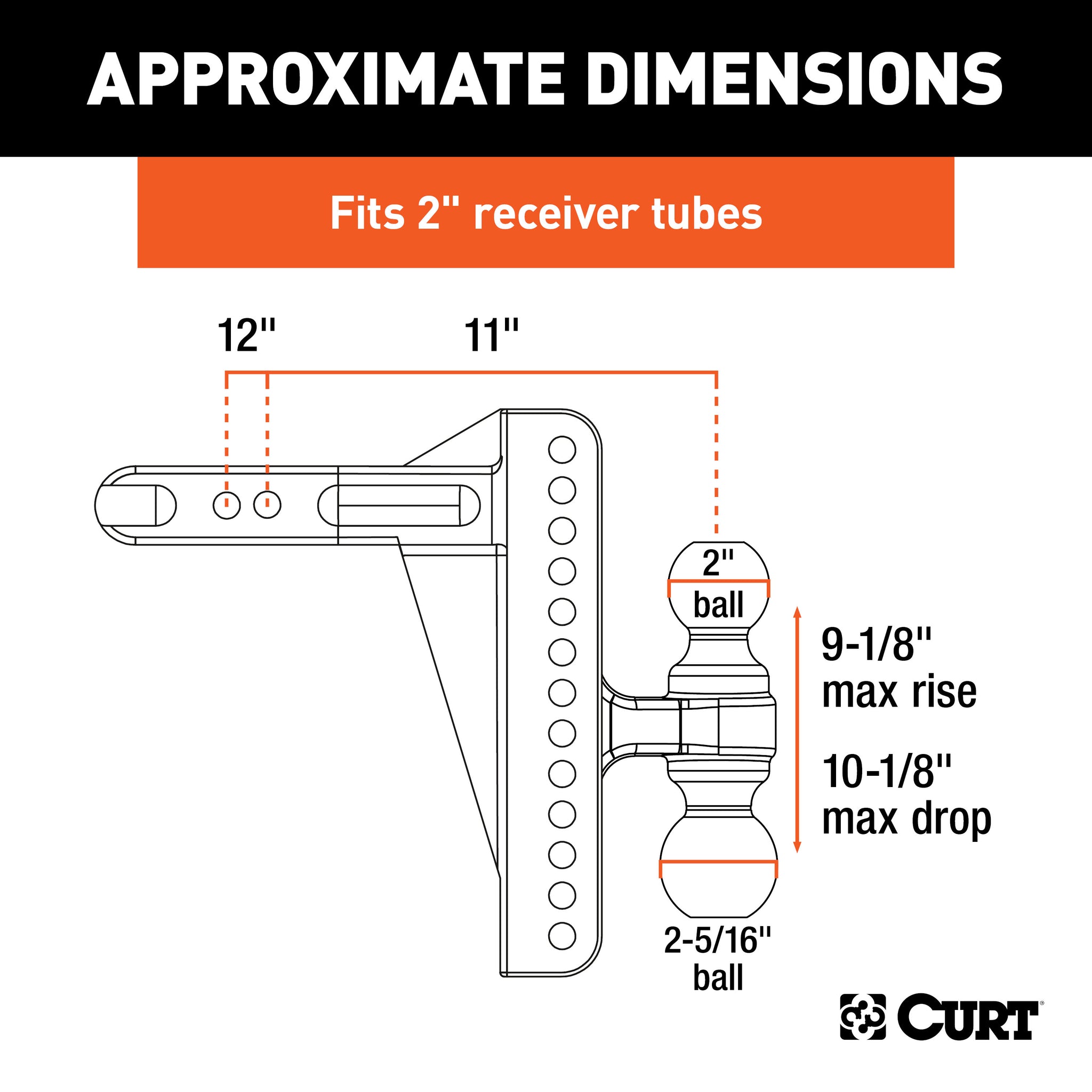

Shank can be flipped for a max rise of 9-1/8" and drop of 10-1/8" |
| Description_ASC |
2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 14,000 lbs. |
| Description_ASC |

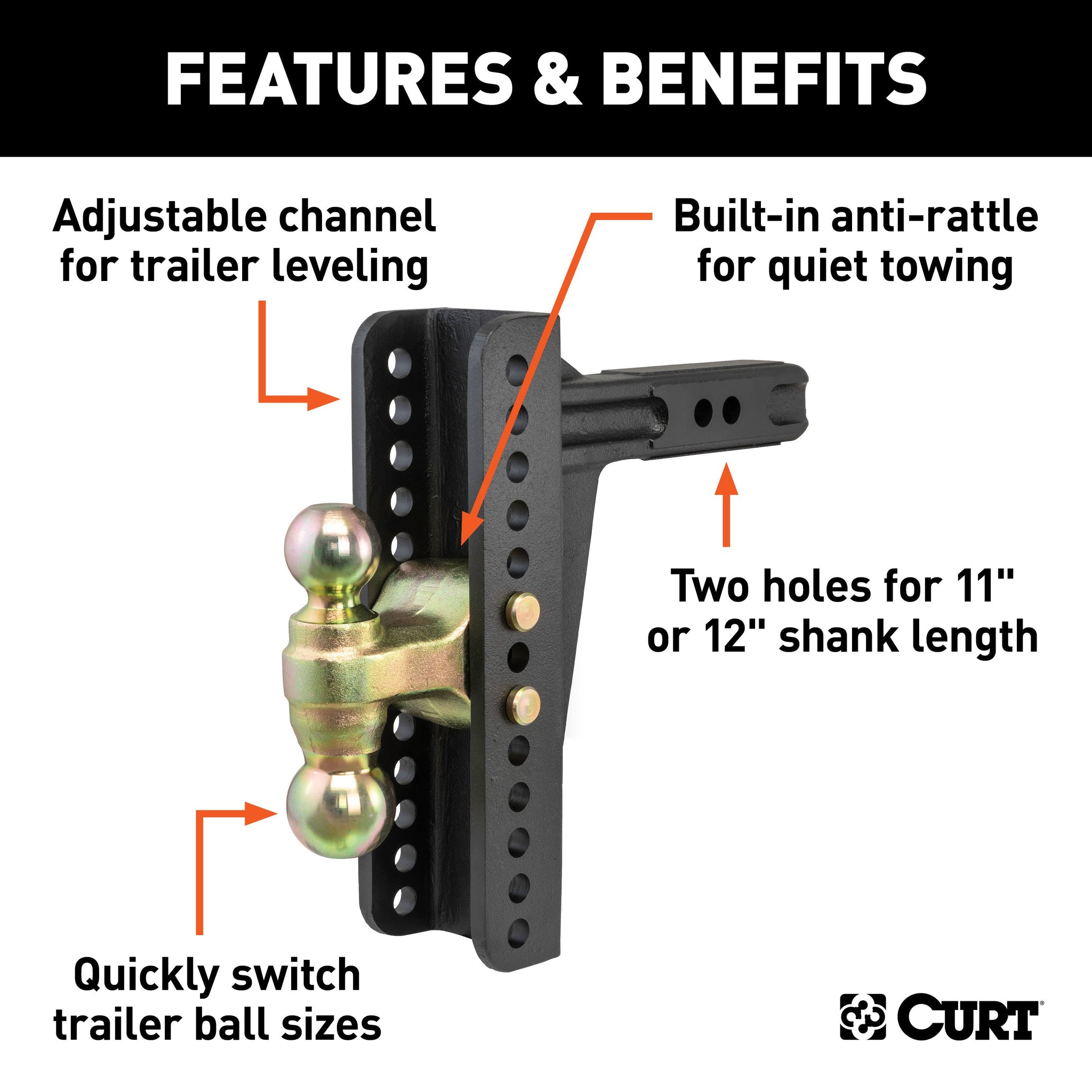

Two hitch pin holes provide shank lengths of 11" or 12" |
| Description_ASC |

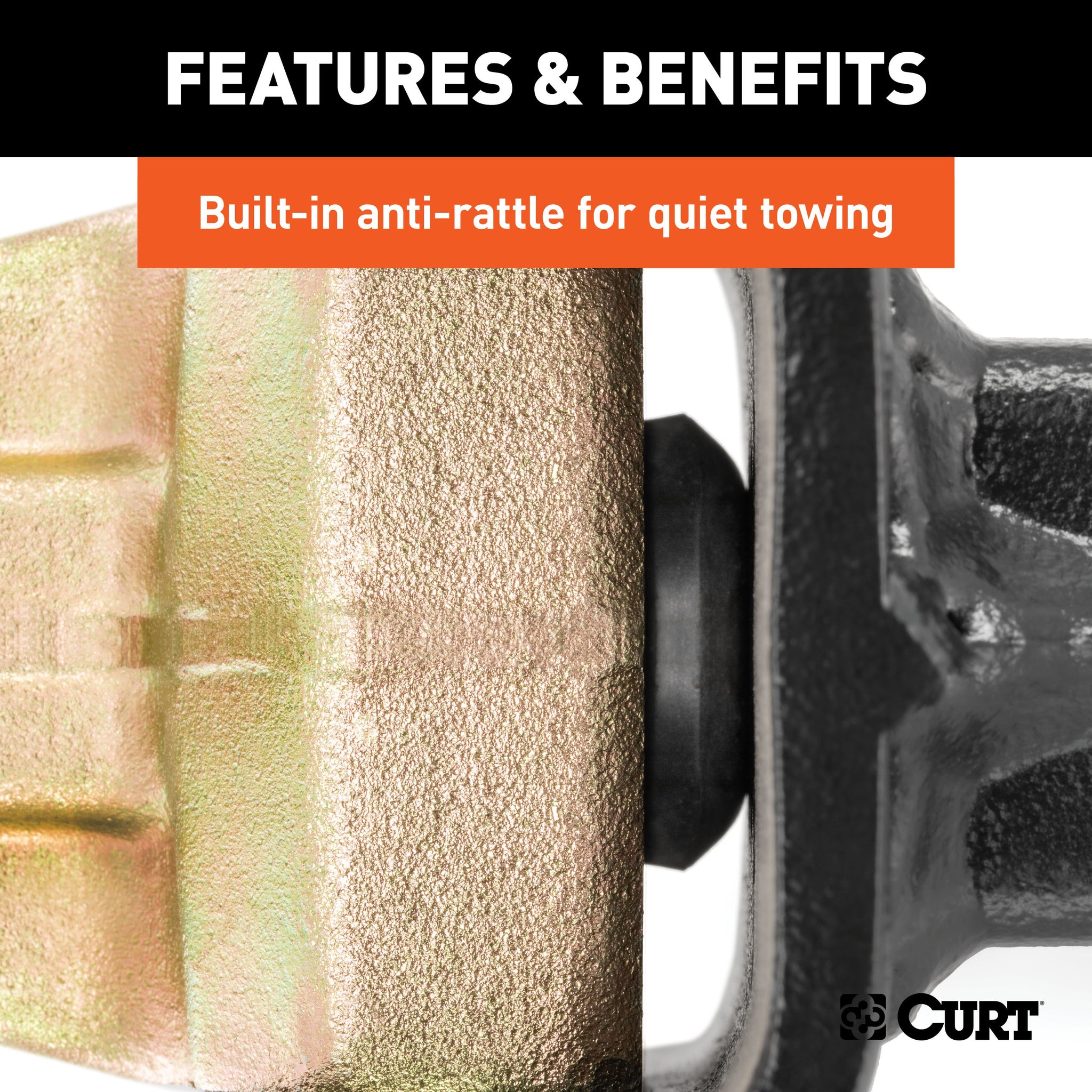

Built-in anti-rattle helps promote quiet towing |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Adjustable Channel Mount with Dual Ball (2" Shank, 14,000 lbs., 10-1/8" Drop) |
| Description_EXT |
CURT 45926 Adjustable Trailer Hitch Ball Mount, 2-Inch Receiver, 10-1/8-Inch Drop, 2 and 2-5/16-Inch Balls, 14,000 lbs |
| Description_MKT |
If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable deep drop channel-style ball mount has a shank size of 2" x 2" and features two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 9-1/8" rise or lowered to a maximum of 10-1/8" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. The adjustable channel-style shank can also be used with the channel-style combination pintle mount or ball mount platform attachment to give you the option of installing your own trailer ball size. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance. |
| Description_FAB |
Mounts on trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Adjustable channel mount allows for precise trailer leveling |
| Description_FAB |
Shank can be flipped for a max rise of 9-1/8" and drop of 10-1/8" |
| Description_FAB |
2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 14,000 lbs. |
| Description_FAB |
Two hitch pin holes provide shank lengths of 11" or 12" |
| Description_FAB |
Built-in anti-rattle helps promote quiet towing |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45926 Adjustable Trailer Hitch Ball Mount, 2-Inch Receiver, 10-1/8-Inch Drop, 2 and 2-5/16-Inch Balls, 14,000 lbs |
| Description_DEF |
Trailer Hitch Ball Mount |
