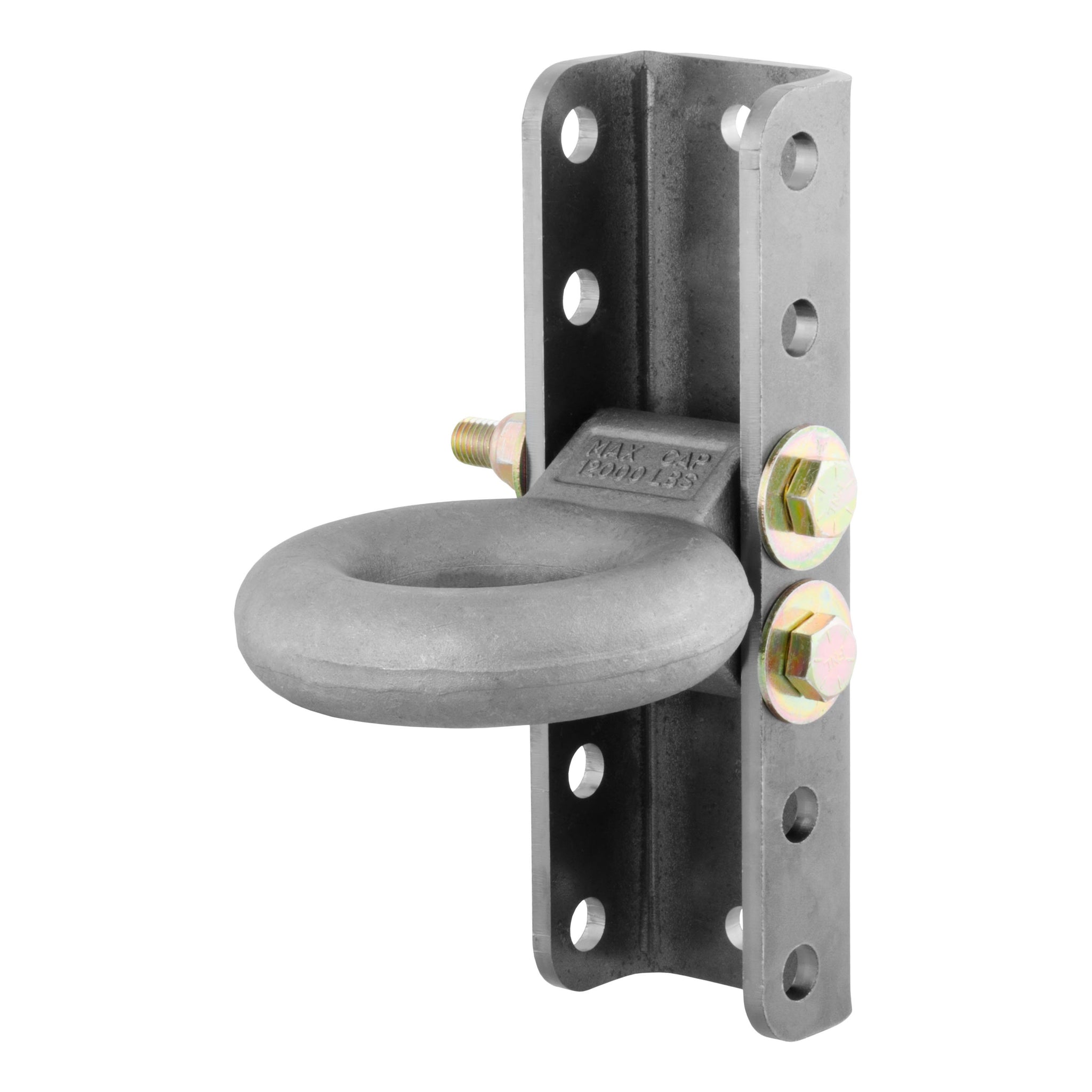

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features five height adjustment positions for easy height adjustment and trailer levelling. It features a forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3" inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations.
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
RAW |
| Gross Trailer Weight (GTW) |
12,000 LB |
| Item Class - XA |
OMF |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Qty - XA |
0 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
5.000 |
| Retail Length - XA |
11.000 |
| Retail Width - XA |
9.000 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
PINTLE MOUNT |
| Shipping Weight - XA |
20.000 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
No |
| Title |

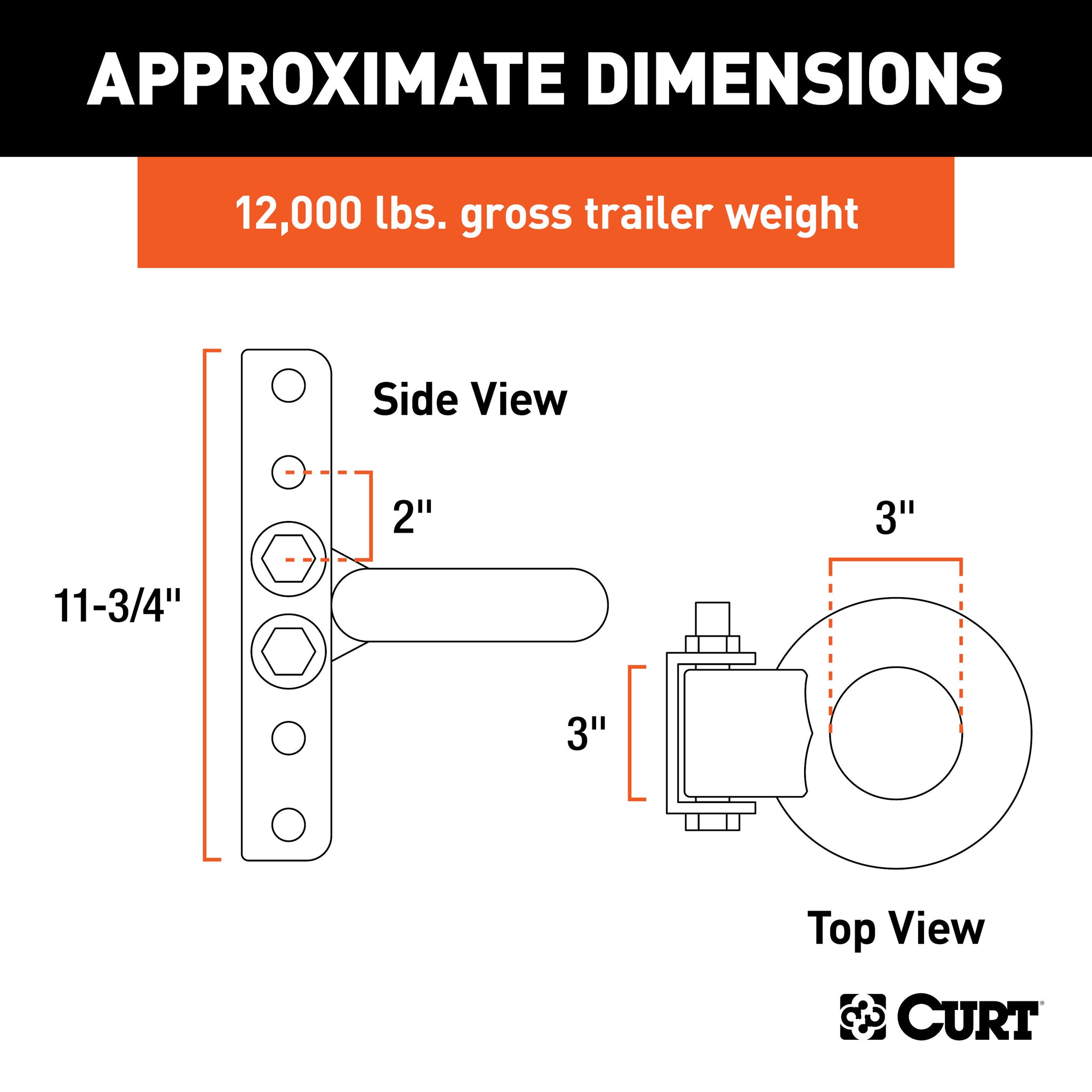

Adjustable Lunette Ring (12,000 lbs., 3" Eye, 11-3/4" Channel Height) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
PINTL |
| Description_SHO |
Lunette Eye |
| Description_INV |
Lunette Eye & Channel |
| Description_ASC |

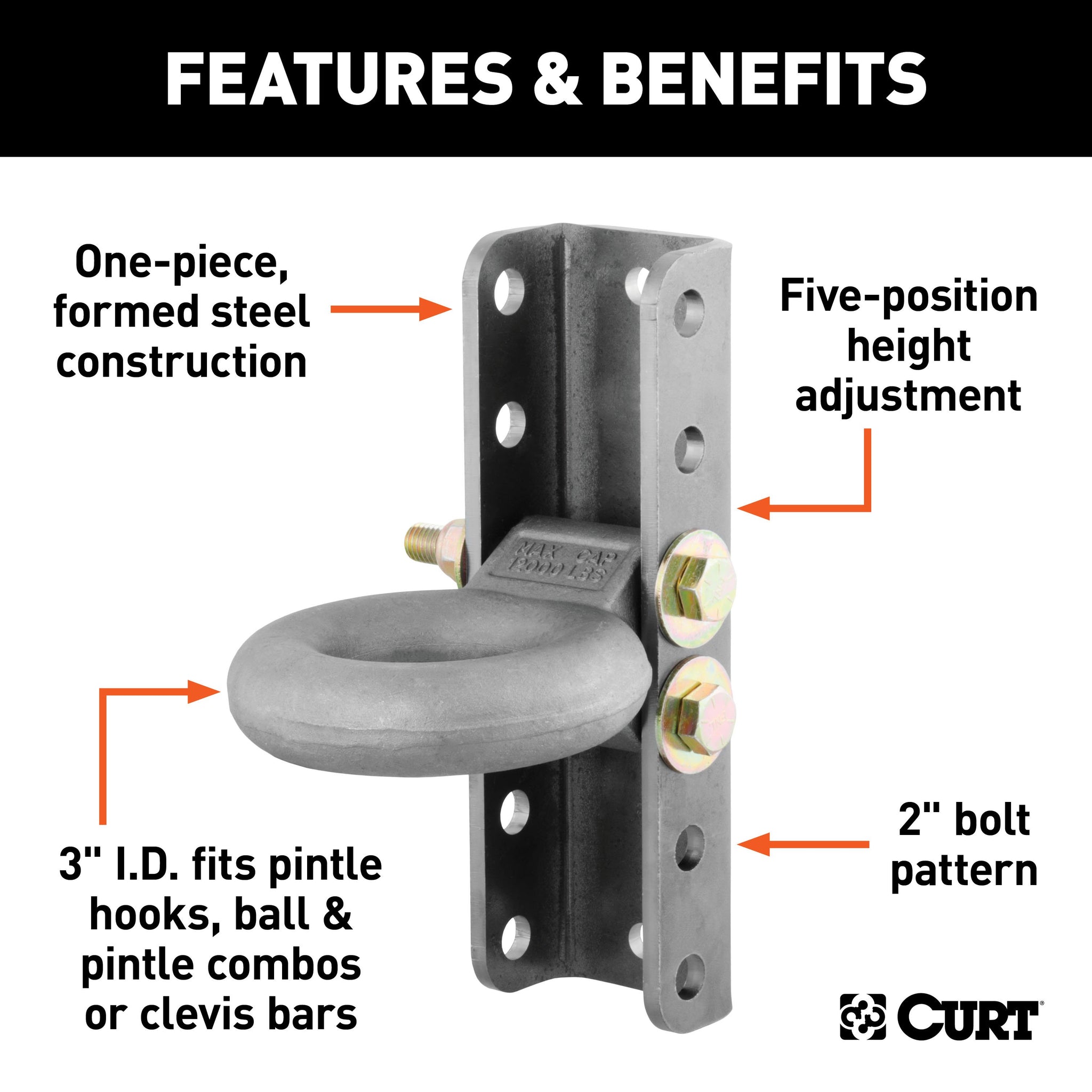

3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars |
| Description_ASC |
Five-position height adjustment allows for precise trailer leveling |
| Description_ASC |
2" bolt pattern spread for simple, secure attachment |
| Description_ASC |
Constructed from forged steel for superior strength |
| Description_ASC |
11-3/4" x 3" channel bracket features one-piece, formed steel construction |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Adjustable Lunette Ring (12,000 lbs., 3" Eye, 11-3/4" Channel Height) |
| Description_EXT |
CURT 48640 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID, 12,000 lbs, 11-3/4-Inch Channel Height |
| Description_MKT |
In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features five height adjustment positions for easy height adjustment and trailer levelling. It features a forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3" inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations. |
| Description_FAB |
3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars |
| Description_FAB |
Five-position height adjustment allows for precise trailer leveling |
| Description_FAB |
2" bolt pattern spread for simple, secure attachment |
| Description_FAB |
Constructed from forged steel for superior strength |
| Description_FAB |
11-3/4" x 3" channel bracket features one-piece, formed steel construction |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 48640 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID, 12,000 lbs, 11-3/4-Inch Channel Height |
| Description_DEF |
Trailer Hitch Lunette Ring |
