Your truck might have the muscle and your hitch might have more capacity than you know what to do with, but what about a ball mount that can keep up? The CURT 2-1/2" adjustable pintle mount is the ideal heavy-duty counterpart to your full-size pickup and class 5 trailer hitch. Rather than using a reducer sleeve or hitch adapter to increase the shank size of your 2" mount, this pintle mount features a solid steel 2-1/2" x 2-1/2" shank. It can accept any mounted CURT pintle hook or ball and pintle combination, and with its 7-1/4" height, it offers up to three height adjustment positions (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Not only does the 2-1/2" x 2-1/2" pintle mount accommodate a variety of trailers with different coupler heights, but it also allows for use with the heaviest of loads. Its solid shank gives it the strength to accept a gross trailer weight up to 20,000 lbs. It also features a black carbide powder coat finish to ensure maximum resistance to chipping, scratches and rust. Never let your towing equipment hold you back from the job that needs getting done. Whether you are towing a livestock trailer, flatbed or equipment hauler, Bring It with a CURT 2-1/2" adjustable pintle mount.
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
20,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
5.900 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
12.200 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
21.590 |
| Master Case Width Inches - XA |
8.070 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
64 |
| Pallet Cases Per Layer - XA |
16 |
| Pallet Layer of Cases - XA |
4 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
47.000 |
| Pallet Total Weight Per - XA |
1411.760 |
| Parcel Allowed - XA |
Yes |
| Plate Height |
7-1/4 IN |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2-1/2 IN |
| Retail Height - XA |
6.000 |
| Retail Length - XA |
12.000 |
| Retail Width - XA |
8.500 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
PINTLE MOUNT |
| Shank Length |
10-3/4 IN |
| Shipping Weight - XA |
20.590 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Adjustable Pintle Mount (2-1/2" Shank, 20,000 lbs., 7-1/4" High, 10-3/4" Long) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
PINTL |
| Description_SHO |
Pintle Mount |
| Description_INV |
Adjustable Pintle Mount |
| Description_ASC |

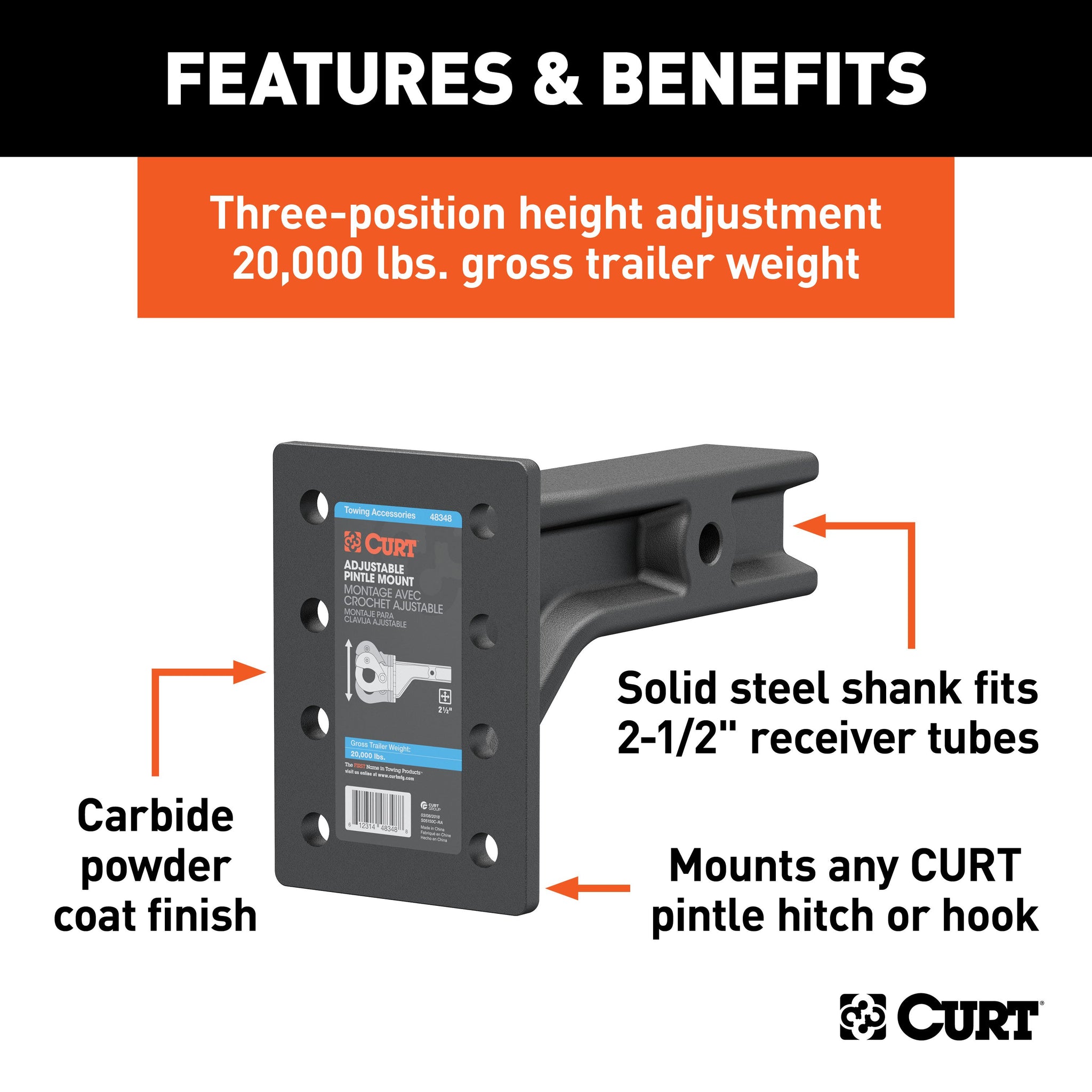

Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening |
| Description_ASC |

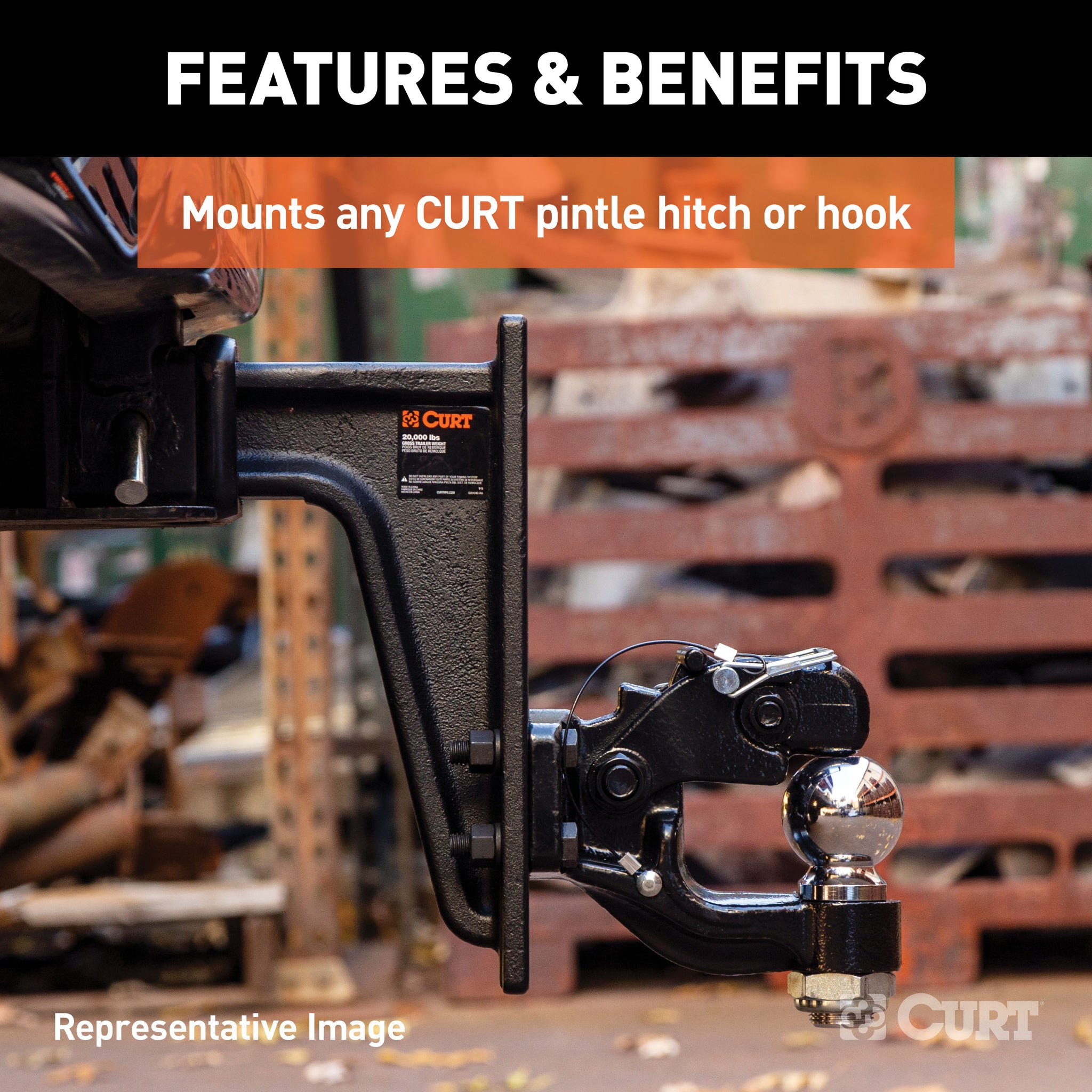

Mounts any CURT adjustable pintle hook or ball & pintle combination |
| Description_ASC |

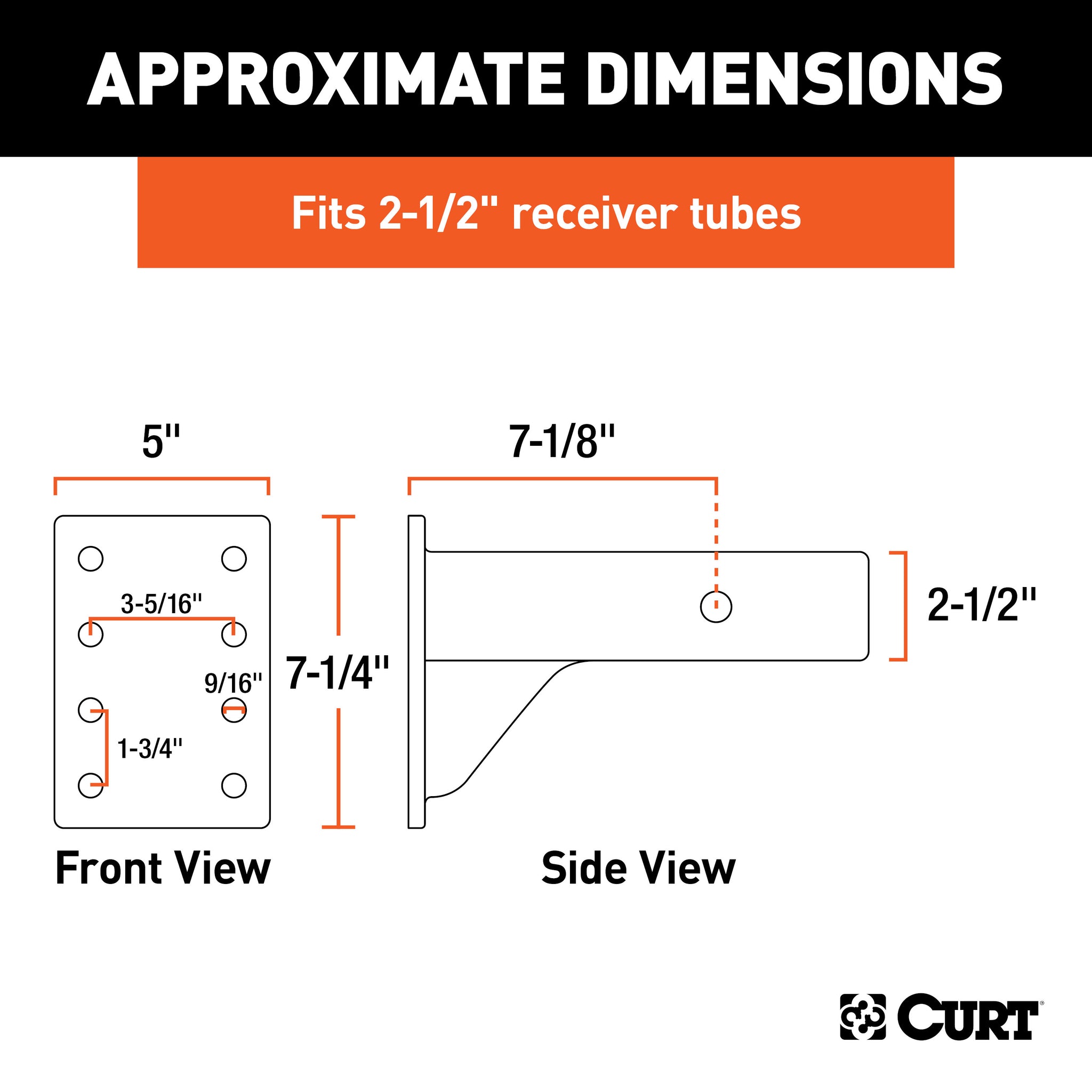

Face plate holes spaced apart 1-3/4" high x 3-5/16" wide |
| Description_ASC |
Three-position height adjustment allows for precise trailer leveling |
| Description_ASC |
Shank constructed from solid steel for optimum strength |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Adjustable Pintle Mount (2-1/2" Shank, 20,000 lbs., 7-1/4" High, 10-3/4" Long) |
| Description_EXT |
CURT 48348 Adjustable Pintle Mount for 2-1/2-Inch Hitch Receiver, 20,000 lbs, 7-1/4-Inch Height, 10-3/4-Inch Length |
| Description_MKT |
Your truck might have the muscle and your hitch might have more capacity than you know what to do with, but what about a ball mount that can keep up? The CURT 2-1/2" adjustable pintle mount is the ideal heavy-duty counterpart to your full-size pickup and class 5 trailer hitch. Rather than using a reducer sleeve or hitch adapter to increase the shank size of your 2" mount, this pintle mount features a solid steel 2-1/2" x 2-1/2" shank. It can accept any mounted CURT pintle hook or ball and pintle combination, and with its 7-1/4" height, it offers up to three height adjustment positions (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Not only does the 2-1/2" x 2-1/2" pintle mount accommodate a variety of trailers with different coupler heights, but it also allows for use with the heaviest of loads. Its solid shank gives it the strength to accept a gross trailer weight up to 20,000 lbs. It also features a black carbide powder coat finish to ensure maximum resistance to chipping, scratches and rust. Never let your towing equipment hold you back from the job that needs getting done. Whether you are towing a livestock trailer, flatbed or equipment hauler, Bring It with a CURT 2-1/2" adjustable pintle mount. |
| Description_FAB |
Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening |
| Description_FAB |
Mounts any CURT adjustable pintle hook or ball & pintle combination |
| Description_FAB |
Face plate holes spaced apart 1-3/4" high x 3-5/16" wide |
| Description_FAB |
Three-position height adjustment allows for precise trailer leveling |
| Description_FAB |
Shank constructed from solid steel for optimum strength |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 48348 Adjustable Pintle Mount for 2-1/2-Inch Hitch Receiver, 20,000 lbs, 7-1/4-Inch Height, 10-3/4-Inch Length |
| Description_DEF |
Trailer Hitch Pintle Hook Mount |
