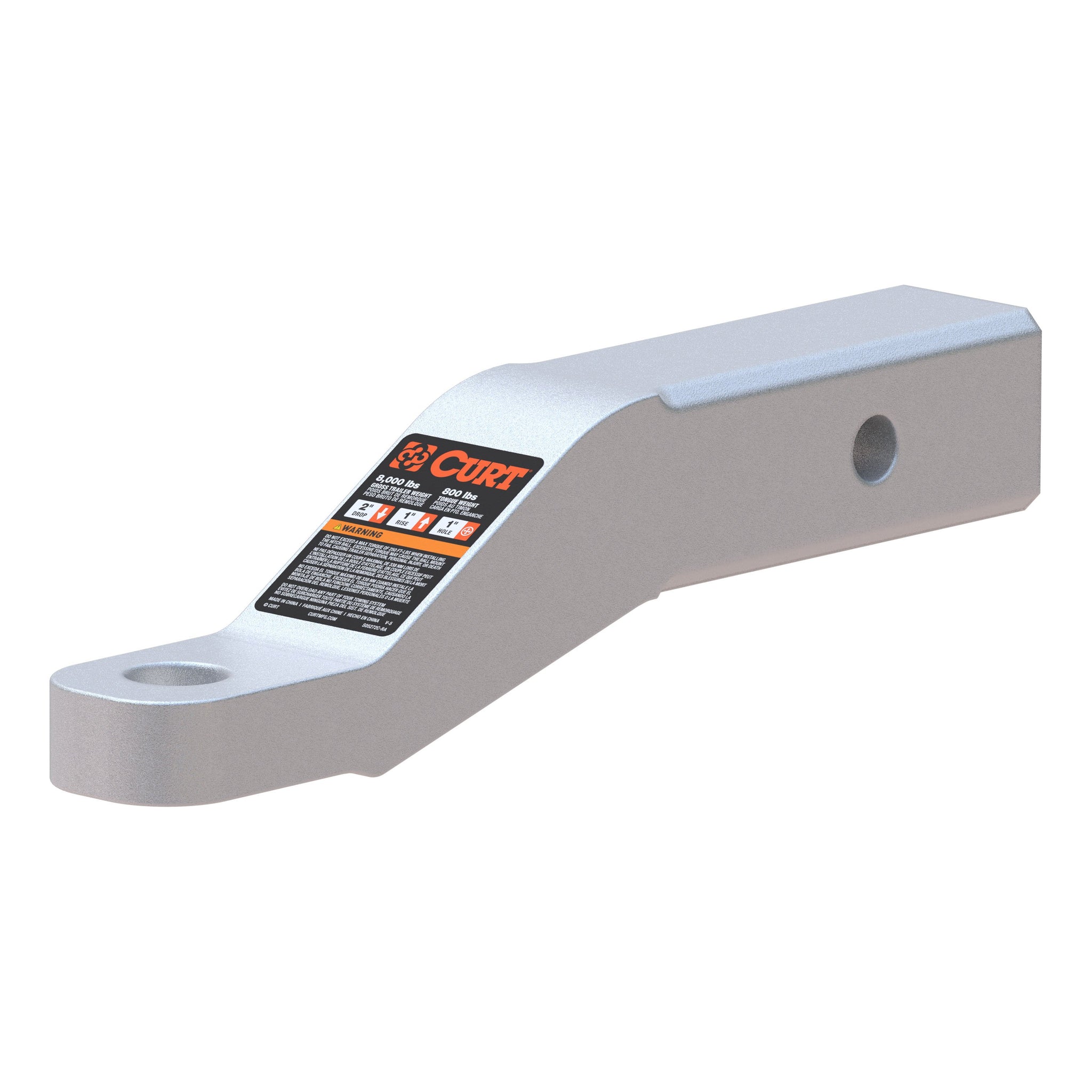

This CURT class 3 aluminum trailer hitch ball mount features a 2-inch x 2-inch shank and an 8K capacity for towing larger trailers, including utility trailers, boat trailers, campers and more. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This particular aluminum ball mount can be used in the drop position to provide a drop of 2 inches, a gross trailer weight capacity of 8,000 pounds and a tongue weight capacity of 800 pounds. It can also be flipped to provide a rise of 1 inch. It features a length of 8-1/2 inches hole-to-hole, and it has a 1-inch hole to accept a tow ball. CURT aluminum hitch ball mounts are constructed from solid aluminum. They are strong but lightweight compared to steel alternatives. Aluminum is also naturally resistant to rust and corrosion, promoting long-lasting dependability for your towing system. NOTE: Trailer ball torque should not exceed 250 lb-ft. (sold separately).
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
70.0 |
| Receiver Tube Size |
2 |
| Retail Height - XA |
0.000 |
| Retail Length - XA |
0.000 |
| Retail Width - XA |
0.000 |
| Rise |
1 IN |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
7.700 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Title |
Aluminum Ball Mount (2" Shank, 8,000 lbs, 2" Drop, 8-1/2" Long) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Container Cases Qty - XA |
0 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
27 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Drop |
2 IN |
| Finish - XA |
BRUSHED ALUMINUM |
| Gross Trailer Weight (GTW) |
8,000 LBS |
| Item Class - XA |
OBS |
| Item Height - XA |
2.600 |
| Item Length - XA |
14.200 |
| Item Width - XA |
6.100 |
| Master Case Height Inches - XA |
2.600 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
20612314453607 |
| Master Case ITF14 - XA |
20612314453607 |
| Master Case Length Inches - XA |
14.200 |
| Master Case Qty - XA |
2 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
7.700 |
| Master Case Width Inches - XA |
6.100 |
| Material - XA |
Aluminum |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
180 |
| Pallet Case Per Layer - XA |
18 |
| Pallet Cases Per - XA |
180 |
| Pallet Cases Per Layer - XA |
18 |
| Pallet Layer of Cases - XA |
10 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
39.010 |
| Pallet Total Weight Per - XA |
1430.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Description_ABR |
MOUNT |
| Description_SHO |
Aluminum Ball Mount |
| Description_INV |
Aluminum Ball Mount, 2" Drop |
| Description_ASC |

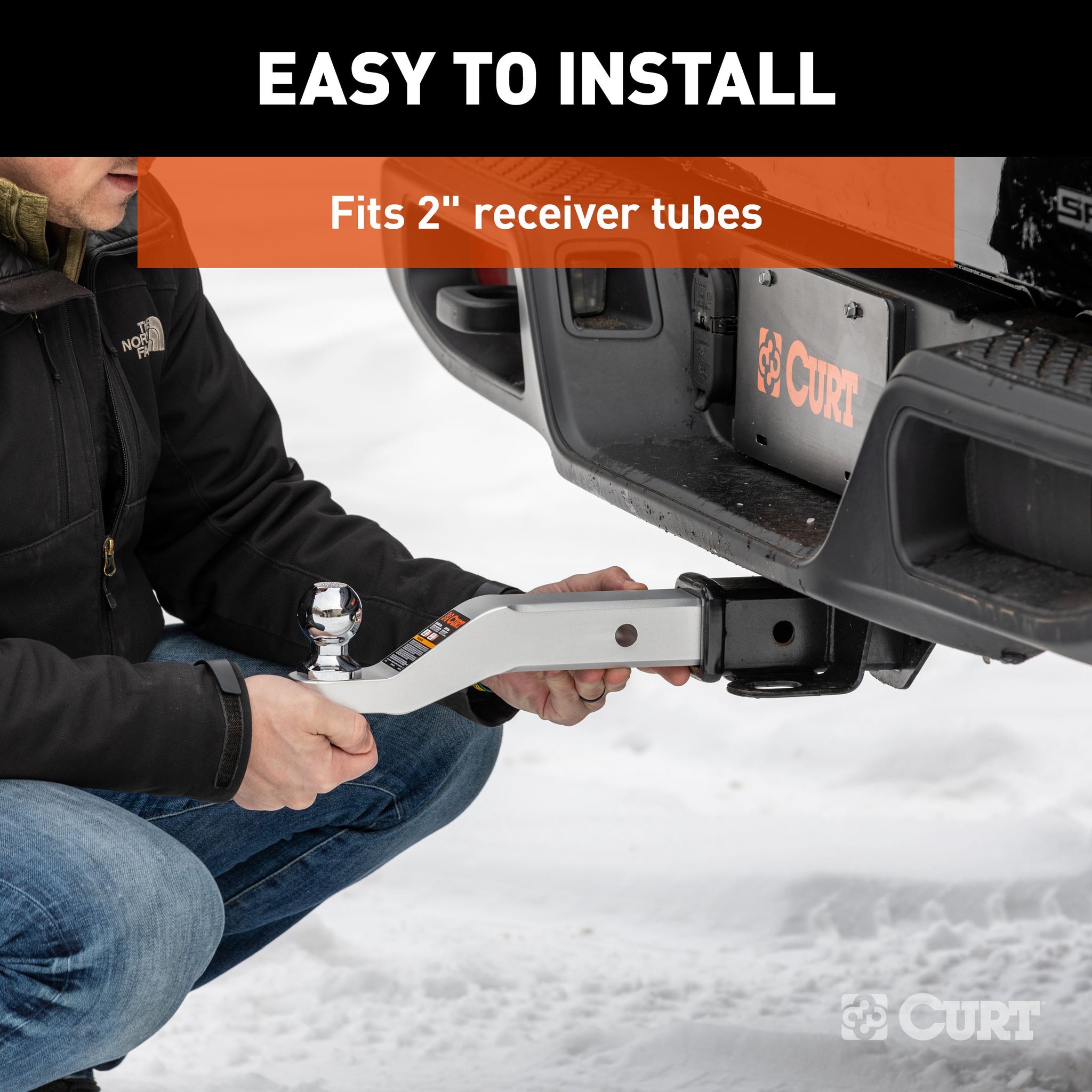

Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |

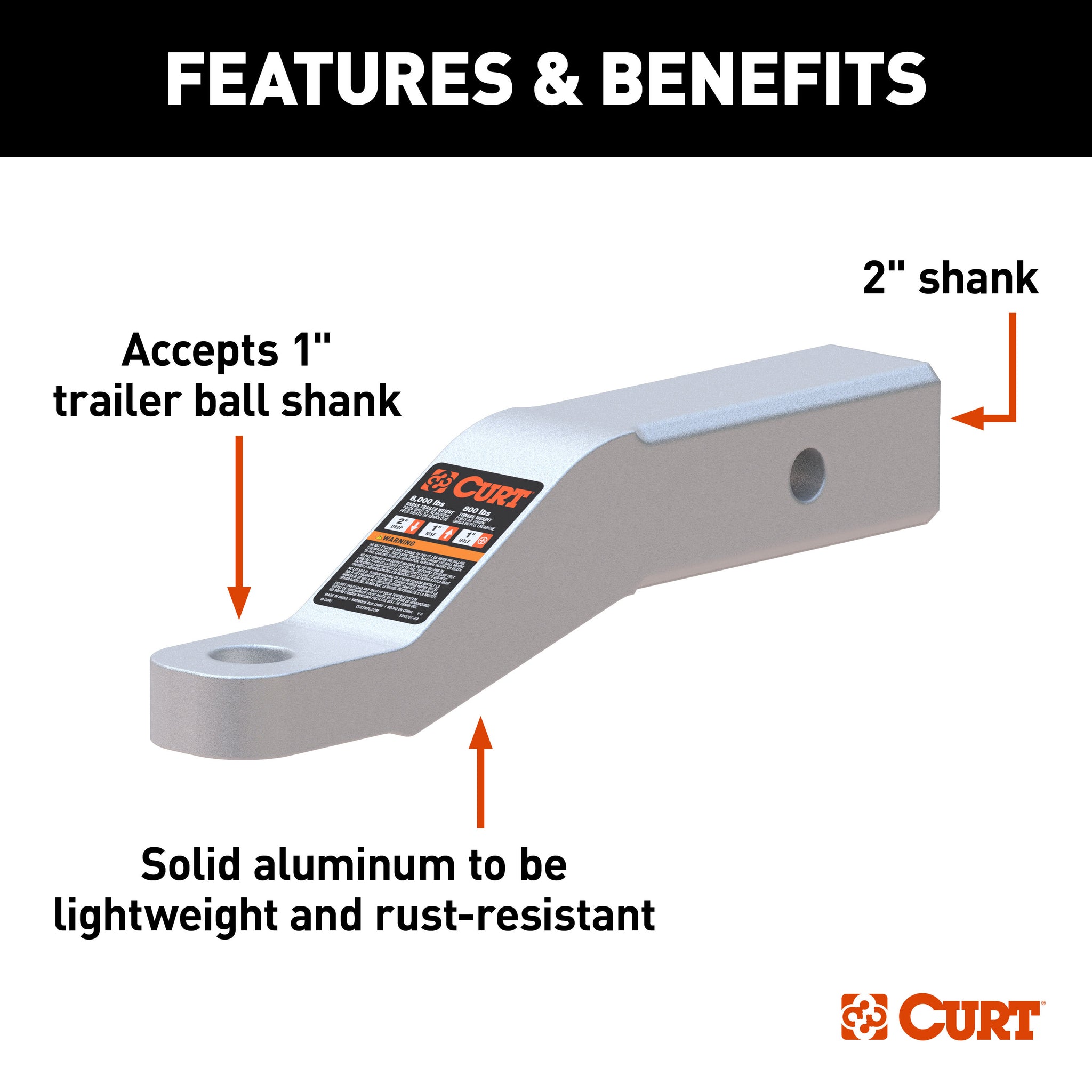

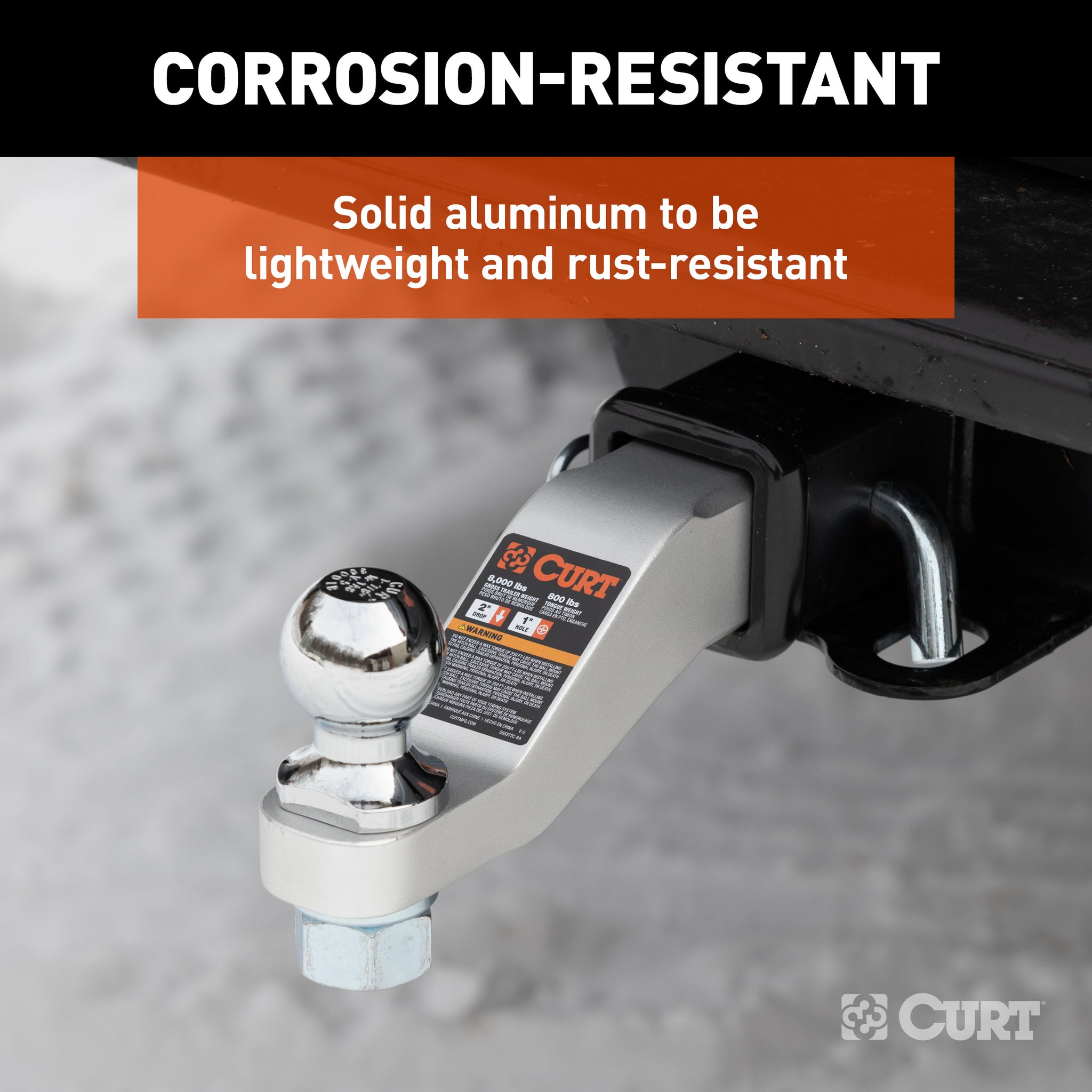

Constructed from solid aluminum to be lightweight and naturally rust-resistant |
| Description_ASC |

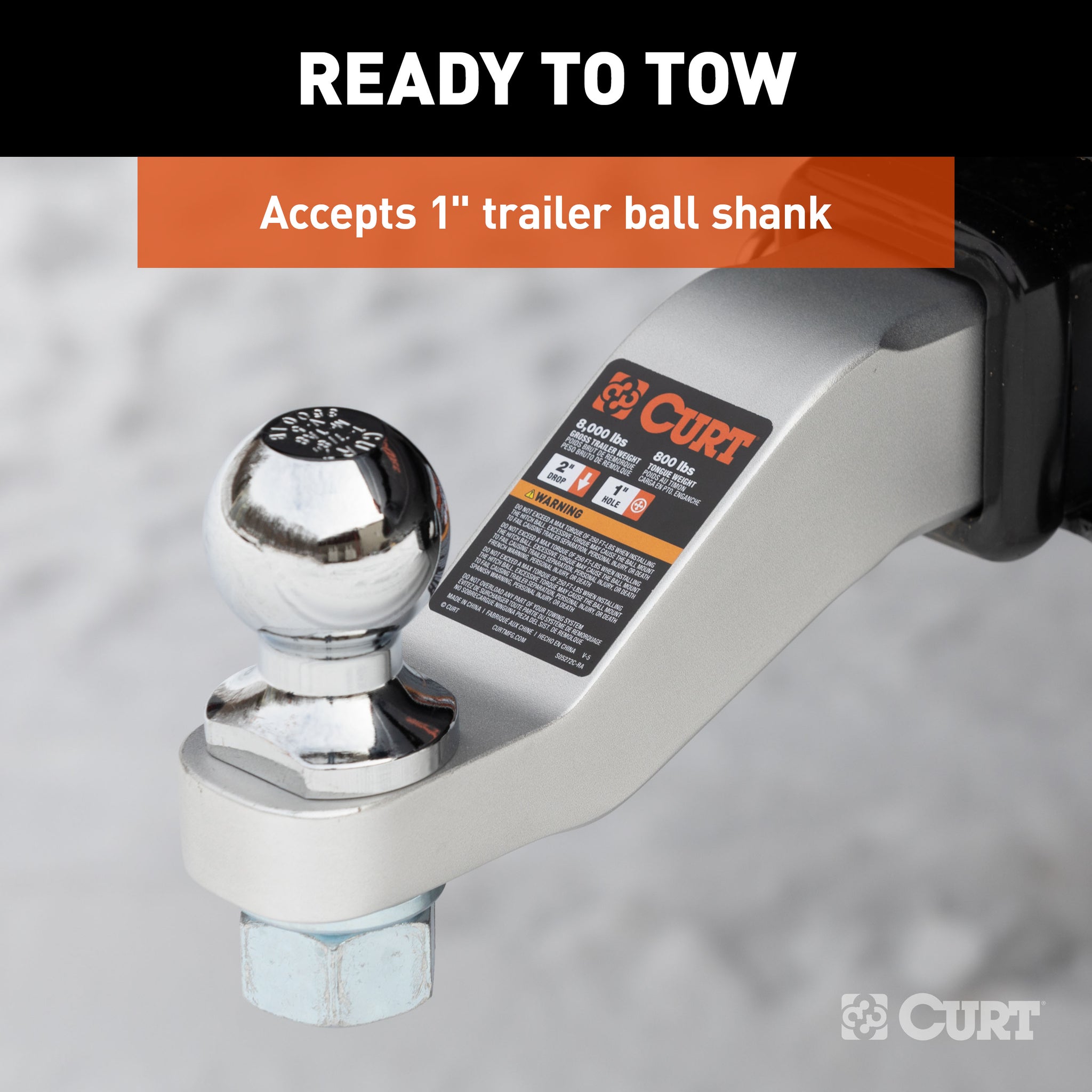

Equipped with a 1" hole to accept a trailer ball shank |
| Description_ASC |

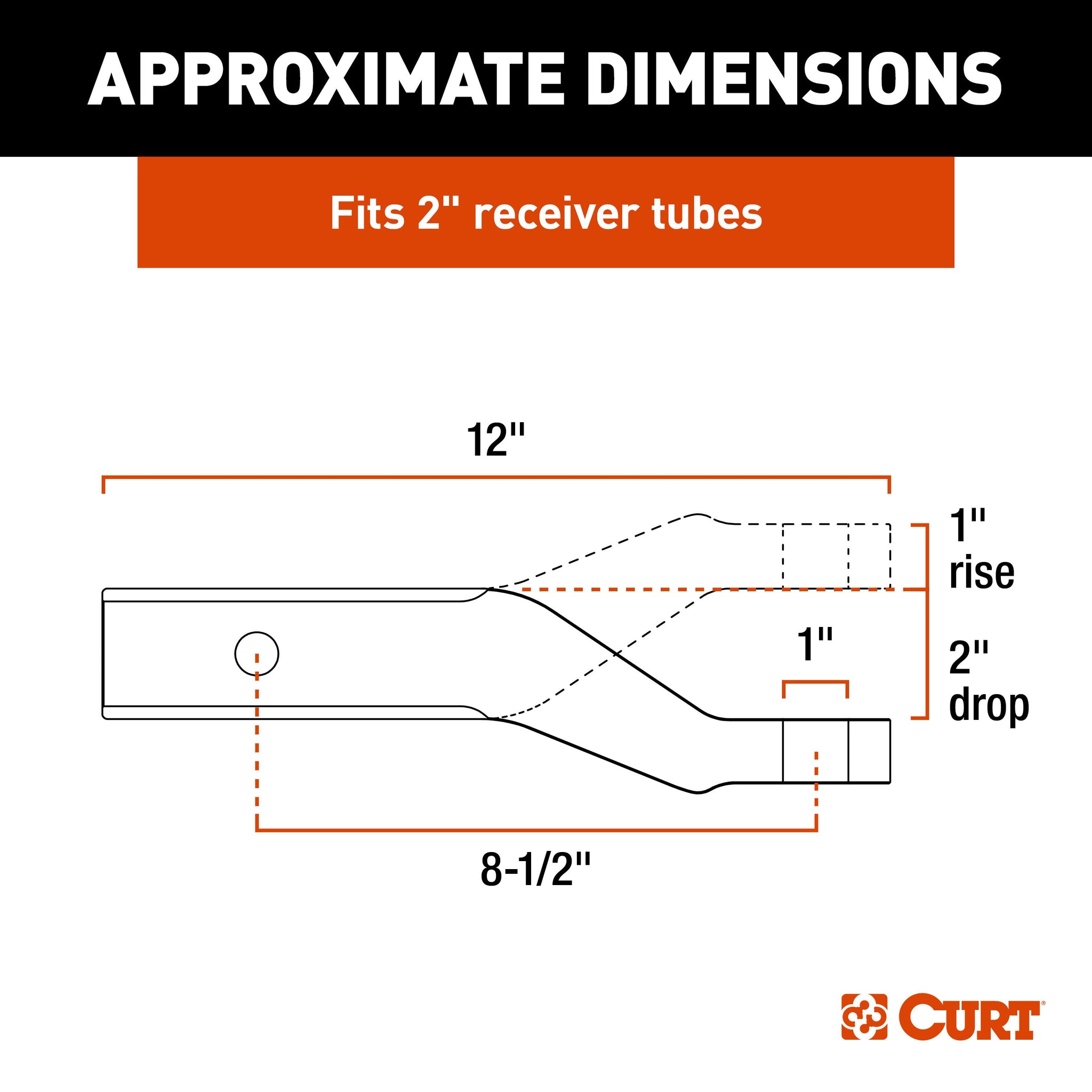

1" rise or 2" drop for precise trailer leveling |
| Description_ASC |
Tested for safety in accordance with SAE J684 |
| Description_ASC |
Limited lifetime warranty |
| Description_DES |
Aluminum Ball Mount (2" Shank, 8,000 lbs, 2" Drop, 8-1/2" Long) |
| Description_EXT |
CURT 45360 Aluminum Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 8,000 lbs, 1-Inch Hole, 2-In Drop, 1-In Rise |
| Description_MKT |
This CURT class 3 aluminum trailer hitch ball mount features a 2-inch x 2-inch shank and an 8K capacity for towing larger trailers, including utility trailers, boat trailers, campers and more. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This particular aluminum ball mount can be used in the drop position to provide a drop of 2 inches, a gross trailer weight capacity of 8,000 pounds and a tongue weight capacity of 800 pounds. It can also be flipped to provide a rise of 1 inch. It features a length of 8-1/2 inches hole-to-hole, and it has a 1-inch hole to accept a tow ball. CURT aluminum hitch ball mounts are constructed from solid aluminum. They are strong but lightweight compared to steel alternatives. Aluminum is also naturally resistant to rust and corrosion, promoting long-lasting dependability for your towing system. NOTE: Trailer ball torque should not exceed 250 lb-ft. (sold separately). |
| Description_FAB |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Constructed from solid aluminum to be lightweight and naturally rust-resistant |
| Description_FAB |
Equipped with a 1" hole to accept a trailer ball shank |
| Description_FAB |
1" rise or 2" drop for precise trailer leveling |
| Description_FAB |
Tested for safety in accordance with SAE J684 |
| Description_FAB |
Limited lifetime warranty |
| Description_TLE |
CURT 45360 Aluminum Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 8,000 lbs, 1-Inch Hole, 2-In Drop, 1-In Rise |
| Description_DEF |
Trailer Hitch Ball Mount |
