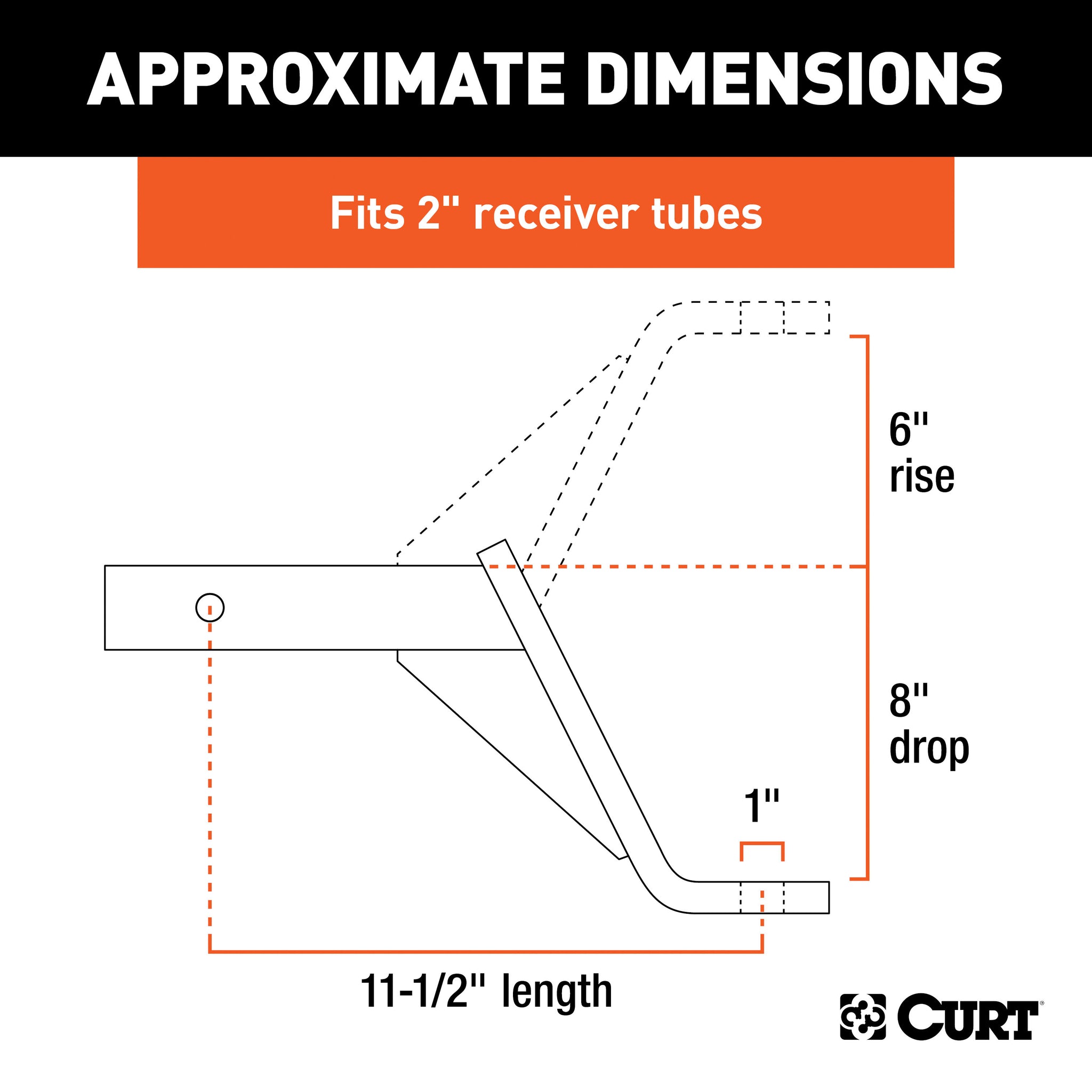

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 8", a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 6", a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 11-1/2". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.
| Shank Diameter |
2 IN |
| Shank Length |
11-1/2 IN |
| Shipping Weight - XA |
10.750 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Tongue Weight (TW) |
500 LBS |
| Truckload Cases Qty - XA |
1600 |
| Truckload Dom Pickup Location - XA |
Eau Claire, Wi |
| Truckload Pallets Qty - XA |
20 |
| Truckload Units Qty - XA |
3200 |
| Truckload Volume Cubic Feet - XA |
89.00000 |
| Truckload Weight - XA |
36800 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| 40 |
No |
| 10282 |
No |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Color |
Black |
| Container Cases Qty - XA |
1600 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
20 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
3200 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
12573 |
| Container Weight Lbs - XA |
36800 |
| Drop |
8 IN |
| Finish - XA |
Blank |
| Gross Trailer Weight (GTW) |
5,000 LBS |
| GTW/TW Ball Drop |
5,000 LB / 500 LB |
| GTW/TW Ball Rise |
3,500 LB / 350 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
6.102 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
20612314458909 |
| Master Case ITF14 - XA |
20612314458909 |
| Master Case Length Inches - XA |
18.504 |
| Master Case Qty - XA |
2 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
22.500 |
| Master Case Width Inches - XA |
5.512 |
| Material - XA |
Carbon Steel |
| Max Drop |
8 IN |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
80 |
| Pallet Case Per Layer - XA |
16 |
| Pallet Cases Per - XA |
80 |
| Pallet Cases Per Layer - XA |
16 |
| Pallet Layer of Cases - XA |
5 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
35.512 |
| Pallet Total Weight Per - XA |
1840.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
10.750 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
Unknown |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
16.500 |
| Retail Length - XA |
6.000 |
| Retail Width - XA |
3.000 |
| Rise |
6 IN |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Description_ABR |
MOUNT |
| Description_SHO |
Class 3 Ball Mount |
| Description_INV |
Class 3 Ball Mount, Imported |
| Description_ASC |

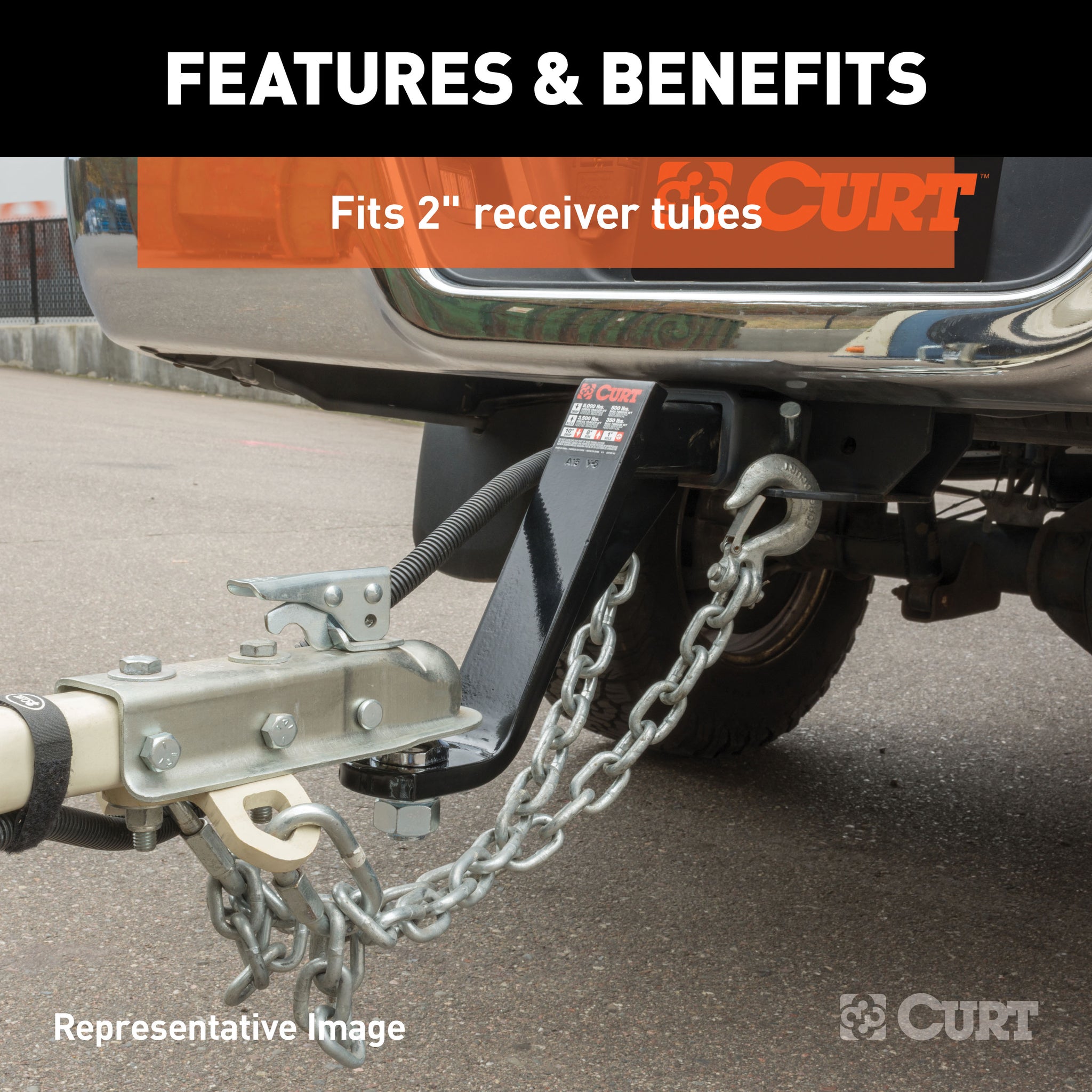

Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |

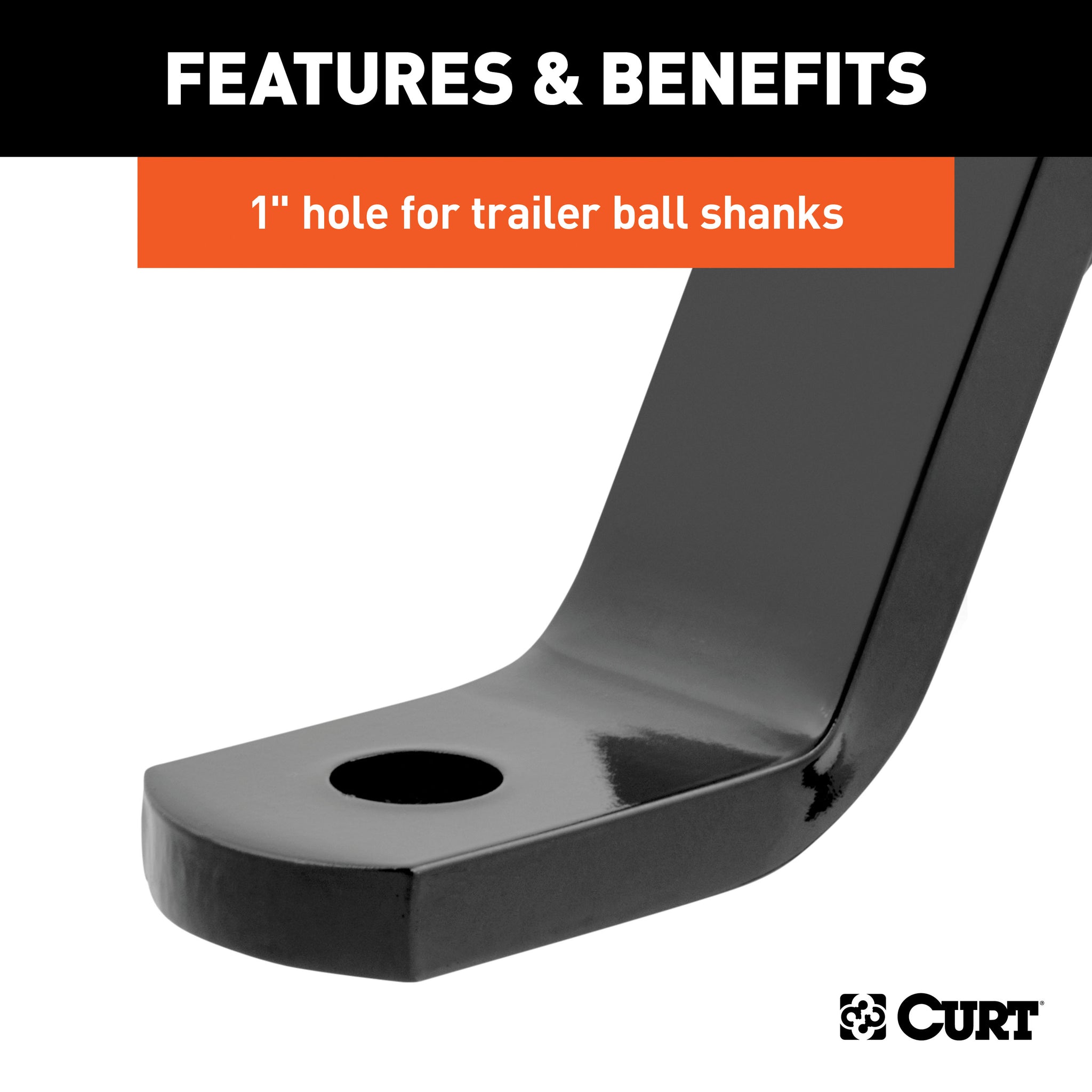

Equipped with a 1" hole to accept a trailer ball shank |
| Description_ASC |
6" rise or 8" drop for precise trailer leveling |
| Description_ASC |
Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_ASC |

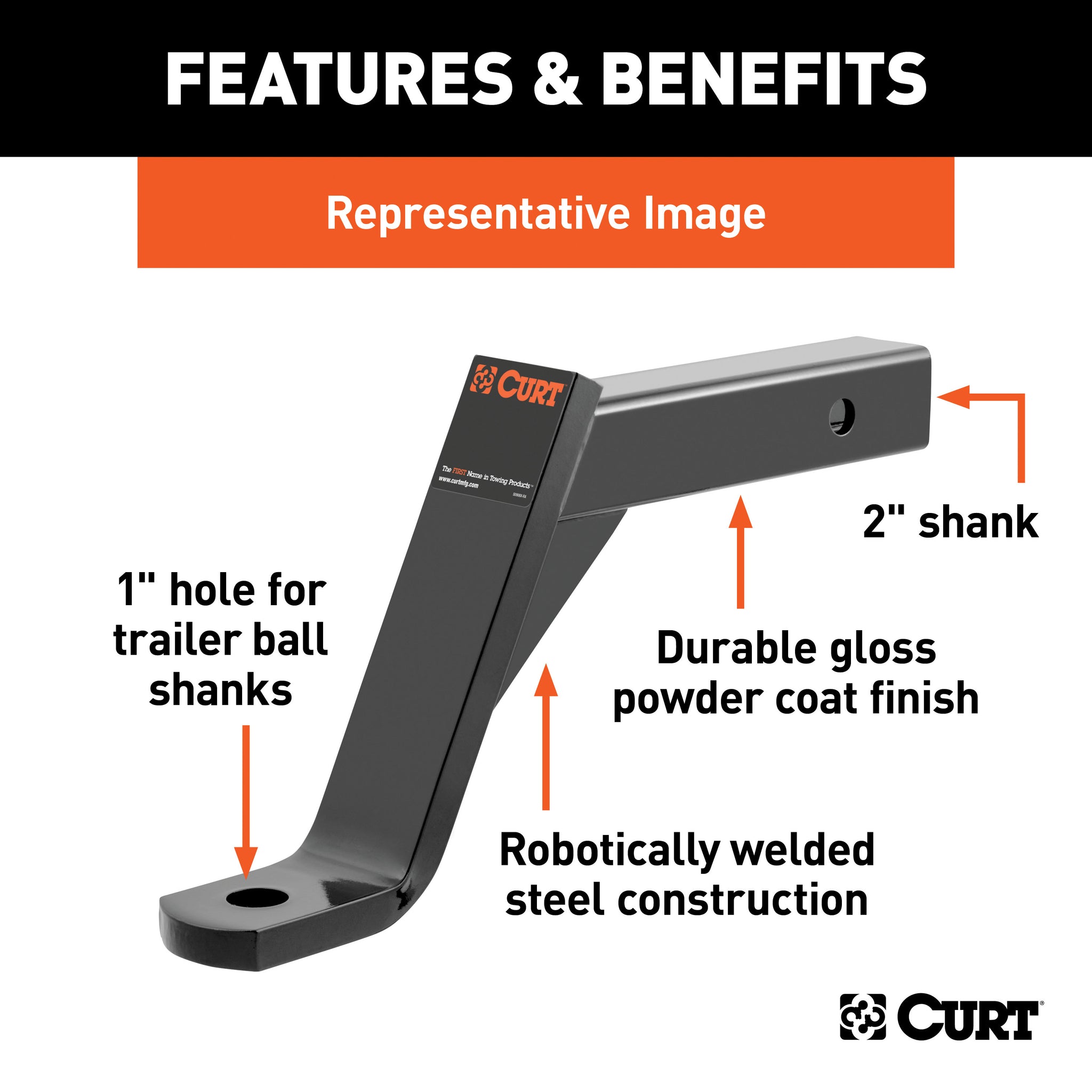

CNC-formed, robotically welded and mechanically descaled for a perfect fit |
| Description_ASC |
Protected by a durable powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Class 3 Ball Mount, Imported (2" Shank, 5,000 lbs., 8" Drop, 11-1/2" Long) |
| Description_EXT |
CURT 45890 Class 3 Trailer Hitch Ball Mount, Imported, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 8-Inch Drop |
| Description_MKT |
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 8", a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 6", a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 11-1/2". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead. |
| Description_FAB |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Equipped with a 1" hole to accept a trailer ball shank |
| Description_FAB |
6" rise or 8" drop for precise trailer leveling |
| Description_FAB |
Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_FAB |
CNC-formed, robotically welded and mechanically descaled for a perfect fit |
| Description_FAB |
Protected by a durable powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45890 Class 3 Trailer Hitch Ball Mount, Imported, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 8-Inch Drop |
| Description_DEF |
Trailer Hitch Ball Mount |
