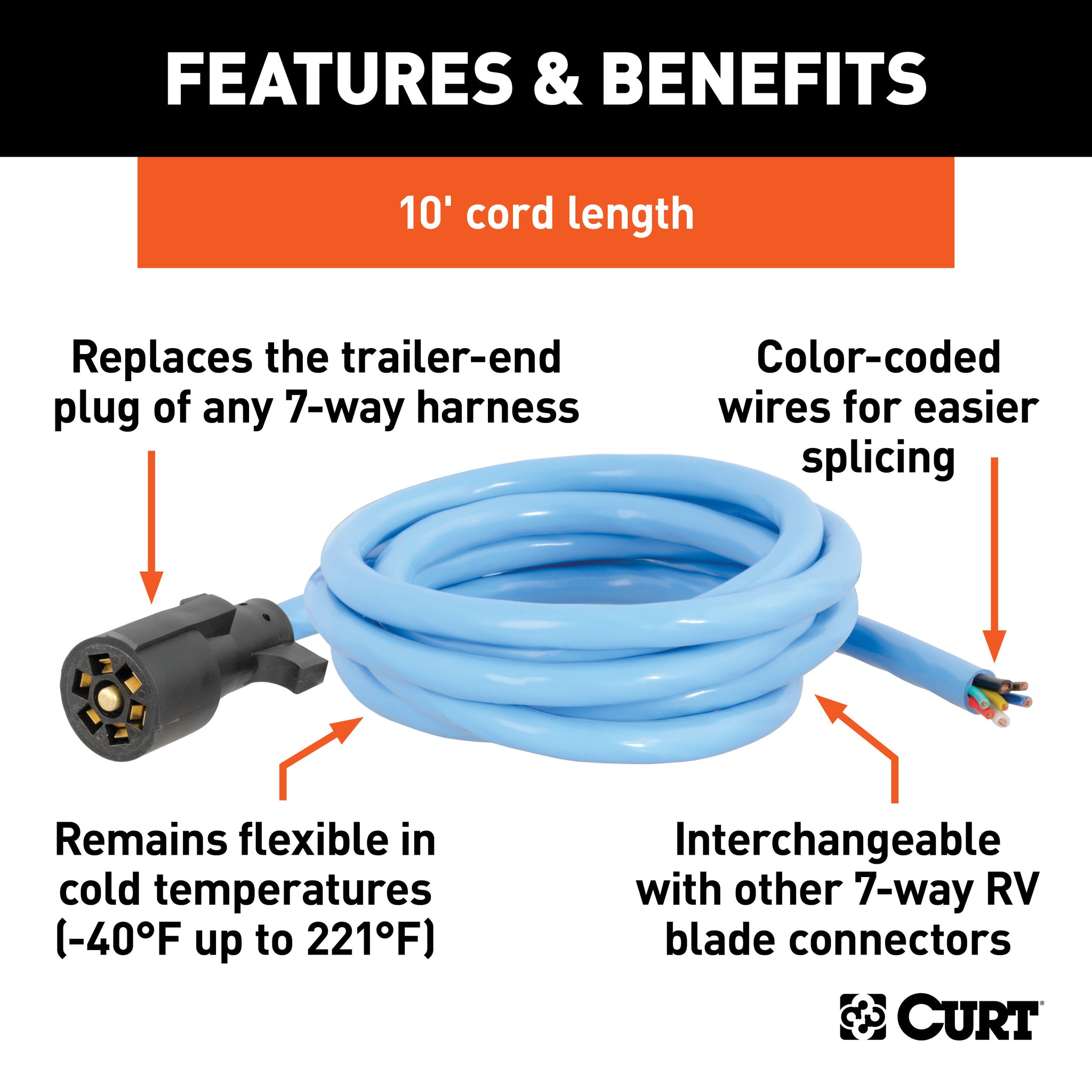

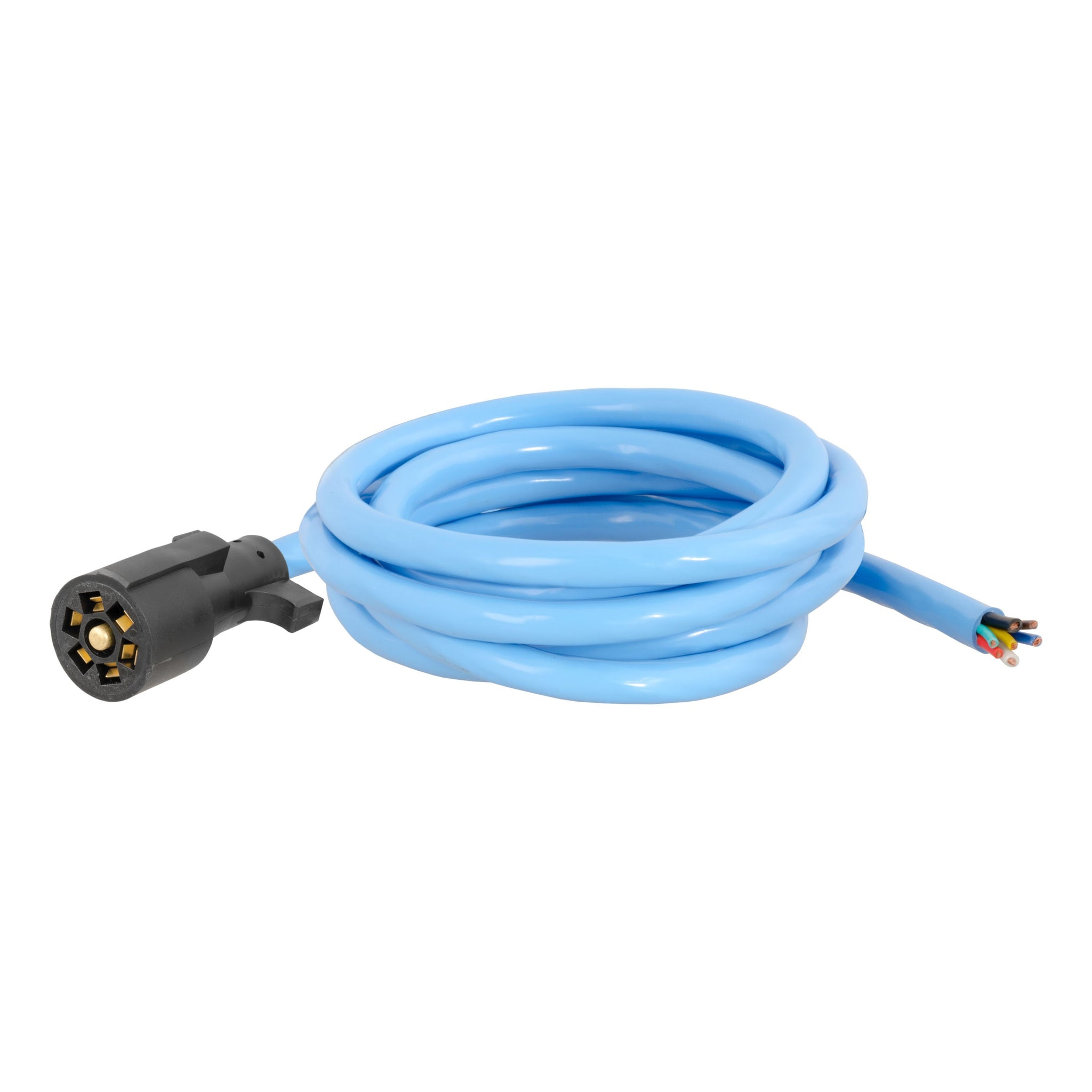

The wind cuts and the frost bites, but you never let that stop you before. You've got miles to cover and work to get done. When the freezing temperatures of the cold north are fighting you every step of the way, you need towing equipment that is engineered to thrive in the snow and ice. CURT cold-weather replacement 7-way RV blade harnesses are made to connect your 5th wheel or gooseneck trailer and bravely tow through the sub-zero temperatures. They feature a special casing that allows them remain flexible in spite of the cold, and they offer a standard 7-way RV blade for a reliable connection. Like our standard replacement 7-way RV blade harnesses, CURT cold-weather harnesses replace the trailer-end of your wiring system and easily splice into the existing trailer wires. However, our cold-resistant harnesses also come with a unique thermoplastic elastomer casing. The casing is made to be soft enough that it will not stiffen in the cold, yet durable enough to provide good protection for the wires within. The harness is rated to remain flexible in temperatures as low as -40F, allowing you to easily plug in and tow no matter what the season of the year and no matter how far north the road takes you. CURT cold-weather wiring harnesses quickly splice into your existing trailer wiring, using a pigtail end with standard color-coded wires. The 7-way RV blade plug connects taillights, brake lights, reverse lights, turn signals, electric trailer brakes and auxiliary power. Cold-weather wiring harnesses also come in three different lengths, including 6', 8' and 10', to provide the right fit for your trailer and towing setup.
| Title |
Cold-Weather Replacement 7-Way RV Blade with 10' Wires (Trailer Side) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
One-Year Limited Warranty |
| Box Height in Inches - XA |
2 |
| Box Length in Inches - XA |
7 |
| Box Width in Inches - XA |
4 |
| Class ID |
11 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
N/A |
| Item Class - XA |
OBS |
| Item Height - XA |
4.000 |
| Item Length - XA |
8.000 |
| Item Width - XA |
8.000 |
| Master Case Height Inches - XA |
10.600 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
20612314566130 |
| Master Case ITF14 - XA |
20612314566130 |
| Master Case Length Inches - XA |
20.100 |
| Master Case Qty - XA |
12 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
38.200 |
| Master Case Width Inches - XA |
8.000 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Material - XA |
Di(2-ethylhexyl) phthalate/Di-n-butyl phthalate |
| Prop 65 Reason - XA |
PVC Coated Wire |
| Prop 65 Warning Label Type - XA |
Cancer and Birth Defect Causing |
| Prop 65 Warning Y/N - XA |
YES |
| Rate Class - XA |
70.0 |
| Retail Height - XA |
4.000 |
| Retail Length - XA |
8.000 |
| Retail Width - XA |
8.000 |
| Sales Family Code - XA |
ELECT |
| Sales Family Description - XA |
ELECTRICAL COMPONENTS |
| Sales Group Description - XA |
ELECTRICAL ADAPTER |
| Shipping Weight - XA |
3.100 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Temperature Rating |
-40F to 221F |
| Description_ABR |
ADAP1 |
| Description_SHO |
7-Way RV Blade |
| Description_INV |
Cold-Weather 7-Way RV Blade |
| Description_ASC |
Replaces the trailer-end plug of any 7-way harness |
| Description_ASC |
Soft thermoplastic elastomer casing remains flexible in cold temperatures |
| Description_ASC |
Temperature rating from -40F up to 221F |
| Description_ASC |
Interchangeable with other 7-way RV blade connectors |
| Description_ASC |

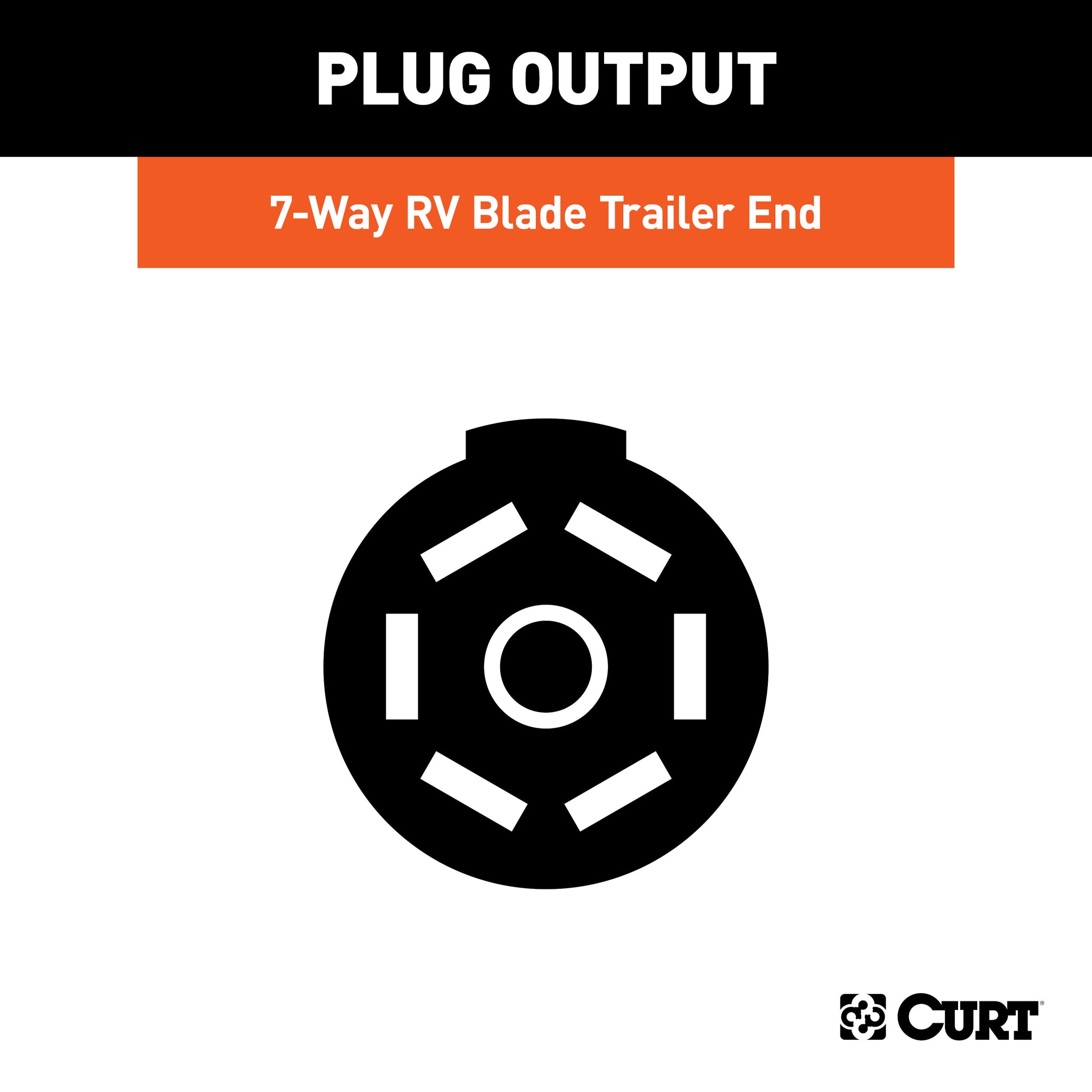

7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power |
| Description_ASC |
10' cord length to fit your specific towing setup |
| Description_ASC |
Color-coded wires for easier splicing |
| Description_DES |
Cold-Weather Replacement 7-Way RV Blade with 10' Wires (Trailer Side) |
| Description_EXT |
CURT 56613 Extreme Temperature, Cold Weather 7-Pin RV Blade Trailer Wiring Harness Plug, 10-Foot Blunt-Cut Wires, -40F to 221F Degree Rating |
| Description_MKT |
The wind cuts and the frost bites, but you never let that stop you before. You've got miles to cover and work to get done. When the freezing temperatures of the cold north are fighting you every step of the way, you need towing equipment that is engineered to thrive in the snow and ice. CURT cold-weather replacement 7-way RV blade harnesses are made to connect your 5th wheel or gooseneck trailer and bravely tow through the sub-zero temperatures. They feature a special casing that allows them remain flexible in spite of the cold, and they offer a standard 7-way RV blade for a reliable connection. Like our standard replacement 7-way RV blade harnesses, CURT cold-weather harnesses replace the trailer-end of your wiring system and easily splice into the existing trailer wires. However, our cold-resistant harnesses also come with a unique thermoplastic elastomer casing. The casing is made to be soft enough that it will not stiffen in the cold, yet durable enough to provide good protection for the wires within. The harness is rated to remain flexible in temperatures as low as -40F, allowing you to easily plug in and tow no matter what the season of the year and no matter how far north the road takes you. CURT cold-weather wiring harnesses quickly splice into your existing trailer wiring, using a pigtail end with standard color-coded wires. The 7-way RV blade plug connects taillights, brake lights, reverse lights, turn signals, electric trailer brakes and auxiliary power. Cold-weather wiring harnesses also come in three different lengths, including 6', 8' and 10', to provide the right fit for your trailer and towing setup. |
| Description_FAB |
Replaces the trailer-end plug of any 7-way harness |
| Description_FAB |
Soft thermoplastic elastomer casing remains flexible in cold temperatures |
| Description_FAB |
Temperature rating from -40F up to 221F |
| Description_FAB |
Interchangeable with other 7-way RV blade connectors |
| Description_FAB |
7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power |
| Description_FAB |
10' cord length to fit your specific towing setup |
| Description_FAB |
Color-coded wires for easier splicing |
| Description_TLE |
CURT 56613 Extreme Temperature, Cold Weather 7-Pin RV Blade Trailer Wiring Harness Plug, 10-Foot Blunt-Cut Wires, -40F to 221F Degree Rating |
| Description_DEF |
Trailer Wiring Adapter Connector |
