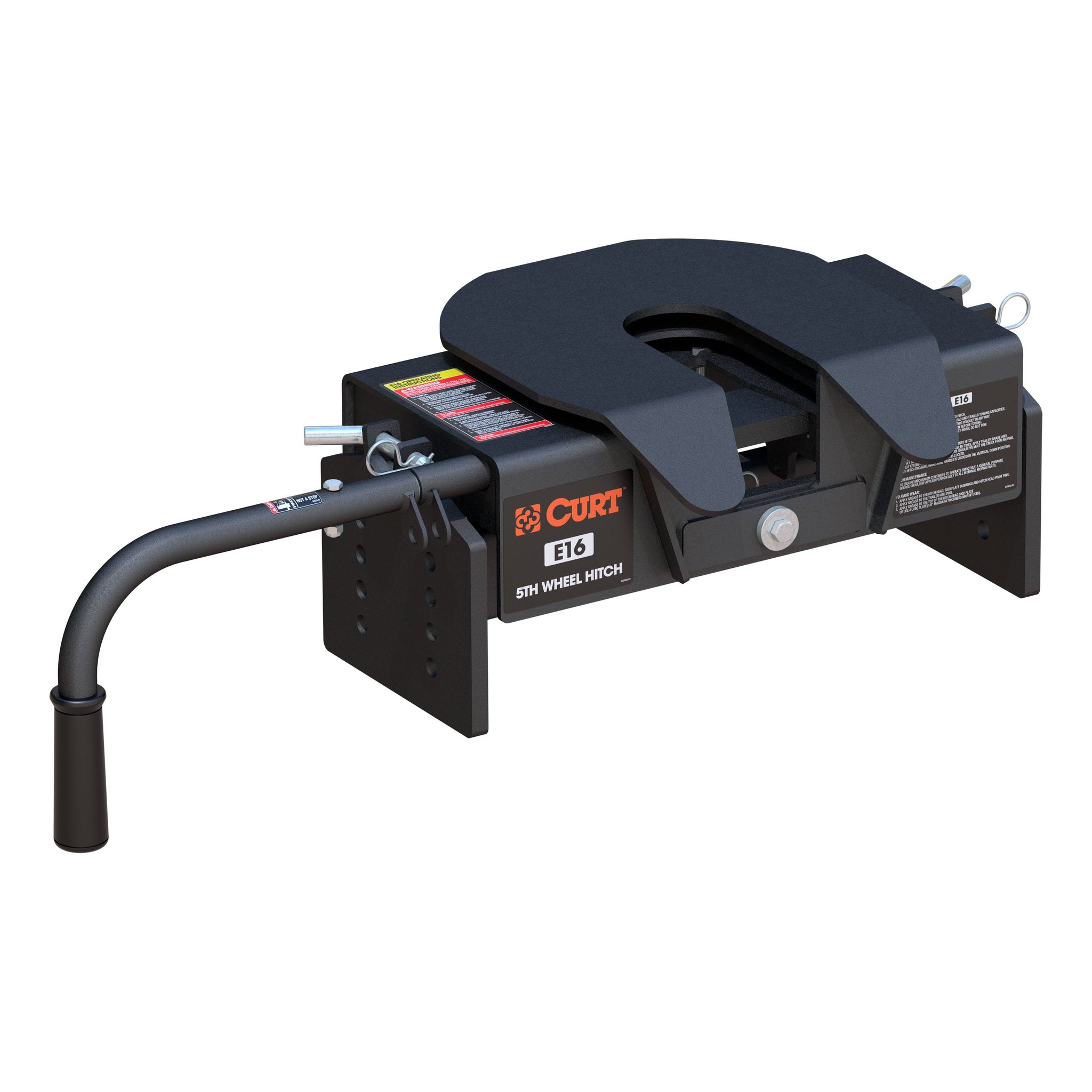

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes ready to be attached to the CURT R16 5th wheel roller.
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
16,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
11.000 |
| Item Length - XA |
24.000 |
| Item Width - XA |
15.000 |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Qty - XA |
0 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
42.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
61.361 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
65.0 |
| Retail Height - XA |
11.000 |
| Retail Length - XA |
24.000 |
| Retail Width - XA |
15.000 |
| Sales Family Code - XA |
FIFTH |
| Sales Family Description - XA |
FIFTH WHEEL |
| Sales Group Description - XA |
16K FIFTH WHEEL |
| Shipping Weight - XA |
61.361 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
E16 5th Wheel Hitch Head |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Vertical Load |
4,000 LB |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
16K |
| Description_SHO |
E16 5th Wheel Head |
| Description_INV |
E16 5th Wheel Hitch Head |
| Description_ASC |

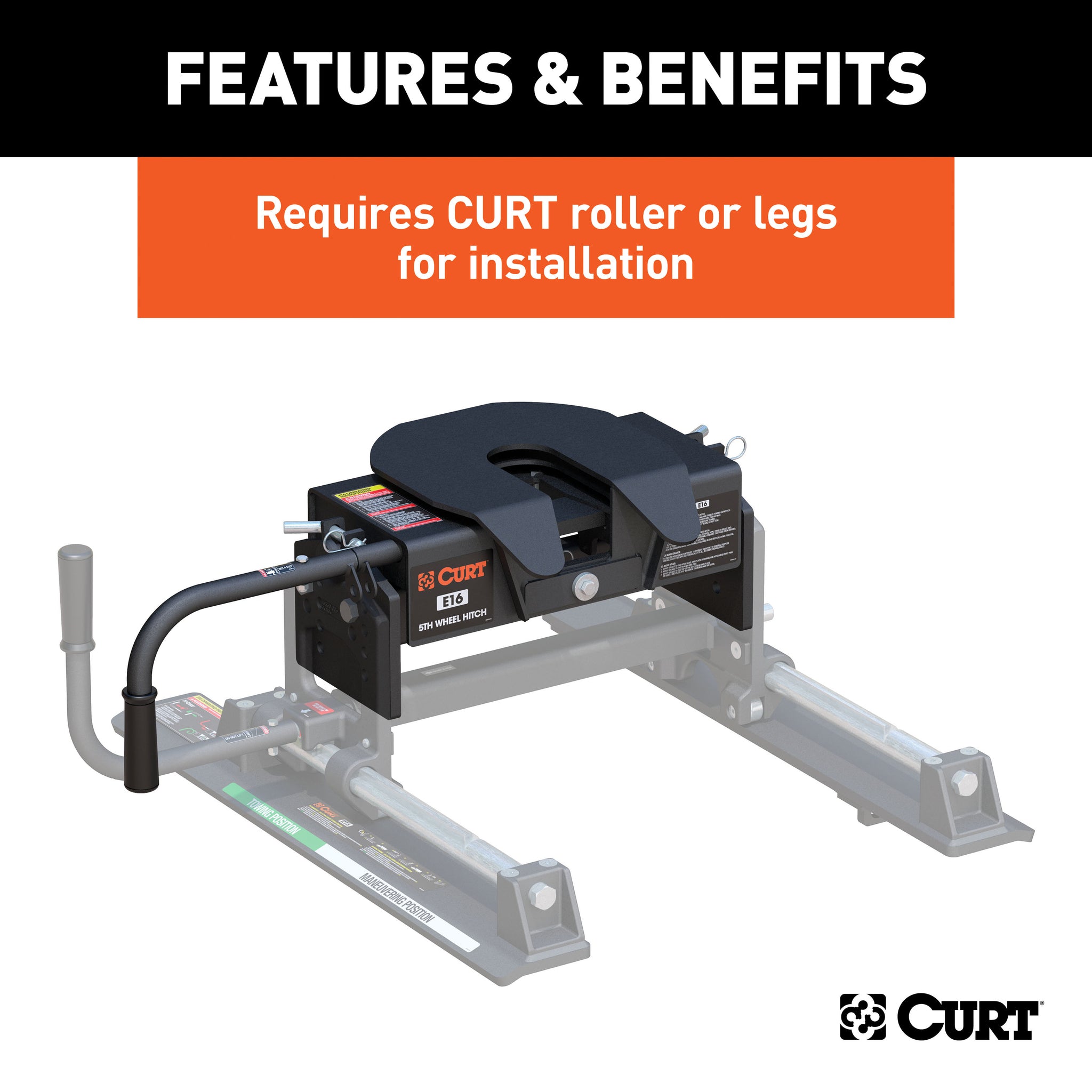

Requires CURT 5th wheel roller or legs for installation |
| Description_ASC |

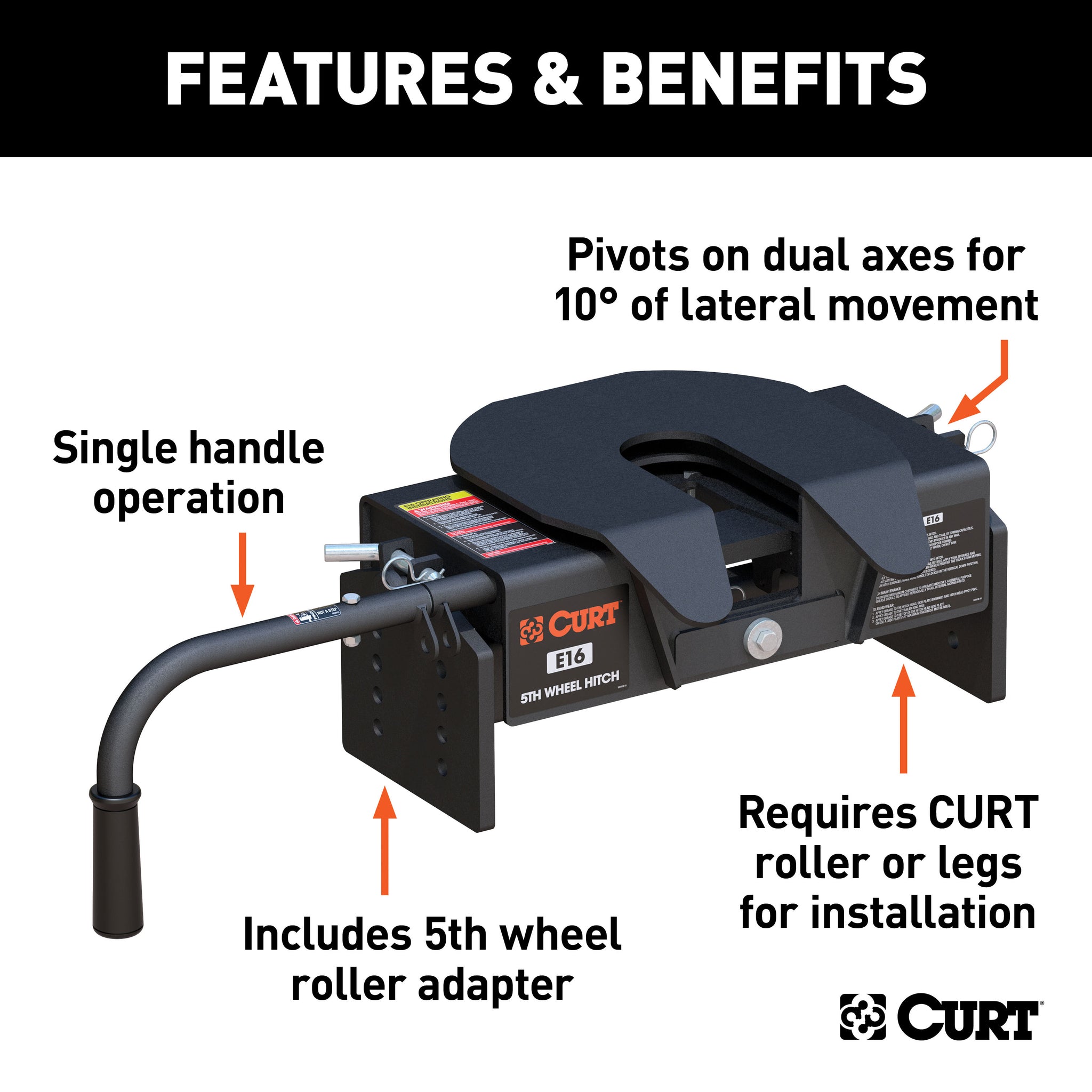

Pivots on dual axes for 10 degrees of lateral movement |
| Description_ASC |
Automatically locks for easy, secure coupling |
| Description_ASC |
Operates using a single handle with few moving parts |
| Description_ASC |

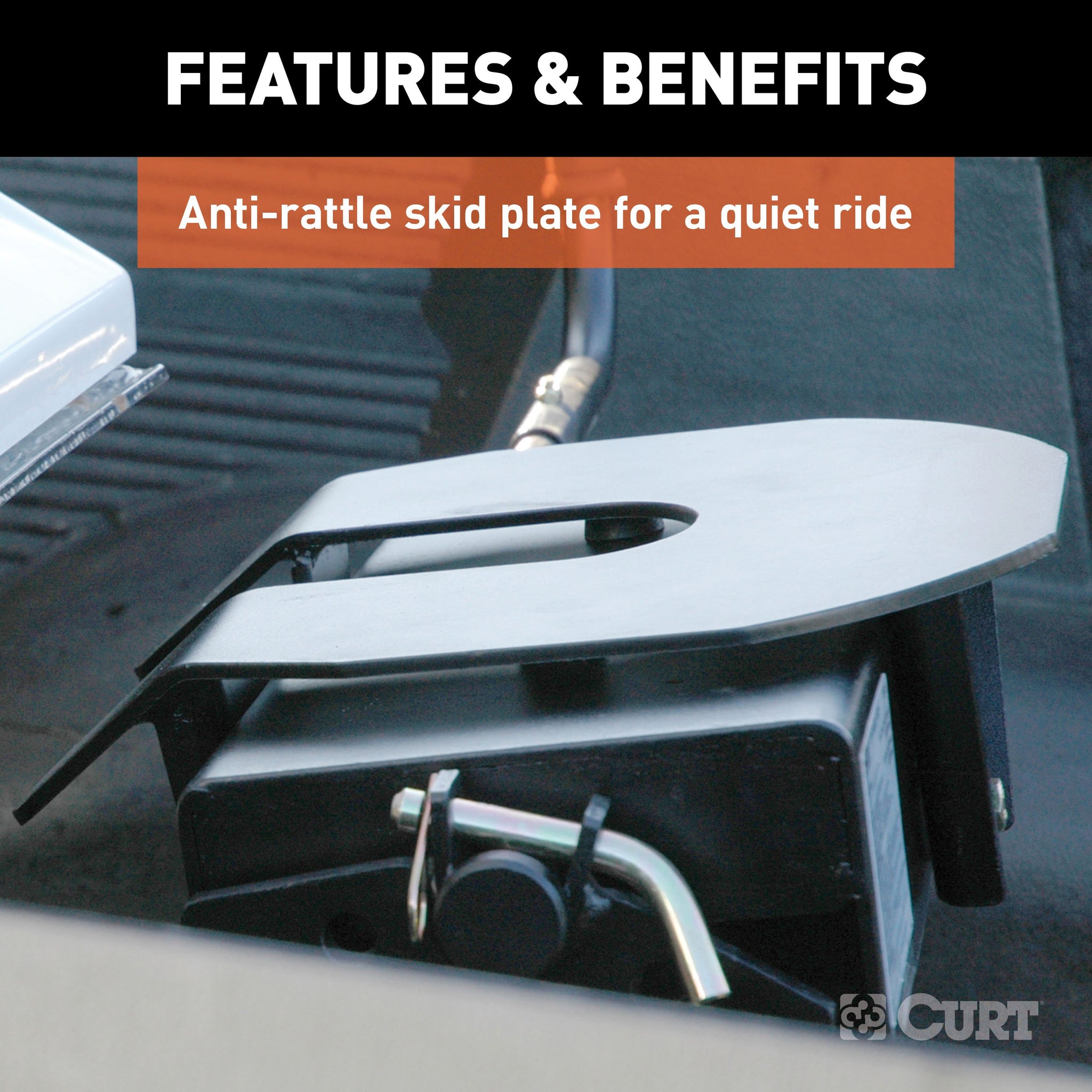

Features an anti-rattle skid plate to help reduce noise |
| Description_ASC |
Compatible with kingpin extension boxes, including common pivoting pin boxes |
| Description_ASC |
Offers four height adjustment positions to adapt to each unique truck bed |
| Description_ASC |
Tested for safety in accordance with SAE J2638 |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
E16 5th Wheel Hitch Head |
| Description_EXT |
CURT 16515 E16 5th Wheel Hitch Head Only, Legs or Roller Required, 16,000 lbs |
| Description_MKT |
The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes ready to be attached to the CURT R16 5th wheel roller. |
| Description_FAB |
Requires CURT 5th wheel roller or legs for installation |
| Description_FAB |
Pivots on dual axes for 10 degrees of lateral movement |
| Description_FAB |
Automatically locks for easy, secure coupling |
| Description_FAB |
Operates using a single handle with few moving parts |
| Description_FAB |
Features an anti-rattle skid plate to help reduce noise |
| Description_FAB |
Compatible with kingpin extension boxes, including common pivoting pin boxes |
| Description_FAB |
Offers four height adjustment positions to adapt to each unique truck bed |
| Description_FAB |
Tested for safety in accordance with SAE J2638 |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 16515 E16 5th Wheel Hitch Head Only, Legs or Roller Required, 16,000 lbs |
| Description_DEF |
Fifth Wheel Trailer Hitch Head Unit |
