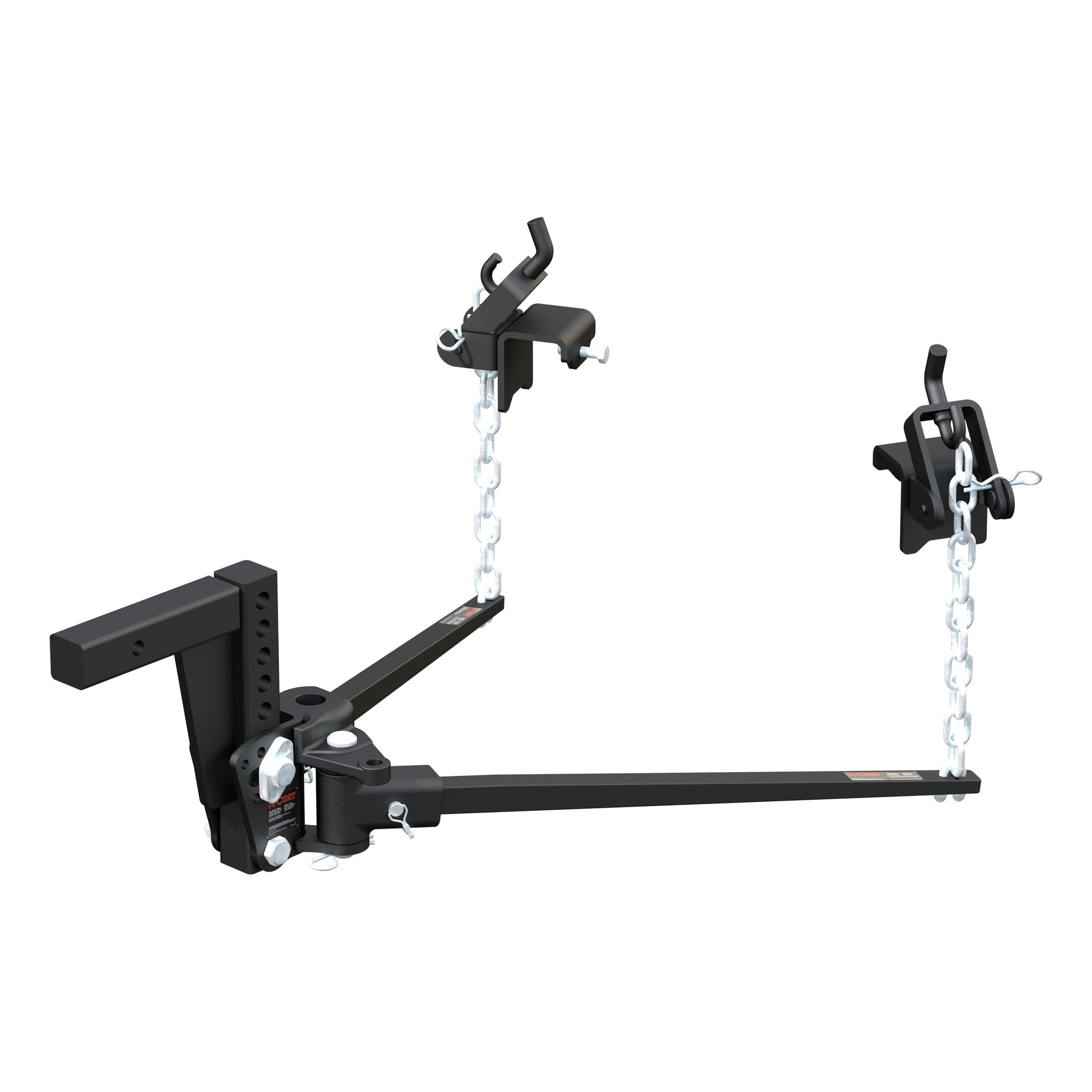

The CURT deep drop weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the axles. This model is made particularly for larger, lifted trucks, featuring an adjustable shank that provides a drop up to 7" and rise up to 10-1/2". Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This CURT WD hitch comes with a 2" x 2" deep drop shank and is compatible with most class 3, 4 and 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component). This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Drop |
7 IN |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
8,000 LB - 10,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
8.250 |
| Retail Length - XA |
35.500 |
| Retail Width - XA |
13.000 |
| Rise |
10-1/2 IN |
| Sales Family Code - XA |
WDIST |
| Sales Family Description - XA |
WEIGHT DISTRIBUTION |
| Sales Group Description - XA |
TRUNNION WD SYSTEM |
| Shipping Weight - XA |
95.120 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Deep Drop Trunnion Bar Weight Distribution Hitch (8K - 10K lbs, 30-5/8" Bars) |
| Tongue Weight (TW) |
800 LB - 1,000 LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Parts) |
| Description_ABR |
TRUNN |
| Description_SHO |
Deep Drop WD Hitch |
| Description_INV |
Deep Drop Weight Distribution Hitch |
| Description_ASC |

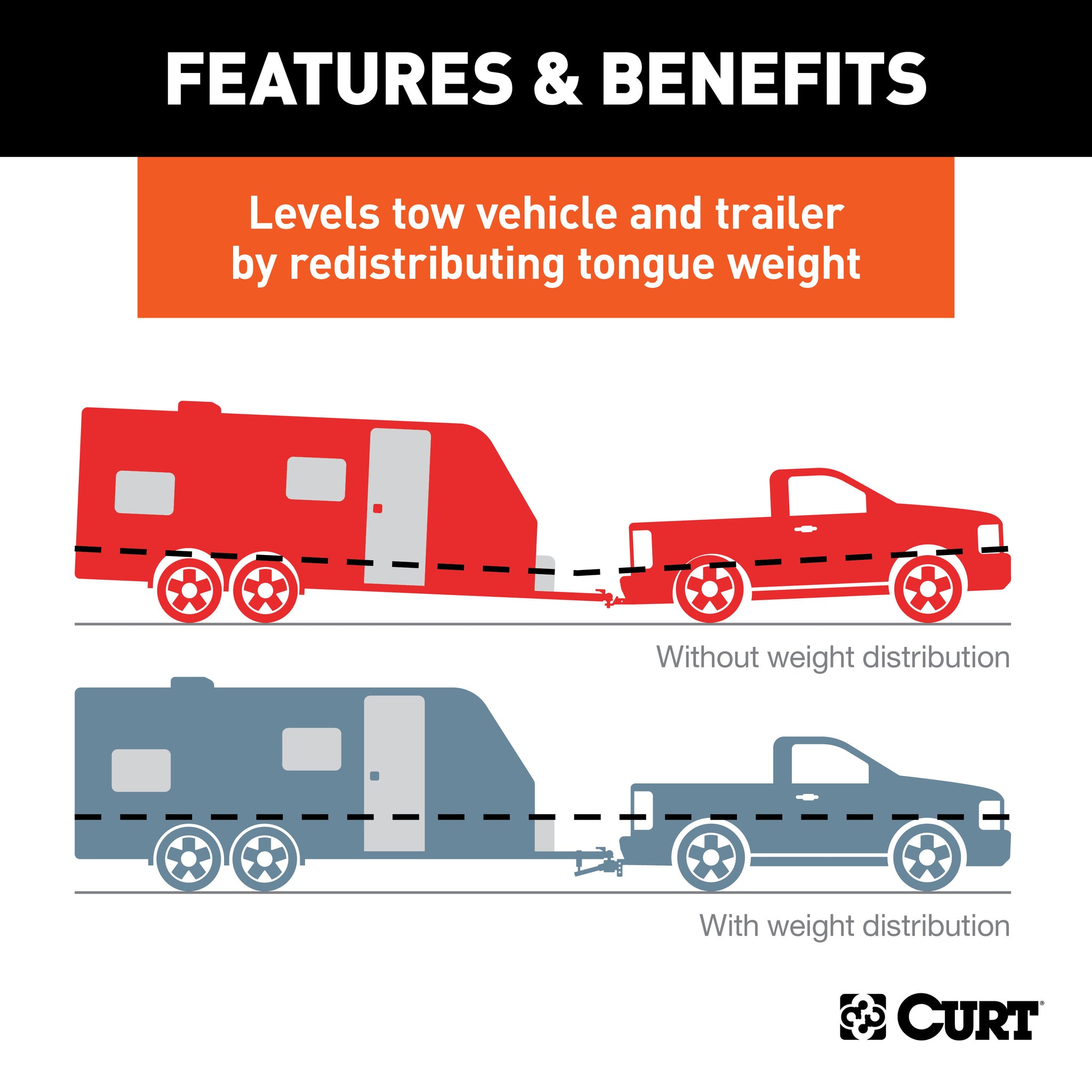

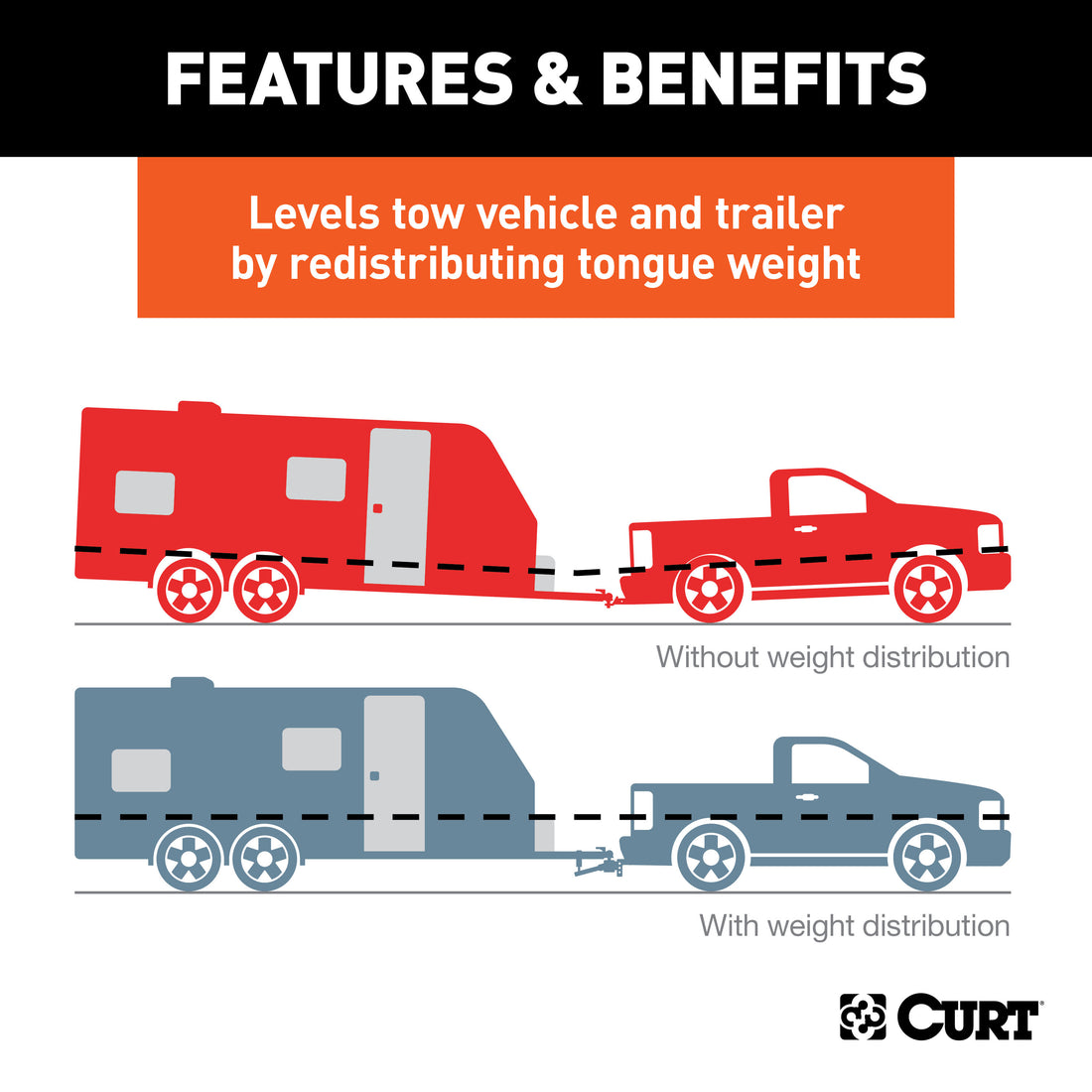

Levels tow vehicle and trailer by redistributing a portion of the tongue weight |
| Description_ASC |

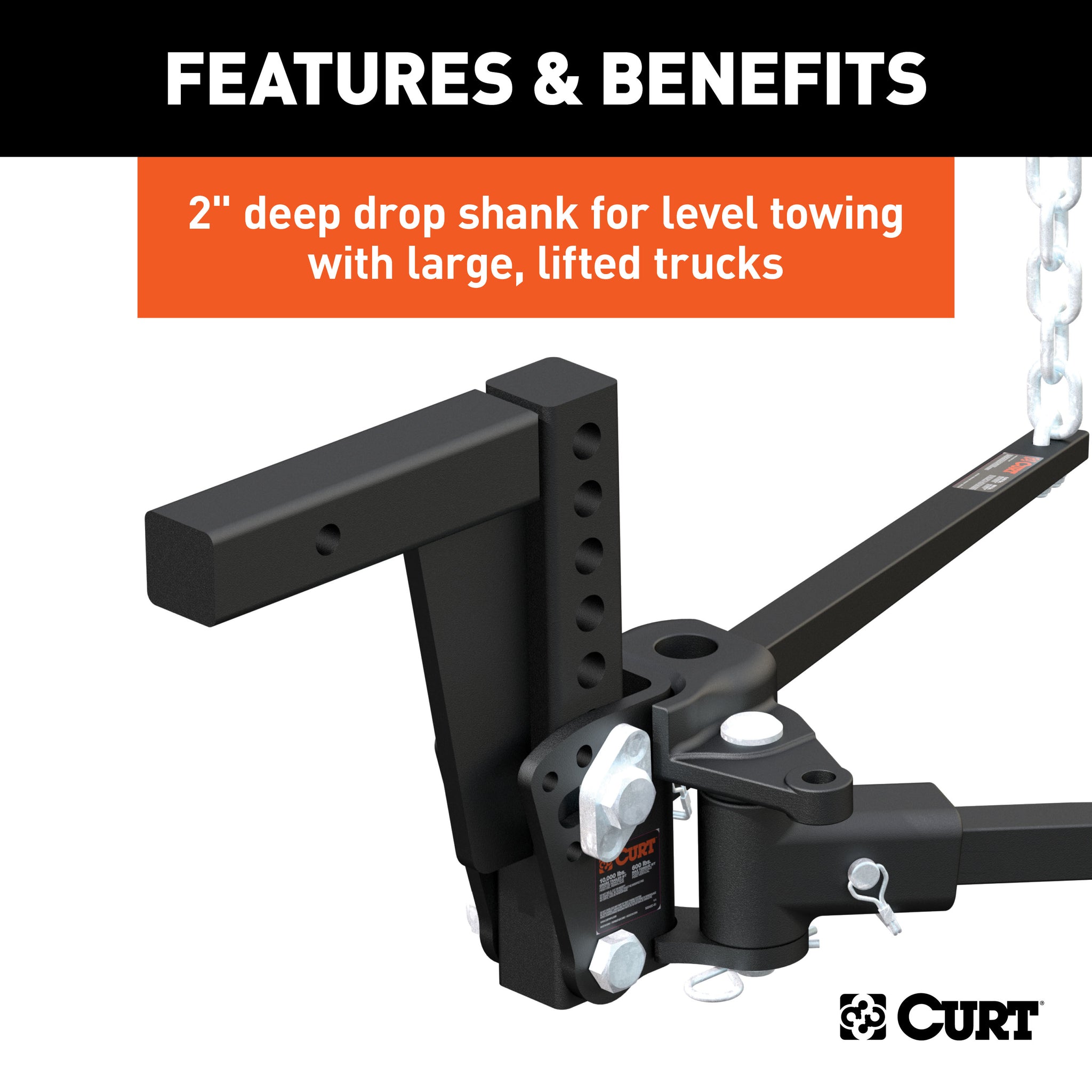

2" x 2" deep drop shank for level towing with large, lifted trucks |
| Description_ASC |

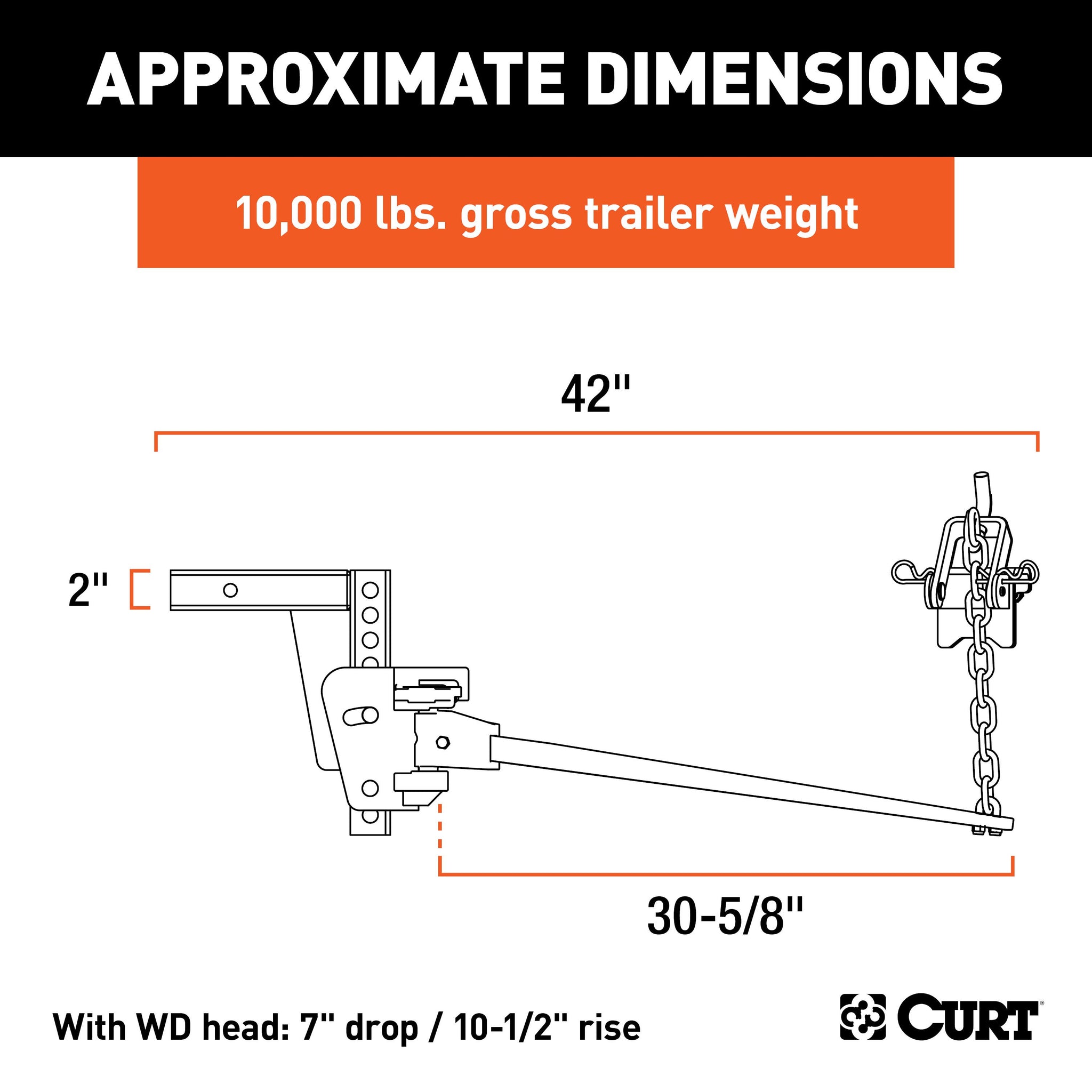

Shank can be flipped to provide up to 7" drop or 10-1/2" rise |
| Description_ASC |

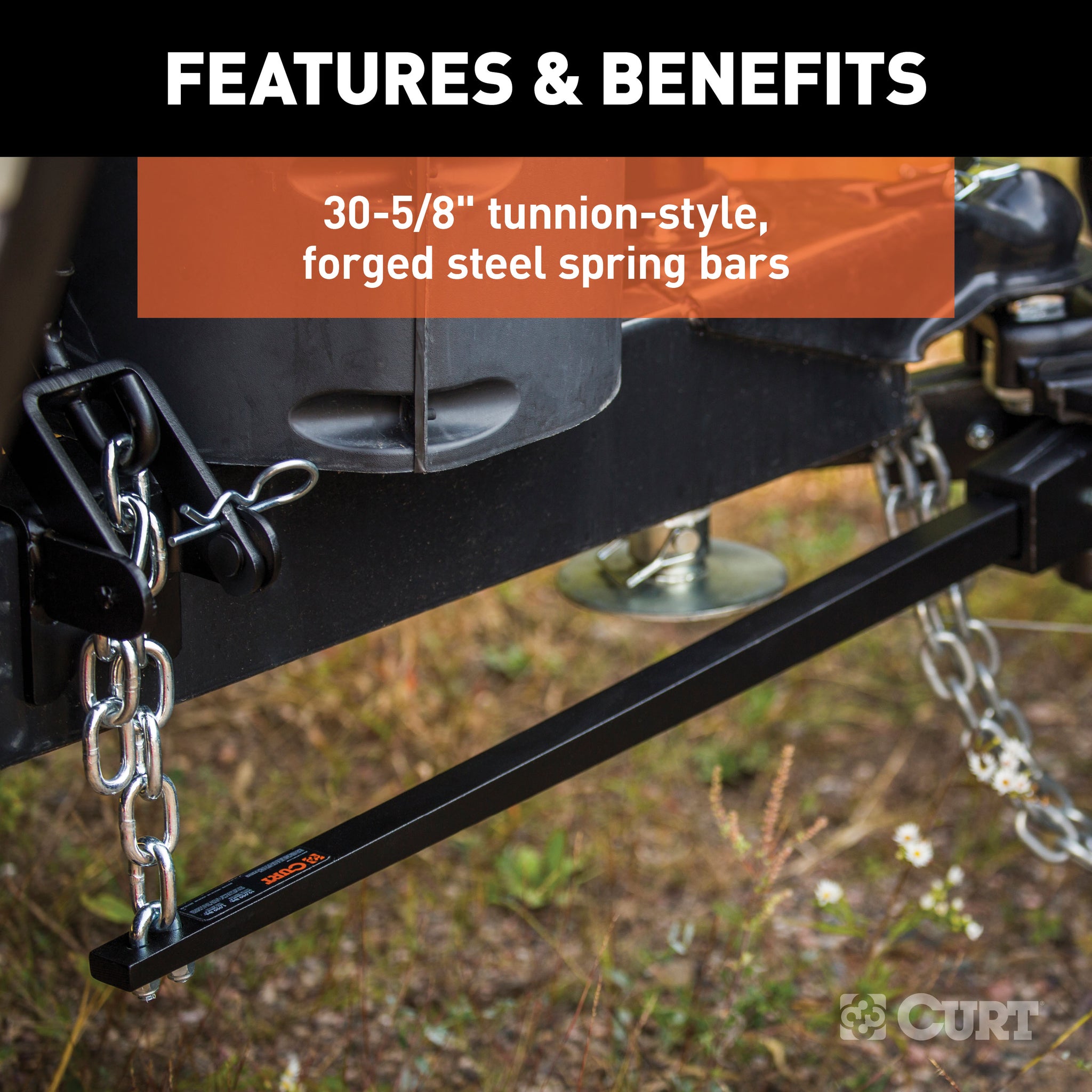

Equipped with 30-5/8" trunnion-style, forged steel spring bars |
| Description_ASC |
Heavy-duty, formed head can be adjusted for precise leveling |
| Description_ASC |
Features built-in sway control attachment tabs |
| Description_ASC |
2-1/2" x 2-1/2" WD replacement shank also available |
| Description_ASC |

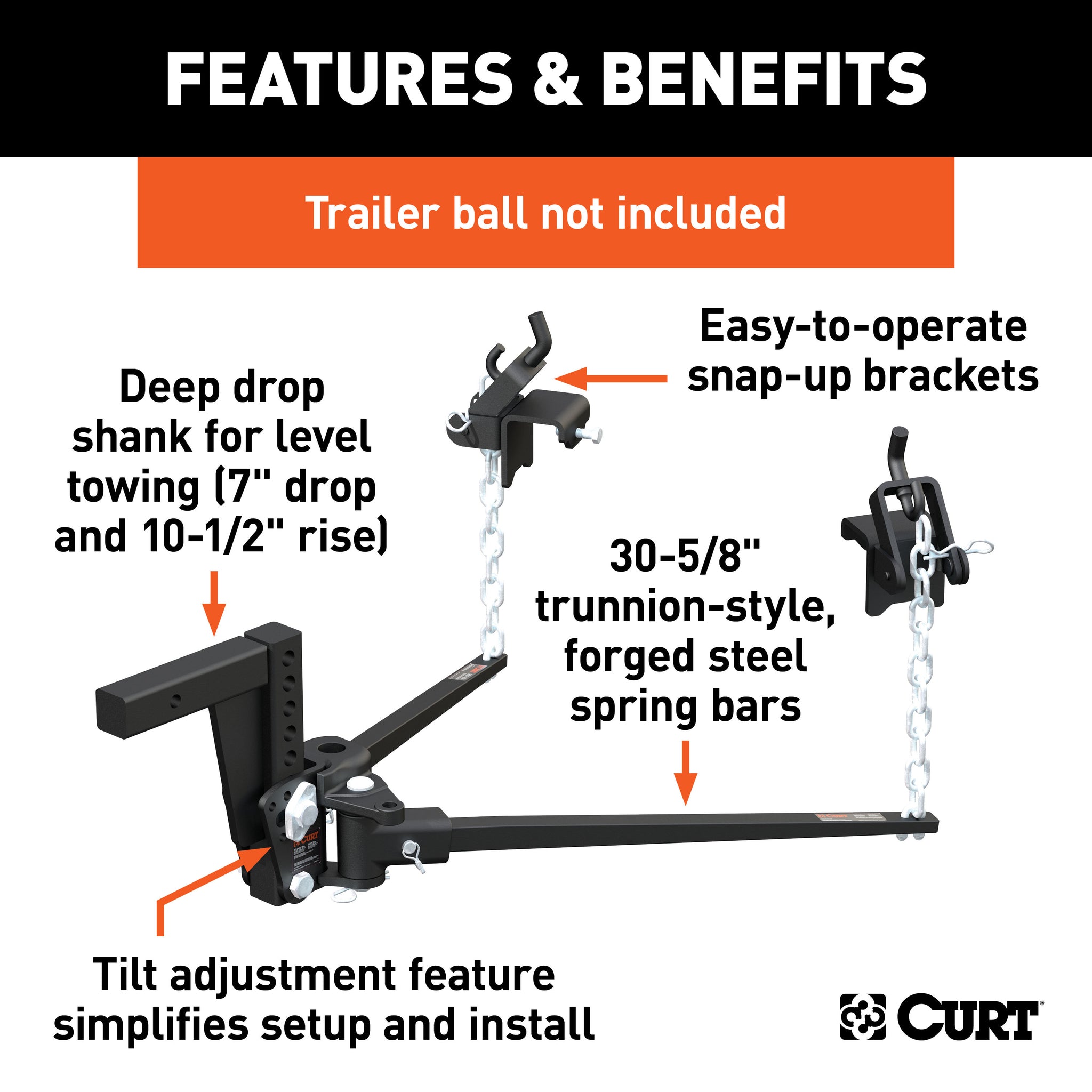

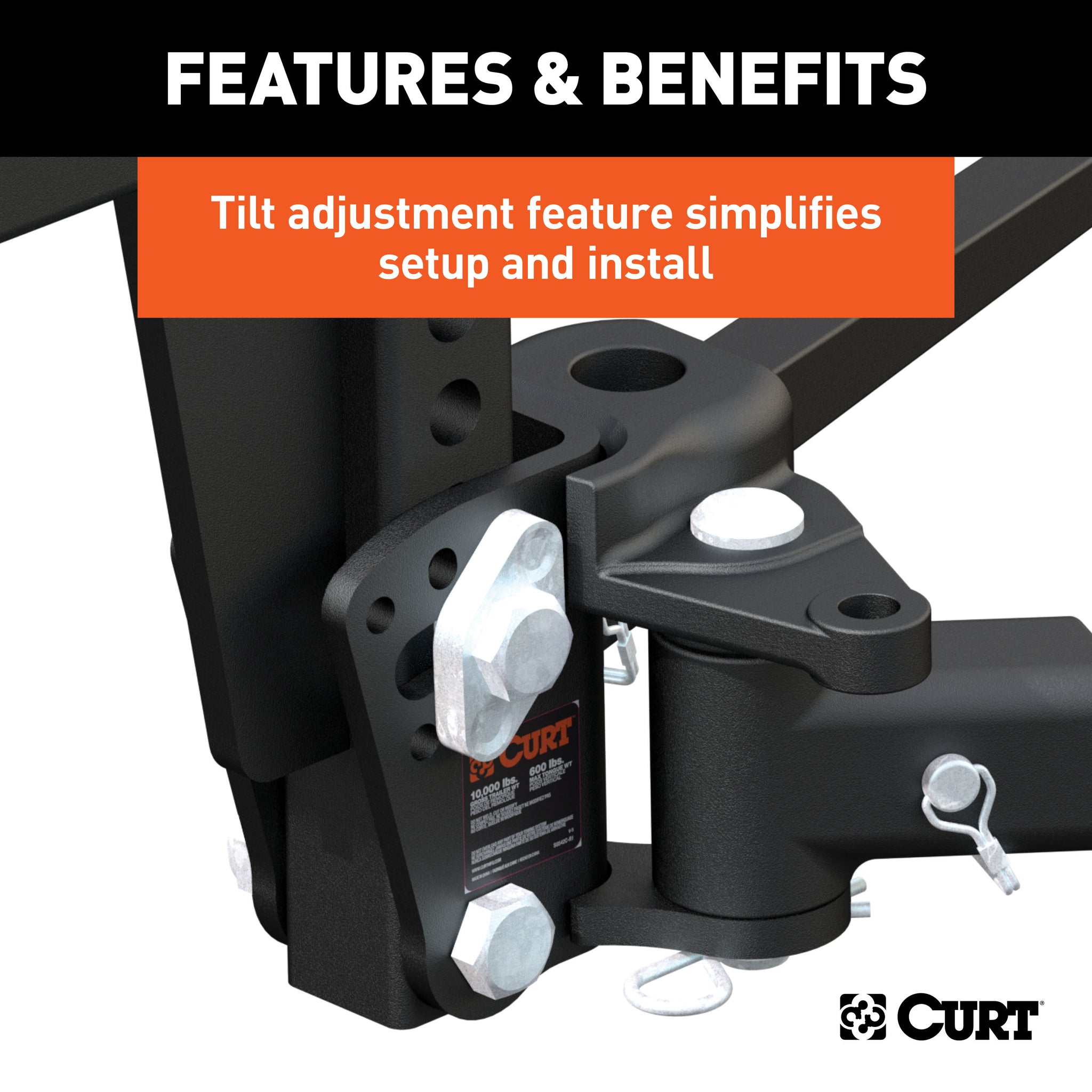

Tilt adjustment feature simplifies setup and installation |
| Description_ASC |

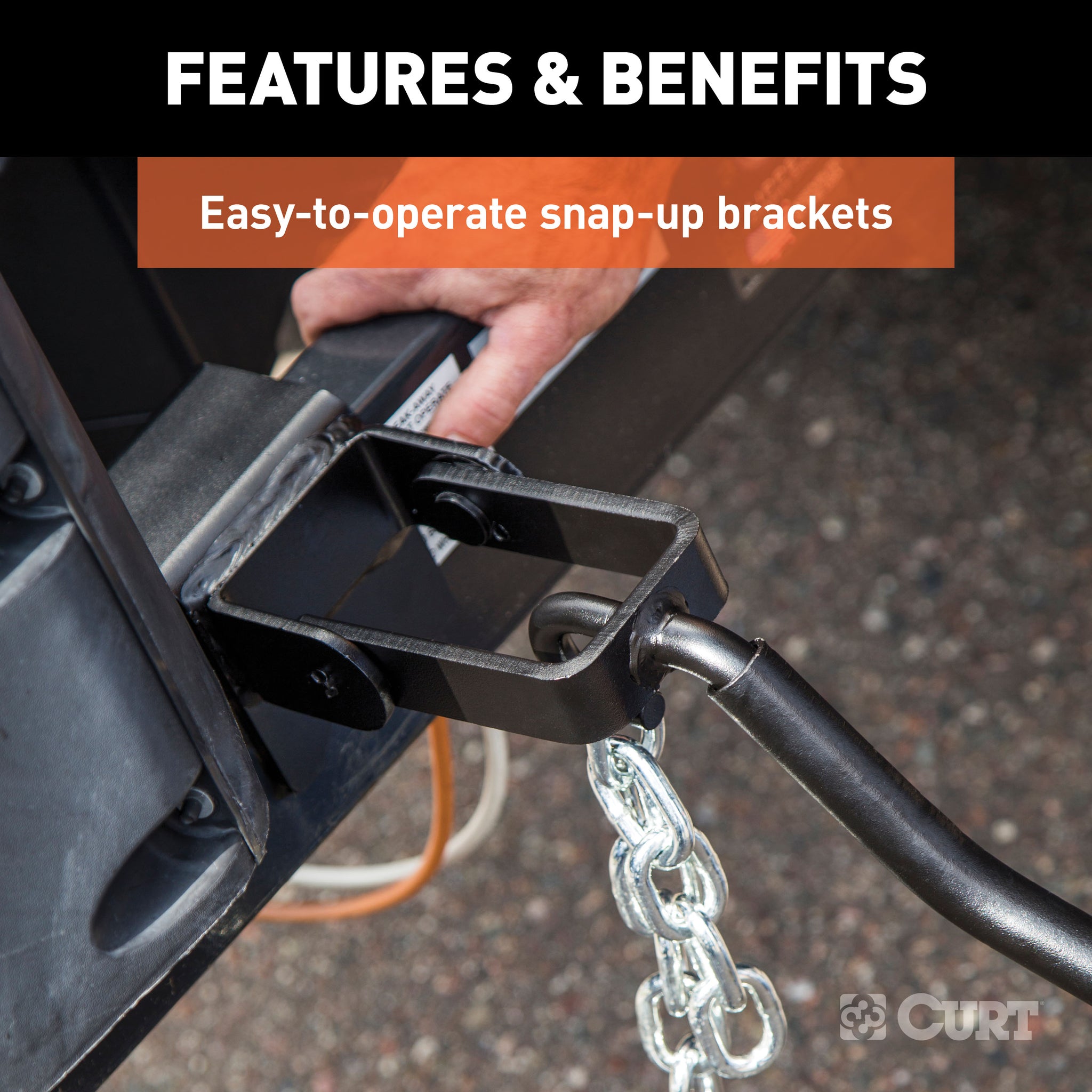

Hookup brackets and lift handle allow for easy leveraging of spring bars |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Deep Drop Trunnion Bar Weight Distribution Hitch (8K - 10K lbs, 30-5/8" Bars) |
| Description_EXT |
CURT 17352 Deep Drop Trunnion Weight Distribution Hitch, Up to 10K, 2-Inch Shank |
| Description_MKT |
The CURT deep drop weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the axles. This model is made particularly for larger, lifted trucks, featuring an adjustable shank that provides a drop up to 7" and rise up to 10-1/2". Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This CURT WD hitch comes with a 2" x 2" deep drop shank and is compatible with most class 3, 4 and 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component). This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately. |
| Description_FAB |
Levels tow vehicle and trailer by redistributing a portion of the tongue weight |
| Description_FAB |
2" x 2" deep drop shank for level towing with large, lifted trucks |
| Description_FAB |
Shank can be flipped to provide up to 7" drop or 10-1/2" rise |
| Description_FAB |
Equipped with 30-5/8" trunnion-style, forged steel spring bars |
| Description_FAB |
Heavy-duty, formed head can be adjusted for precise leveling |
| Description_FAB |
Features built-in sway control attachment tabs |
| Description_FAB |
2-1/2" x 2-1/2" WD replacement shank also available |
| Description_FAB |
Tilt adjustment feature simplifies setup and installation |
| Description_FAB |
Hookup brackets and lift handle allow for easy leveraging of spring bars |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 17352 Deep Drop Trunnion Weight Distribution Hitch, Up to 10K, 2-Inch Shank |
| Description_DEF |
Trailer Weight Distribution Kit |
