Pushing the limits of standard towing, CURT forged ball mounts are a powerhouse among receiver-style ball mounts. With solid, one-piece construction, each forged ball mount is designed to surpass other 2" options to accommodate the added stress of heavy-duty towing. They are able to tow up to 17,000 lbs. of gross trailer weight and up to 2,550 lbs. of tongue weight, giving them more power to handle especially heavy loads. CURT forged ball mounts also come with a thick skin. We coat each ball mount in a black carbide powder coat finish to provide superior rust, scratch and UV protection. A forged ball mount is an excellent choice for hauling all kinds of heavy trailers. Whatever type of load you are towing -- livestock, industrial equipment, construction materials -- these class 5 ball mounts help you complete the job. Use a forged ball mount to tow large utility trailers, livestock and cattle trailers, toy haulers, RVs and large boat trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). CURT forged ball mounts are engineered to be a perfect counterpart to the CURT class 5 Xtra-Duty trailer hitch, making them the ball mount of choice for full-size pickup trucks and SUVs.
| Pallet Total Weight Per - XA |
2864.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
3.000 |
| Retail Length - XA |
13.000 |
| Retail Width - XA |
4.500 |
| Rise |
5 IN |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
15.330 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Forged Ball Mount (2" Shank, 17,000 lbs., 6" Drop, 9-1/2" Long) |
| Tongue Weight (TW) |
2,550 LB |
| Truckload Cases Qty - XA |
960 |
| Truckload Dom Pickup Location - XA |
Eau Claire, Wi |
| Truckload Pallets Qty - XA |
16 |
| Truckload Units Qty - XA |
960 |
| Truckload Volume Cubic Feet - XA |
89.00000 |
| Truckload Weight - XA |
44868 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
900 |
| Container Pallet Qty - XA |
15 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
2700 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
19527 |
| Container Weight Lbs - XA |
42960 |
| Drop |
6 IN |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
17,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
3.543 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
20612314453423 |
| Master Case ITF14 - XA |
20612314453423 |
| Master Case Length Inches - XA |
15.354 |
| Master Case Qty - XA |
3 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
47.000 |
| Master Case Width Inches - XA |
9.500 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
60 |
| Pallet Case Per Layer - XA |
12 |
| Pallet Cases Per - XA |
60 |
| Pallet Cases Per Layer - XA |
12 |
| Pallet Layer of Cases - XA |
5 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
22.717 |
| Description_ABR |
MOUNT |
| Description_SHO |
Forged Ball Mount |
| Description_INV |
Forged Ball Mount |
| Description_ASC |

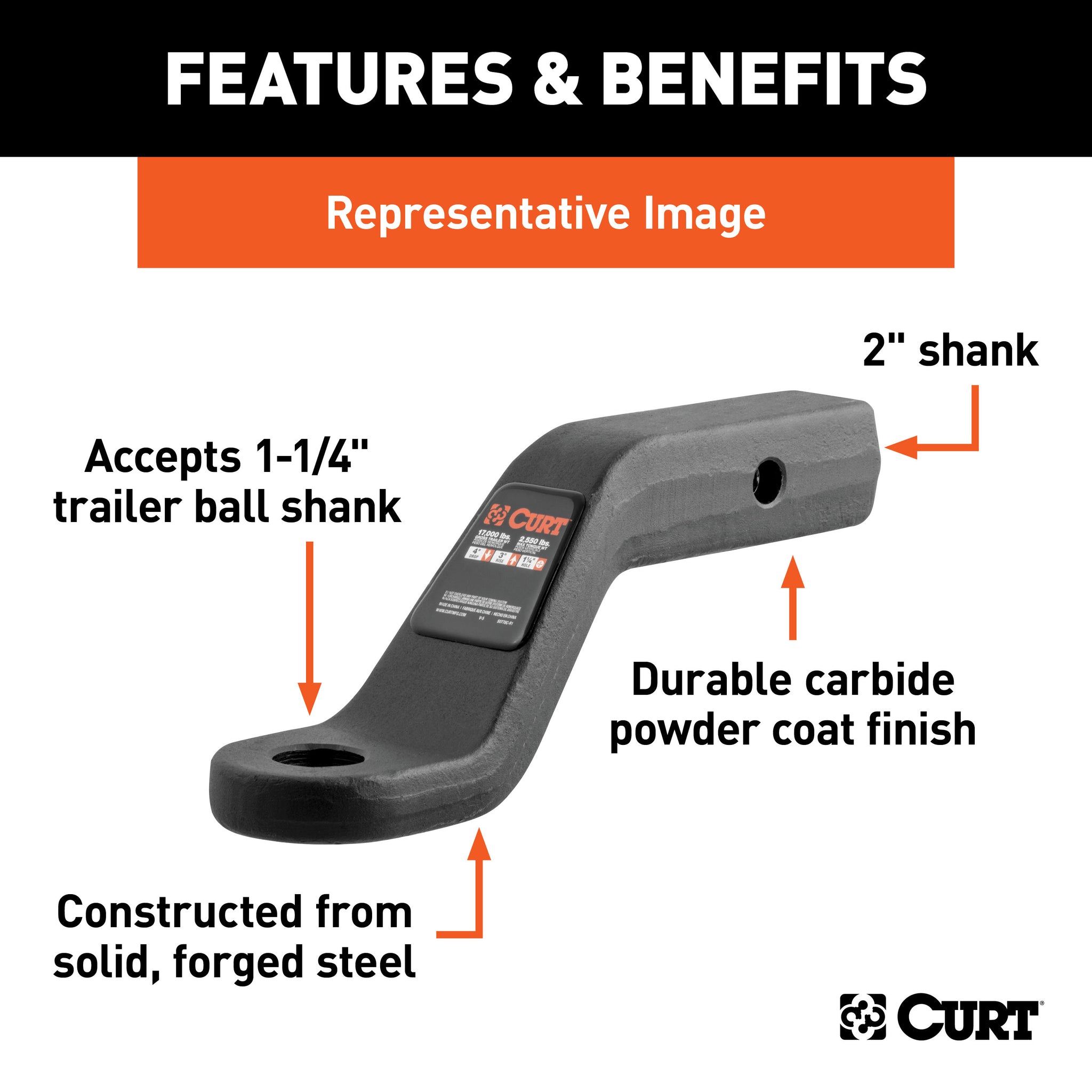

Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |

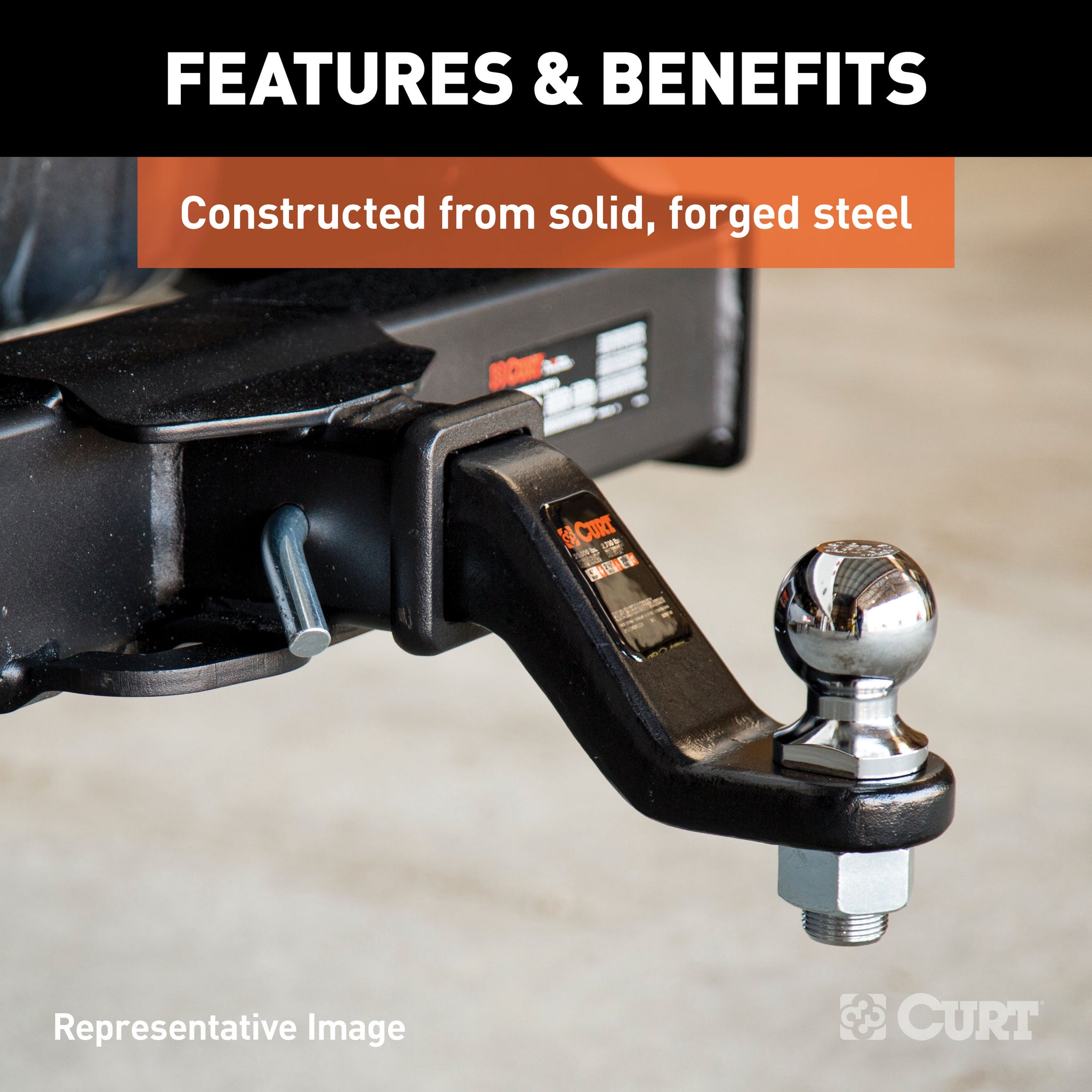

Constructed from solid, forged steel for superior strength |
| Description_ASC |

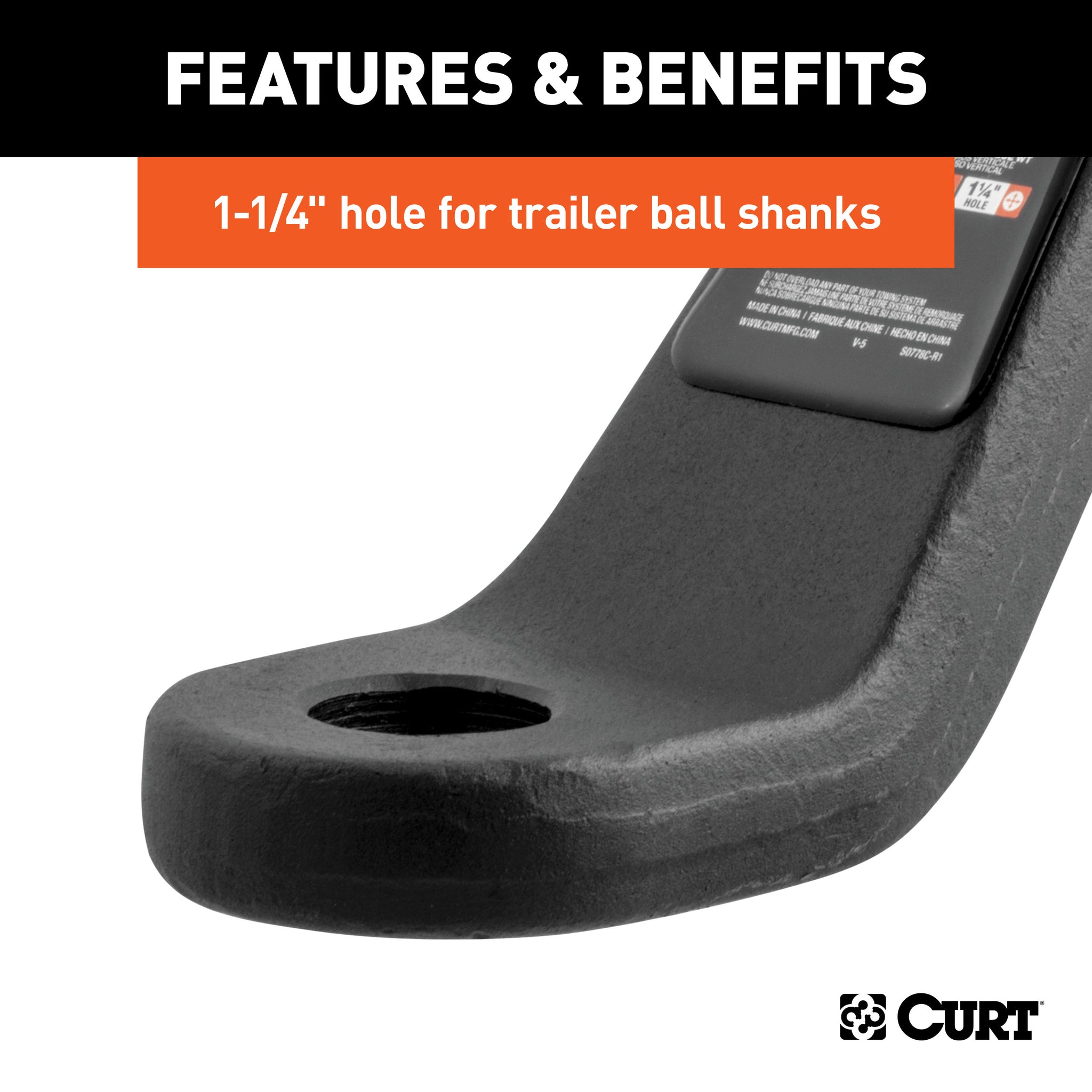

Equipped with a 1-1/4" hole to accept a trailer ball shank |
| Description_ASC |

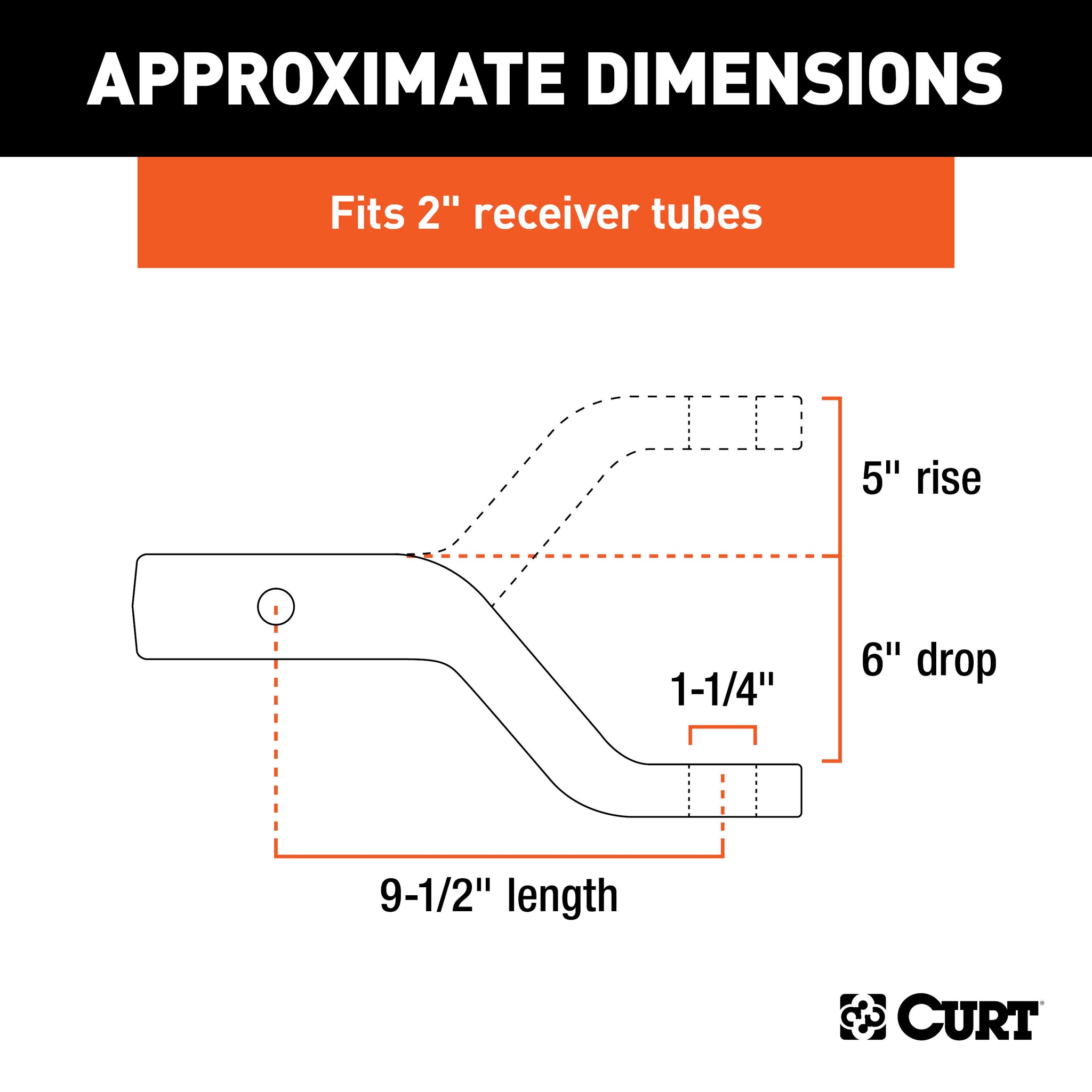

5" rise or 6" drop for precise trailer leveling |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Forged Ball Mount (2" Shank, 17,000 lbs., 6" Drop, 9-1/2" Long) |
| Description_EXT |
CURT 45342 Forged Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 17,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 5-Inch Rise |
| Description_MKT |
Pushing the limits of standard towing, CURT forged ball mounts are a powerhouse among receiver-style ball mounts. With solid, one-piece construction, each forged ball mount is designed to surpass other 2" options to accommodate the added stress of heavy-duty towing. They are able to tow up to 17,000 lbs. of gross trailer weight and up to 2,550 lbs. of tongue weight, giving them more power to handle especially heavy loads. CURT forged ball mounts also come with a thick skin. We coat each ball mount in a black carbide powder coat finish to provide superior rust, scratch and UV protection. A forged ball mount is an excellent choice for hauling all kinds of heavy trailers. Whatever type of load you are towing -- livestock, industrial equipment, construction materials -- these class 5 ball mounts help you complete the job. Use a forged ball mount to tow large utility trailers, livestock and cattle trailers, toy haulers, RVs and large boat trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). CURT forged ball mounts are engineered to be a perfect counterpart to the CURT class 5 Xtra-Duty trailer hitch, making them the ball mount of choice for full-size pickup trucks and SUVs. |
| Description_FAB |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Constructed from solid, forged steel for superior strength |
| Description_FAB |
Equipped with a 1-1/4" hole to accept a trailer ball shank |
| Description_FAB |
5" rise or 6" drop for precise trailer leveling |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45342 Forged Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 17,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 5-Inch Rise |
| Description_DEF |
Trailer Hitch Ball Mount |
