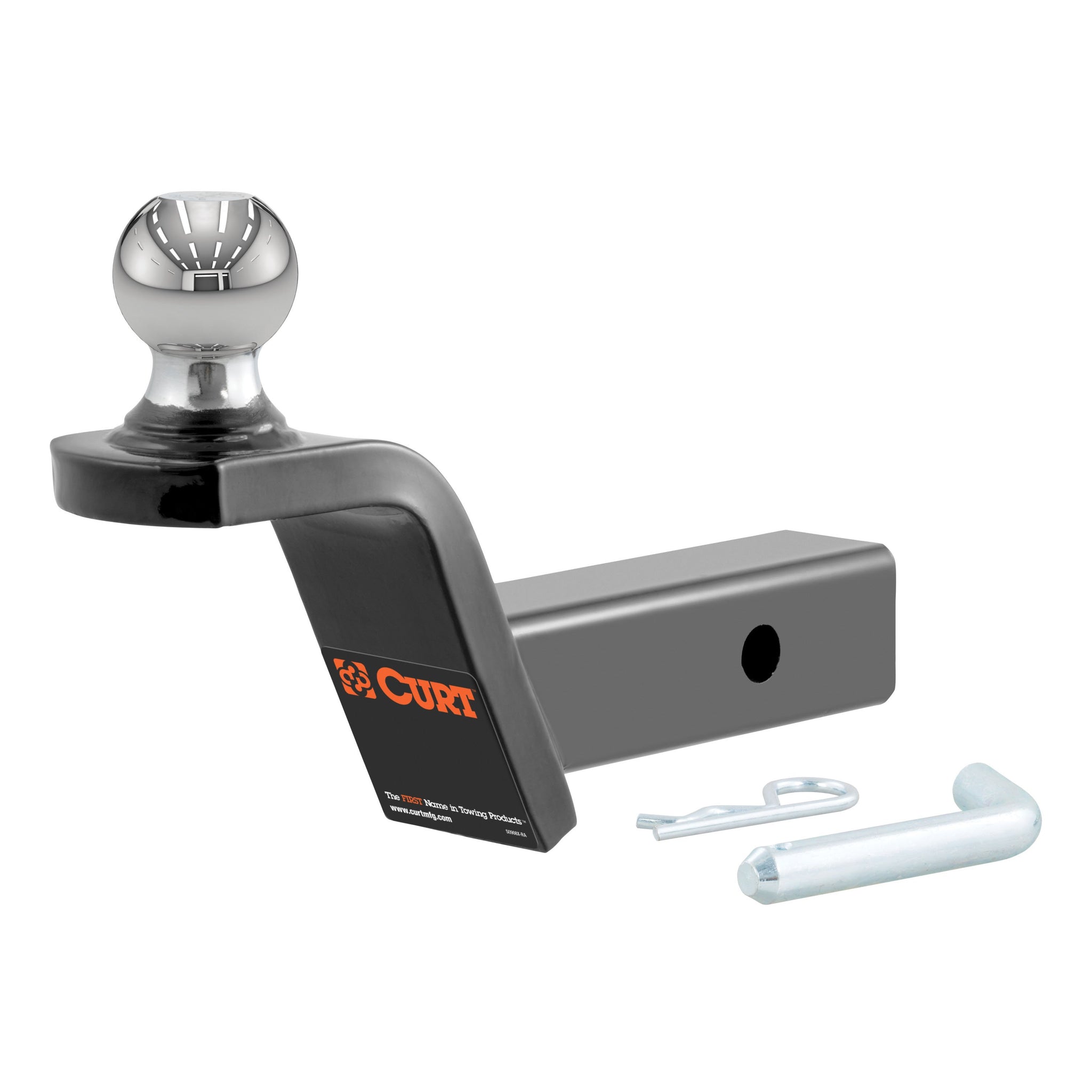

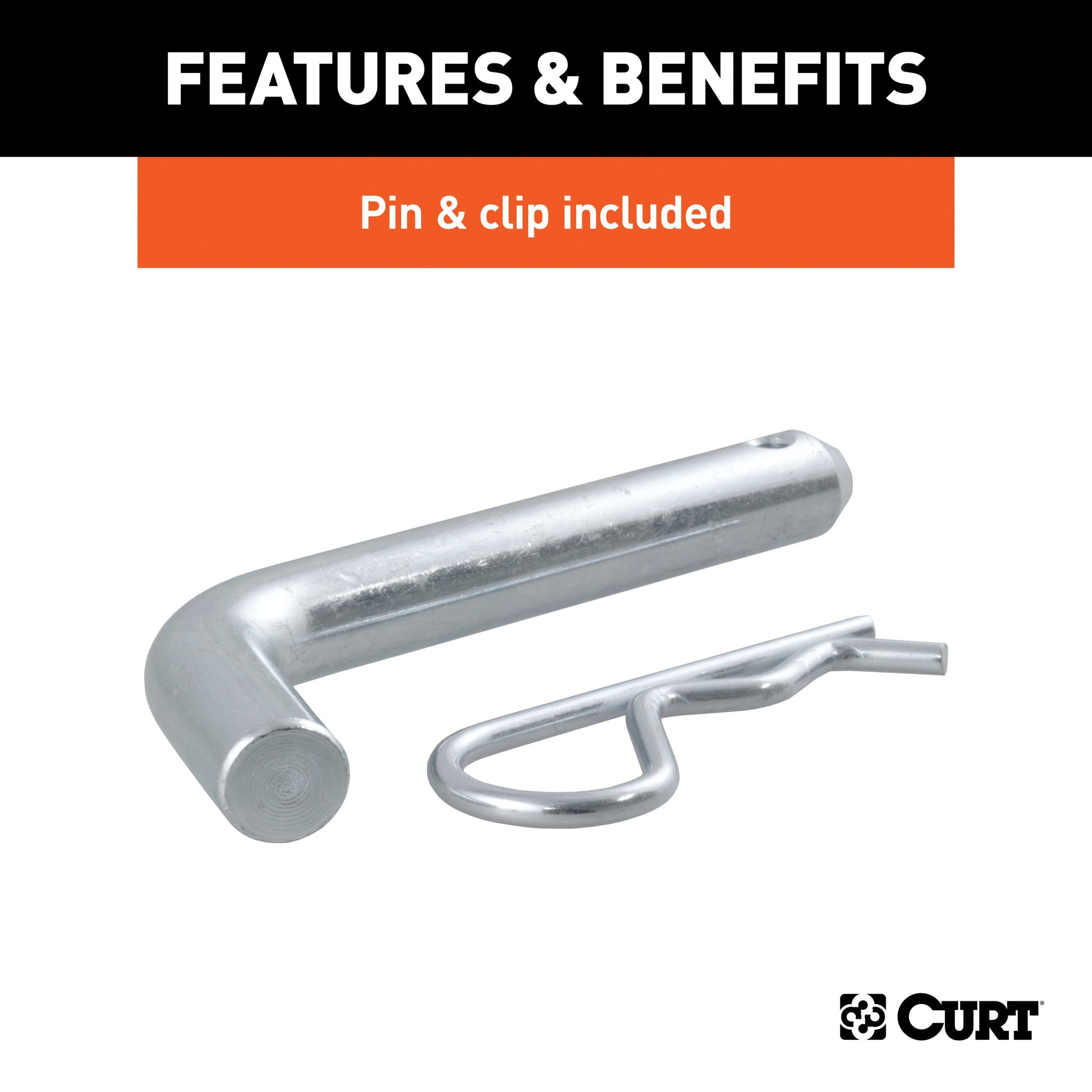

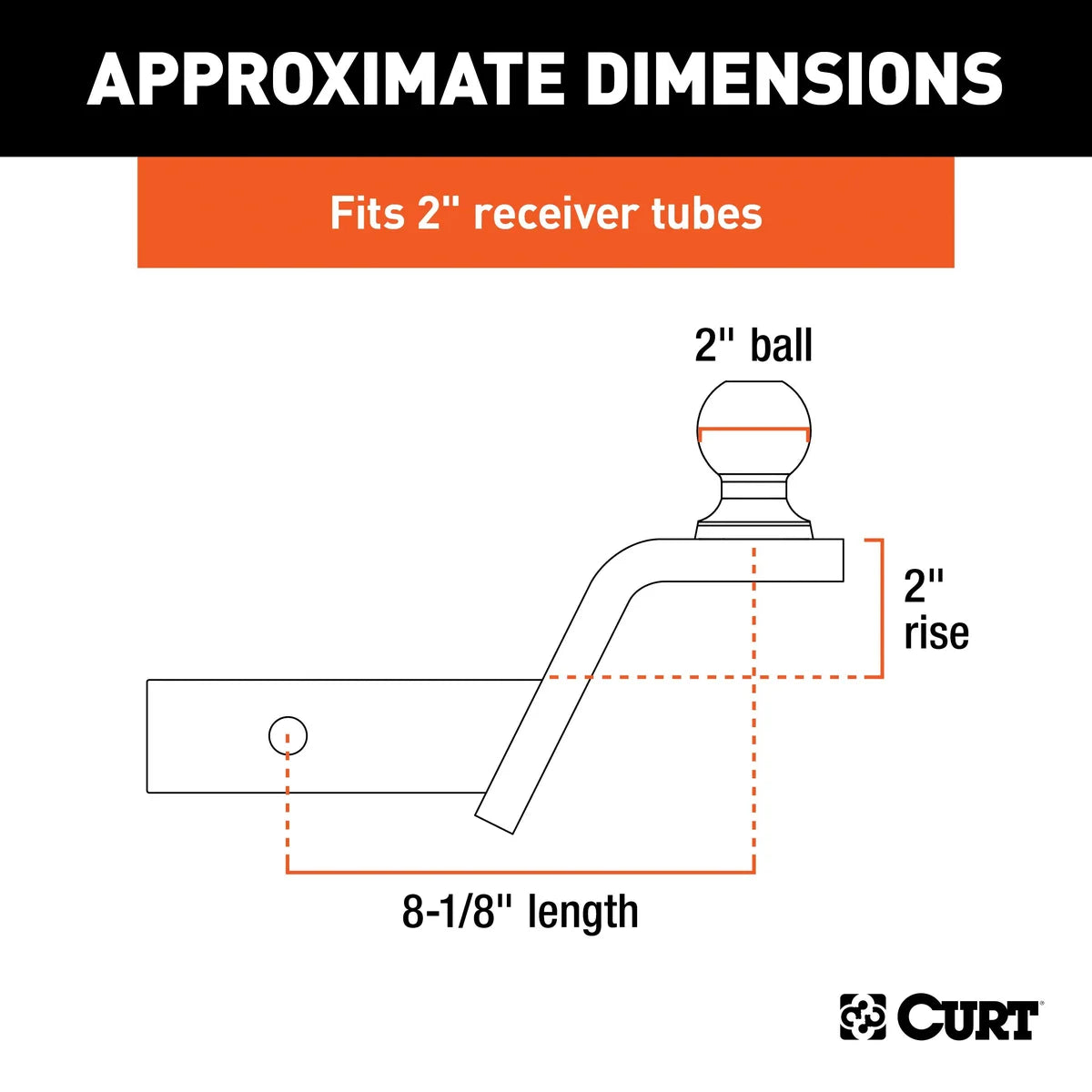

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2" x 2" shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 8-1/8" long, has 2" of rise and comes with a 2" diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.
| Ball Diameter |
2 IN |
| Box Height in Inches - XA |
2 |
| Box Length in Inches - XA |
7 |
| Box Width in Inches - XA |
4 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
7,500 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
6.125 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
20612314055009 |
| Master Case ITF14 - XA |
20612314055009 |
| Master Case Length Inches - XA |
16.000 |
| Master Case Qty - XA |
4 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
39.000 |
| Master Case Width Inches - XA |
8.875 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
3.000 |
| Retail Length - XA |
12.500 |
| Retail Width - XA |
3.000 |
| Rise |
2 IN |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
9.500 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Fusion Ball Mount with 2" Ball (2" Shank, 7,500 lbs., 2" Rise) |
| Tongue Weight (TW) |
750 LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
MOUNT |
| Description_SHO |
Fusion Ball Mount |
| Description_INV |
Fusion Ball Mount |
| Description_ASC |

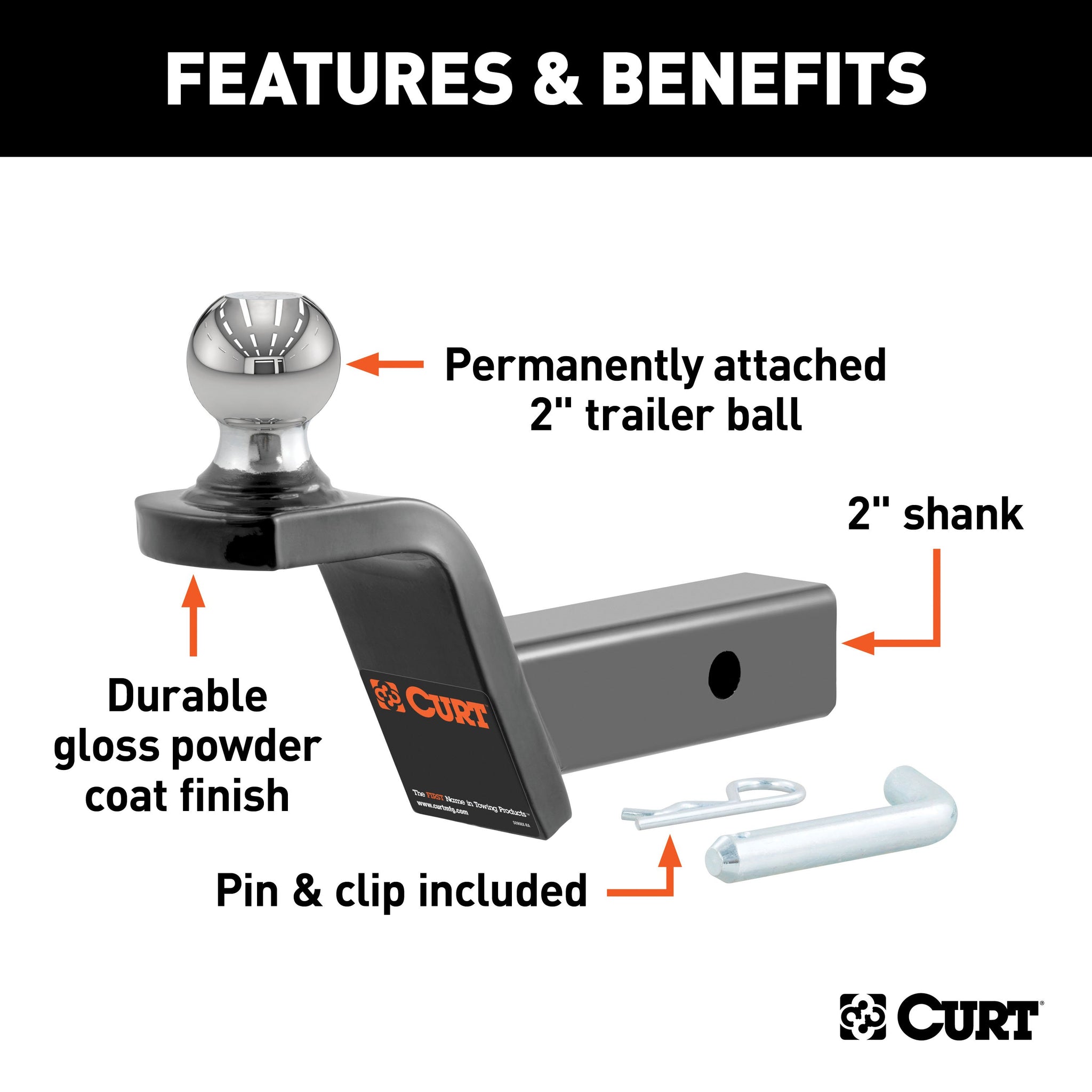

Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |
Welded trailer ball accepts a 2" coupler |
| Description_ASC |

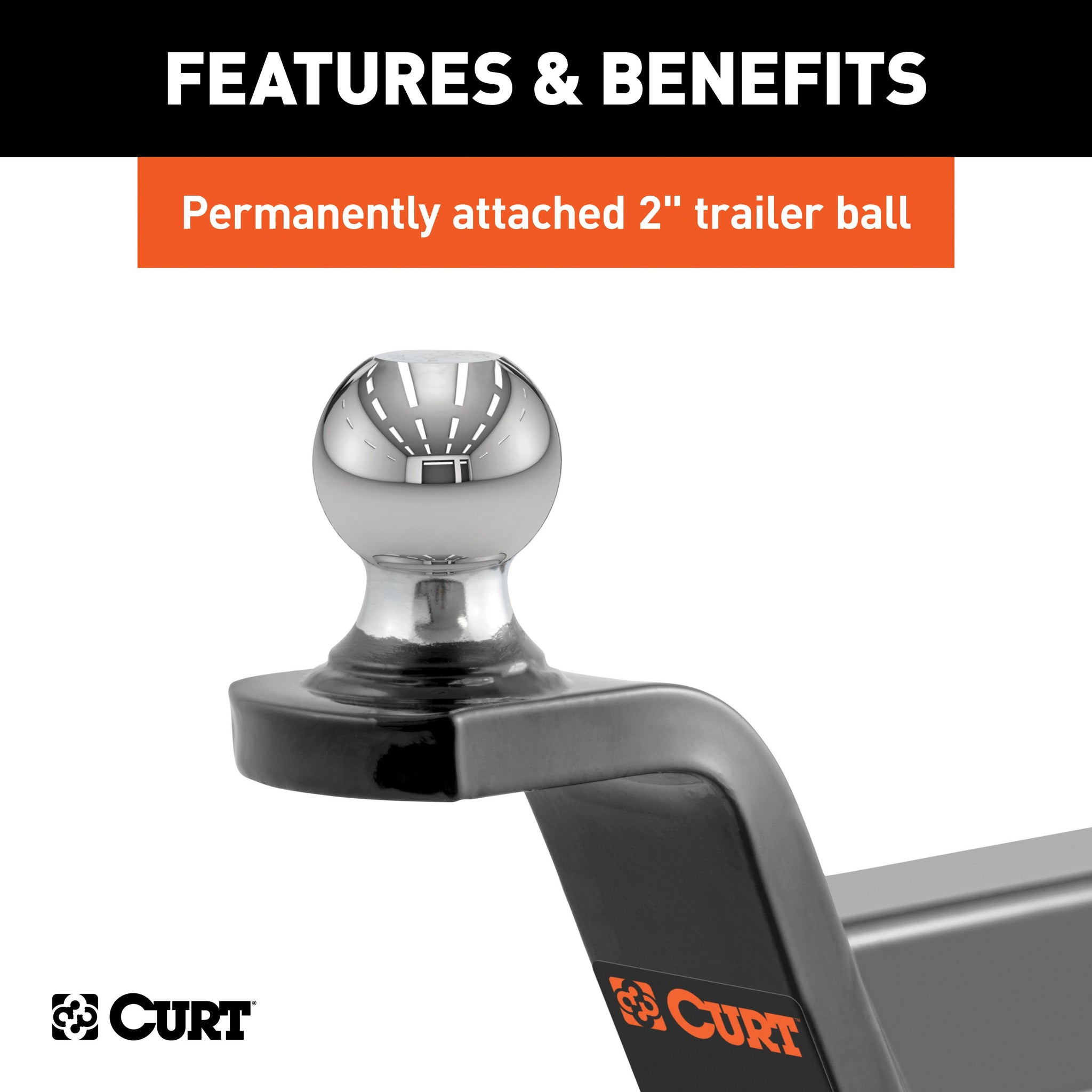

Permanently attached trailer ball cannot be loosened or stolen |
| Description_ASC |
2" rise for precise trailer leveling |
| Description_ASC |
Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_ASC |
Protected by a durable powder coat finish |
| Description_ASC |
Trailer ball features a polished chrome-plated finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Fusion Ball Mount with 2" Ball (2" Shank, 7,500 lbs., 2" Rise) |
| Description_EXT |
CURT 45155 Fusion Trailer Hitch Mount with 2-Inch Ball & Pin, Fits 2-In Receiver, 7,500 lbs, 2" Rise |
| Description_MKT |
Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2" x 2" shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 8-1/8" long, has 2" of rise and comes with a 2" diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping. |
| Description_FAB |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Welded trailer ball accepts a 2" coupler |
| Description_FAB |
Permanently attached trailer ball cannot be loosened or stolen |
| Description_FAB |
2" rise for precise trailer leveling |
| Description_FAB |
Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_FAB |
Protected by a durable powder coat finish |
| Description_FAB |
Trailer ball features a polished chrome-plated finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45155 Fusion Trailer Hitch Mount with 2-Inch Ball & Pin, Fits 2-In Receiver, 7,500 lbs, 2" Rise |
| Description_DEF |
Trailer Hitch Ball Mount |
