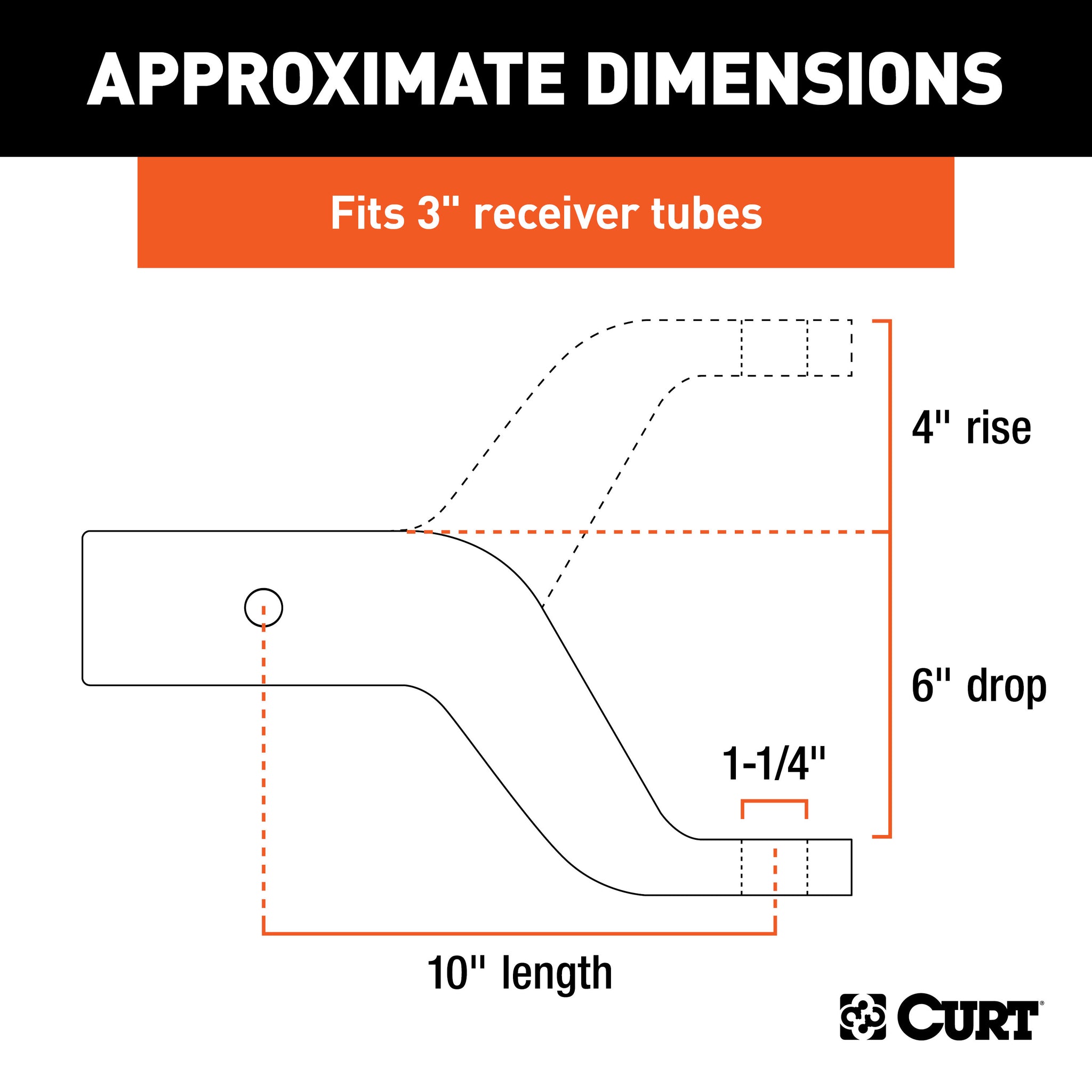

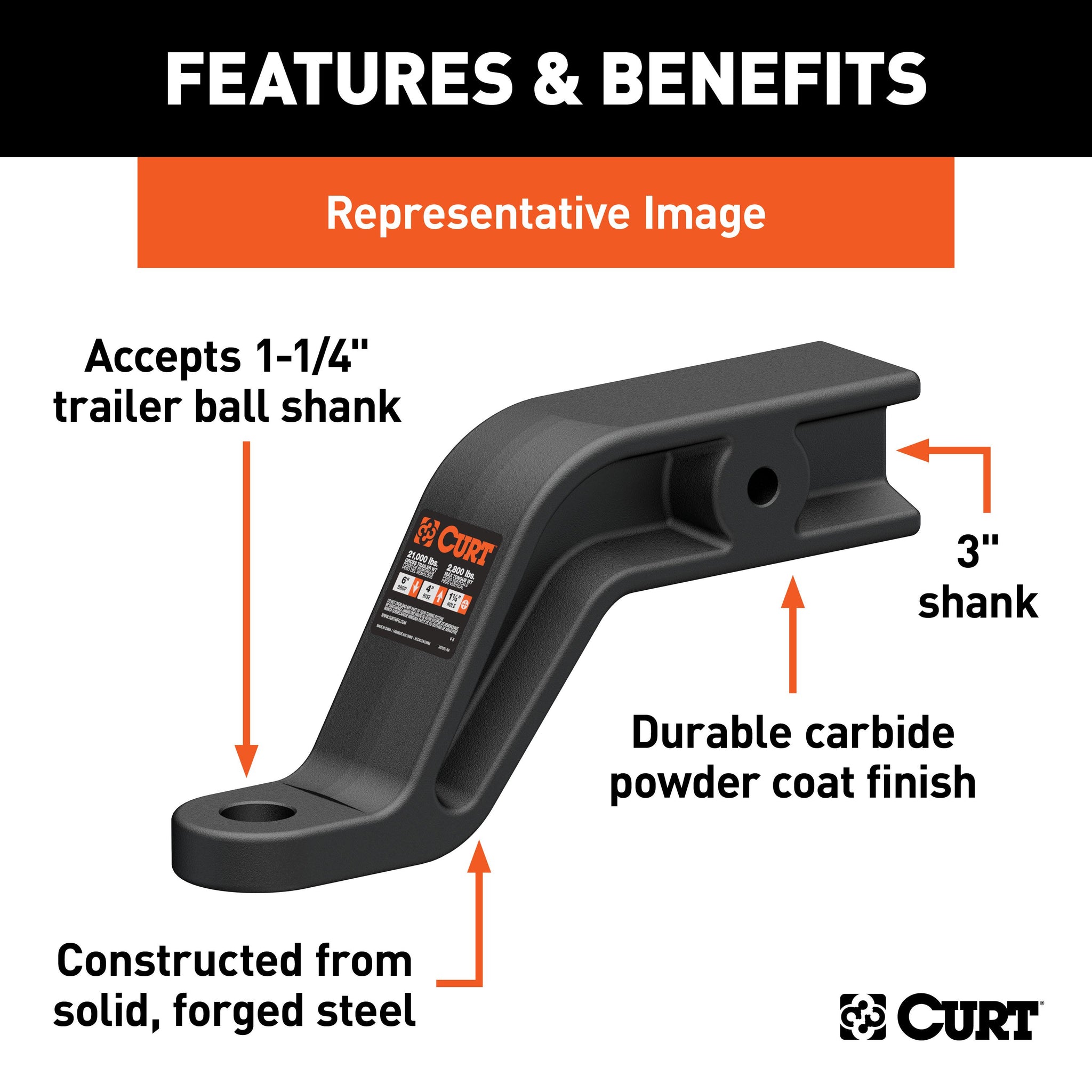

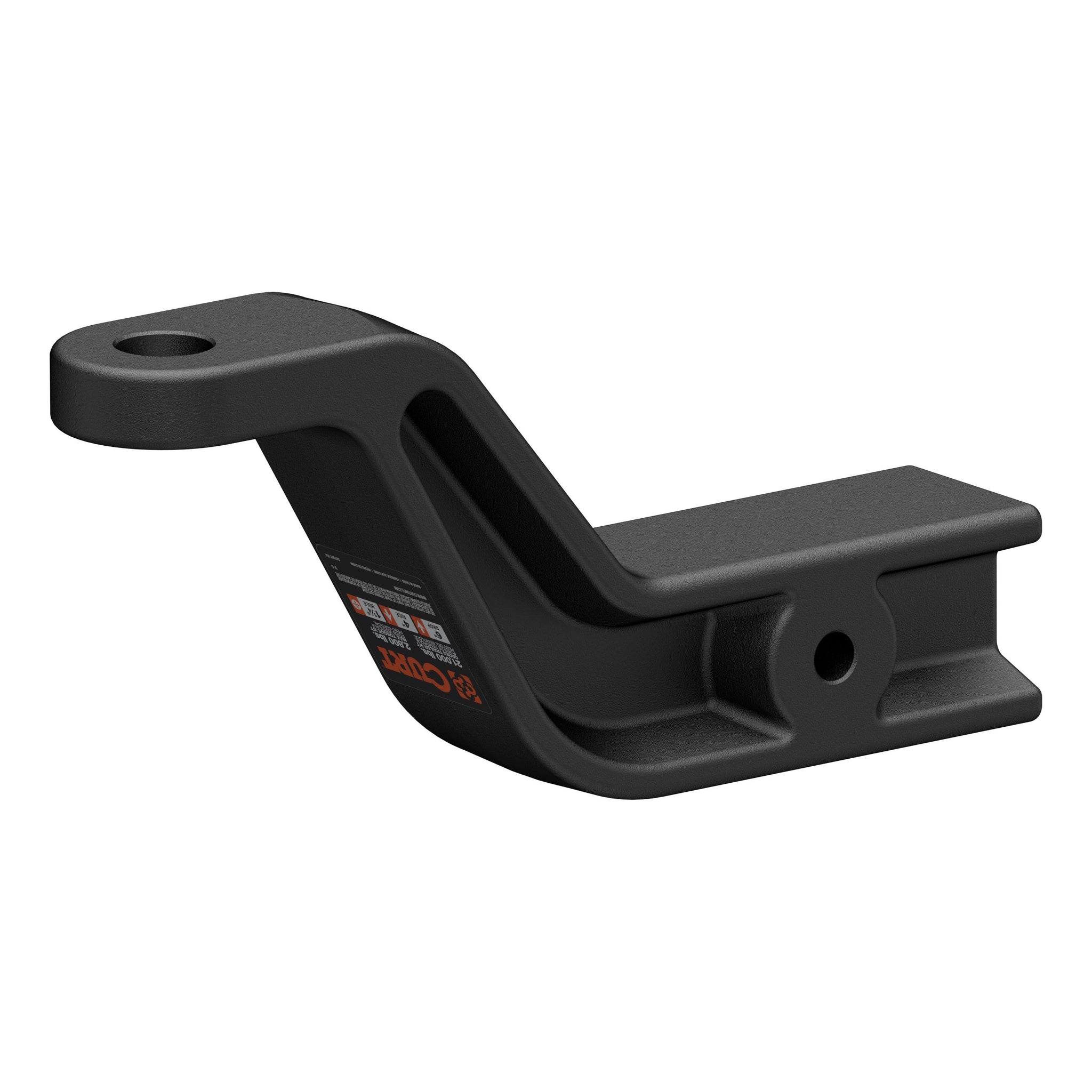

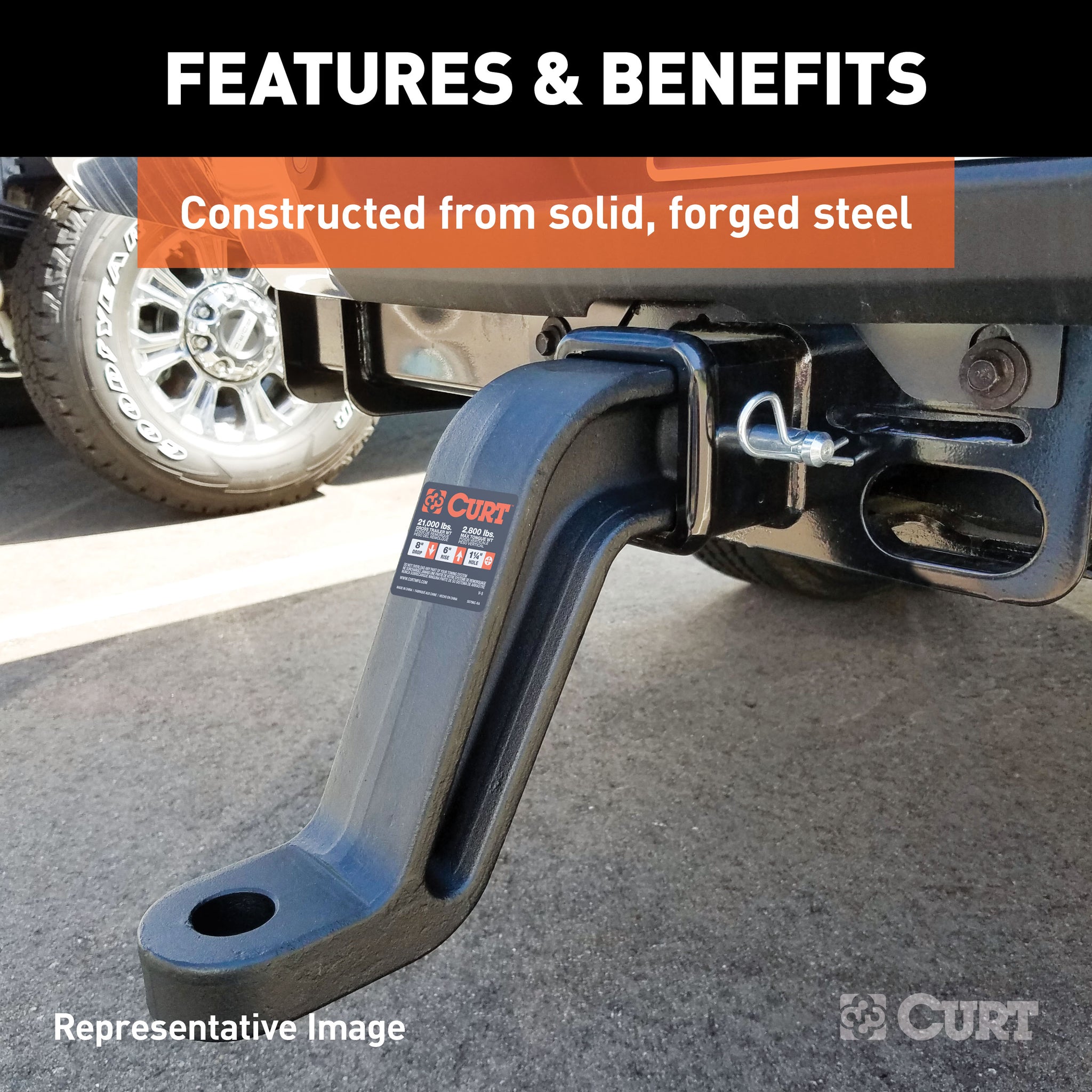

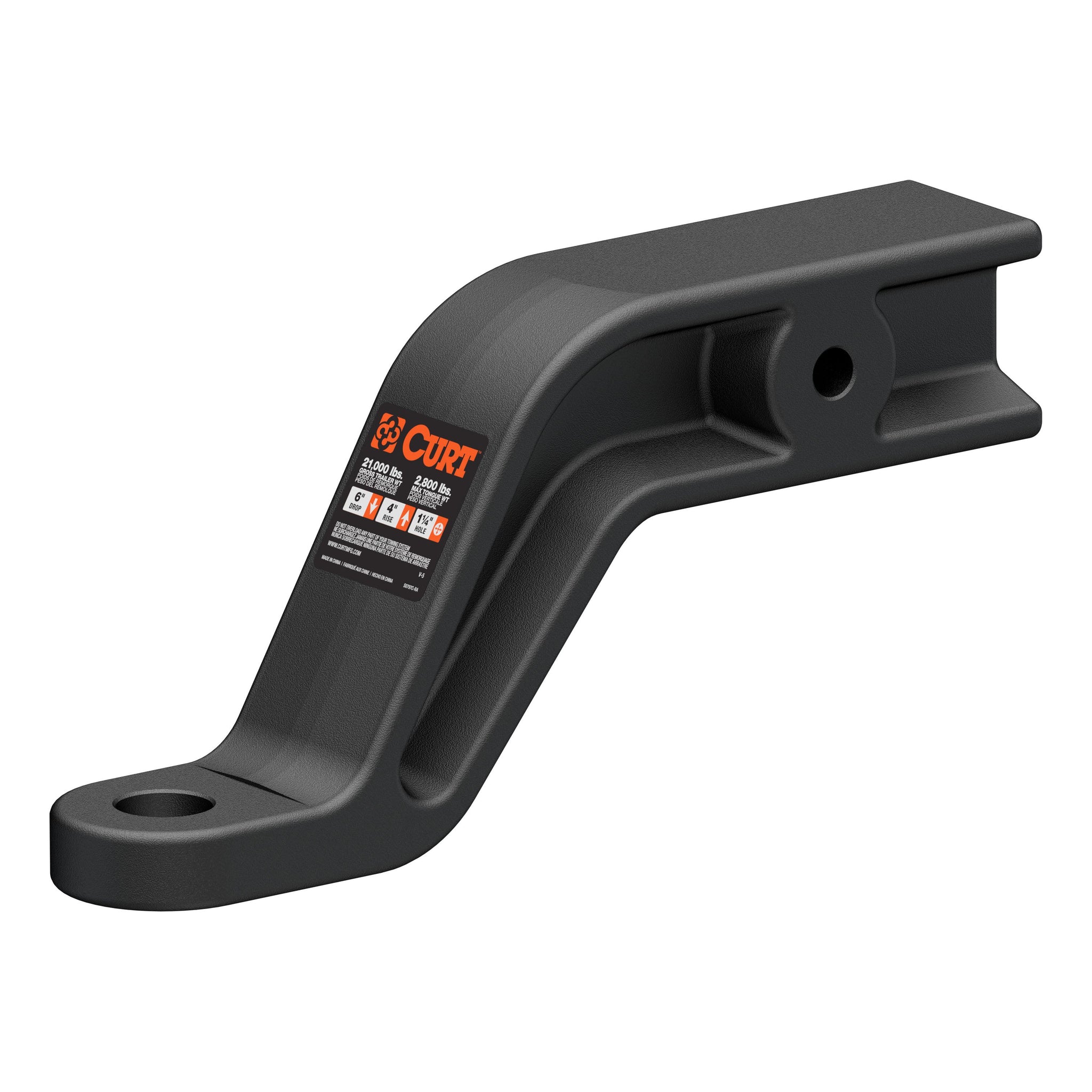

The CURT Industrial Duty ball mount features a 3" x 3" shank to fit heavy-duty 3" trailer hitches. The solid, forged steel construction and I-beam shape supply the necessary strength to complement these larger trailer hitches, and the ball mount has a highly durable carbide powder coat finish for long-lasting rust resistance. To ensure maximum towing power, this ball mount is rated for 21,000 lbs. GTW and 2,800 lbs. TW. The 21K GTW rating is fully tested to at our Detroit engineering facility. This ball mount also offers a rise of 4" and drop of 6" to accommodate larger, lifted pickup trucks, allowing for level towing of the trailer. It also has a 1-1/4" trailer ball hole to accept a heavy-duty trailer ball.
| Drop |
6 IN |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
21,000 LB |
| Hole Size |
1.25 |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
3.500 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
16.375 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
25.020 |
| Master Case Width Inches - XA |
5.750 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
108 |
| Pallet Case Per Layer - XA |
18 |
| Pallet Cases Per - XA |
108 |
| Pallet Cases Per Layer - XA |
18 |
| Pallet Layer of Cases - XA |
6 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
26.000 |
| Pallet Total Weight Per - XA |
2747.200 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
3 IN |
| Retail Height - XA |
3.000 |
| Retail Length - XA |
16.000 |
| Retail Width - XA |
5.000 |
| Rise |
4 IN |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
25.020 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Industrial Duty Forged Ball Mount (3" Shank, 21,000 lbs., 6" Drop, 10" Long) |
| Tongue Weight (TW) |
2,800 LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
2 |
| Box Length in Inches - XA |
7 |
| Box Width in Inches - XA |
4 |
| Class ID |
0 |
| Container Cases Qty - XA |
1512 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
14 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
1512 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
38460 |
| Description_ASC |
4" rise and 6" drop for use with larger, lifted trucks |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Industrial Duty Forged Ball Mount (3" Shank, 21,000 lbs., 6" Drop, 10" Long) |
| Description_EXT |
CURT 45431 Industrial Duty Forged Trailer Hitch Ball Mount, Fits 3-Inch Receiver, 21,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-Inch Rise |
| Description_MKT |
The CURT Industrial Duty ball mount features a 3" x 3" shank to fit heavy-duty 3" trailer hitches. The solid, forged steel construction and I-beam shape supply the necessary strength to complement these larger trailer hitches, and the ball mount has a highly durable carbide powder coat finish for long-lasting rust resistance. To ensure maximum towing power, this ball mount is rated for 21,000 lbs. GTW and 2,800 lbs. TW. The 21K GTW rating is fully tested to at our Detroit engineering facility. This ball mount also offers a rise of 4" and drop of 6" to accommodate larger, lifted pickup trucks, allowing for level towing of the trailer. It also has a 1-1/4" trailer ball hole to accept a heavy-duty trailer ball. |
| Description_FAB |
Fits trailer hitches with a 3" x 3" receiver tube opening |
| Description_FAB |
Tested and rated to 21,000 lbs. GTW and 2,800 lbs. TW |
| Description_FAB |
Constructed from solid, forged steel for superior strength |
| Description_FAB |

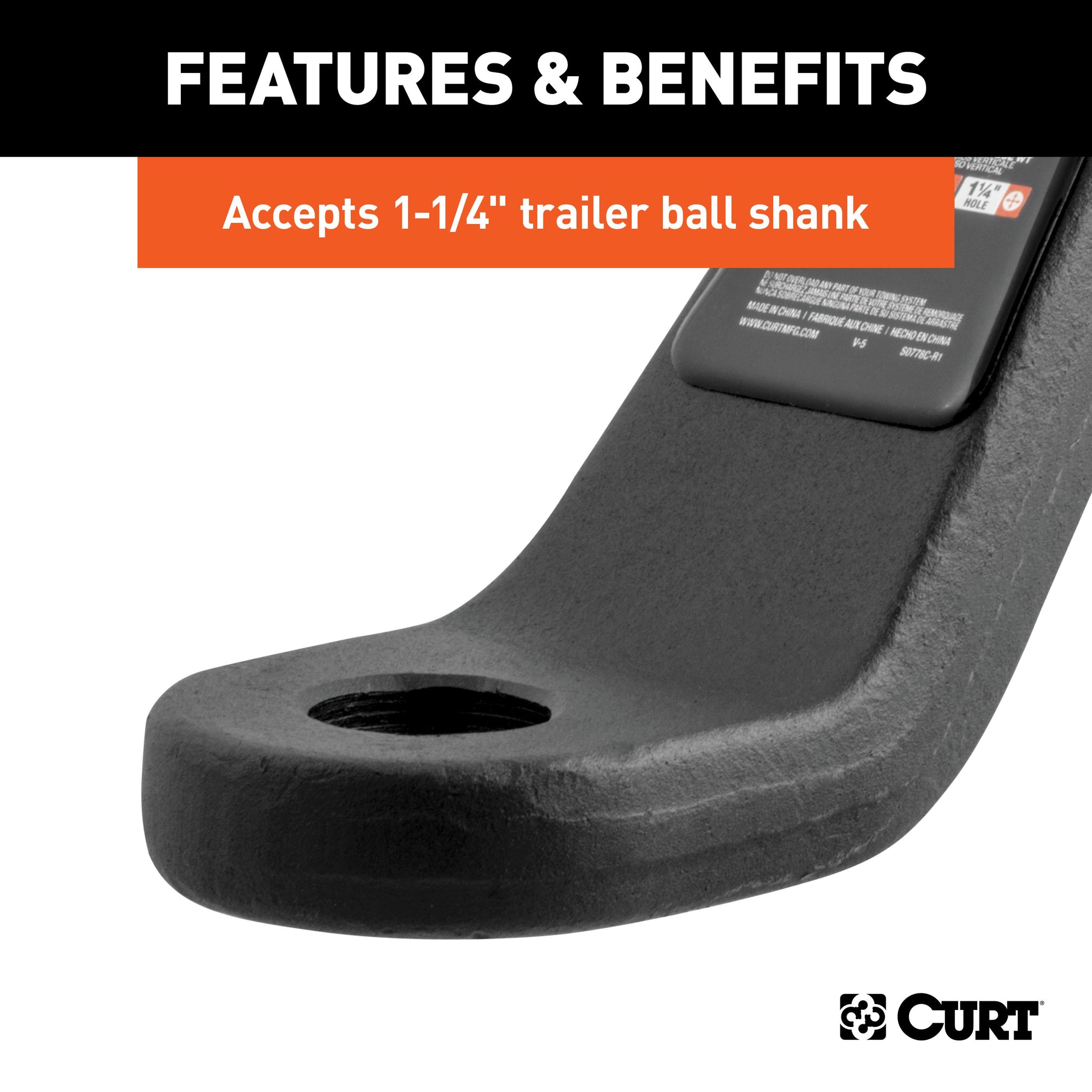

Equipped with a 1-1/4" hole to accept a trailer ball shank |
| Description_FAB |
4" rise and 6" drop for use with larger, lifted trucks |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45431 Industrial Duty Forged Trailer Hitch Ball Mount, Fits 3-Inch Receiver, 21,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-Inch Rise |
| Description_DEF |
Trailer Hitch Ball Mount |
| Description_ABR |
MOUNT |
| Description_SHO |
Forged Ball Mount |
| Description_INV |
Industrial Duty Forged Ball Mount |
| Description_ASC |
Fits trailer hitches with a 3" x 3" receiver tube opening |
| Description_ASC |
Tested and rated to 21,000 lbs. GTW and 2,800 lbs. TW |
| Description_ASC |
Constructed from solid, forged steel for superior strength |
| Description_ASC |
Equipped with a 1-1/4" hole to accept a trailer ball shank |
