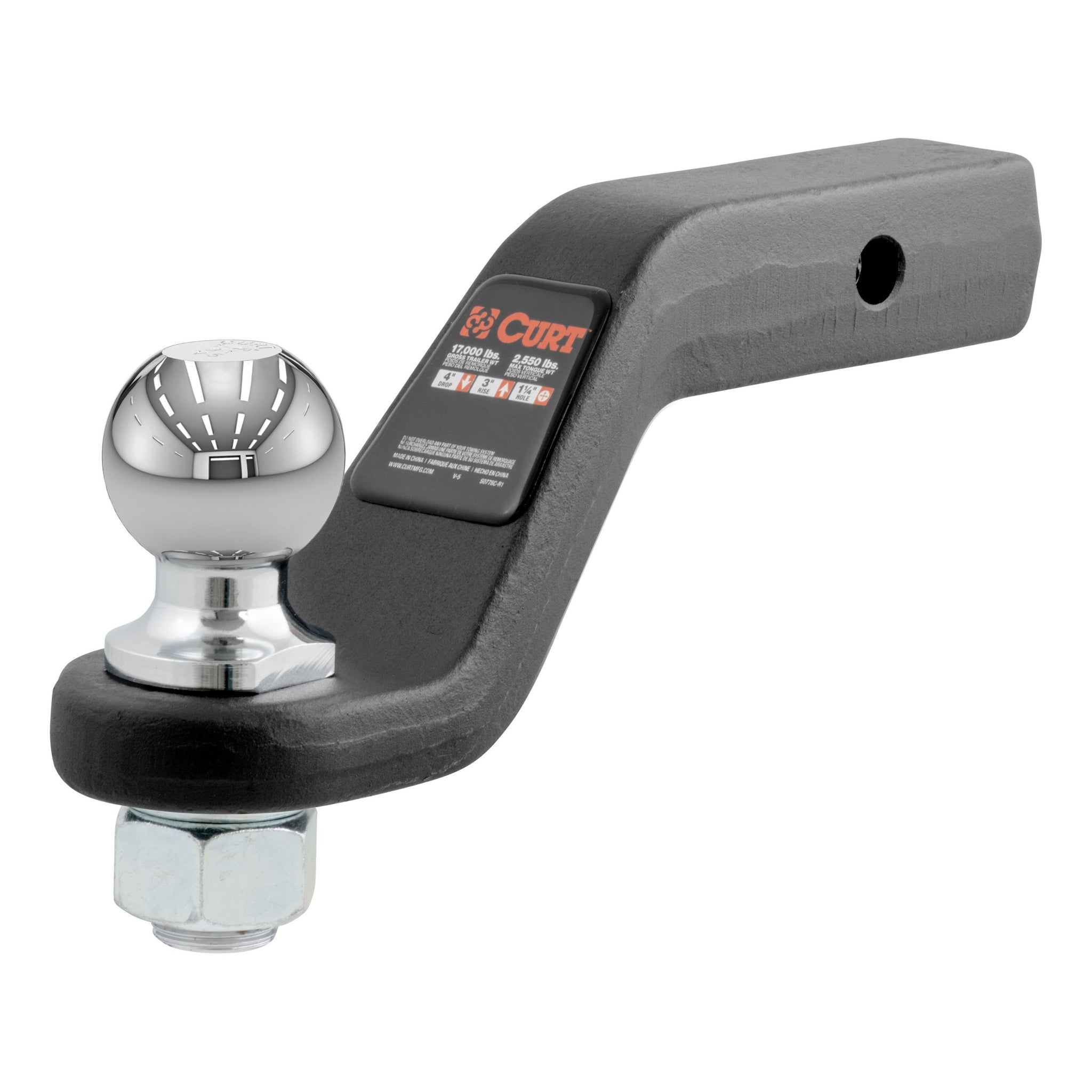

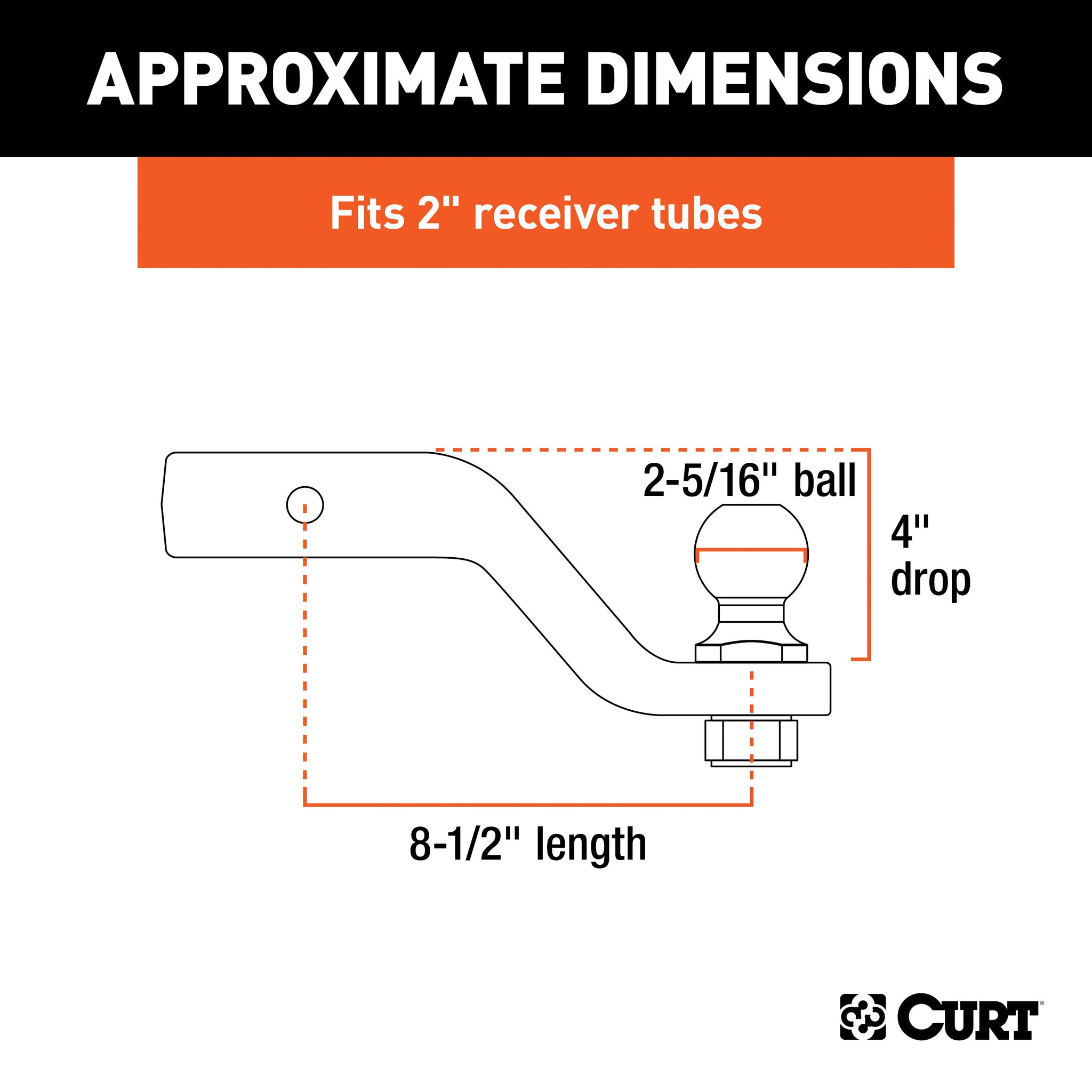

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT forged loaded ball mount features a gross trailer weight capacity of 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most heavy-duty trailers, including large boat trailers, double-axle utility trailers, deluxe campers, livestock trailers and recreational vehicle trailers used for hauling motorcycles, personal watercraft and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/2", a drop of 4" and comes with a durable carbide black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.
| Ball Diameter |
2-5/16 IN |
| Box Height in Inches - XA |
6 |
| Box Length in Inches - XA |
14 |
| Box Width in Inches - XA |
7 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Load Type - XA |
Pallets |
| Container Pallet Qty - XA |
0 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Drop |
4 IN |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
15,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
5.710 |
| Item Length - XA |
12.750 |
| Item Width - XA |
3.130 |
| Master Case Height Inches - XA |
7.480 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
9.840 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
18.000 |
| Master Case Width Inches - XA |
10.630 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
144 |
| Pallet Case Per Layer - XA |
16 |
| Pallet Cases Per - XA |
144 |
| Pallet Cases Per Layer - XA |
16 |
| Pallet Layer of Cases - XA |
9 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
72.320 |
| Pallet Total Weight Per - XA |
2636.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2 IN |
| Retail Height - XA |
3.250 |
| Retail Length - XA |
13.500 |
| Retail Width - XA |
5.750 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
17.500 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Loaded Forged Ball Mount with 2-5/16" Ball (2" Shank, 15,000 lbs., 4" Drop) |
| Tongue Weight (TW) |
1,500 LB |
| Truckload Cases Qty - XA |
2448 |
| Truckload Dom Pickup Location - XA |
Eau Claire, Wi |
| Truckload Pallets Qty - XA |
17 |
| Truckload Units Qty - XA |
2448 |
| Truckload Volume Cubic Feet - XA |
94.00000 |
| Truckload Weight - XA |
44814 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
MOUNT |
| Description_SHO |
Loaded Ball Mount |
| Description_INV |
Loaded Forged Ball Mount |
| Description_ASC |

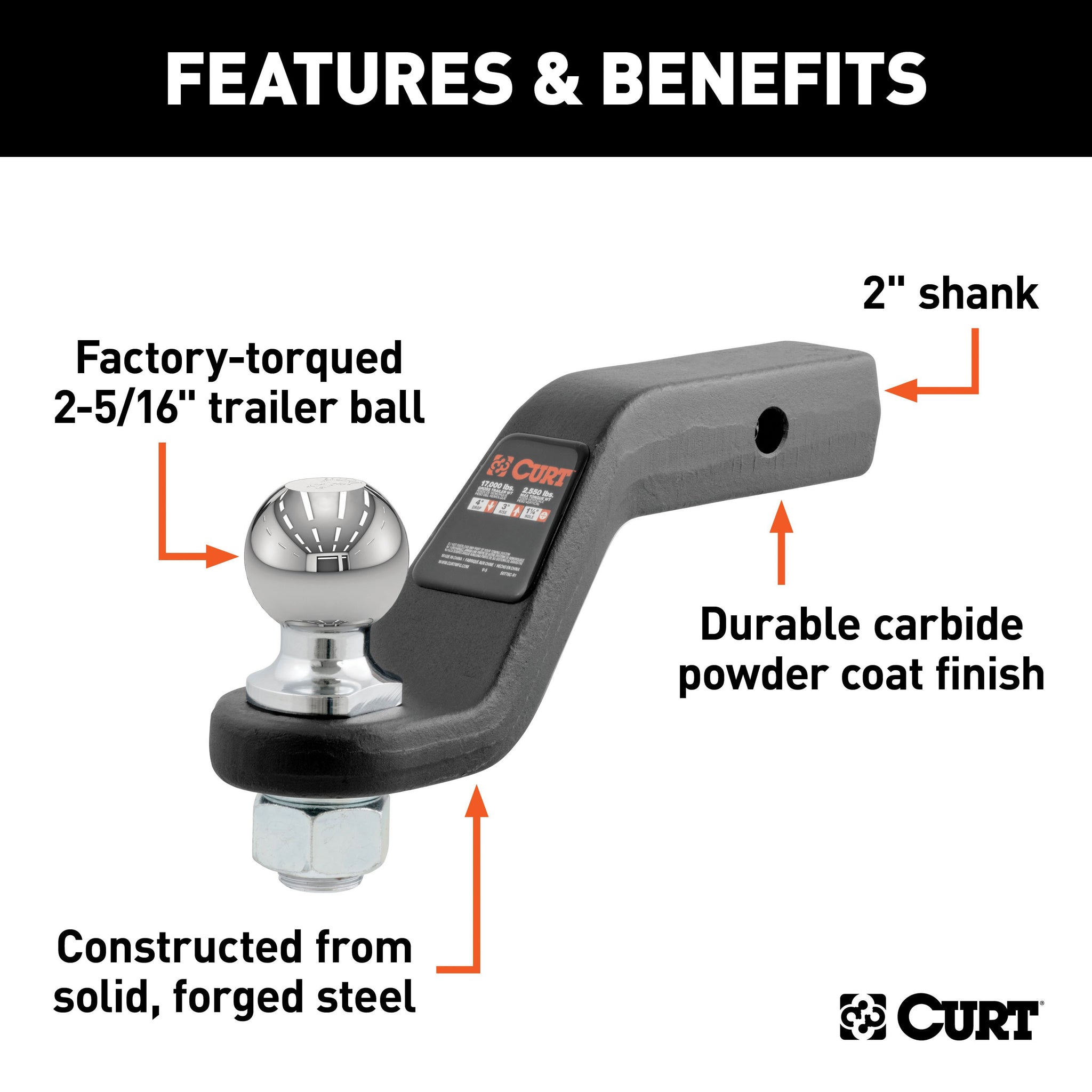

Protected by a highly durable carbide powder coat finish |
| Description_ASC |

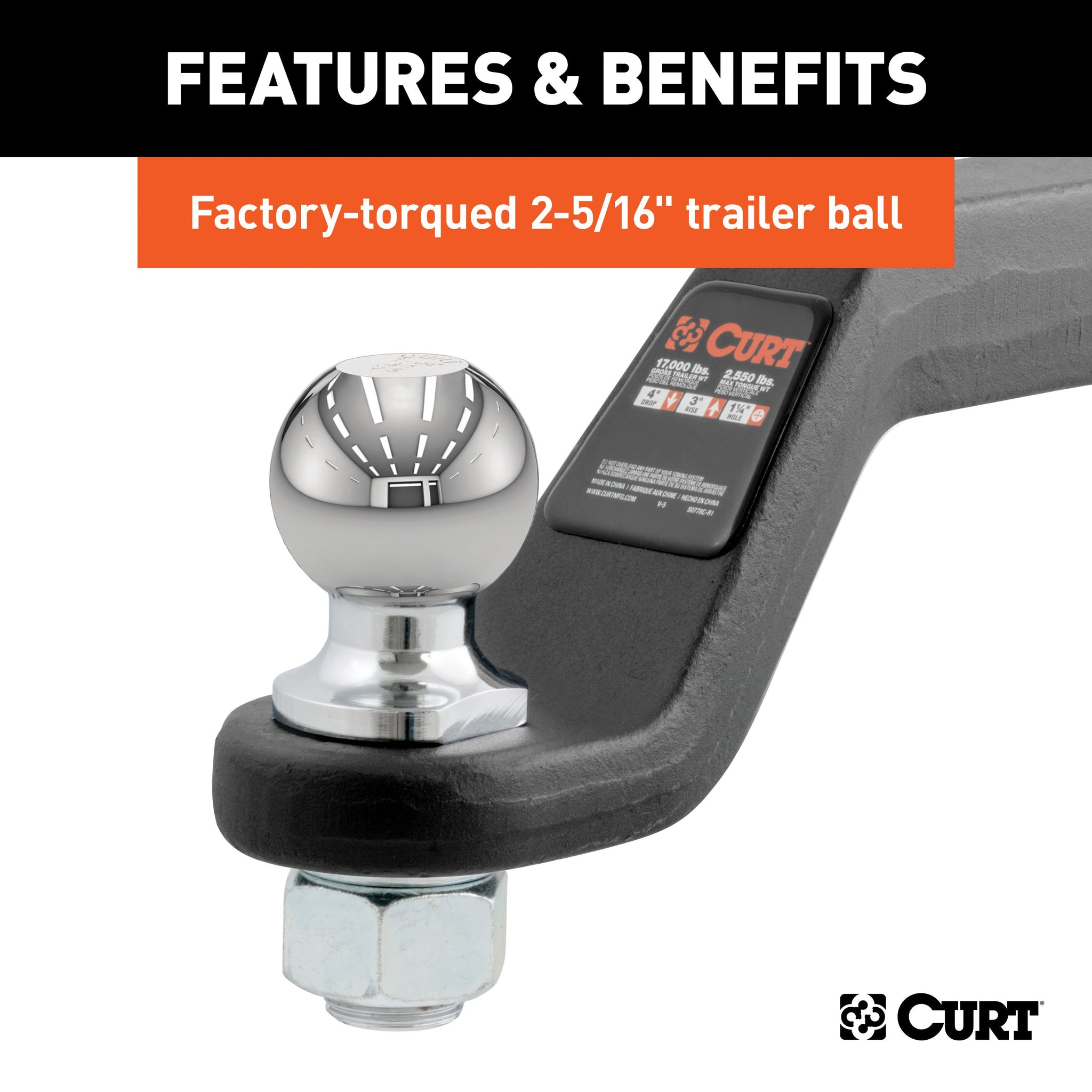

Factory-torqued CURT trailer ball accepts a 2-5/16" coupler |
| Description_ASC |
Loaded Forged Ball Mount with 2-5/16" Ball (2" Shank, 15,000 lbs., 4" Drop) |
| Description_ASC |
Trailer ball features a polished chrome-plated finish |
| Description_ASC |

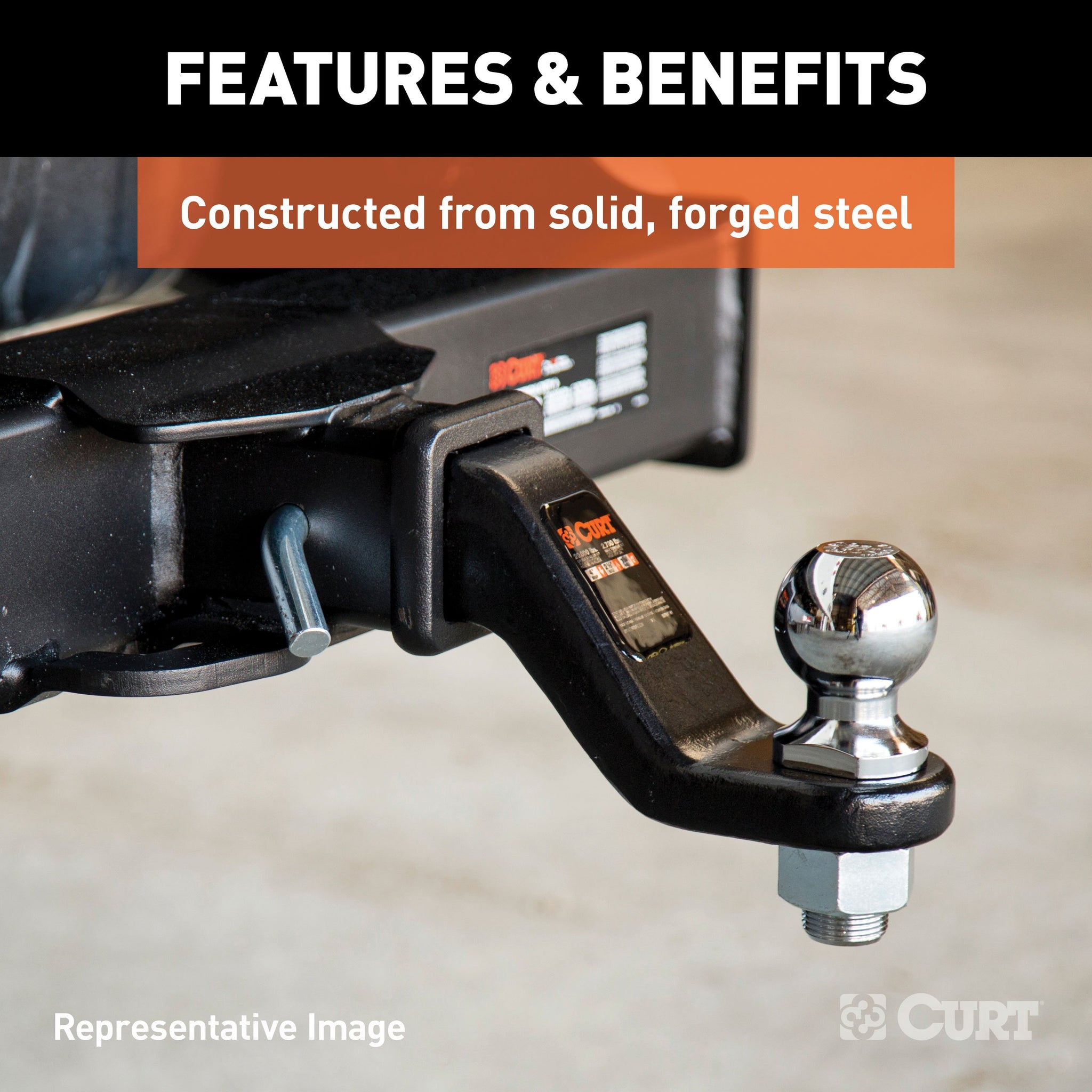

Constructed from solid, forged steel for superior strength |
| Description_ASC |
Rated to 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight |
| Description_ASC |
4" drop for precise trailer leveling |
| Description_ASC |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Loaded Forged Ball Mount with 2-5/16" Ball (2" Shank, 15,000 lbs., 4" Drop) |
| Description_EXT |
CURT 45332 Trailer Hitch Mount with 2-5/16-Inch Ball, Fits 2-Inch Receiver, 15,000 lbs, 4-Inch Drop |
| Description_MKT |
When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT forged loaded ball mount features a gross trailer weight capacity of 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most heavy-duty trailers, including large boat trailers, double-axle utility trailers, deluxe campers, livestock trailers and recreational vehicle trailers used for hauling motorcycles, personal watercraft and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/2", a drop of 4" and comes with a durable carbide black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products. |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Factory-torqued CURT trailer ball accepts a 2-5/16" coupler |
| Description_FAB |
Loaded Forged Ball Mount with 2-5/16" Ball (2" Shank, 15,000 lbs., 4" Drop) |
| Description_FAB |
Trailer ball features a polished chrome-plated finish |
| Description_FAB |
Constructed from solid, forged steel for superior strength |
| Description_FAB |
Rated to 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight |
| Description_FAB |
4" drop for precise trailer leveling |
| Description_FAB |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45332 Trailer Hitch Mount with 2-5/16-Inch Ball, Fits 2-Inch Receiver, 15,000 lbs, 4-Inch Drop |
| Description_DEF |
Trailer Hitch Ball Mount |
